Type | Gluing Machine | Applicable Industries | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction w |
After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and repair service | Local Service Location | Egypt, Turkey, Italy, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile |
Showroom Location | Egypt, India | Video outgoing-inspection | Provided |
Machinery Test Report | Provided | Marketing Type | New Product 2020 |
Warranty of core components | 1 Year | Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump |
Condition | New | Application | Commodity, Machinery & Hardware |
Packaging Type | Cartons | Packaging Material | Plastic |
Automatic Grade | Automatic | Driven Type | Electric |
Voltage | 220/380/440 | Place of Origin | Hebei, China |
Brand Name | HUAYU | Dimension(L*W*H) | 13500*2500*1500 |
Weight | 500KG-3T | Certification | CE |
Warranty | 1 Year | After-sales Service Provided | Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support |
Key Selling Points | Long Service Life | Product name | Automatic Carton Box Folding Gluing Stitching |
Function | Paper Cardboard Box Gluing Stitching Machine | Feeding way | Automatic Feeder |
Speed | 0~220m/min Adjustable | Advantages | Long Working Life |
Function and characteristic:
This machine is fully controlled by computer, easy and simple to change order
The whole control system adopts PLC control svstem. touch screen interface, easy to operate

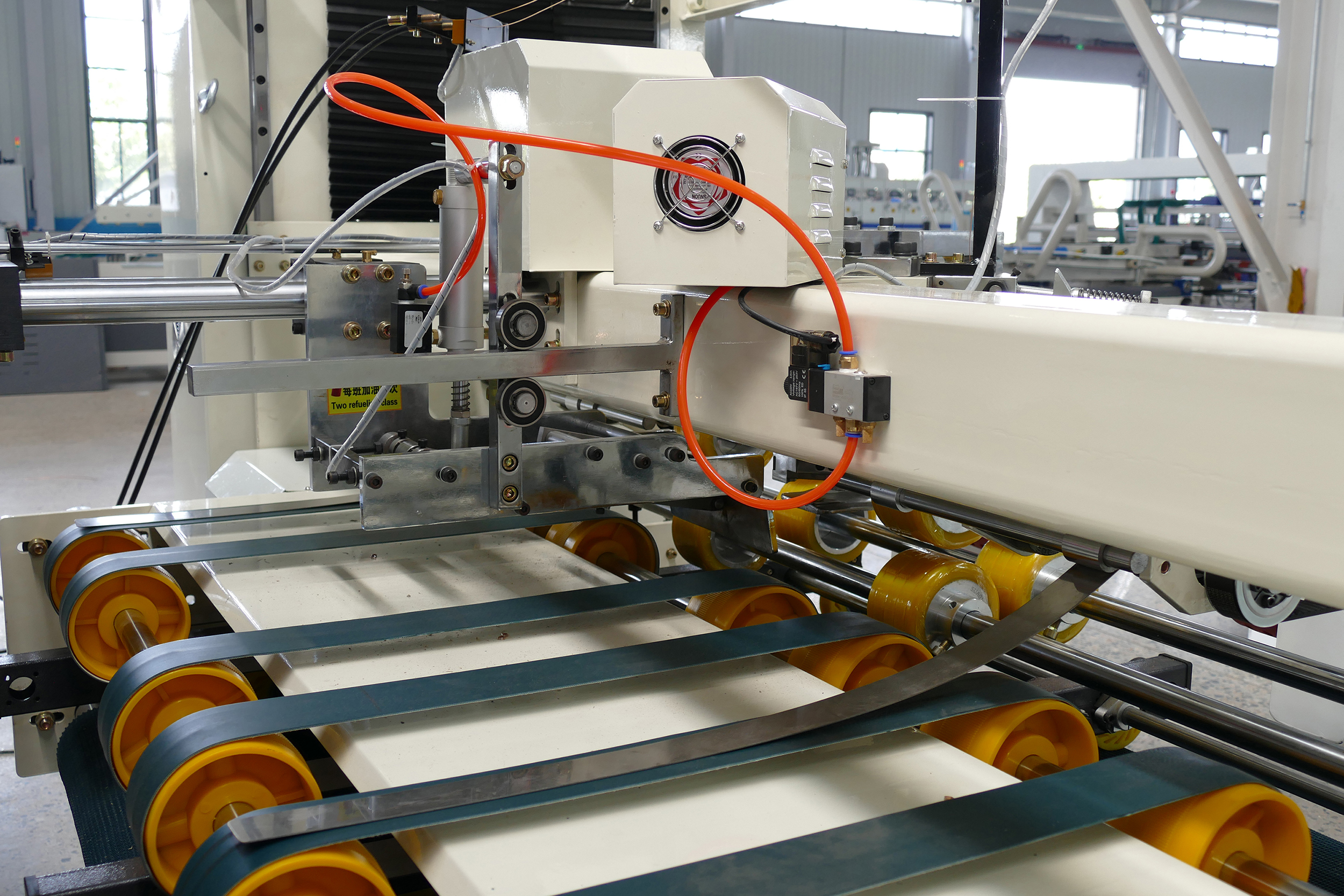

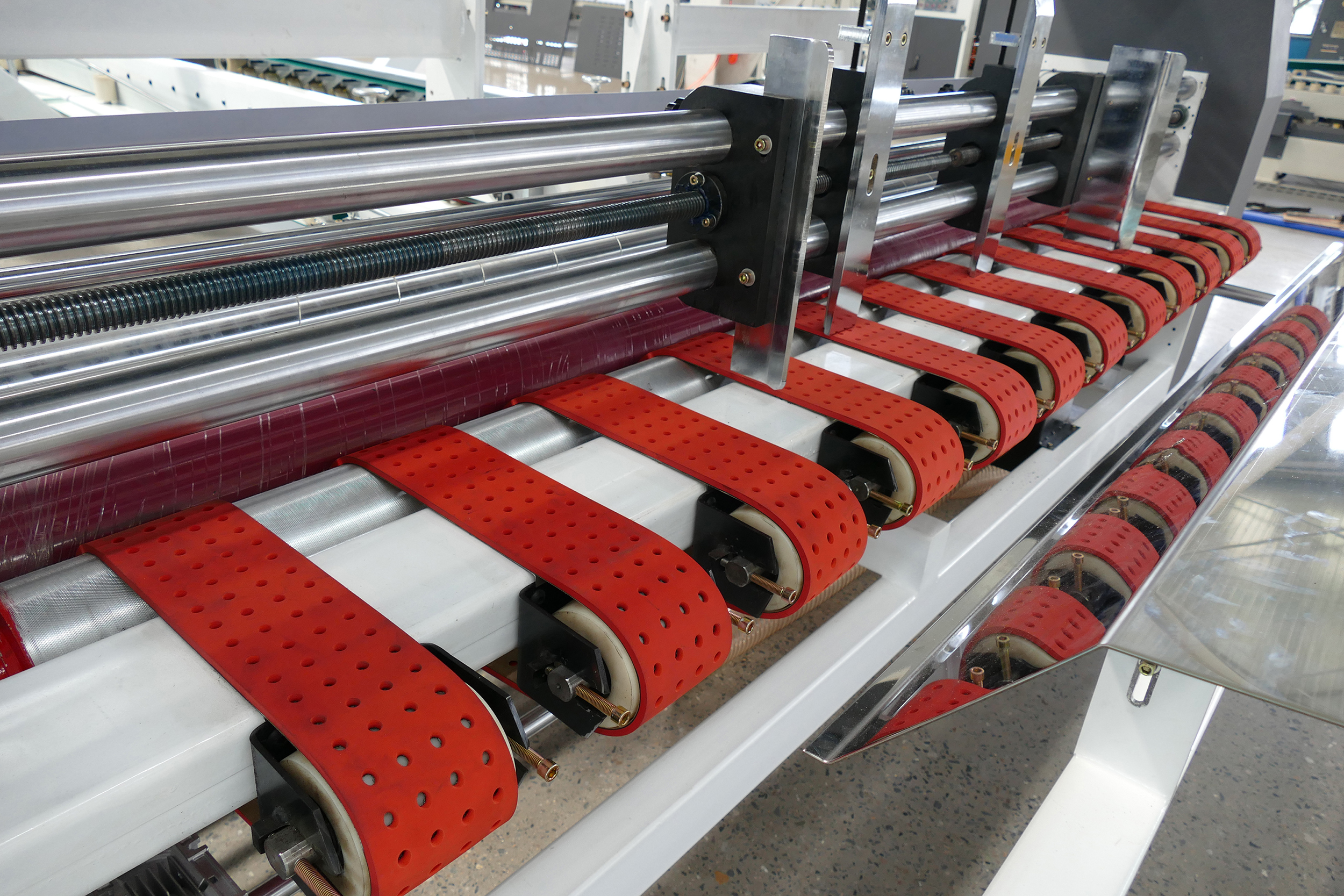

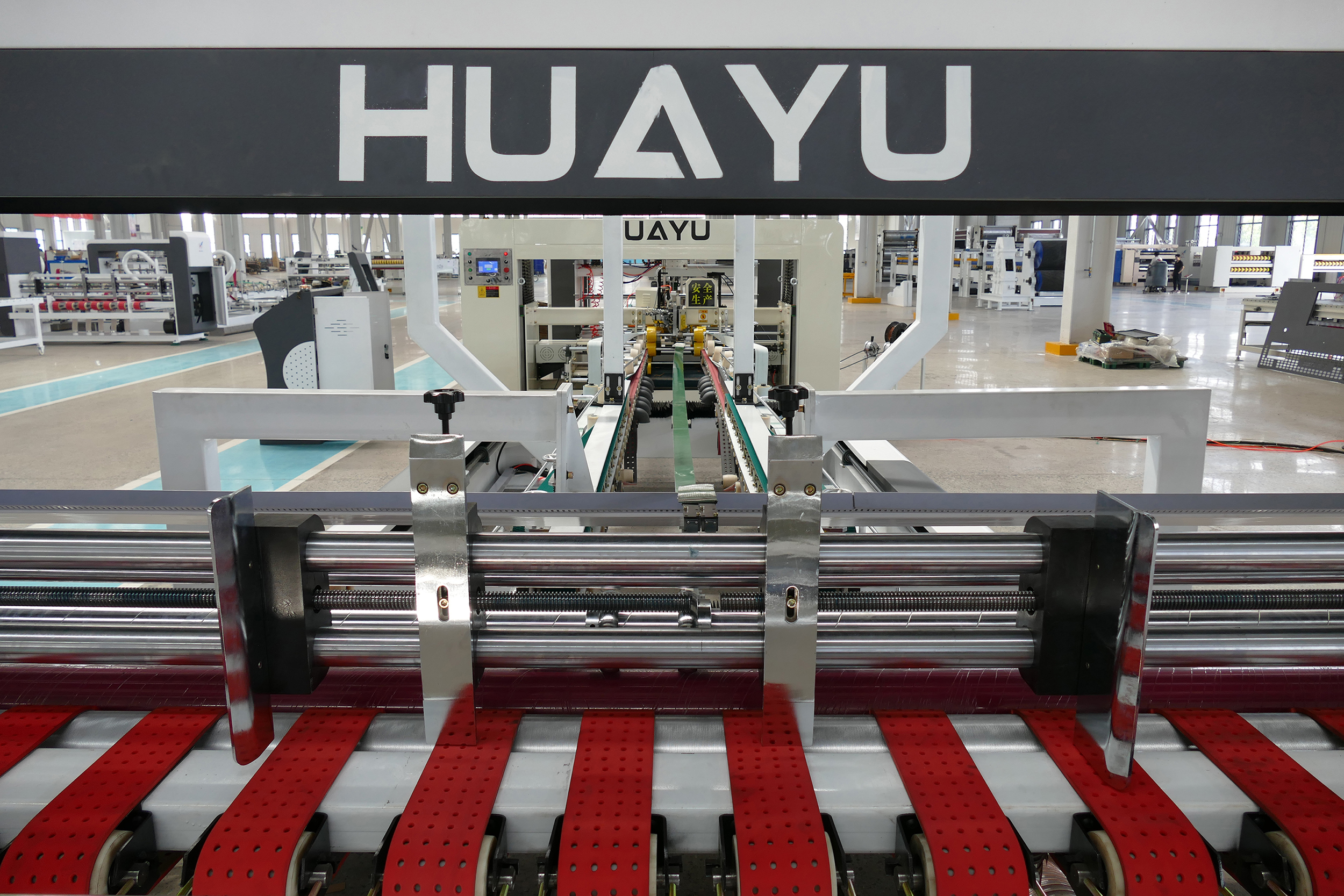

The paper feeding part adopts vacuum adsorption leading edge belt to ensure that the carton is not skewed

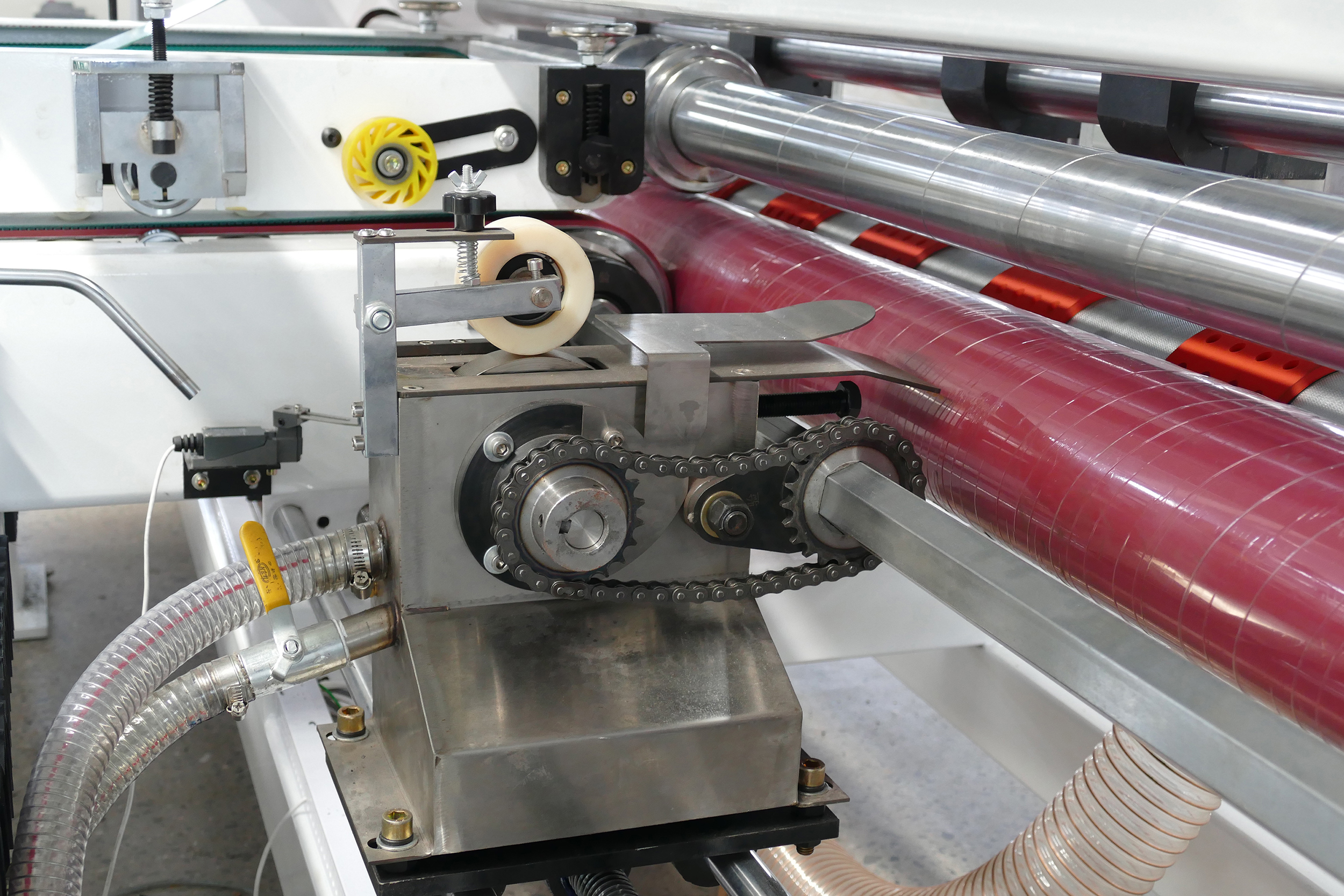

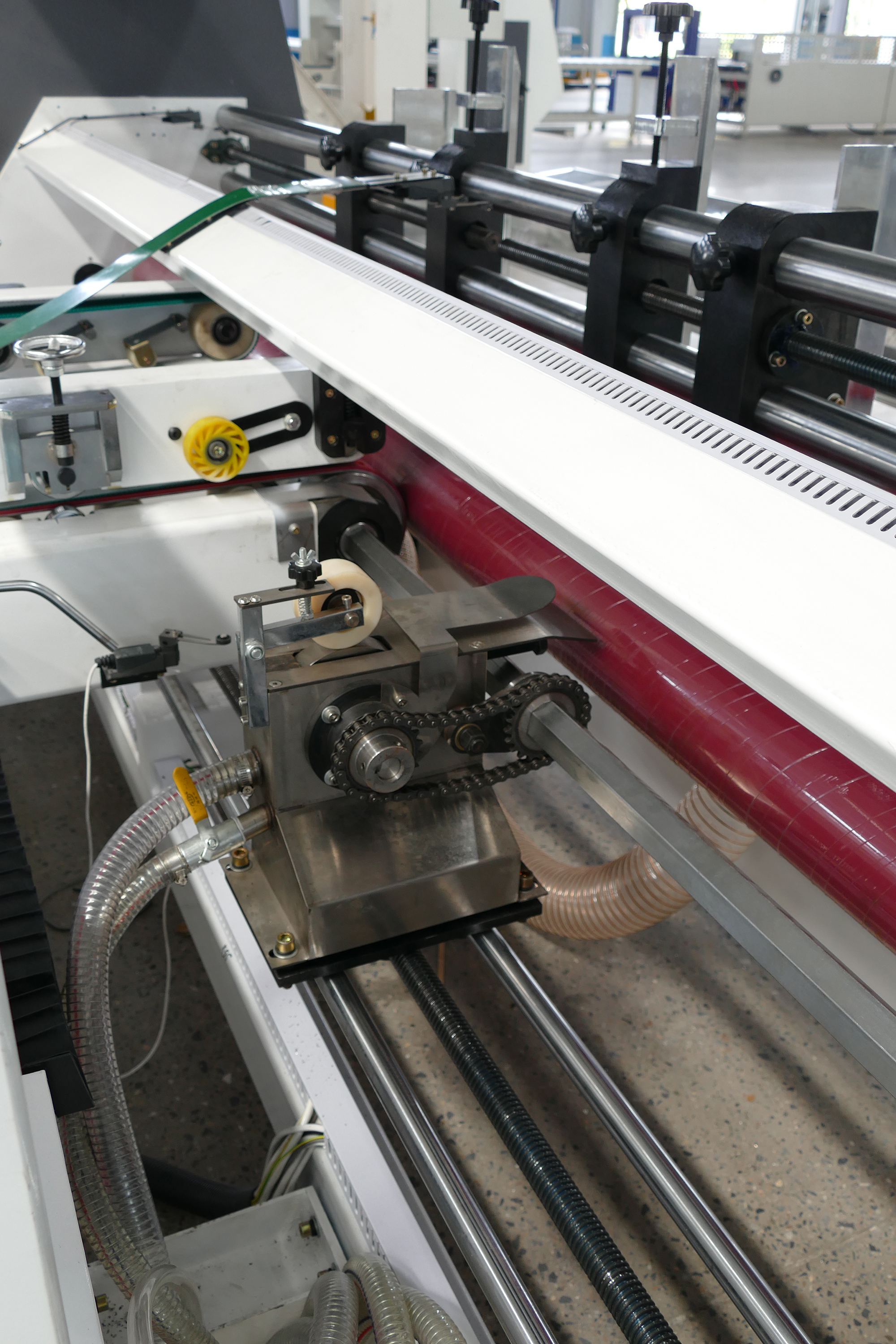

The whole stitcher head is imported from Taiwan with a mechanical speed of 600 nails/min
The nail distance of 30-100mm can be adjusted at will
Single/double/One-time nailing can be completed, which can meet the different requirements of different customers
Suitable for corrugated board three, five, seven layers (seven layers need special explanation)
It only takes a few minutes to change the size of the carton and adjust he nail distance of the carton, greatly saving time and convenient operation
Technological parameter:
Model |
|
Max. Paper size(mm) |
2650 |
Min. Paper size(mm) |
750 |
Max. Carton length(mm) |
800 |
Min. Carton length(mm) |
220 |
Max. Carton width(mm) |
780 |
Min. Carton width(mm) |
130 |
Max. Paper height(mm) |
1200 |
Min. Paper height(mm) |
300 |
Max. Rock cover size(mm) |
350 |
Min. Rock cover size(mm) |
50 |
Max. Width of tongue(mm) |
40 |
Nailing distance(mm) |
30-100 |
Number of nails |
0-99 |
Stitching speed(times/min) |
600 |
Weight(T) |
5T |
