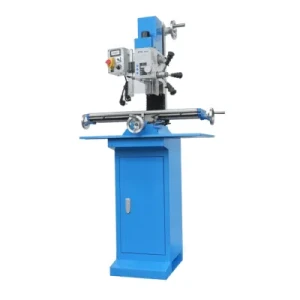

Gear Head 3 Axis Dro ISO40 ISO30 Milling and Drilling Machine

Name: Gear Head 3 Axis Dro ISO40 ISO30 Milling and Drilling Machine
Brand: Yangzhou Eowin Import and Export Co., Ltd.
SKU: Tradewheel_2526941
Price: 800 USD
Availability: InStock

FOB Price 800 - 1500 USD / pieces

Contact Now

Quick Details (View All)

Condition	New	Max.Drilling Capacity	Max.u03a630mm
Max.Face Milling Capacity	Max.u03a676mm	Max.End Milling Capacity	Max.u03a625mm
Working Range	200mm	Transport Package	Wooden Box
Trademark	HUAFEI	Origin	Jiangsu China
HS Code	8459619000	Production Capacity	50000 Units/Year

Product Details

Product Description

Company Info.

Overview
Standard Accessories
Optional Accessories
Feature

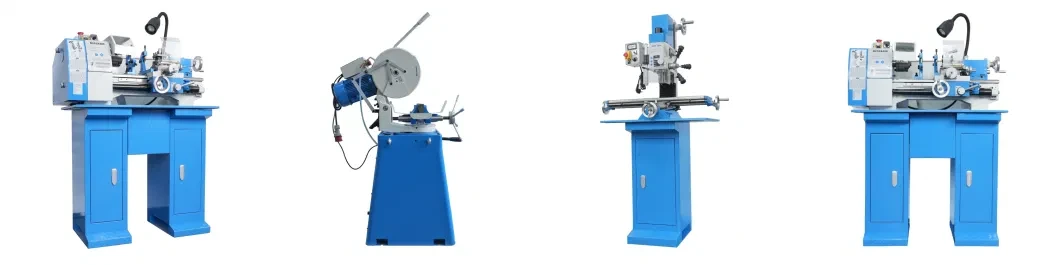

More products
Company Profile
Certifications
Packaging & Shipping
FAQ

Product Description

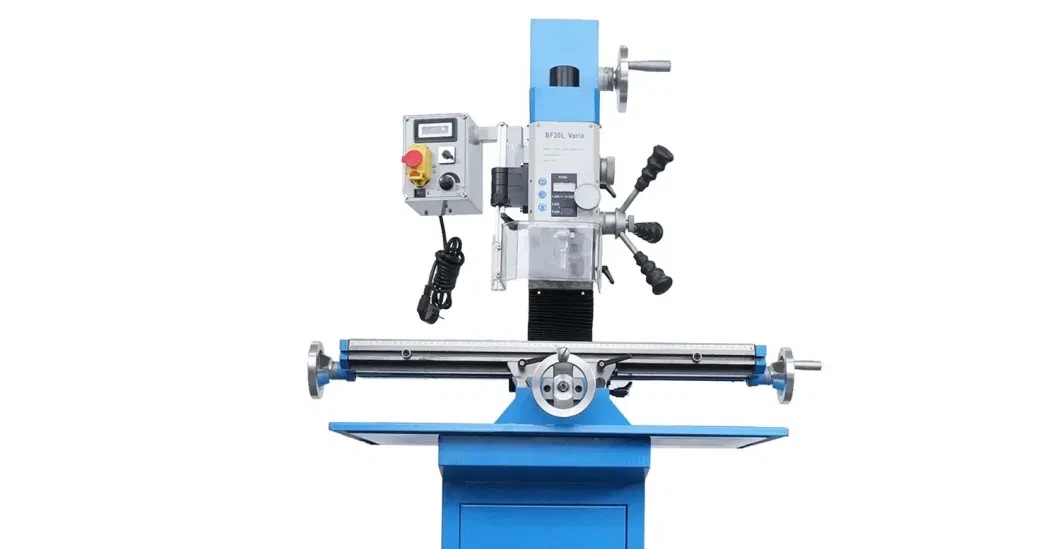

Model	BF30 VARIO	BF30L VARIO
Max.drilling capacity	Max.Φ30mm	Max.Φ30mm
Max.face milling capacity	Max.Φ76mm	Max.Φ76mm
Max.end milling capacity	Max.Φ25mm	Max.Φ25mm
Working range	200mm	200mm
Working table size	730×210mm	840×210mm
T-slot size	14mm	14mm
X-axis travel	430mm	540mm
Y-axis travel	220mm	220mm
Z-axis travel	340mm	340mm
Taper of spindle bore	MT3/M12(R8)	MT3/M12(R8)
Sleeve travel	70mm	70mm
Range of spindle speeds	50-2250rpm	50-2250rpm
Headstock tilt left&right	±90°	±90°
Motor power	1100W	1100W
NW/GW	200/240Kg	230/270Kg
Package size(LxWxH)	940×730×1180mm	1050×730×1180mm

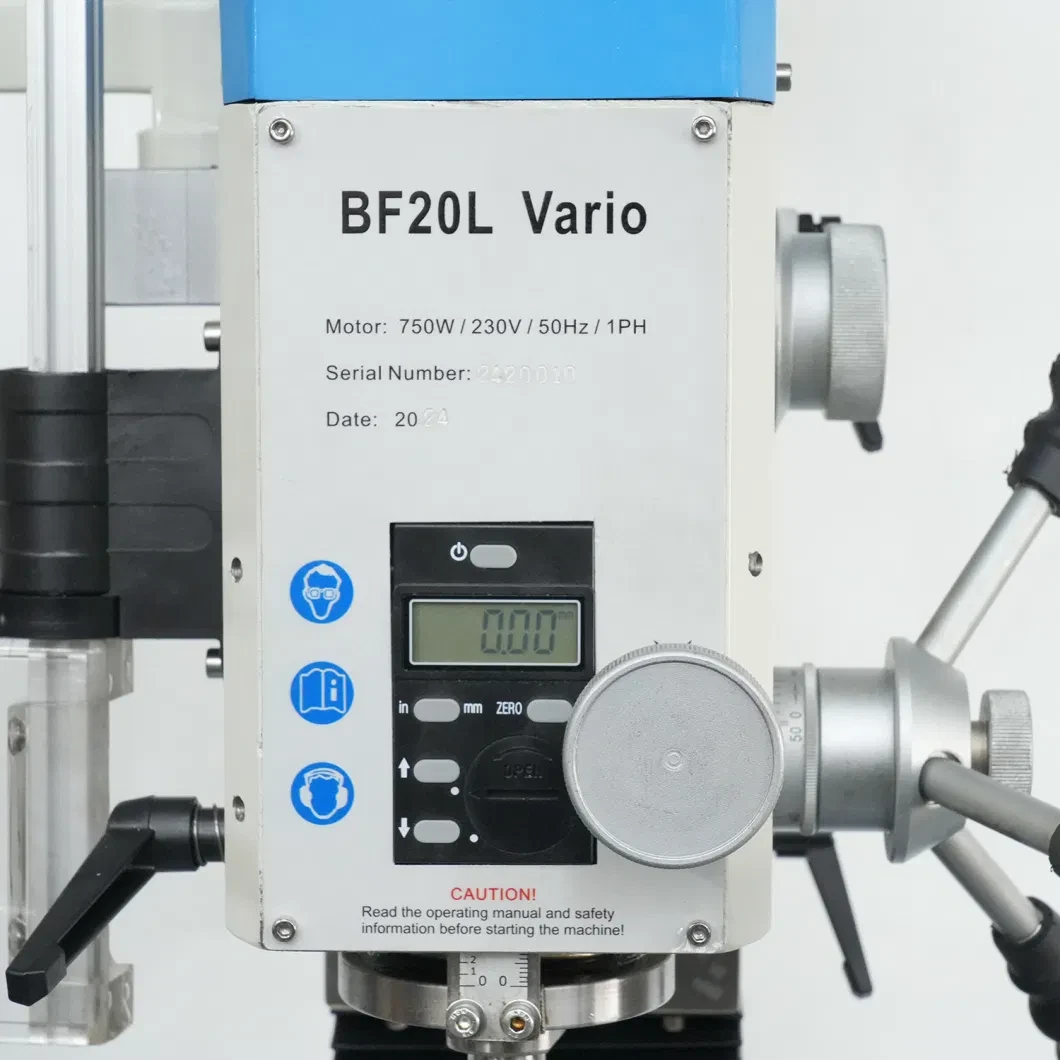

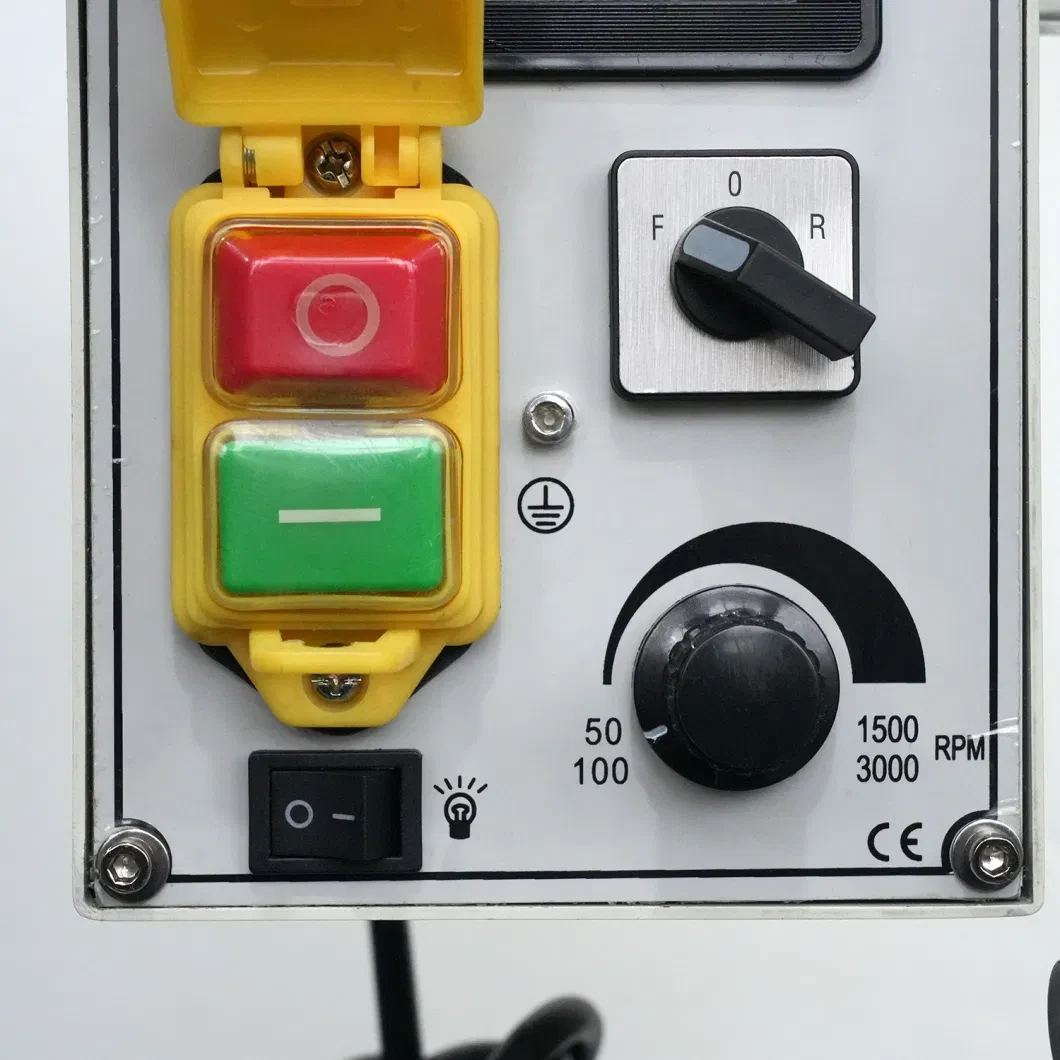

Speed display

Morse taper MT2/B16

Draw in rod M10

Drill chuck 0-13mm

Toolbox & tools

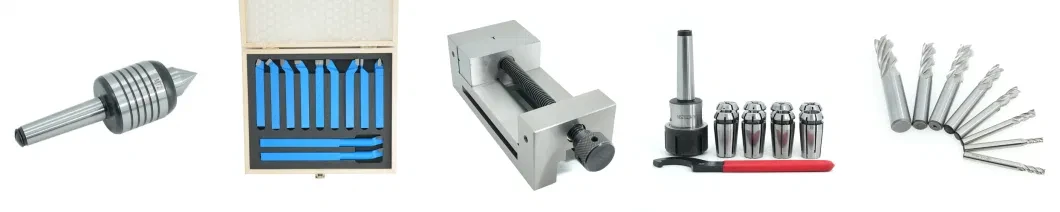

Halogen lamp	Coolant pump	Milling vice	Keyless chunk 1-13mm/B16
Collect chunk	End mill cutter	Stand	Chip tray

Precision Bored and Honed Milling Head - Our drilling and milling machine features a precision bored and honed milling head, ensuring high accuracy and excellent surface finish.

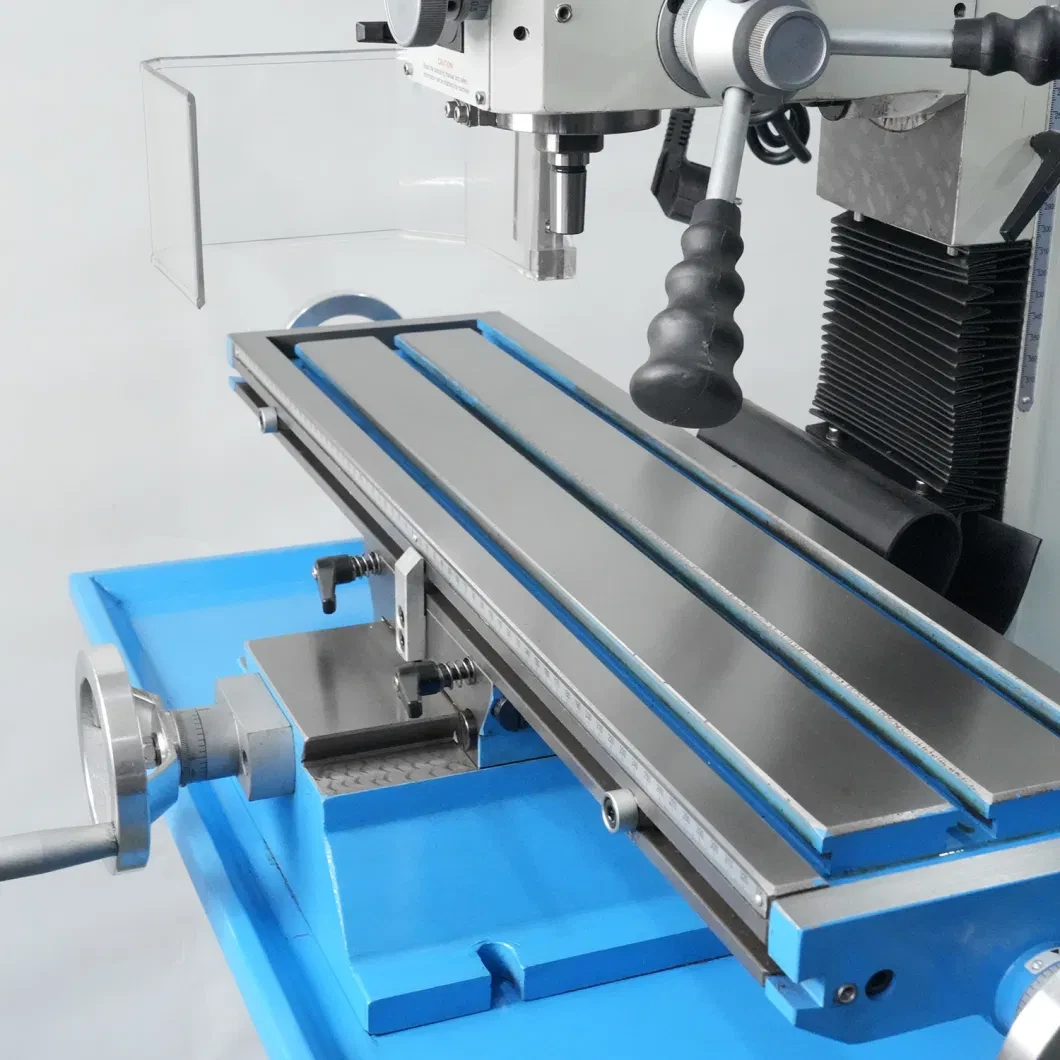

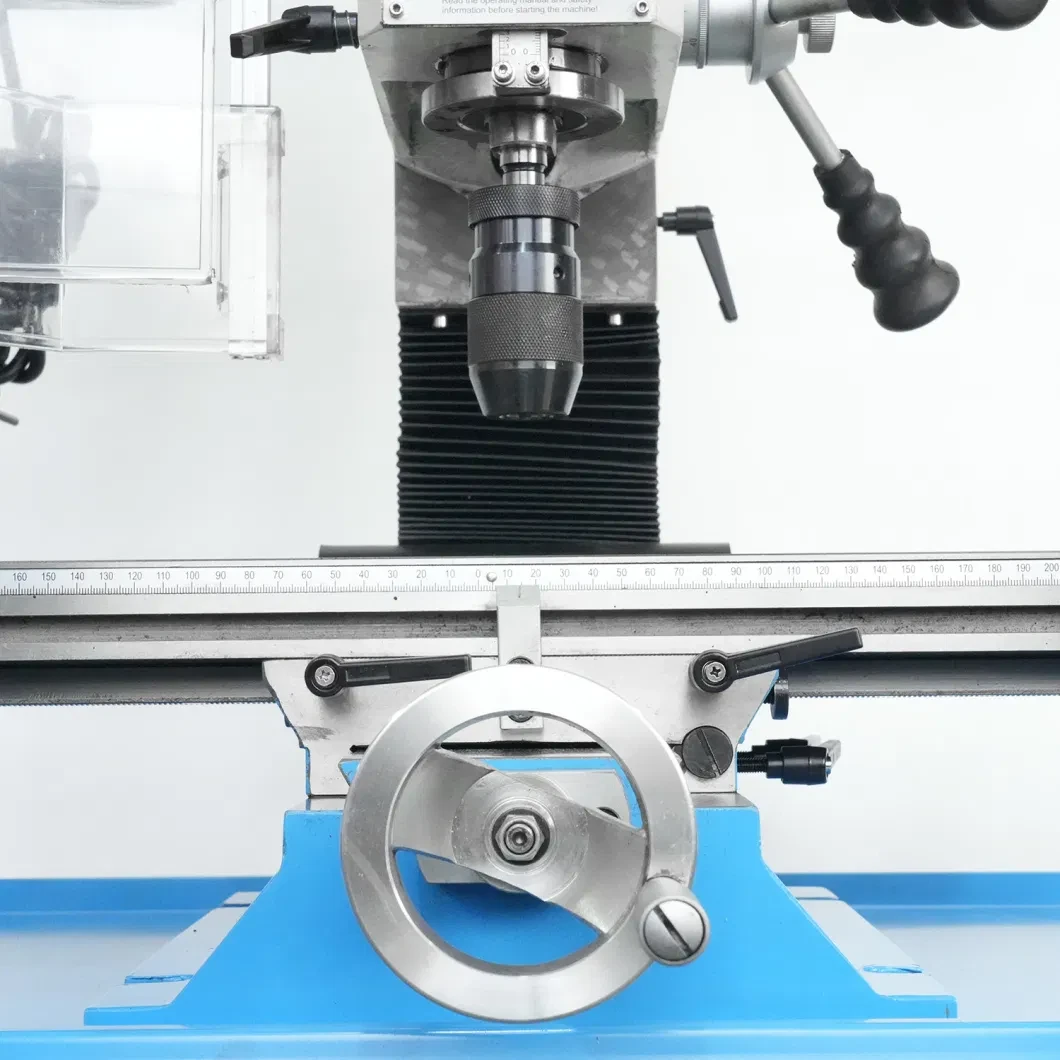

Precision Ground Worktable - The worktable is precision ground for flatness, providing a stable and even surface for workpiece processing.
Tilting and Swiveling Head - The tilting and swiveling head allows for versatile drilling and milling operations, making it easy to achieve the desired angle and position.

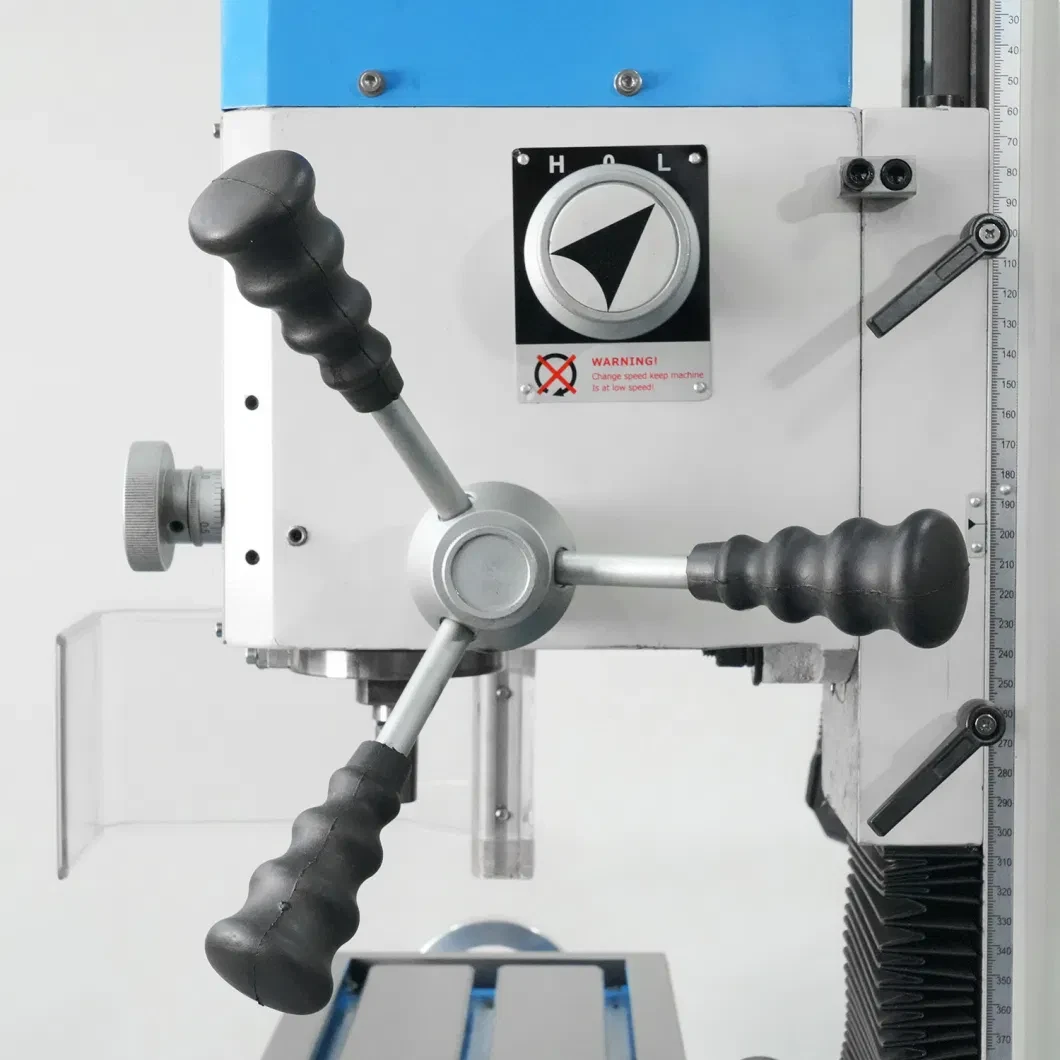

With Micro-Feed Handwheel and Lever Down Feed - The machine comes equipped with a micro-feed handwheel and lever down feed, providing precise control over the drilling and milling process.
Adjustable Gibs on Table - The adjustable gibs on the table ensure smooth and stable movement during operation.
Adjustable Stops on Table - The adjustable stops on the table allow for accurate positioning and repeatability, improving work efficiency.
Accurate Position, Strong Rigidity, Strong Cutting Power - Our drilling and milling machine delivers high precision, strong rigidity, and powerful cutting performance, making it suitable for a wide range of industrial applications.
Gear Drive, Lower Noise - The machine features a gear drive system that ensures low noise operation and longer service life.
Optional Two-Speed Motor - An optional two-speed motor is available, allowing for greater flexibility in processing different materials.
We are committed to providing reliable and efficient workshop machinery solutions for our customers. Contact us today to learn more about our drilling and milling machine and how it can benefit your business.

Company Profile:

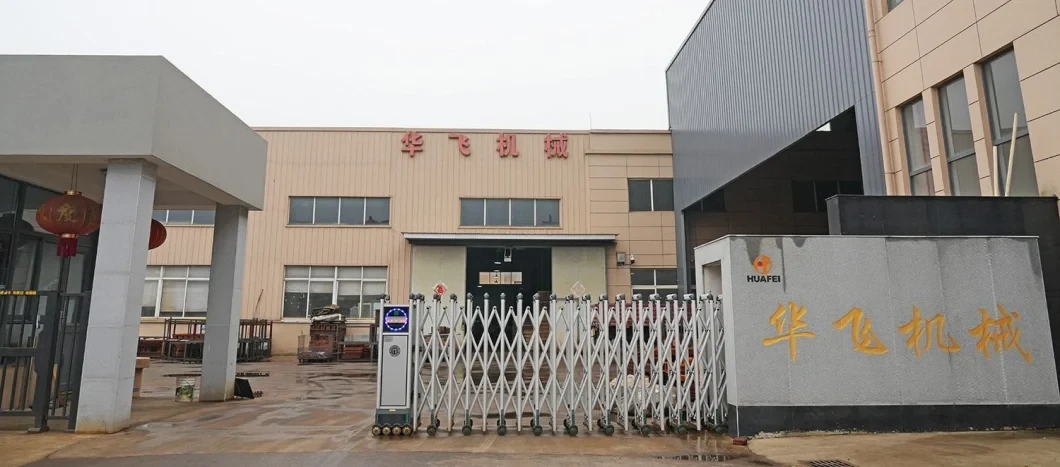

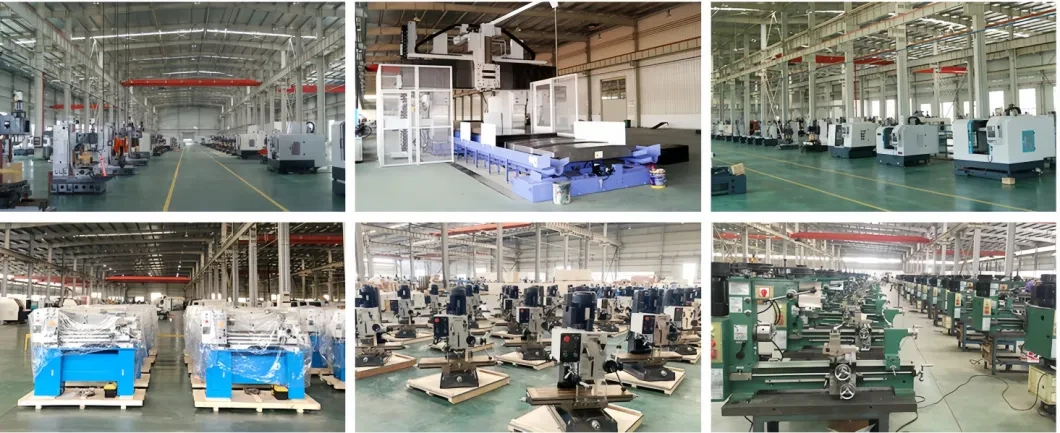

The Yangzhou Huafei General Machine Factory is located in the historical city Yangzhou suburb, already have 20 years history. We specialized produce each kind of series lathe, driling & milling machine, metal circular saw,multi-function lathe.The product exports to USA,Japan,Germany, France, Holland, Russia and U.K.etc,more than 50 countries and the area.

Our factory registered capital 10,000,000 Yuan, fixed asset 20,000,000 Yuan, each kind of specialized production equipment more than 200 sets, staff more than 300 peoples. We have the ability of independent design, making the machinery, the professional contingent and equipment. Besides provides the standard product, we may carry on the design and the production according to the customer request. We have the confidence, have able to produce the quality first-class product and provide the first-class service. We want in front of the customer, their needs is our diligently direction.

Management ldea:

Take the good faith as this, depend on the scientific management, produce the first-class product, struggle the international market.
