Gas/Oil/Coal-Fired Boilers

Product Details

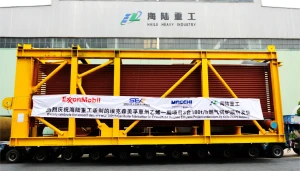

1. ExxonMobil Project – Gas-Fired Boiler

End user: ExxonMobil, HCCP

Client: Sinopec, SEI

Package No.: PE1

Capacity: 180 tons per hour

Steam pressure: 12.5 MPa

Steam temperature: 520°C

Boiler type: Natural circulation, π‑type layout

Introduced technology from Italian MACCHI. The boiler can reach up to 600 t/h capacity and 14 MPa steam pressure.

Features:

-MRD model: single drum, natural circulation, all-welded self-supporting structure, compact footprint, modular supply, fast load change rate.

-TITAN M model (similar to D‑type): double drum, natural circulation, better economic efficiency.

2. Donghua Energy (Maoming) Co., Ltd. – Gas-Fired Boiler

Evaporation capacity: 120 t/h

Steam pressure: 4.7 MPa

Steam temperature: 430°C

Corner tube boiler, introduced licensed technology from German ERK. Boiler capacity range: 10 t/h – 280 t/h.

Features:

-Single drum, natural circulation

-All-welded self-supporting structure

-Modular supply

-Fast start-up and fast load change rate

3. Jereh Kuwait Project

End user: KOC, Jurassic Production Facility 5 (JPF-5)

Client: Jereh Oil & Gas Engineering

Capacity: 35 tons per hour

Steam pressure: 1.0 MPa

Steam temperature: 185°C
