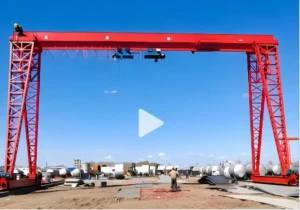

Gantry Crane.

Packaging

Customized

Contact Now

Quick Details (View All)

Applicable Span	1 ~ 9 m (customized)	Working Class	A3
Lifting capacity	0.5-10Ton	Place of Origin	Shandong China
Packaging	Customized	Lifting Height	3~10 m
Operation Method	Electric/Manual	Voltage	380v 50hz 3phase /Customized

Product Details

Description

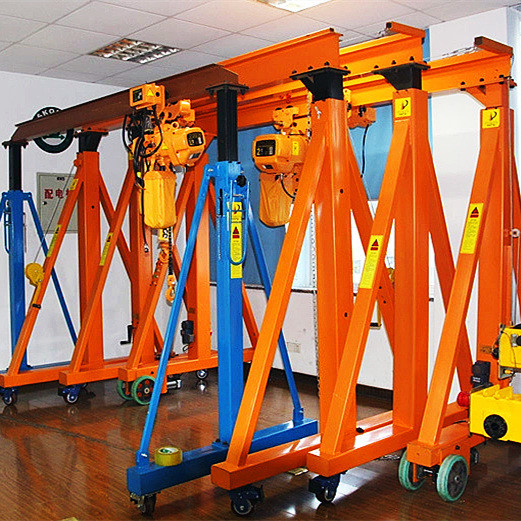

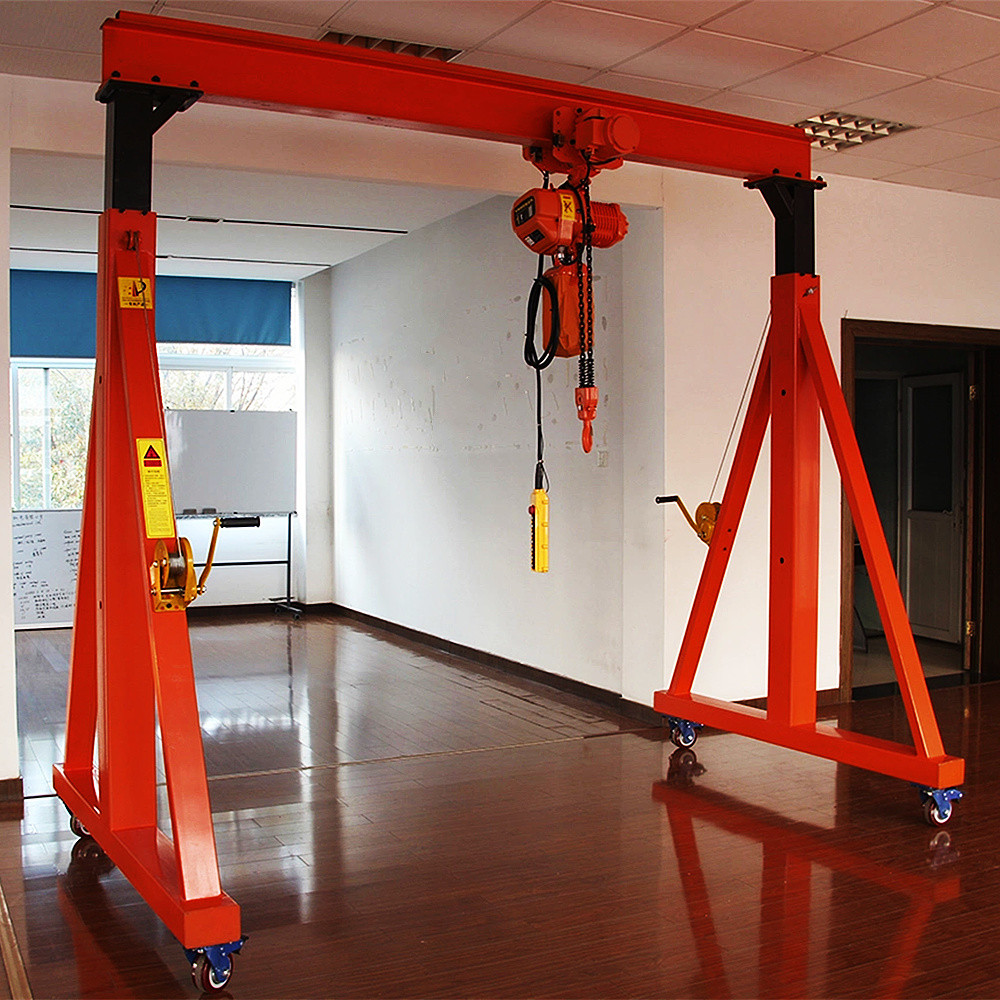

10T Portable Gantry Crane with Detachable Legs and Chain
Hoist forEasy Relocation and Setup Equipment Lifting

Modular Protable Crane System Specification

Load Capacity	0.5-10Ton
Span	1 ~ 9 m (customized)
Lifting Height	3~10 m
Operation Method	Electric/Manual
Voltage	380v 50hz 3phase /Customized
Working Class	A3

Rate load (kg)	Rail No	Max Crane Span (mm)	Beam cantilever (mm)	The distance of supports (mm)	Support width (mm)
250	I-N	2500	600	1900	1200
250	I-N	10000	600	9000	1200
500	II-N	2500	600	1800	1200
500	II-N	10000	600	9000	1200
1000	III-H	3000	600	2000	1200
2000	III-H	9000	600	8000	1200

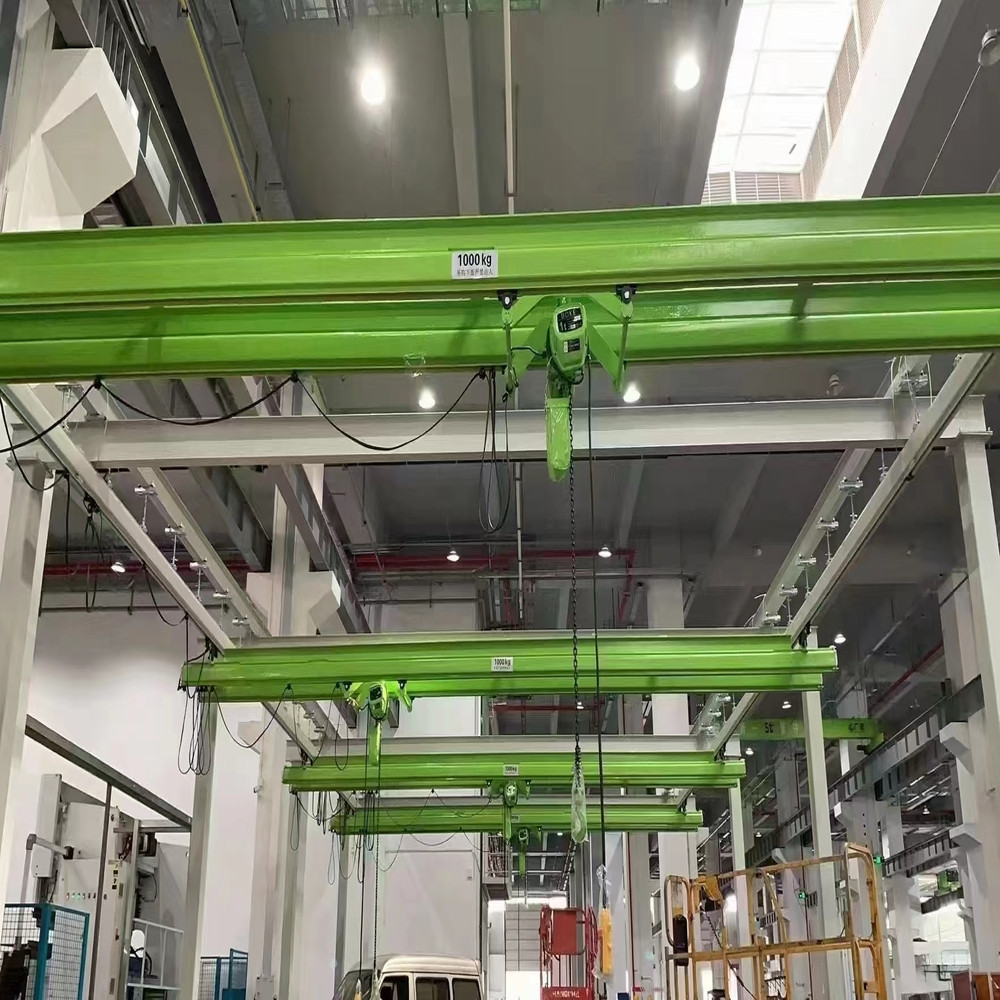

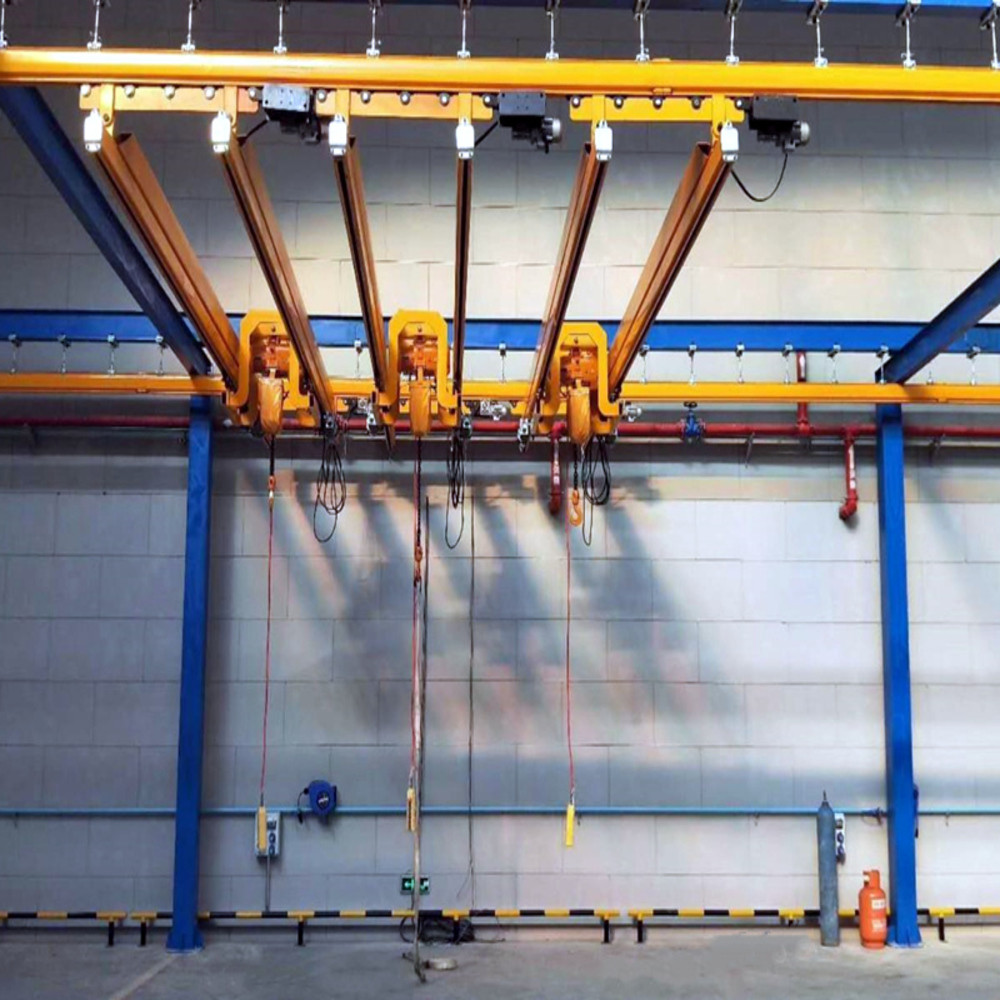

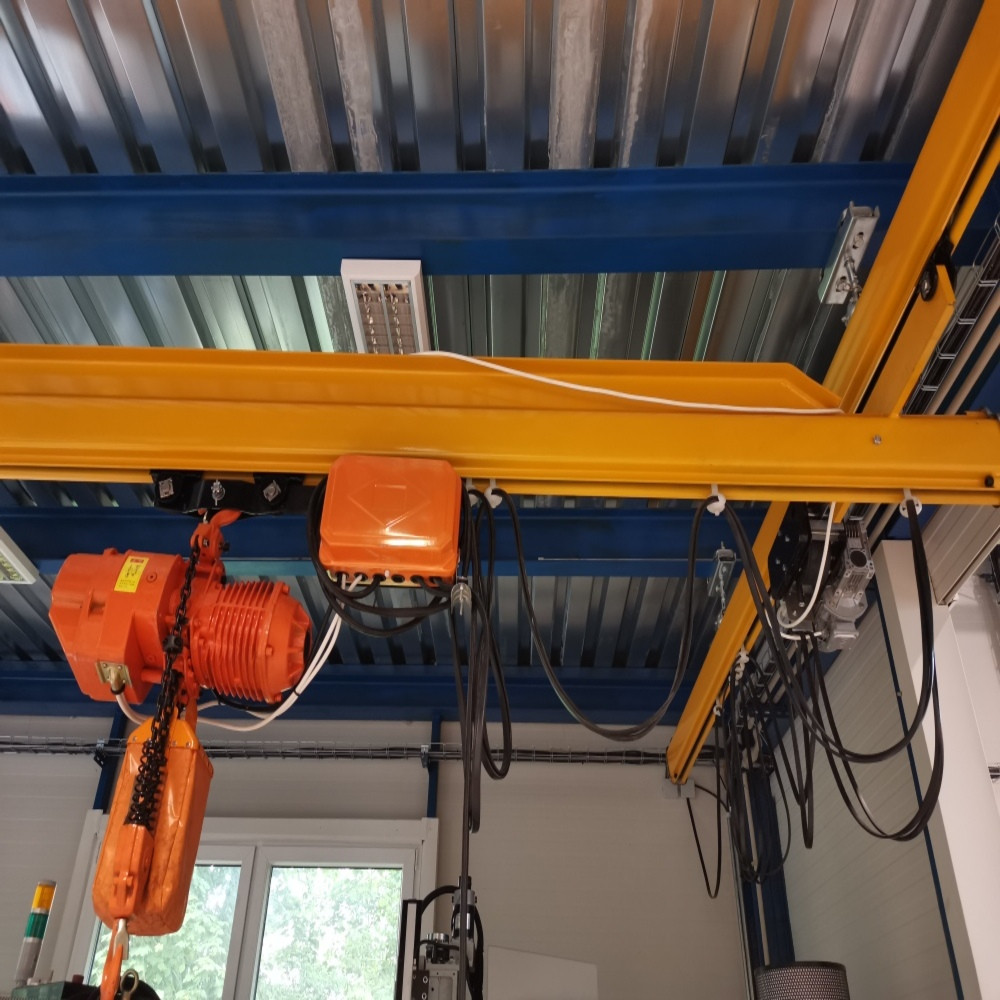

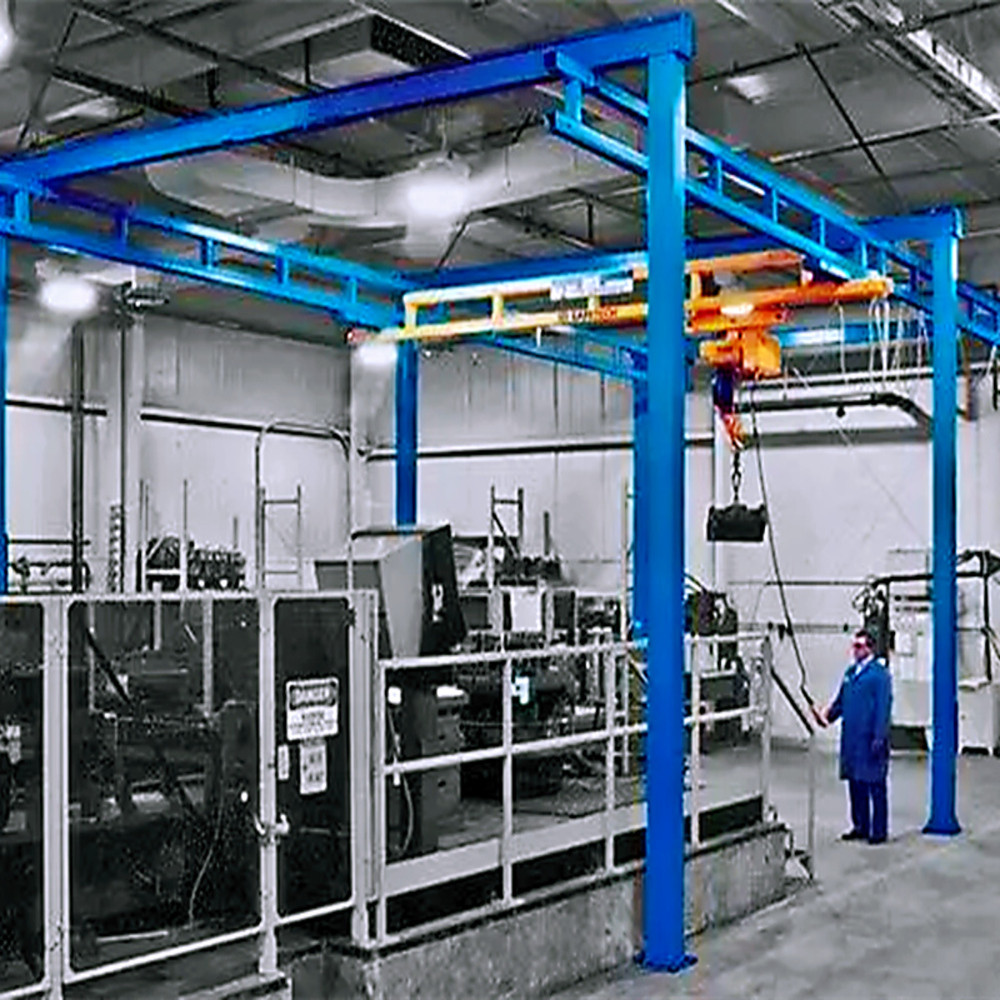

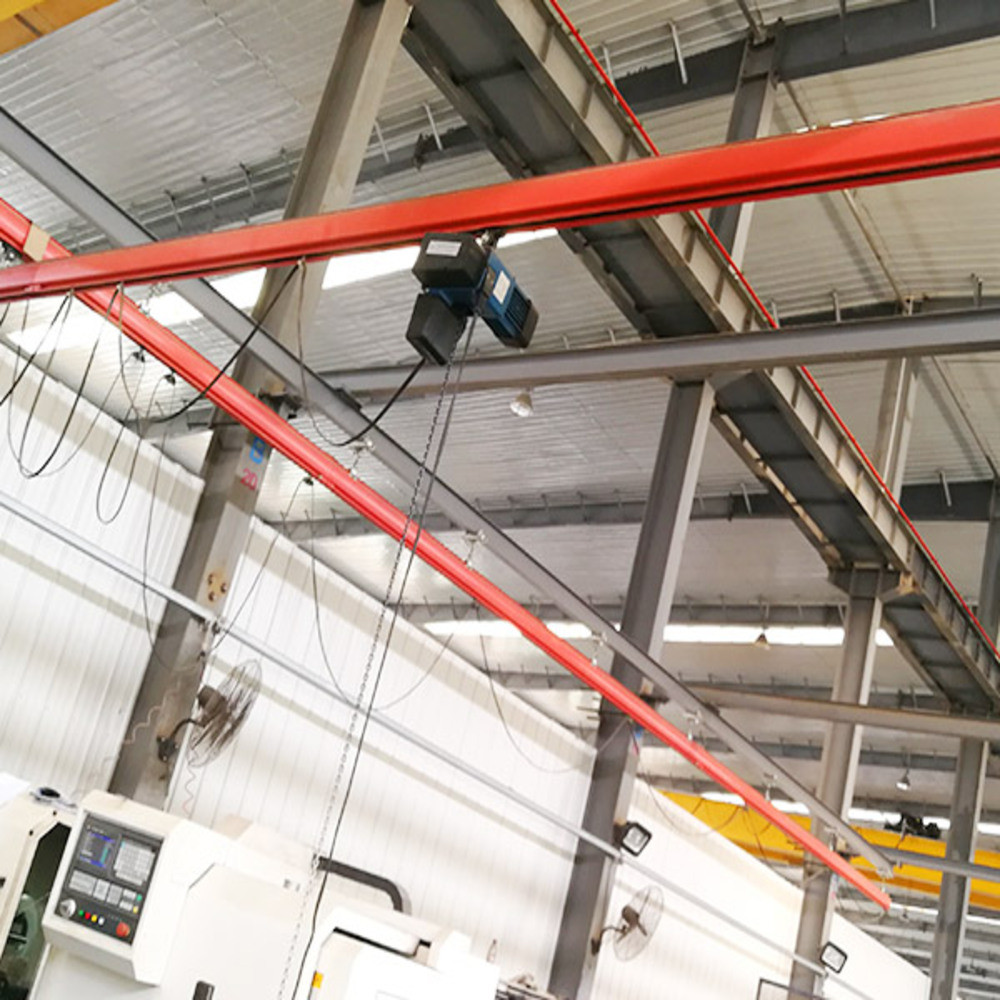

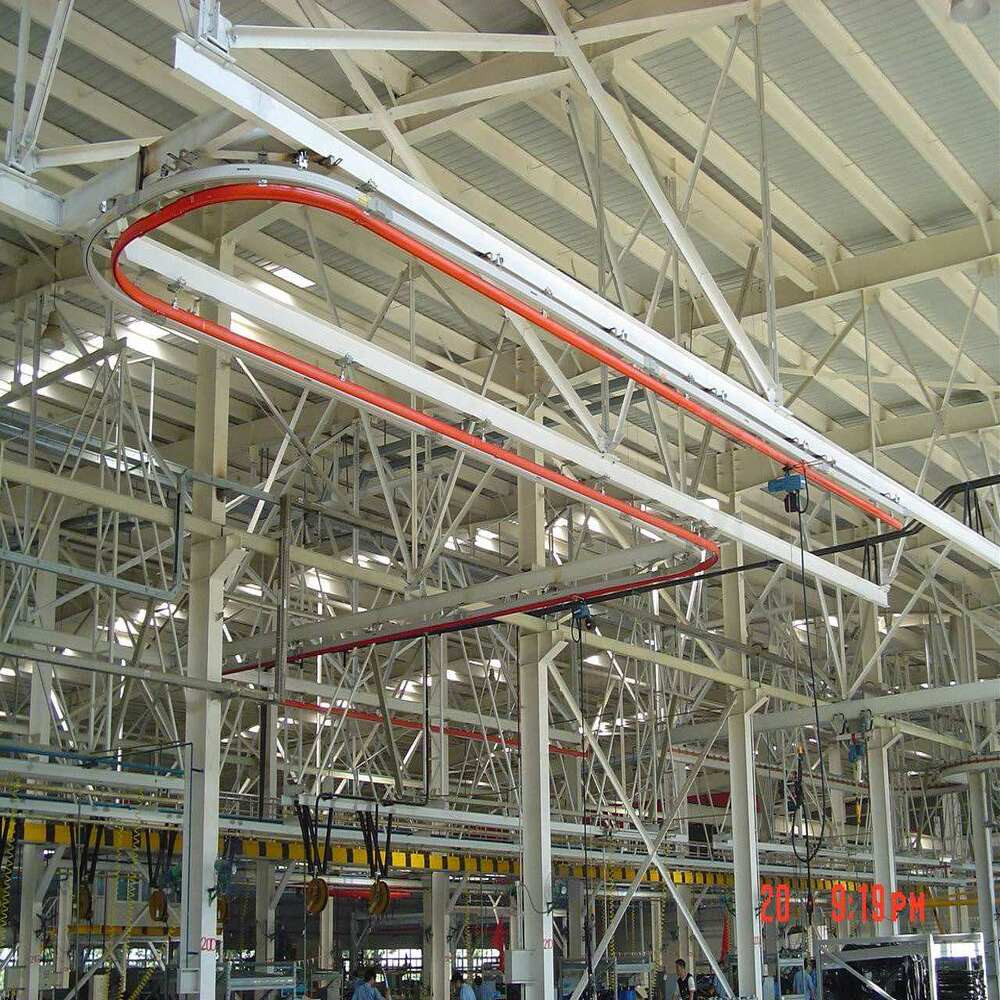

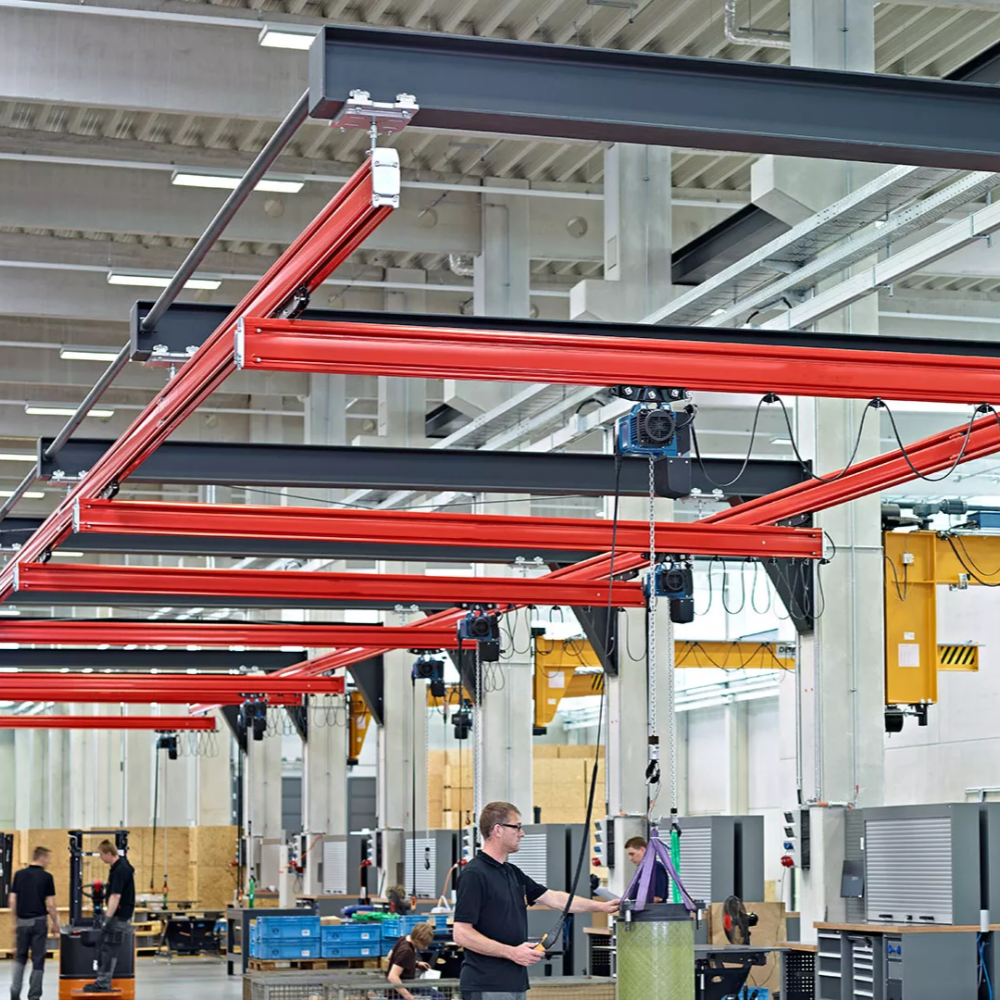

Simplifying Complex Problems With Our Light Workstation Crane System

By leveraging the versatility and adaptability of Modular crane system, businesses can streamline their material handling processes and overcome complex logistical hurdles with ease. This type of crane system has been embraced and utilized by companies with a fundamental focus on swift and coordinated material transportation, making it a common sight in various manufacturing facilities and warehouses. Our pre-assembled components designed to handle a multitude of tasks, allows for customizable lifting solutions. Our range of components includes turntables, swiveling transfer points, and various other parts. Modular overhead crane can be configured as a single-girder or double-girder system, and it can be operated manually or with electric controls.

FEATURES AT A GLANCE

Flexibility in Layout Design

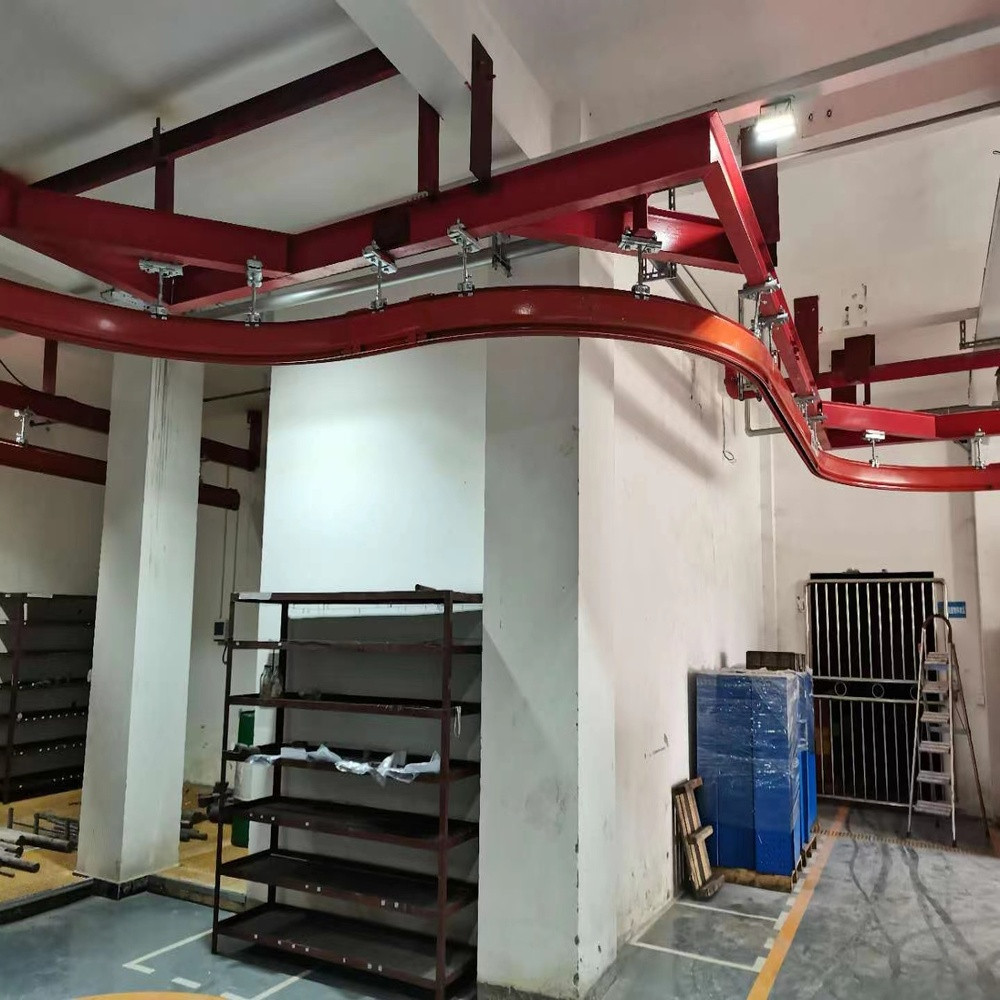

- More options for profiles, switches, curves, and rotation

- Ability to accommodate larger spans
Short Assembly Time
- Pre-designed, assembled, and wired components

- Optimal suspension and connection methods

Low Maintenance Cost

- Minimal repair work

- Long lifespan and robust structure of lifting equipment

Advantages:

- Achieving flexible operations and
excellent performance through modular design.

WHY CHOOSE OUR MODULAR CRANE SYSTEM

Significantly Reducing the Cost	Modular Design	Minimize Operational Noise
No Need for Workshops Changes	Precise Load Positioning	Low Failure Rate
Minimizes Equipment Idle Time	80% Energy Reduction	Maintenance-Free Track Systems

WEIYUANCRANE SUCCESSFUL CASES

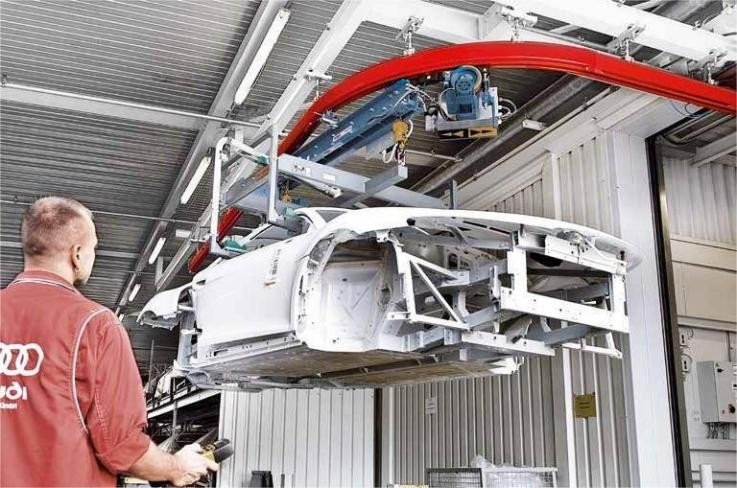

AUDI GROUP GERMANY

▪ Ensure safe, reliable, and convenient transportation of the painted Audi R8 body from the body manufacturing line to the assembly line.

▪ Connect material transportation between the external body warehouse and the assembly line.

▪ Protect workers from the ventilation airflow in the gate area.

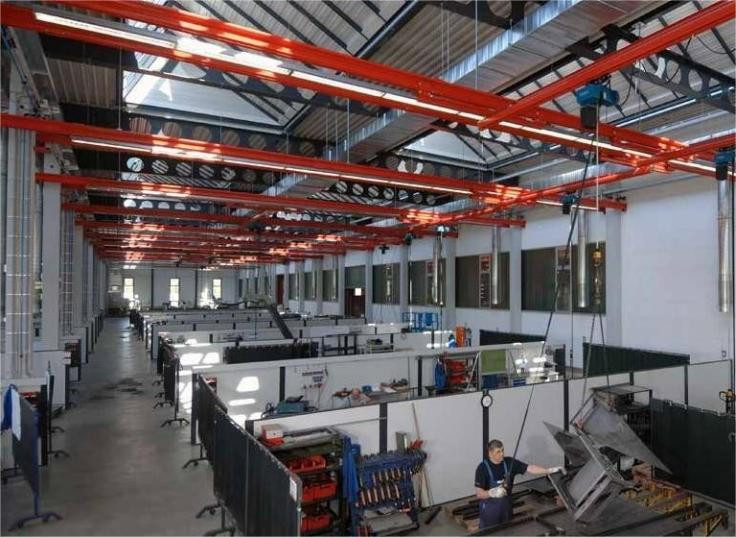

KNOLL MASCHINENFABRIK GMBH GERMANY

▪ Simplified positioning of welded parts

▪ Optimized staffing at welding stations

▪ Overhead handling solutions

▪ Reduced forklift traffic

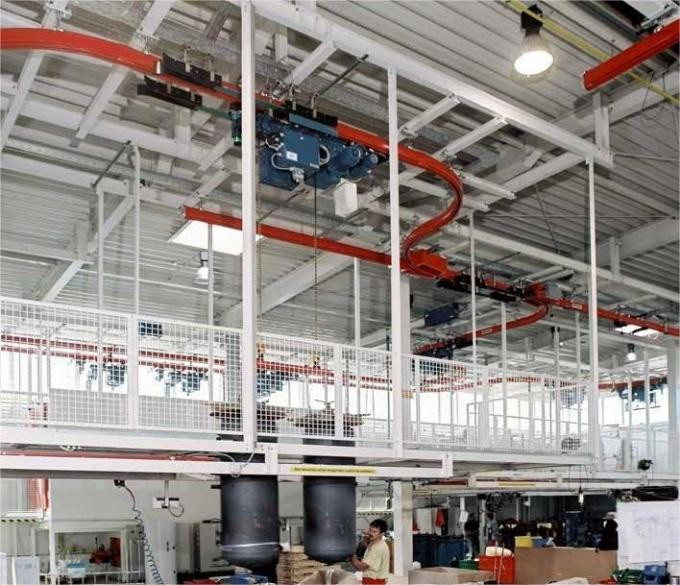

AUSTRIA EMAIL GROUP AUSTRIA

▪ Automated handling, higher process reliability ▪ Significantly improved ergonomics ▪ Thanks to the optical anti-collision system, a safe distance between cars can be maintained ▪ Due to its modular design, the equipment is highly flexible and can be adjusted at any time. Adaptation to changed production processes ▪ Production capacity increased by 25%

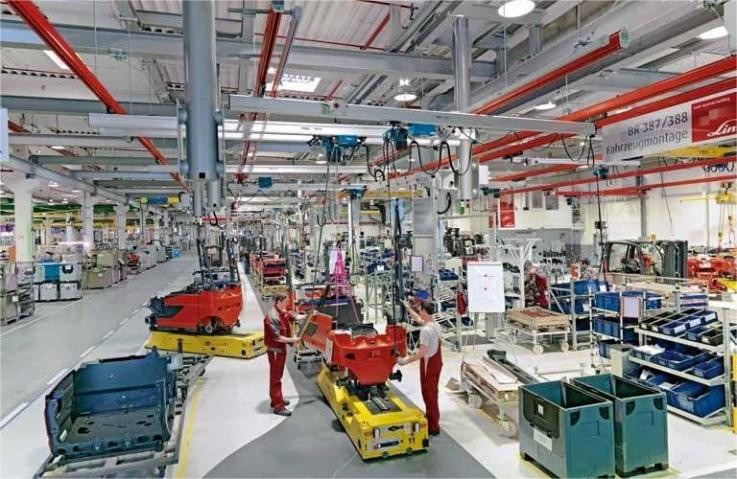

LINDE MATERIAL HANDLING GERMANY

▪ Assembly with fixed cycle times on a circular route with several workstations

▪ Establish a flexible production structure

▪ There is no need for high additional costs when converting production lines into assembly line mode.

Product packaging

1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying.
2. Main beams, end beams and trolly/winch are packed by plastic woven cloth. It can reduce abrasion during the transportation. 3. If the size are suitable for container ship, usually by container.
4. Big size, usually by bulk ship or by container after truncation.
5. Transport ways are based on reducing cost & keep safety.
