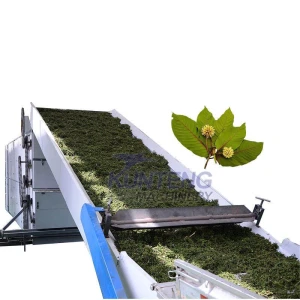

Fully Automatic Mesh Belt Type Plant Drying Equipment Kratom Leaf Dryer Kratom Extract Drying Machine

FOB Price 23015 - 27568 USD / 1

Quantity	23015 - 27568
Price	Dollar

MOQ	1 Unit
Port	China
Packaging	container
Lead Time	15

Contact Now

Quick Details (View All)

type	mesh belt bulbus fritillariae dryer	warranty	1 Year
core components	PLC, Engine, Motor, Gear, Pump	machinery test report	Provided
video outgoing-inspection	Provided	place of origin	Henan, China
Weight (KG)	2000	brand name	KUNTENG
dimension(lwh)	1000020002600mm/customized	Application material	Vegetable,fruits,grain,grass and agricultural products
Product name	Ginger Drying Dryer Machine	Heating source	Electricity,steam,coal,gas,biomass particle
Keywords	Mesh Belt Dryer Machine	Raw material	Vegetable,fruits,grain,grass and agricultural products
Capacity	more than 10 tons per day	Function	Food Vegetable Fruit Dehydrator
Feature	High Efficiency Easy Operate	Advantage	save labor cost
Certification	CE/ISO9001	After-sales Service Provided	Online Video Technical Support
voltage	220-420V can be customized	power(w)	30-95kw/can be customized
Name	Hemp chrysanthemum Dryer Machine	Temperatur Ranges	20~150

Product Details

PRODUCTION DESCRIPTION

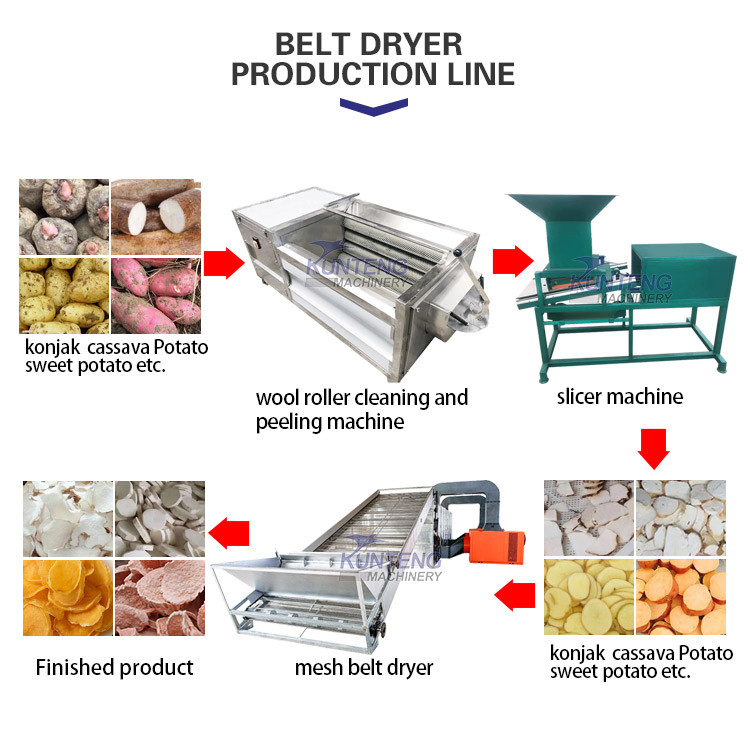

Production Line:

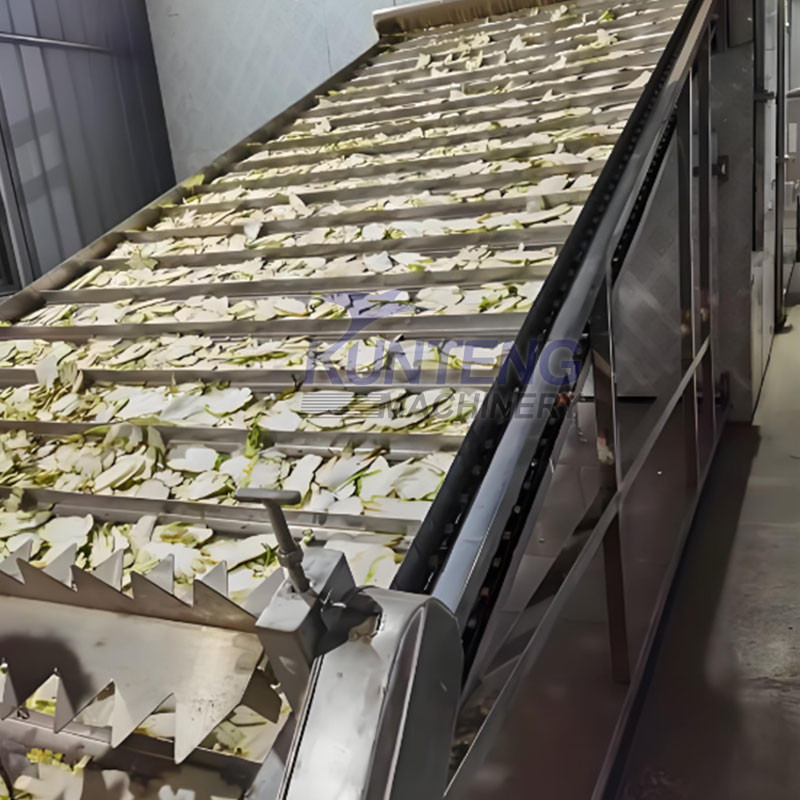

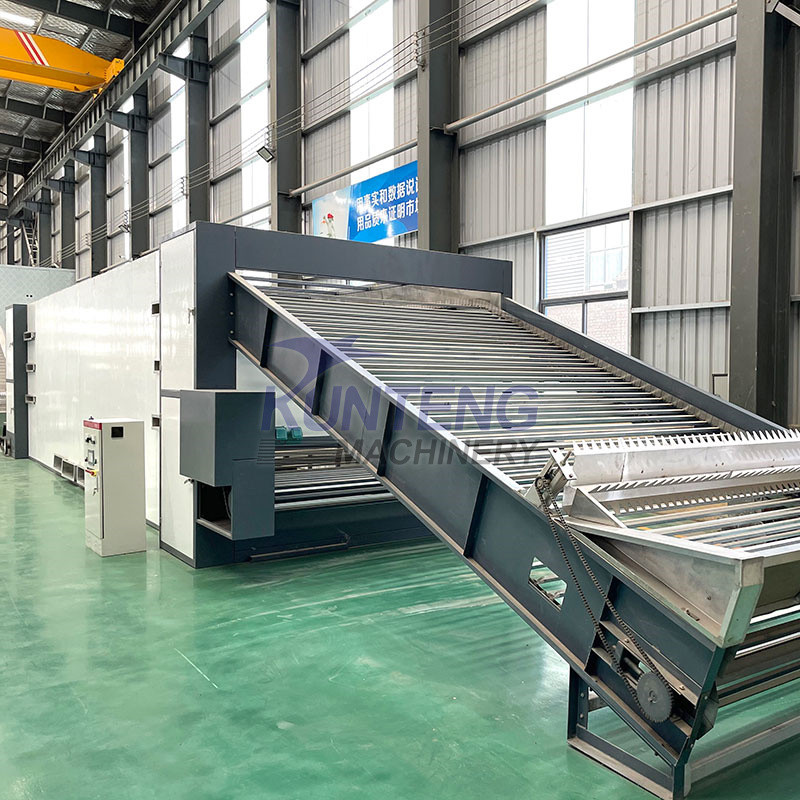

KUNTENG Multi layer belt dryer adopts continuous components and has a multi-layer structure in the dryer, The inner mesh surface of the oven is made of 304 stainless steel,The oven adopts multi-layer mobile mesh belt transmission, sliced cassava are conveyed from the first layer to the last layer by conveyor belt,the hot air flow passes through the mesh belt from bottom to top.The final moisture comes out of the top of the dryer. the dried cassava chips are conveyed by a discharge conveyor.

KUNTENG Multi layer belt dryer has 30 years of rich industry experience and a data base of hundreds of agricultural products and cassava drying processes. Cassava dehydrator machine can customize production lines and supporting facilities at different prices according to customers' needs for different materials.

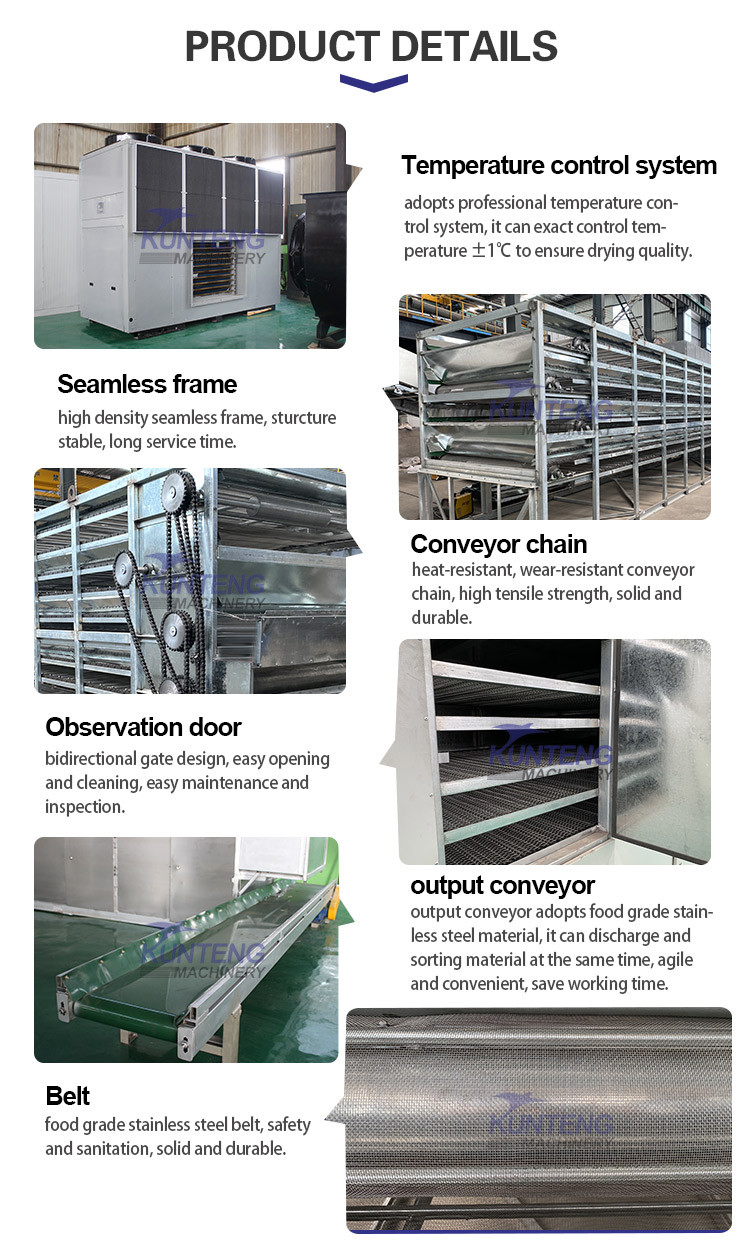

Main components of mesh belt dryer

END PRODUCTS & APPLICATION

The cassava dried by the Multi Layer Belt Dryer have a good appearance without nutritional loss.

KUNTENG Large Mesh Belt Dryer adopts air drying technology, which has a large application range,all kinds of materials can be dried without damaging the nutritional value, such as vegetables,fruits,seafood,shrimp,cassava chips,onion,garlic,hemp, tea leaf,herbs,alfalfa,mushroom,flower,grapes.etc.

Product parameters

Model (Width*Length)	KT1.5-6-4	KT2-8-4	KT2-9-4	KT2-10-4	KT2-12-4
Layers	4
Drying area(㎡)	29	45	51	57	69
Spread thickness of material(mm)	50-200
Working temperature(℃)	0-120
Working time(hour)	24
Capacity(t/h)	100-150kg/h	200kg/h	250kg/h	300kg/h	500kg/h
heat exchange furnace(M)	3.212.7	3.91.263	3.91.263	4.71.53	4.71.53
Induced draft fan(kw)	11	15	15	22	22
Exhaust fan(kw)	1.5		2.2
Feeding conveyor(kw)	1.5	2.2	2.2	2.2	3
Discharge conveyor(kw)	0.55
Total power(kw)	14.55	19.25	19.95	26.95	27.75
LP gas consumption (90 degree fanrenheit)	20m³/H	25m³/H	28m³/H	30m³/H	36m³/h
Place requirement (WLH)M	4.5142.7	5192.8	4.5202.8	5.5212.8	5.5232.8

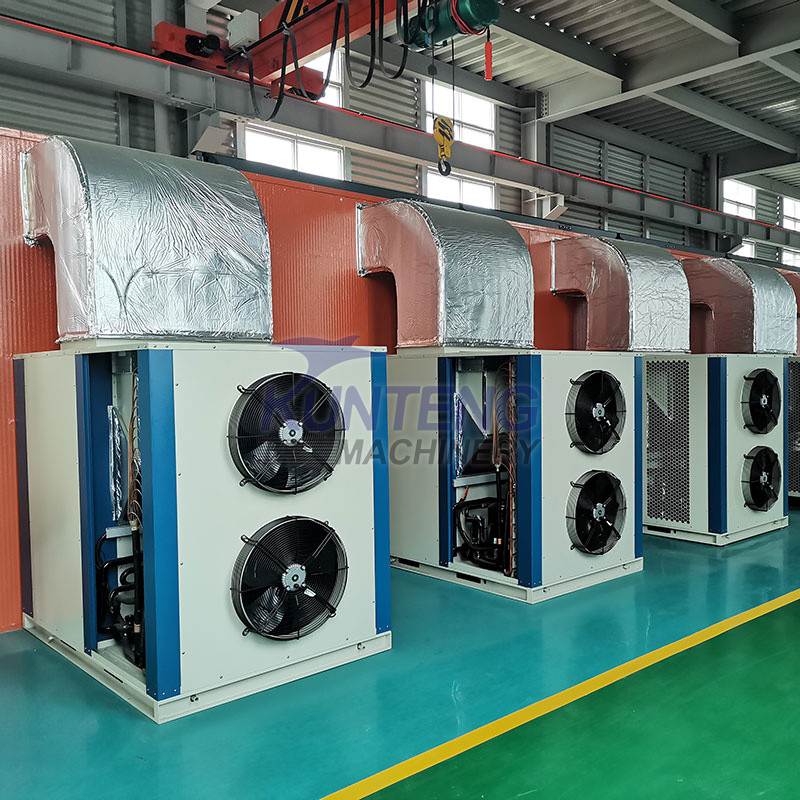

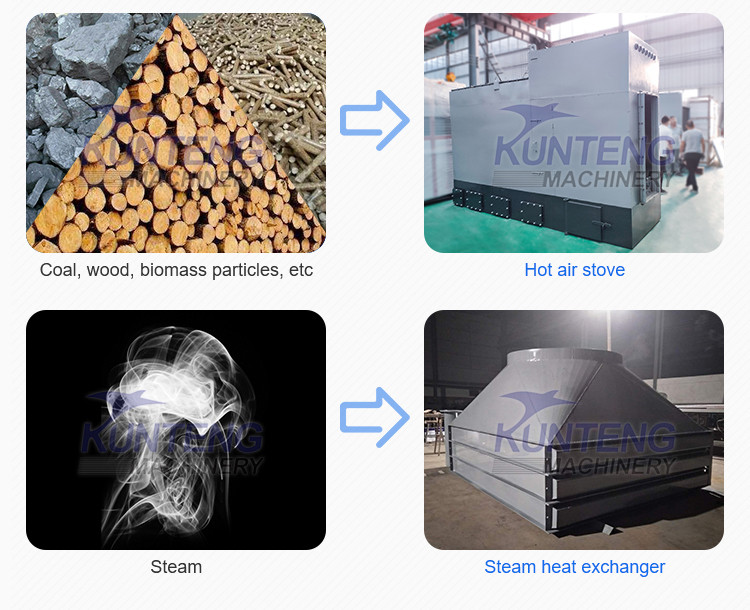

Mesh Belt Dryer Heat Source

The heat source:

The heat source of the Multi layer belt dryer can be electric, coal, natural gas, diesel oil,wood, biomass particles, etc.

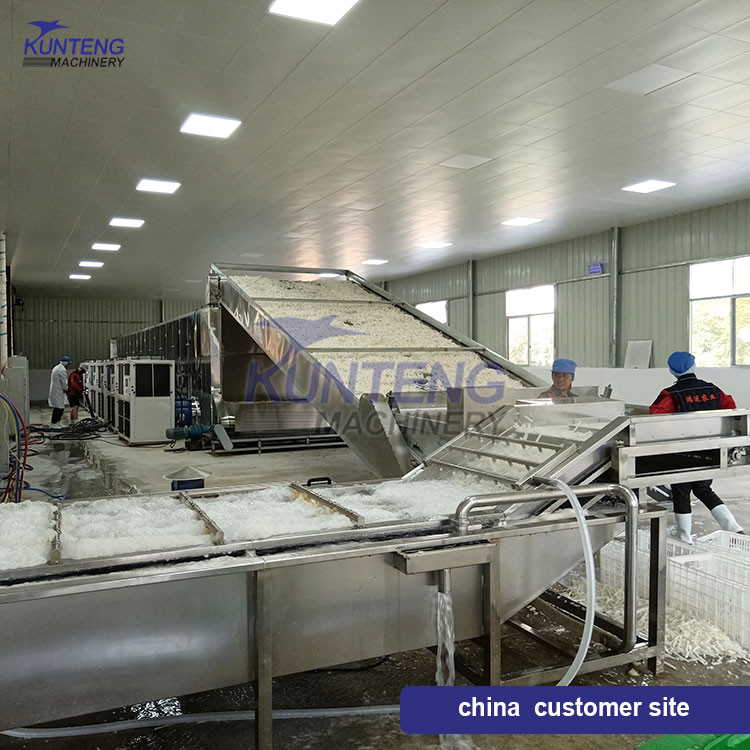

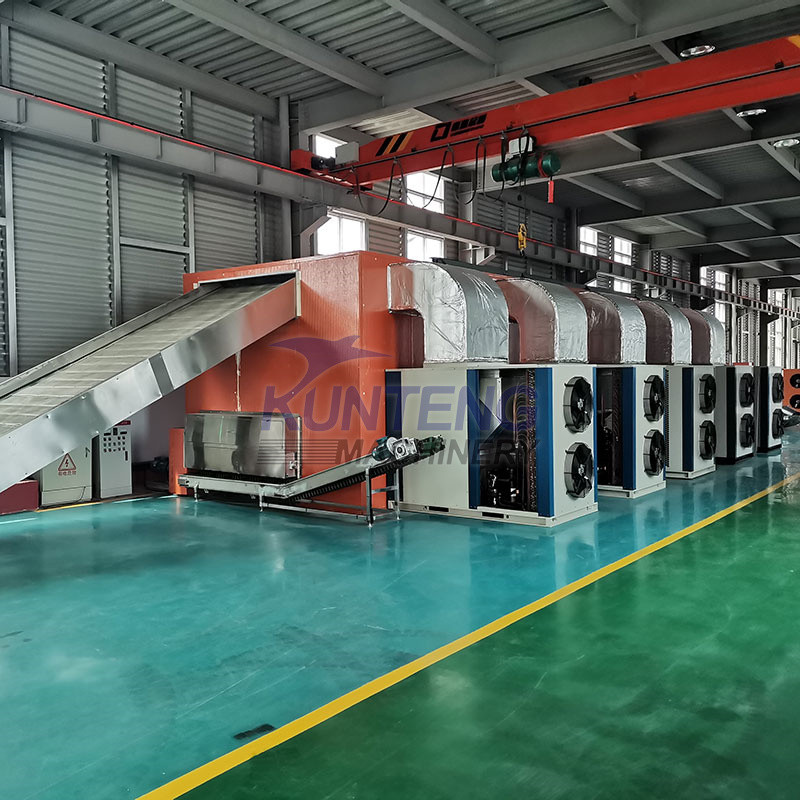

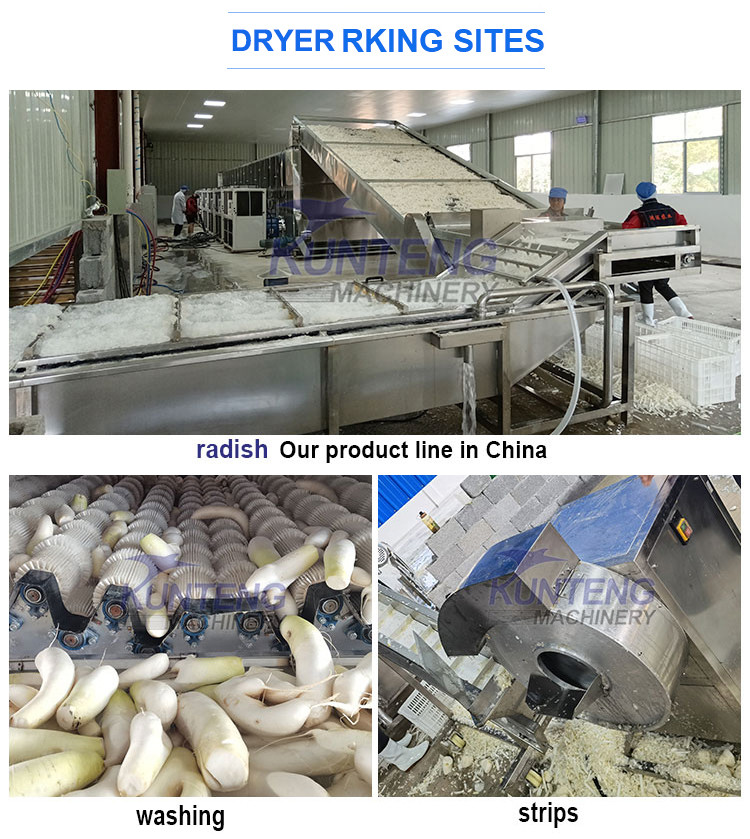

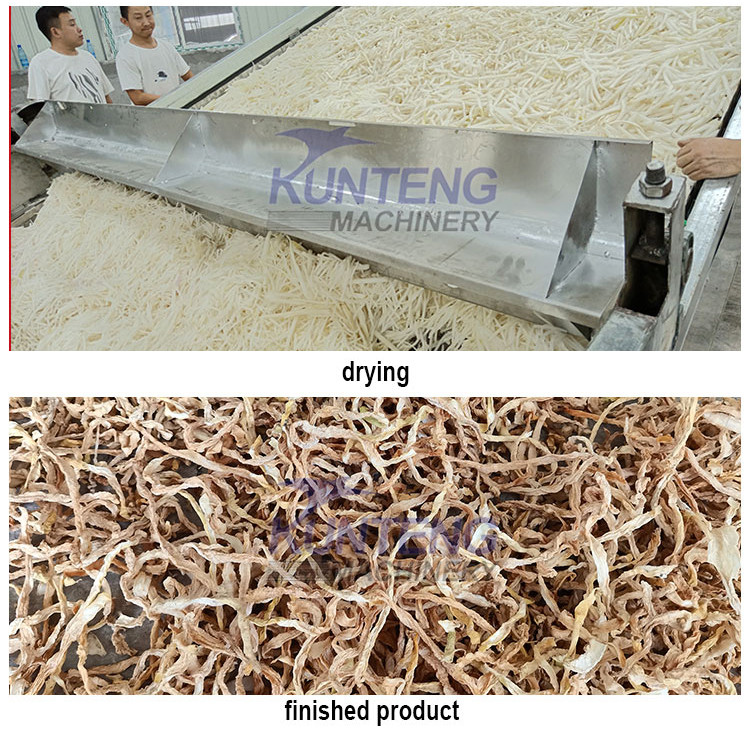

CUSTOMER SITE

Packing and shipping

Multi layer belt dryer fruit and vegetable drying machine cassava dehydrator machine will be loaded in container,We have rich experience in transporting and installing cassava dehydrator machine.

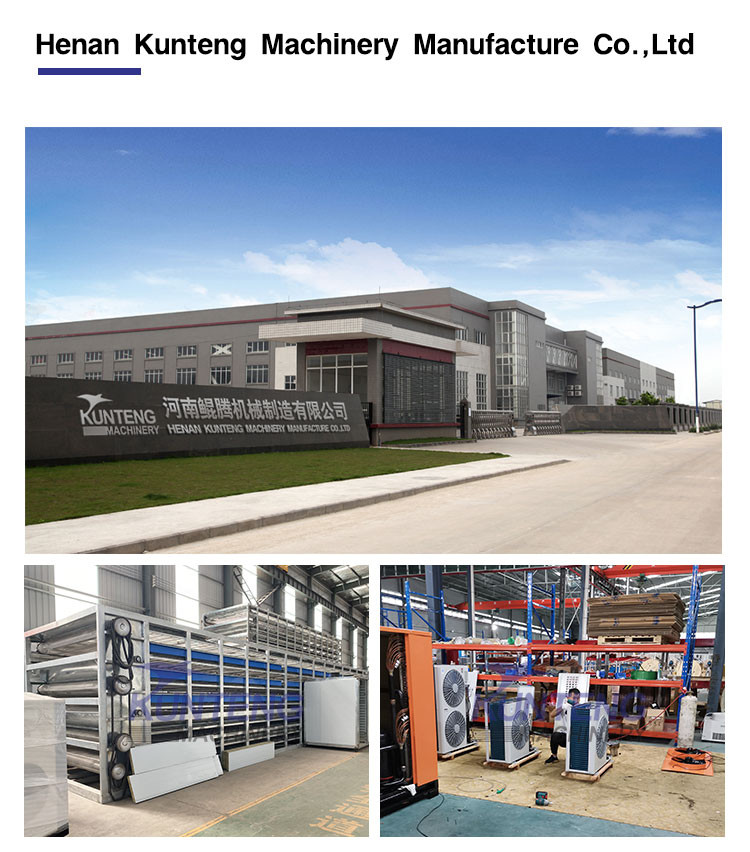

COMPANY PROFILE

KUNTENG company was founded in 1999. We have been engaged in manufacturing all kinds of fruit and vegetable drying machine,herbs dryer machine,multi layers belt dryer, heat pump dryer, industrial drying machine.We got more patented technologies and honor. Our machine has passed ISO9001:2000CCC,CE certification, We provide customers with a one-stop service of design solutions, complete equipment, on-site installation,and after-sales support. Welcome to cooperation.

Our service

1. Three guarantee services ,

2. The equipment is well debugged before leaving the factory,

3. On-site installation and debugging of large-scale equipment technicians,

4. The technician will teach you the operating instructions of the equipment,

5. All the above are free.

FAQ

1. who are we?

We are a professional manufacturer in China.

2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;

3.long is the warranty period? Normally 12 months. Except for wearing parts. 4.your delivery time?? We will arrange for shipping in factory within 15 working days after receiving the advance payment.
