Fully automatic continuous tire plastic pyrolysis machine

FOB Price 28000 - 780000 USD / set

Quantity	1 - 10
Price	78000

MOQ	1 set
Port	Qingdao
Packaging	serious packaging
Lead Time	45 days

Contact Now

Quick Details (View All)

Warranty of core components	Engineers available to service machinery overseas	Capacity	20-50TPD
Place of Origin	Henan, China	function	recycle tire plastic to fuel oil
Key Selling Points	high quality	Certification	CE,ISO,SGS
Brand Name	DOING	Oil rate	45-52% for tires and 40-95% for plastics
Safty standard	strictly according to the standard of pressure vessel(boiler grade)

Product Details

Products Description

DOING Pyrolysis Plant For Sale


          The continuous type and batch type pyrolysis plants
          designed by Doing Company’s engineer team have been
          exported to the United States, the United Kingdom,
          France, Italy, Australia, Dubai, Brazil, Kazakhstan,
          Pakistan, India, Nigeria, Mexico, Egypt, Thailand and
          other 90+ countries and regions. Their outstanding
          economic and environmental benefits have led the
          development of the waste tire/plastic/oil
          sludge/rubber/aluminum plastic composite material
          pyrolysis industry.


Product Schemes

Scheme 1


              New design continuous type pyrolysis
              plant

Scheme 2


              High Efficiency Semi-continuous Pyrolysis
              Plant

Scheme 3


              Cost Effective Batch Type Pyrolysis
              Plant

Scheme 4


              Free Installation Small Skid-mounted Pyrolysis Plant
              Unit

Items	Waste Pyrolysis Plant
Equipment Type	Batch	Semi-continuous	Fully Continuous
Raw Material	Rubber tyres, plastic, oil sludge, coal tar, aluminum plastic, etc.
Structural Form	Horizontal rotation
24-hour Capacity	100kg-20ton	10-20 ton	15-50ton
Oil Yield	From 30%-70%
Operating Pressure	Normal
Pyrolysis Reactor Material	Q245/345R, boiler plate, stainless steel
Thickness of pyrolysis Reactor	14,16,18,20mm
Rotate speed of pyrolysis Reactor	0.4turn/minute
Total power	≤30KW
Mode of cooling	Circulating water cooling
Cooling Area of Condenser	100sqm
Kind of Transmission	Internal gear drive
Weight	Depends on the Scales

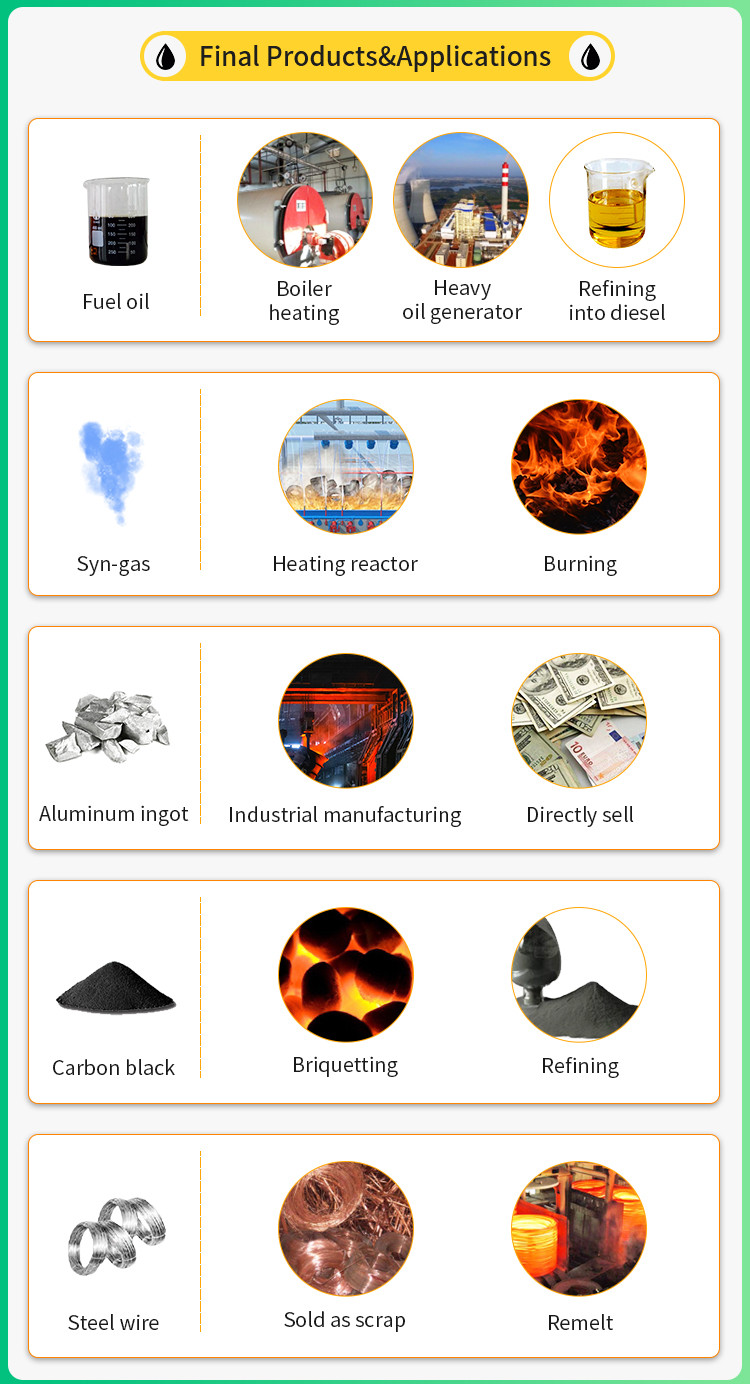

Final Products & Application

Profit Analysis

Equipment Advantages

Project Cases

Why Choose Us

00:00

02:33

FAQ



            Q: How much a waste pyrolysis plant? A:
            Different capacity of tyre pyrolysis plants have
            different cost. And also different desgins of tyre
            pyrolysis plants have different cost. But if you want
            to save some cost, our engineer also can design the
            most efficient machine solutions for you. To caculate
            detailed cost for your referrence , please contact us
            directly.
            Q: How can I sell the pyrolysis oil? A: The
            good sales, because oil is an energy, hotels,
            restaurants, bath center, diesel stoves, boilers,
            mostly using this oil as fuel, other power plants,
            ceramic plants and many other enterprises to use more
            of this fuel. In addition, this oil through the oil
            processing and reconciling national standard can be
            directly used as fuel engine. Buy our equipment, users
            share a large network, this network has sold buy.

            Q: How many countries your machine have been exported
            and installed? A: Our machinery have been sold
            to 90+ countries and regions around the world, winning
            great praise and trust of our customers all over the
            world! For example, Italy, Romania, Macedonia, Albania,
            Estonia, Rusian, Egypt, Ethopia, Nigeria, Congo,
            Lebanon, Jordan, Pakistan, Kazakhstan, India, Tailand,
            Malaysia, Mexico, Panama, Guatemala, Aruba, Jamaica,
            Ecuador, Haiti, etc.
            Q: Can we visit your factory of pyrolysis plant ? And
            where is your factory? A: Our office is in
            Zhengzhou City, Henan Province, China. From Zhengzhou
            International Airport to our office is just need 30min.
            We are responsible to pick customer up. We have sample
            machine in our factory for your visiting. Welcome at
            any time!
