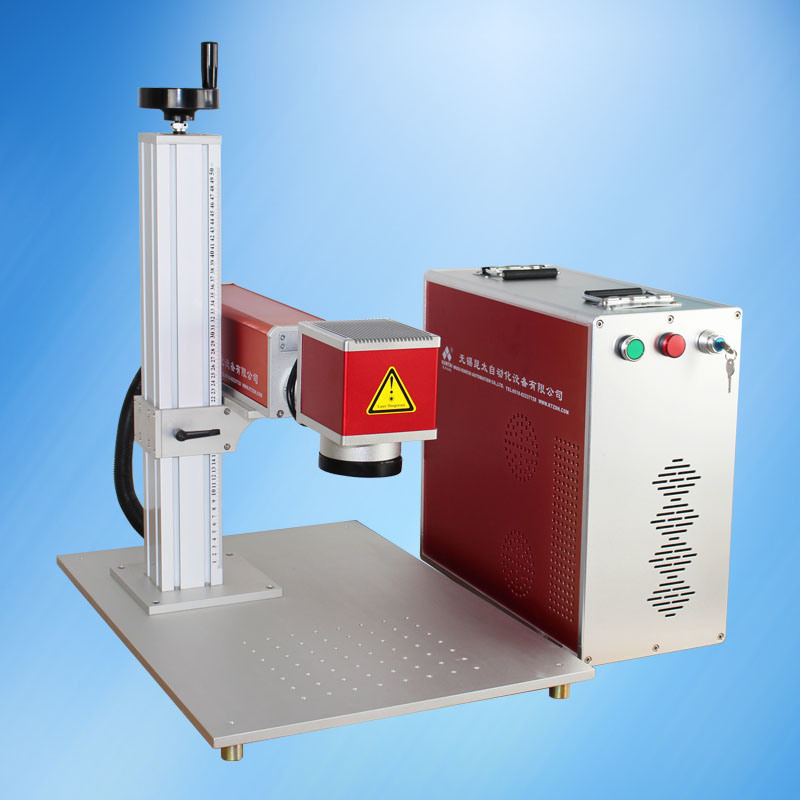

Fiber Laser Engraving Machine for Metal Screw

Name: Fiber Laser Engraving Machine for Metal Screw
Brand: Jiangsu Kuntai Industrial Equipment Co., Ltd.
SKU: Tradewheel_2436206
Price: 1 USD
Availability: InStock

FOB Price 1 - 8 USD / pieces

Contact Now

Quick Details (View All)

Model NO.	KT-LFT10	Type	Optical Fiber Laser Marking Machine
Marking Method	Scanning Marking	Marking Content	Character,Date,Code,Number,Graphic,etc
Cooling	Air Cooling	Outer Pack Size	73X50X56cm
Repeat Precision	0.01mm	Package	Plywood Case
Marking Depth	0.01-0.1mm,According to Different Material	Laptop	Yes,Including
Laser Power	10W	Marking Speed	9000mm/S
Marking Area	100X100mm	Transport Package	Plywood Case
Specification	CE ROHS ISO	Trademark	KUNTAI
Origin	Wuxi, Jiangsu, China	HS Code	8456100090
Production Capacity	300unit/Month

Product Details

Product Description

China marking machine factory! CE ROHS ISO9001: 2008!

fiber laser marking machine for metal screws

KT-series high quality laser marking machine is a new generation laser marking system made with newest laser technique in the world,
It design with fiber laser maker as laser source, and thru high-speed vibration-mirror scan system to actualize marking function,
The fiber laser making machine have high conversion efficiency of electric-light, mainly used to the field which request high quality to deepness, smoothness and precision, such as horologe, communication products images marking etc.

Specification:

Item no	KT-LFT10(option KT-LFT20,KT-LFT30)
Laser output	10W(option:20w,30w)
Max marking speed	800 characters/s, height of cahrater 1mm
Laser wavelength	1064nm
Beam quality(m2)	<1.8 square metres
laptop provided	yes
Standard marking area	100mm×100mm
Optional marking area	70mm×70mm/150mm×150mm/
Marking depth	0.01-0.2mm,according to different materials
Whole machine power	800W
Min line width	0.01mm
repeatabilityprecision	±0.001mm
Power supply	AC 90-250V/50Hz 10A
Out package size	73X50X56CM
Cooling system	Air cooling

Advantages

1) USB interface connection: will work with a Laptop.

2) Small and compact: the dimension of fiber marker is very small, convenient to be taken away.

3) High Precision, bring you the fantastic and satisfied marking effect.

4) Superior Laser Beam: the definition is 1 micron, 10 times as that of traditional products.

5) No Consumables: One Fiber marker can work for more than 10 years without any consumables.

6) Fast Speed: 800 standard characters per second, is 3 to 5 times above that of traditional products.

7) The fiber laser beam comes out from the IPG fiber device directly, no need to adjust the laser optical path.

8) With Motorized Up/Down Focus and scale plate, capable to make location precisely, it is convenient and swift.

Packaging and shipping
model:KT-LFT10
each unit per plywood case
outer dimension:73x50x56cm
gross weight:64kg
delivery date:within 15 days after payment received
shipping:by sea/by air/international express posting(door to door)

warranty and service

· 1.We supply the software which can assist the marking machine

· 2.Free design of fixtures as customers required and technical support.

· 3.We guarantee delivery time within 7 days

· 4.We can produce the marking machine as your request.

· 5.One year for free warranty (include whole machine and parts, the material except

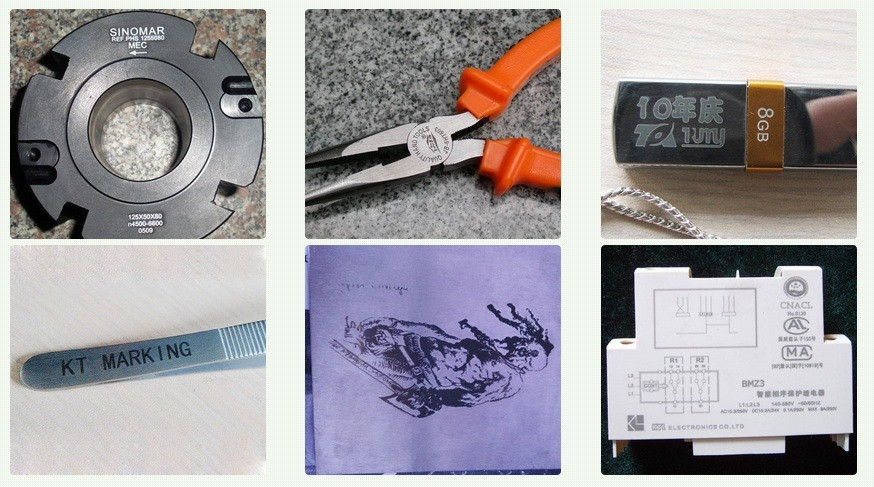

MARKING Sample:
