| Quantity | 24 - 49 | 50 - 99 | 100 - 199 | 200 - 499 | 500 - 999 | 1000 - |
| Price | 134.33 | 103.30 | 93.91 | 86.98 | 82.05 | 73.26 |
| MOQ | 1 box (24 pieces) |
| Port | Yantian Port |
| Packaging | Pearl cotton box，Anti-static film |
| Lead Time | Calculated based on order volume |

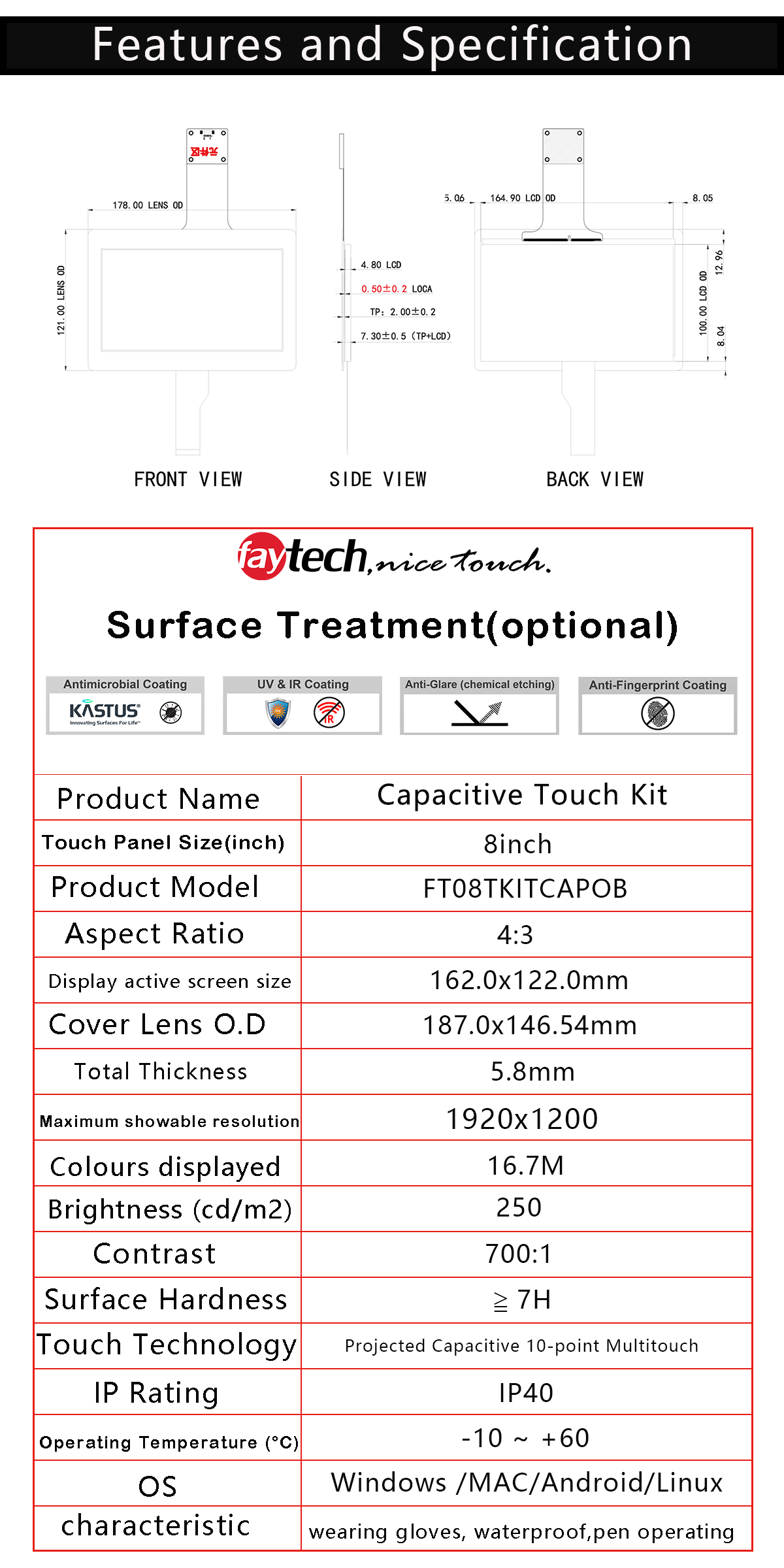

| Product Type | Capacitive Touch Kit | Product Model | FT08TKITCAPOB |
| Global article code | 3030503692 | European article code | 1010501760 |
| EAN number | 6920734000012 | Structures | Glass+Glass |
| IP Rating | IP 40 | Screen diagonal | 8" / 20.3 cm |
| Display active screen size | 16.20 cm x 12.20 cm (6.377 in x 4.803 in) | Aspect ratio | 4:3 |
| Physical resolution | 1024×768 px | Maximum showable resolution | 1920×1080 px |
| Backlight Type | WLED | Brightness | 250 (cd/m²) |
| Contrast | 700:1 | Typical reaction time Tr/ Tf | 6/14 (ms) |
| Visual angle horizontal/vertical | 150/150 (°) | Backlight lifetime | 20,000 (hours) |
| Touch technology | Projected Capacitive 10-point Multitouch | Available touch panel drivers | Windows Linux Mac Android |
| Touch lifetime | Unlimited | Surface hardness | 7H |
| Surface treatment | Anti-glare (chemical etching) | Glass strengthening | Chemically Strengthened |
| Humidity range | 10% - 90% RH | Net weight | 0.20 kg / 0.4409 lb |
| Gross weight (incl. cartonage) | 0.50 kg / 1.1023 lb | Housing sizes | 187.05 mm x 146.54 mm x 5.80 mm (7.364 in x 5.769 in x 0.228 in) |
| Working power | 12 V | Power consumption | 5 W |
| Standby power | 1 W | Touch connector | 1x USB |
| LCD panel interface | 1x LVDS | Included in the delivery | USB Cable LVDS Cable |
