Port | guangzhou,shenzhen |
Packaging | carton |
Lead Time | 20 |
Material | Fiberglass | Usage | swimming pool filtration |
Accessories | multiport value | Packing | carton and wood frame |
Diameter | from 400-2300mm | from 400-2300mm | Accpeted |
Bobbin-wound fiberglass
reinforced tank is still the most popular standardin the industry
after all. With UV-resistant surface finish, it is able to
operate under prolong sunlight for years of reliability.
Transparent lid is designed for easy inspection of sand bed. "M"
series(M450-MS1200) filters are equipped witha six-position, 1.5"
& 2.0" & 2.5" multiport valve and ABS laterals.
Features
and benefits
√ All-new Crossover Bobbin Winding Technology
√ 370kpa of maximum working pressure
√ Require less frequent backwash
√ Reduce waste of water and chemical consumption
√ 316 grade stainless steel components
√ Dual-layer full fibreglass tank, inside and
out
√ UV resistant body

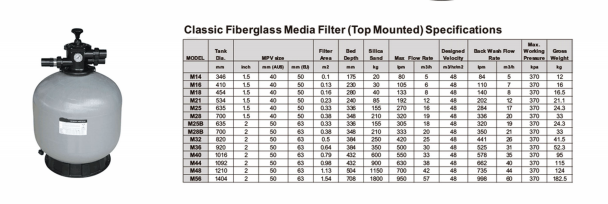

This is Top Mount sand filter model for your choice:
Code |
Dia (mm) |
Inlet/Outlet (inch) |
Flow (m3/hr) |
Filtration Area (m2) |
Sand Weight (kg) |
Working PRE. (kpa) |
M400 | 400mm 16'' | 1.5 | 8 | 0.13 | 40 | 350 |
M450 | 450mm 18'' | 1.5 | 10 | 0.16 | 75 | 350 |
M500 | 500mm 20'' | 1.5 | 11 | 0.18 | 85 | 350 |
M525 | 525mm 21'' | 1.5 | 12 | 0.19 | 90 | 350 |
M550 | 550mm 22'' | 1.5 | 13 | 0.2 | 100 | 350 |
M600 | 600mm 24'' | 1.5 | 14 | 0.22 | 140 | 350 |
M625 | 625mm 25'' | 1.5 | 16 | 0.3 | 150 | 350 |
M650 | 650mm 26'' | 1.5 | 17 | 0.32 | 155 | 350 |
M700 | 700mm 28'' | 1.5 | 19 | 0.35 | 165 | 350 |
M725 | 725mm 29'' | 1.5 | 20 | 0.38 | 170 | 350 |
M750 | 750mm 30'' | 1.5 | 21 | 0.4 | 185 | 350 |
M800 | 800mm 32'' | 2 | 24 | 0.5 | 200 | 350 |
M900 | 900mm 36'' | 2 | 30 | 0.64 | 310 | 350 |
M1050 | 1050mm 42'' | 2 | 38 | 0.88 | 435 | 350 |
M1200 | 1200mm 48'' | 2 | 42 | 1.13 | 560 |
350 |
