Low Price Swimming Pool Fiberglass Top Mount Sand F

Lead Time

7-20days

Product Details

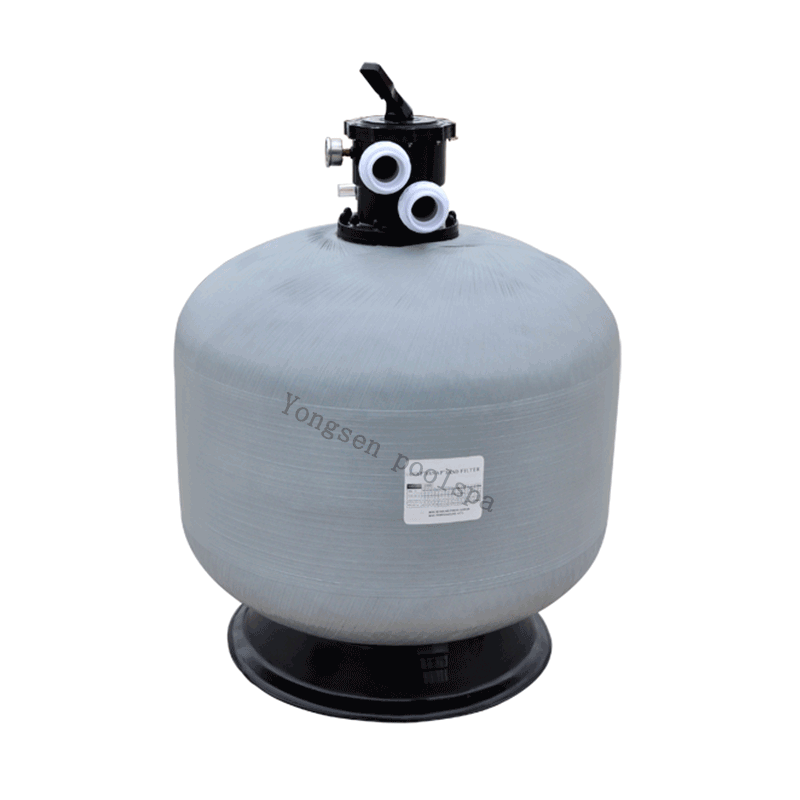

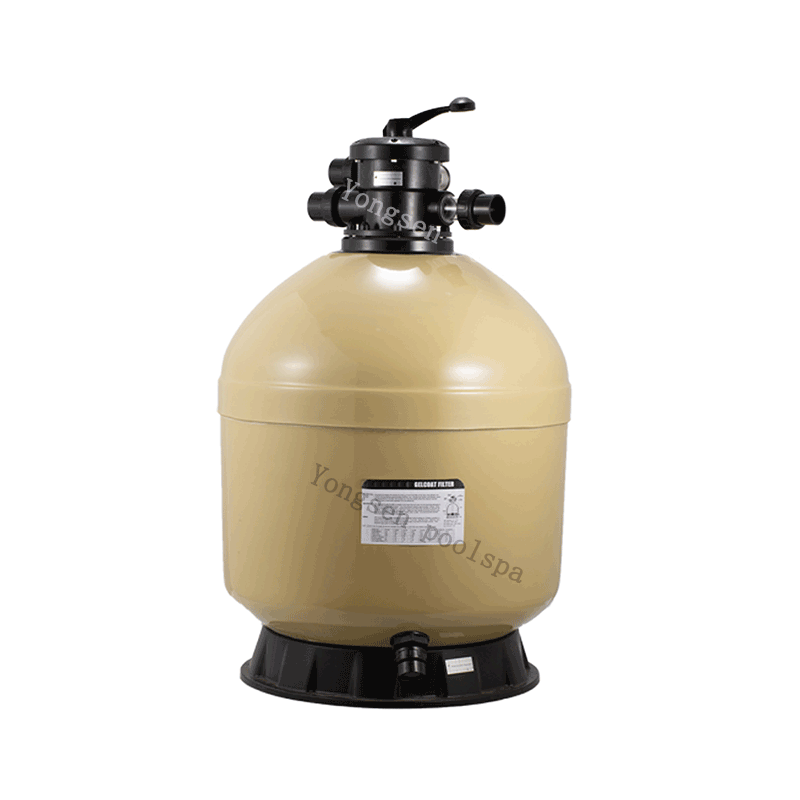

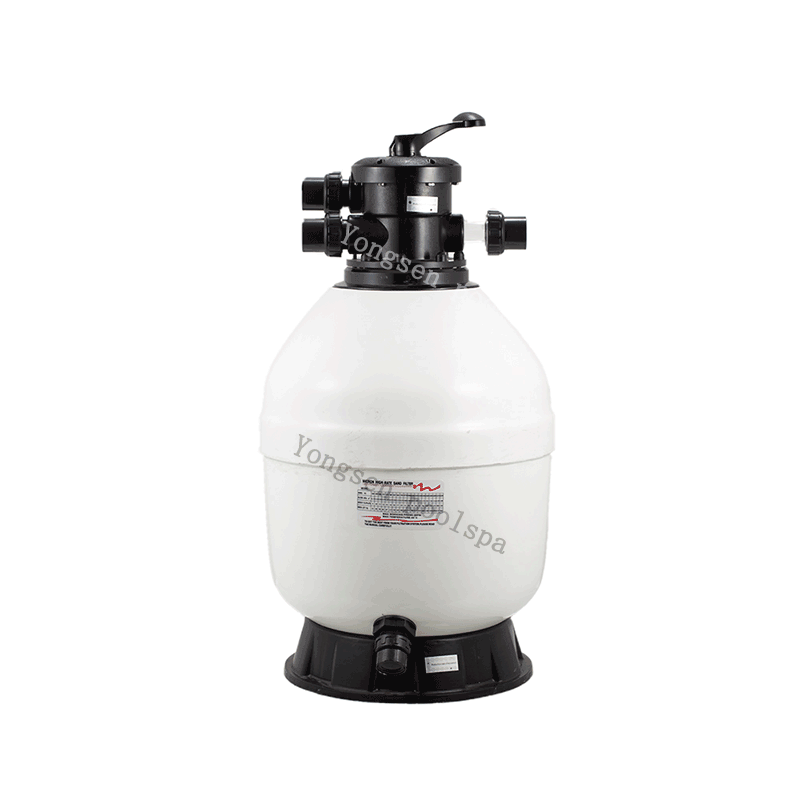

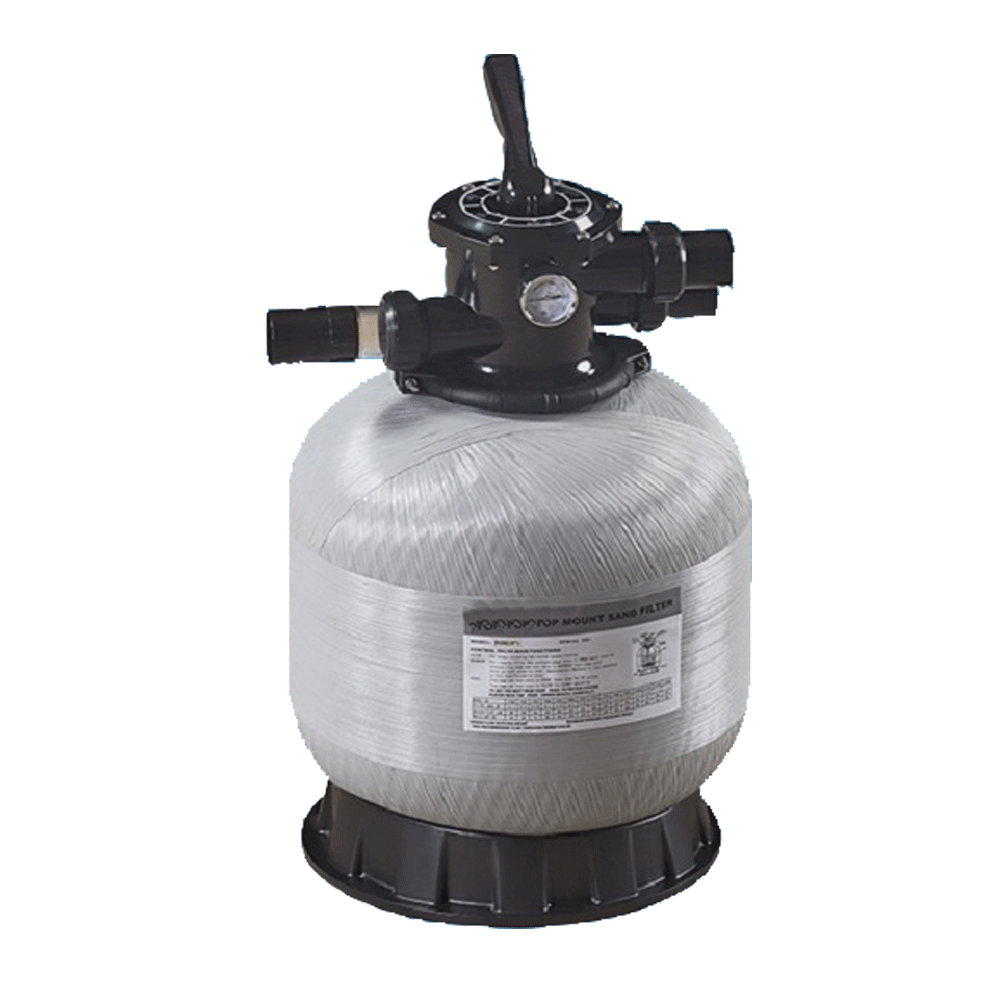

High quality top mount swimming pool sand filter

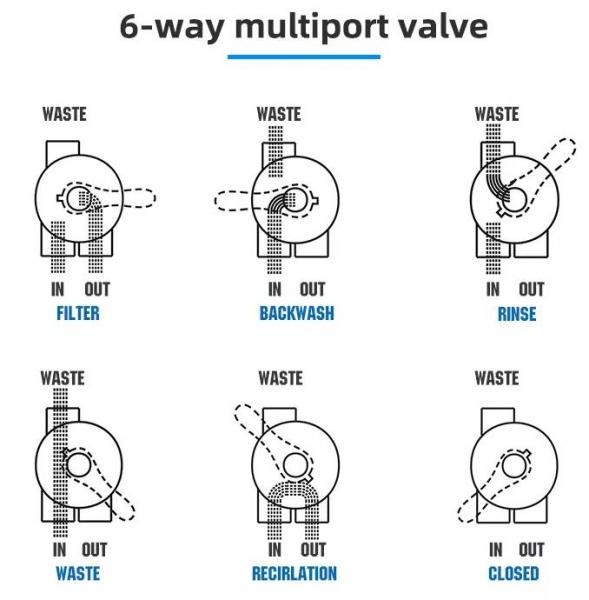

Fiberglass pool sand filtercan be a long time in the sun to operate, but also can adapt to different weather, because it uses a glass fiber and polyester technology, the top of the configuration of a multi-functional 6-way valve, all with ABS material;

The more things are trapped in the filter bed, the clearer the water filtered by the sand cylinder and the higher the efficiency of the sand cylinder. All the procedures have multi-directional valve operation and regular recoil and blow-down.

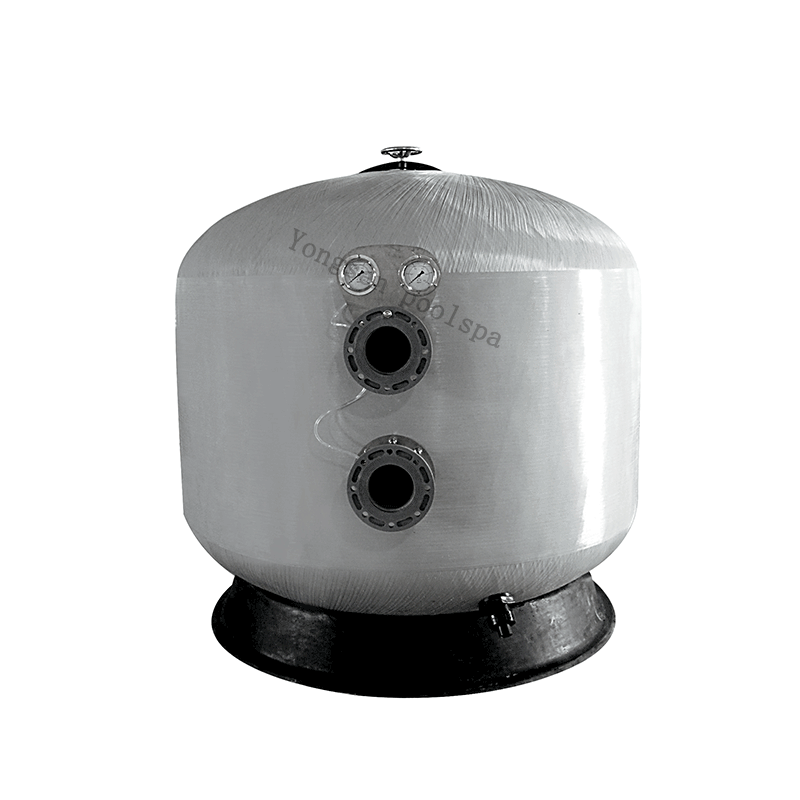

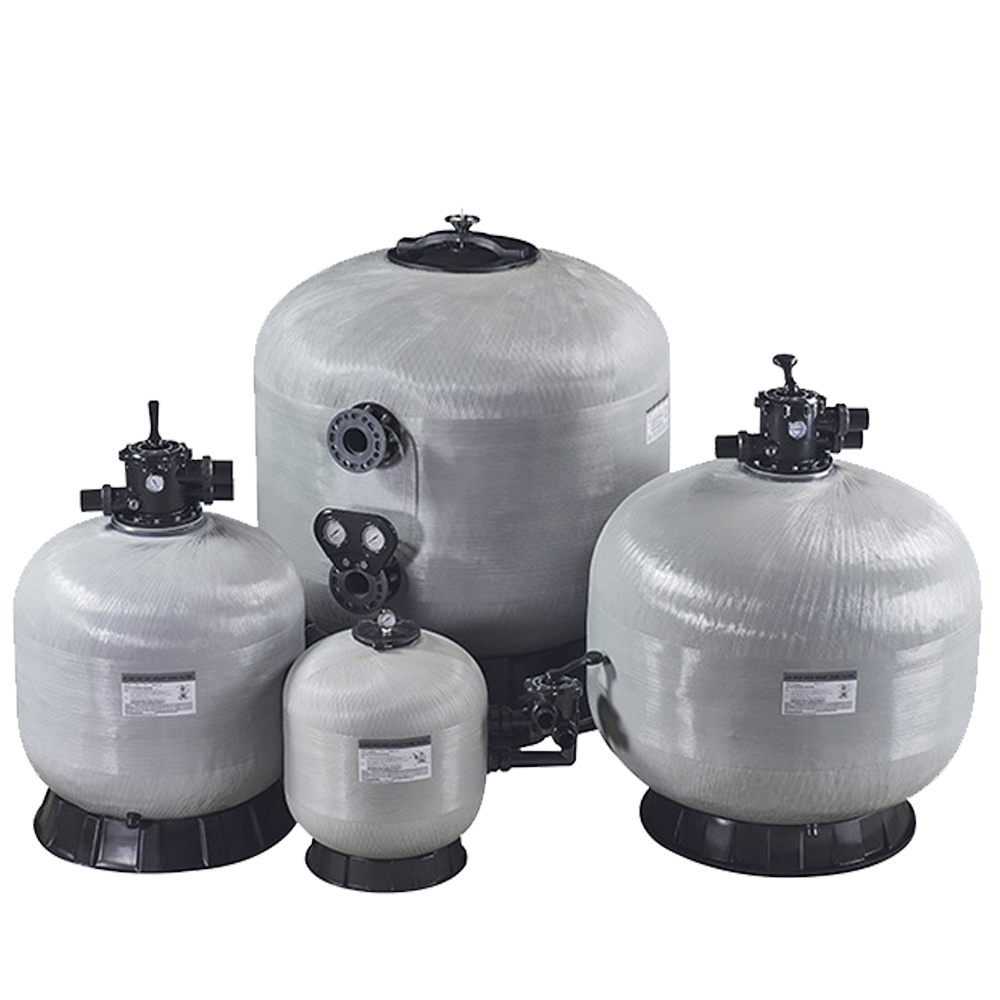

(We could supply top mount, side mount, and commercial sand filter.You can provide project or inquiry list, we will give you solutions and good quotation.If you have any interested in, pls don´t hesitate to contact me, we will send more information to you, thank you so much.)

Model	Port Connection	Flow Rate	Filter Area(m2)	Grave(kg)	A(mm)	B(mm)
Y400	1.5inch/50mm	8M3/H	0.13	35	760	400
Y450	1.5inch/50mm	10M3/H	0.16	45	815	450
Y500	1.5inch/50mm	12M3/H	0.22	85	880	525
Y650	1.5inch/50mm	16M3/H	0.30	150	1005	625
Y700	1.5inch/50mm	20M3/H	0.40	210	1100	700
Y800	2.0inch/63mm	25M3/H	0.50	355	1310	800
Y900	2.0inch/63mm	31M3/H	0.64	470	1380	900
Y1000	2.0inch/63mm	36M3/H	0.79	620	1495	1000
Y1100	2.0inch/63mm	42M3/H	0.96	800	1580	1100
Y1200	2.0inch/63mm	45M3/H	1.13	900	1600	1200
Y1400	2.0inch/63mm	56M3/H	1.54	1350	1810	1400

Top mount sand filter specification:

INSTALLATION
Installation had been made simple, the only tools needed is a screwdriver and pipe sealant for plastic.
Locate the Filter on hard, level surface, preferably in a dry, shaded, and well-ventilated area.
1/ Place the empty tank in position.
2/ Fill the tank with water to the level that covers the lateralsabout 1/3 of the tank is recommended.This will avoid damages to the laterals by the force of the sand when pouring into the filter.

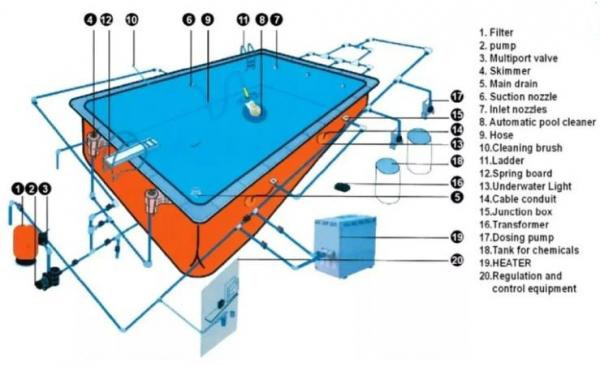

SwimmingPool Equipment System, Including:

1.Filter system	sand filter,wall-mount pipeless filter,in-ground filtration system
2.Circulation system	swimming pool water pump
3.Disinfection system	chlorine feeder,salt chlorinator,pool controller,ozone,UV
4.Lighting system	wall mount or buried type underwater light,LED/RGB,halogen lamp
5.Cleanning system	Automatic pool cleaner,brush, leaf skimmer, leaf rake, pole, test kit, vacuum head, hose
6.Pool fittings	wall inlet-out,skimmer,water return, main drain, grating
7.Surounding products	ladder,life-gaurd chair,life buoys,life clothe
8.Water heater system	pool heater, heat pump
9.Swimming pool macth system	starting block, pool lane, lane reel
10.Pool massage system	impact spa accessories, wallfall, spa chair, spa bed

Our Advantages:
1) High quality with Low Price
2) Delivery in time
3) Vibration resistant Easy to transport and install
4) Body with excellent thermal managing design
5) Different colors for your select

Payment Terms:
1 ) Payment:40% in advance,+60% balance should be paid before delivery.
2 ) Lead time: 1x20ft for 15 days; 1x40ft for 20 days
3 ) Port of loading: Guangzhou, Mainland China.
4 ) Discounts are offered based on order quantities.
