MOQ | 1 Set/Sets |
Applicable Industries | Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining | Condition | New |
Power Type | Electric | Place of Origin | Henan, China |
Brand Name | Keming | Weight | 1600kg |
Dimension(L*W*H) | 2990*1200*1140mm | Certification | ISO CE |
Warranty | 1 Year | After-sales Service Provided | Video technical support, Free spare parts, Online support |
Product name | KBS Shotcrete Pump | Concrete Slump | 10~18cm |
Springback | <15% (standard operation) | Capacity | 3~8m3/h (continuous speed change) |
Aggregate size max. | 15mm | Conveying pipe ID. | 51/57/64 |
Work air pressure | 0.4~0.7MPa | Air consumption | ≥13m3/min |
Conveying dist. max. | 150/80m | Motor power | 15kw |

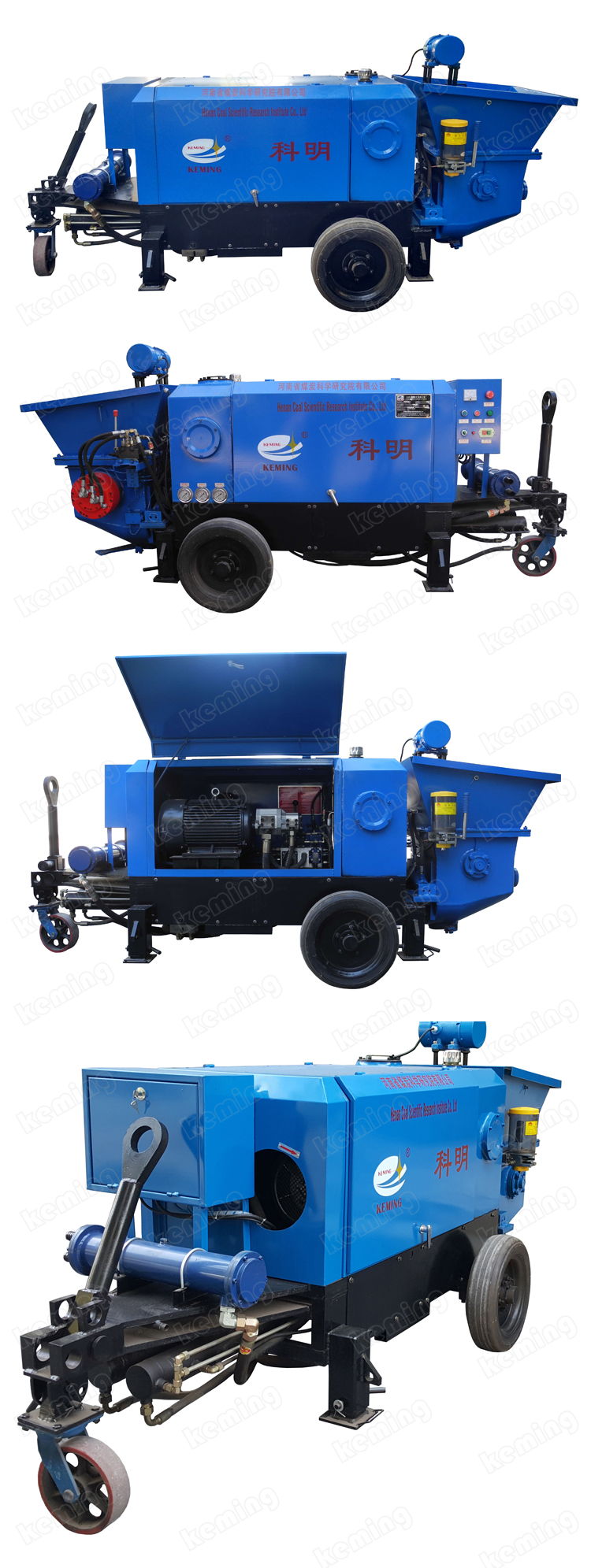

* Full Hydraulic Mini Shotcrete Pump Machine
* high efficiency: full hydraulic pumping technic, reliable performance.
* long spraying distance: 150m horizontally and 80m vertically.
* continuously adjustable flux and accelerator adding volume.
* low fitting consumption, long service life of wearing parts.
* flexible movement, convenient operation and maintenance.
Concrete Pump Application:* convey fine aggregate concrete and mortar for high buildings.
* grout heat-insulated lightweight foamed cement, mortar floor heating, and self leveling for ground architecture.
* spray plain concrete and fiber concrete in engineering construction.
* convey and spray refractory and thermal insulation material.
* spray afforestation soil in ecological environment construction.
* pressure perfussion for foundation piles, backfill in overbroken tunnels, railway slope supporting, and disaster management.
Concrete Pump Technical parameters:
Items |
Unit |
Parameters |
|||
KBS-8 |
KBS-6 |
KBS-4 |
|||
Capacity (stepless speed change) |
m3/h |
8 |
6 |
||
Max. aggregate size |
mm |
15 |
15 |
||
Fineness modulus |
|
≥2.5 |
≥2.5 |
||
Delivery pipe |
mm |
DN100/DN80 |
DN100/DN80 |
||
Concrete slump |
cm |
10~18 |
10~18 |
||
Max. conveying dist. |
horizontally |
m |
150 |
120 |
|
vertically |
m |
80 |
50 |
||
Main motor power |
kw |
22 |
18.5/15 |
||
Max. operating oil pressure |
Mpa |
19 |
15/12 |
||
Max. output pressure |
Mpa |
8 |
6/5 |
||
Feeding height |
mm |
1100 |
|||
Dimensions (Length×width×height) |
mm |
2990×1200×1140 |
|||
Weight |
kg |
1600 |
