EMC cable gland which electromagnetic compatibility is very great, is designed for use with unarmoured, elastomeric and plastic cable or braided cables where EMC cable is required. Suitable for both indoor & outdoor applications, seals on cable outer sheath to IP68, and it fitted with patented EMC membrane, suitable to carry on cable shield.
We will give you the emc cable gland installation plan.The products of our company include cable gland types,strain relief connector,cable tie,wire tie wraps,cable tie holder,emc cable gland and so on.
EMC Cable Gland Specifications
Product |
EMC Cable Gland |
Category |
Brass Cable Gland |
Thread |
Metric Thread |
Connector Type |
Installable Straight |
Locking System/ Mating Style |
Screw |
Material |
Sealing nut, body and lock nut are made of nickel plated brass, the claw is made of PA and the seal and washer are made of nitrile butadiene rubber (NBR). |
Working termperature: |
-40 to 100 centigrade in static state,instantaneous heat resistance up to 120 centigrade,-20 to 80 centigrade in dynamic state,instantaneous heat resistance up to 100 centigrade. |
Characteristics |
Special design of clamping die and rubber part,large range in clamping cable, ultra-strong stretching resistance, waterproof, dustproof,and high ability to resist salt,acid,alkali, alcohol,grease and general solvent. |
IP Rating |
IPX7 |
Additional Description |
With washer and lock nut |

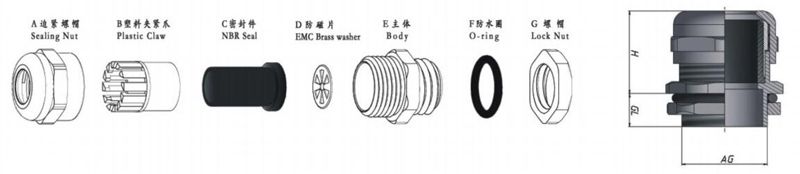

EMC Cable Gland Parameters and Drawing
Model |
Thread specification |
Range (mm) |
Thread O .D . AG(mm) |
Thread Length GL (mm) |
Joint length H (mm) |
Spanner Size (mm) |
M10x1.5 |
M10/EMC |
3-6.5 |
10 |
6.5 |
19 |
14 |
M12x1.5 |
M12/EMC |
3-6.5 |
12 |
6.5 |
19 |
14 |
M14x1.5 |
M14/EMC |
4-8 |
14 |
8 |
19 |
17 |
M16x1.5 |
M16/EMC |
4-8 |
16 |
8 |
20 |
18 |
M18X1.5 |
M18/EMC |
5-10 |
18 |
8 |
21 |
20 |
M20x1.5 |
M20/EMC |
6-12 |
20 |
8 |
22 |
22 |
M22x1.5 |
M22/EMC |
10-14 |
22 |
8 |
23 |
24 |
M24x1.5 |
M24/EMC |
10-14 |
24 |
9 |
25 |
24/27 |
M25x1.5 |
M25-14/EMC |
10-14 |
25 |
9 |
25 |
24/27 |
M25-18/EMC |
13-18 |
25 |
9 |
27 |
30/27 |
|
M27x1.5 |
M27/EMC |
13-18 |
27 |
9 |
27 |
30 |
M28X1.5 |
M28/EMC |
13-18 |
28 |
9 |
27 |
30 |
M30X1.5 |
M30/EMC |
13-18 |
30 |
9 |
29 |
30/32 |
M32X1.5 |
M32/EMC |
15-22 |
32 |
10 |
29 |
35 |
M33X1.5 |
M33/EMC |
15-22 |
33 |
10 |
29 |
35/36 |
M36X1.5 |
M36/EMC |
18-25 |
36 |
10 |
31 |
40 |
M37X1.5 |
M37/EMC |
18-25 |
37 |
10 |
31 |
40 |
M40x1.5 |
M40-25/EMC |
18-25 |
40 |
11 |
31 |
40/45 |
M40-30/EMC |
22-30 |
40 |
11 |
35 |
45 |
|
M42x1.5 |
M42/EMC |
22-30 |
42 |
11 |
35 |
45 |
M47x1.5 |
M47/EMC |
25-33 |
47 |
11 |
37 |
50 |
M48x1.5 |
M48/EMC |
25-33 |
48 |
11 |
37 |
50/52 |
M50x1.5 |
M50/EMC |
32-38 |
50 |
12 |
37 |
57/55 |
M54x1.5 |
M54/EMC |
32-38 |
54 |
12 |
38 |
57 |
M60x1.5 |
M60/EMC |
37-44 |
60 |
13 |
38 |
64 |
M63x1.5 |
M63/EMC |
37-44 |
63 |
14 |
38 |
64/68 |
M64x2 |
M64/EMC |
37-44 |
64 |
14 |
38 |
64/68 |
M72x2 |
M72/EMC |
42-52 |
72 |
16 |
42 |
78 |
M75x2 |
M75/EMC |
42-52 |
75 . |
16 |
42 |
78/80 |
M80x2 |
M80/EMC |
55-62 |
80 |
18 |
45 |
88 |
M88x2 |
M88/EMC |
65-70 |
88 |
18 |
45 |
94 |
M100x2 |
M100/EMC |
78-84 |
100 |
20 |
53 |
110 |
