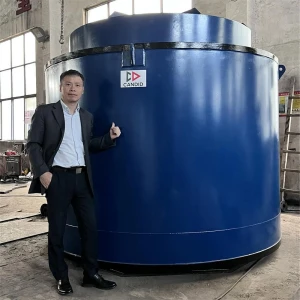

Electric Annealing Furnace

Product Details

Electric Annealing furnace is mainly used for annealing and heat treatment of coiled wire, copper, stainless steel, steel strip and metal parts. After annealing, the work piece is kept clean with less oxidation and no decarburization. It is composed of furnace body, furnace tube, furnace cover, heating element, temperature control cabinet, etc.

Furnace Body

5mm Q235 board furnace shell

Lightweight firebrick Internal liner

Holocellulose alumina silicate keeping temperature

Heating element: Cr20Ni80

Furnace Tube

Thickness: 8mm, Dia.: 800mm, high: 1200mm

Material: Stainless Steel

Working Process of Annealing Wire:

a. Two hours heating to 650°C-700°C

b. Keeping Temperature 650°C-700°Cfor 2 hours

d. Taking out of the tube put another one in

e. When the tube temperature is below 170°C, take the wire out
