DR86S Digital Ultrasonic Thickness Gauge Thickness Metal Tester For Metal Processing Industry

Contact Now

Quick Details (View All)

Warranty	1 years	Customized support	OEM
Place of Origin	Guangdong, China	Brand Name	DONGRU
Model Number	DR86S

Product Details

Product Overview

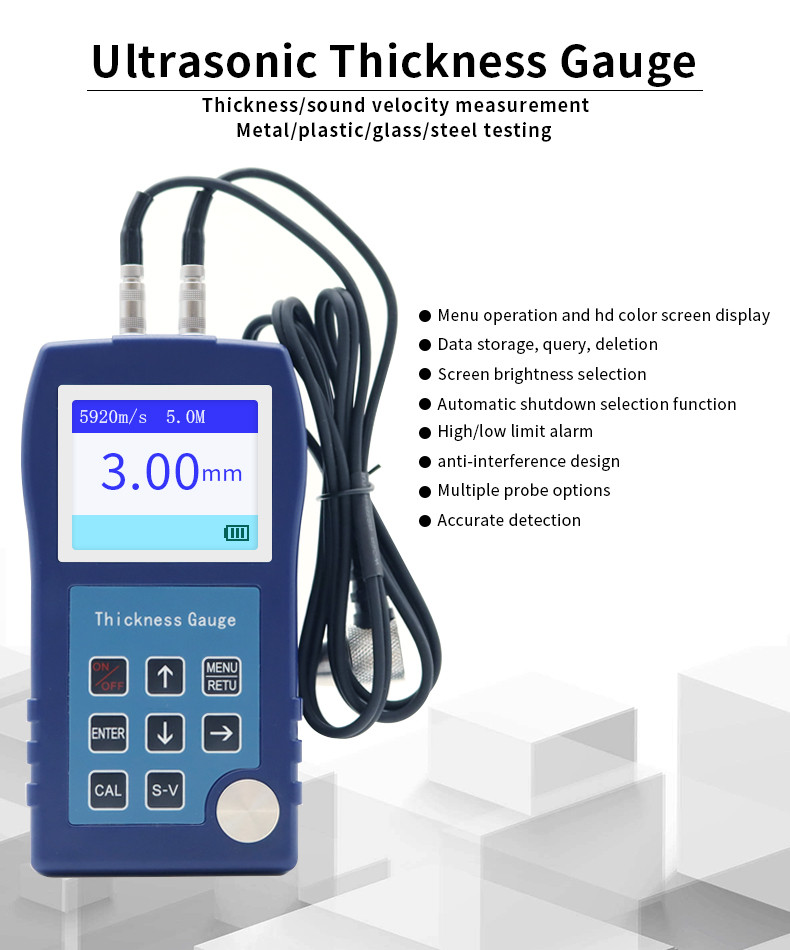

Ultrasonic thickness gauge

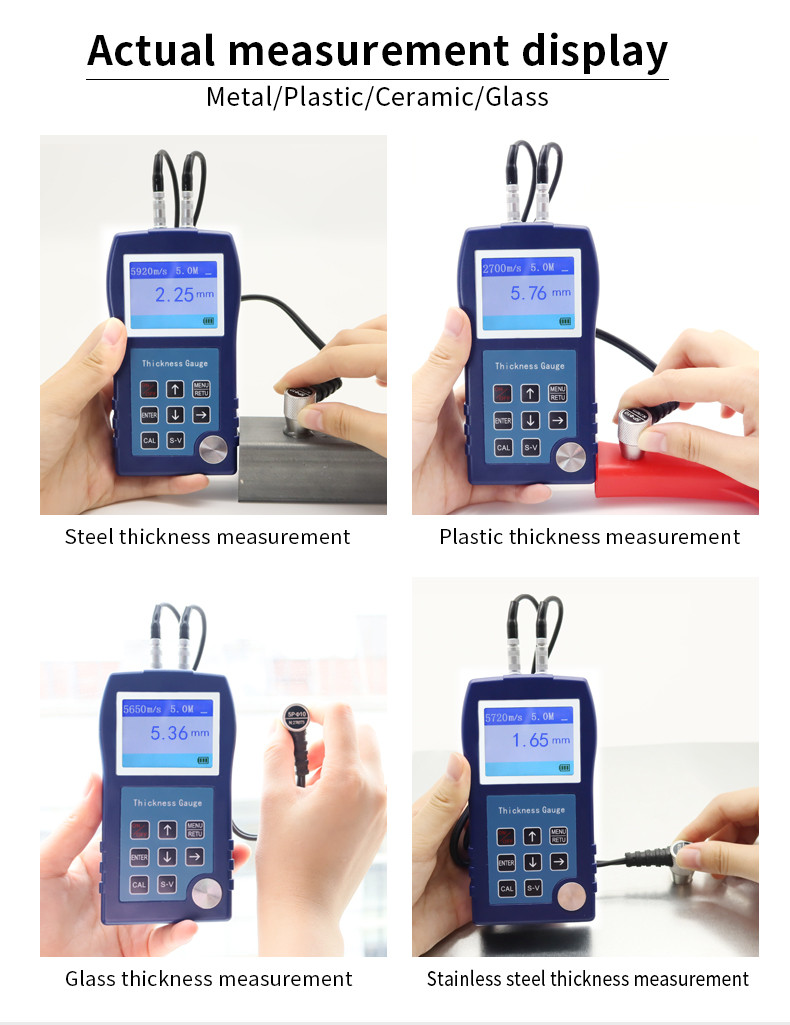

Ultrasonic thickness gauge is a kind of high-precision thickness gauge which uses ultrasonic measurement principle, adopts high-speed processor and high integrated chip design to realize portable, nondestructive, fast and accurate measurement of thickness and sound velocity of various materials. It is suitable for measuring the thickness of various materials, such as steel, metal, glass, ABS, plastics, PVC, ductile iron, etc., which can be transmitted by ultrasonic wave at a constant speed in its back.

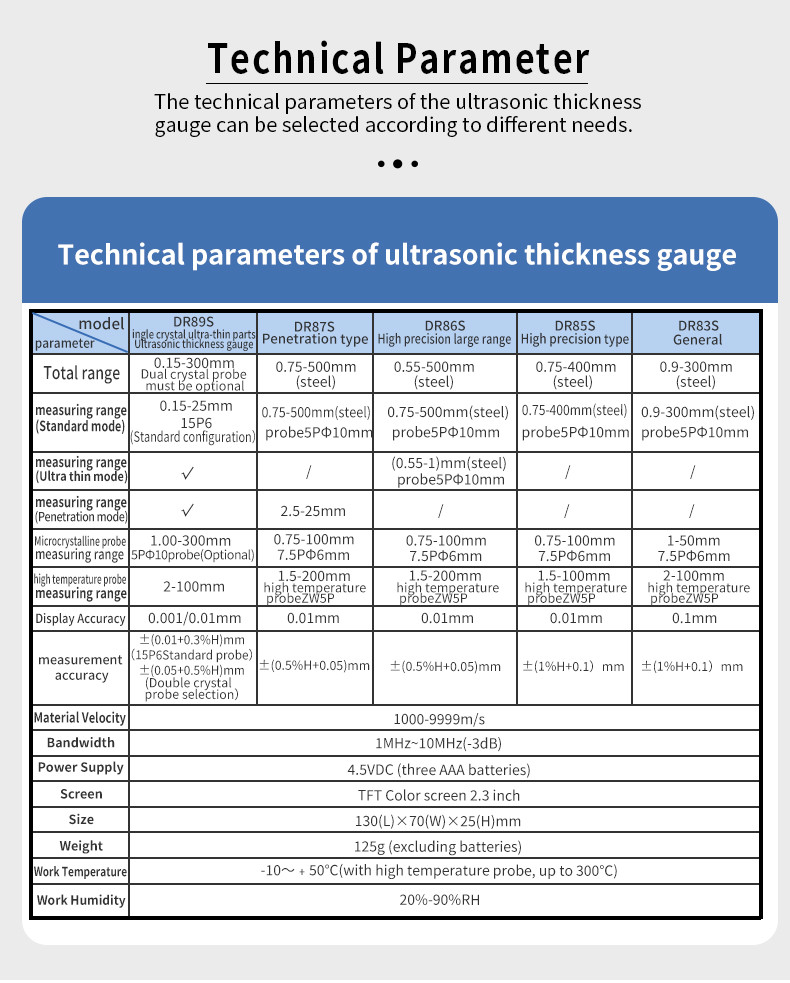

PRODUCT SPECIFICATIONS

MODEL	DR86S
Measuring Range(Standard)	0.55〜500mm（ steel）
Ultra-thin mode	0.55～1mm( steel)
Display Resolution	0.01mm
Measurement Resolution	±（0.5%H+0.05）mm
Material Velocity	1000～9999m/s
Bandwidth	1MHz～10MHz(-3dB)

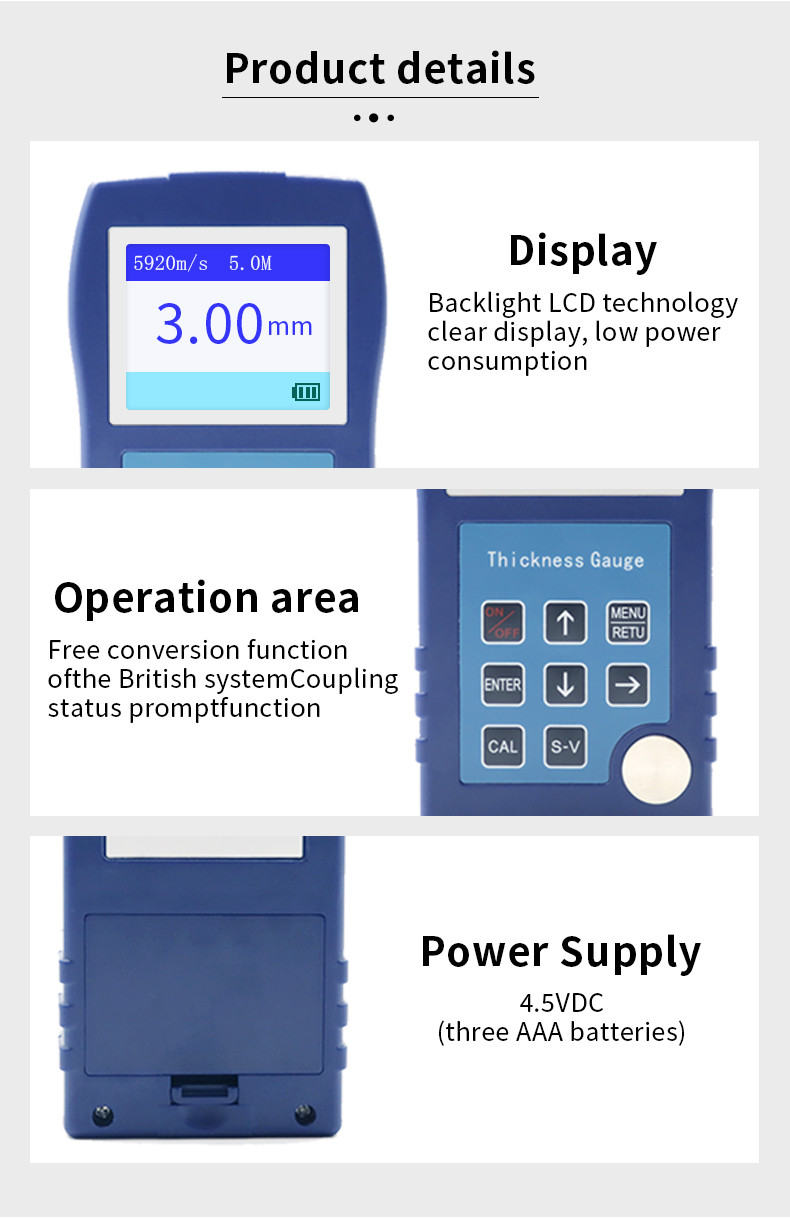

Power Supply	4.5VDC (three AAA batteries)

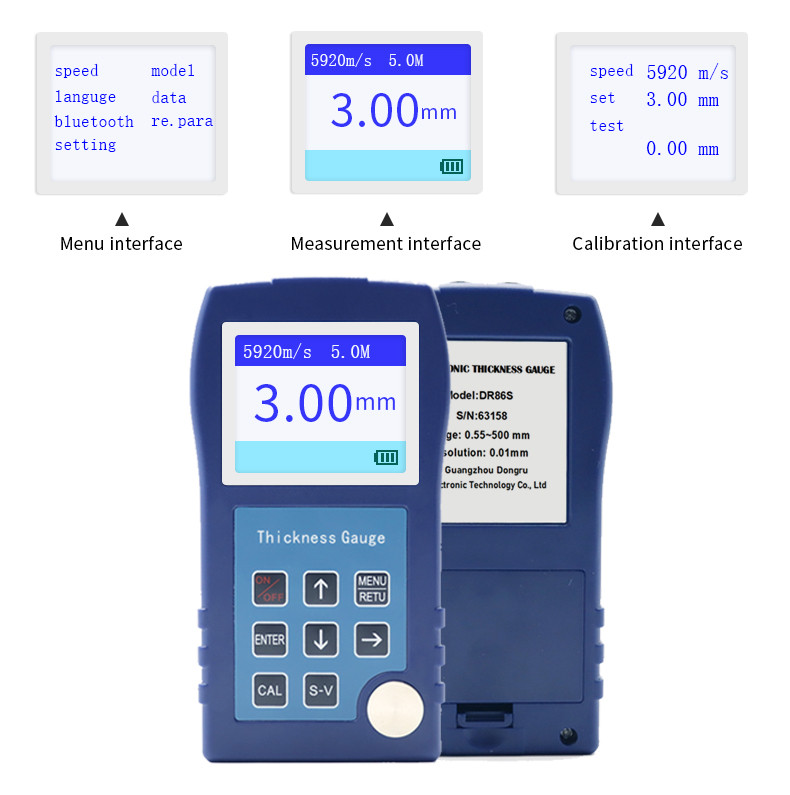

Screen	TFT Color screen 2.3 inch
Size	130（L）×70（W）×25（H）mm
Weight	125g (excluding batteries)
Work Temperature	-10～﹢50℃(with high temperature probe, up to 300℃)
Work Humidity	20%～90%RH

FAQ

Q1：Are you a factory or trading company?

A1：We are a factory.

Q1：MOQ?

A1：We dont have MOQ limit, you can order any quantity you want. If you need scales with your specification, logo, packing,etc,please negotiate with us.

Q1：Can I add my logo on the machine?

A1：Yes,OEM is available for us.But you should send us the Trademark authorization letter.

Q1：Do you have inspection procedures for these machine?

A1：100% self-inspection before packing

Q1：Payment Method?

A1：L/C at sight, T/T, Western Union and Paypal are all available. 30% deposit T/T in advance, rest against the Shipping Doc. 100% T/T in advance for sample order.

Q1：Shipping?

A1：

a. International Experess: DHL/TNT/FEDEX/UPS (For sample) b. By air (For sample orders.) c. By sea (15-45days), port of loading: Guang zhou d. By domestic logistics to your forwarder. (2-3days)
