DR83S Metal Plate Portable Plastic Meter Glass Digital Thickness Gauge Meter Ultrasonic Thickness Gauge

Name: DR83S Metal Plate Portable Plastic Meter Glass Digital Thickness Gauge Meter Ultrasonic Thickness Gauge
Brand: Guangzhou Dongru Electronic Technology Co., Ltd.
SKU: Tradewheel_2542724
Price: 58 USD
Availability: InStock

FOB Price 58 - 66 USD / pieces

Contact Now

Quick Details (View All)

Warranty	1 years	Place of Origin	Guangdong, China
Brand Name	DONGRU	Model Number	DR83S
Material	plastics	Item Weight	300
Accuracy	u00b1(1%H+0.1)mm	Measurement Range	0.9-300mm(in steel)

Product Details

Products Description

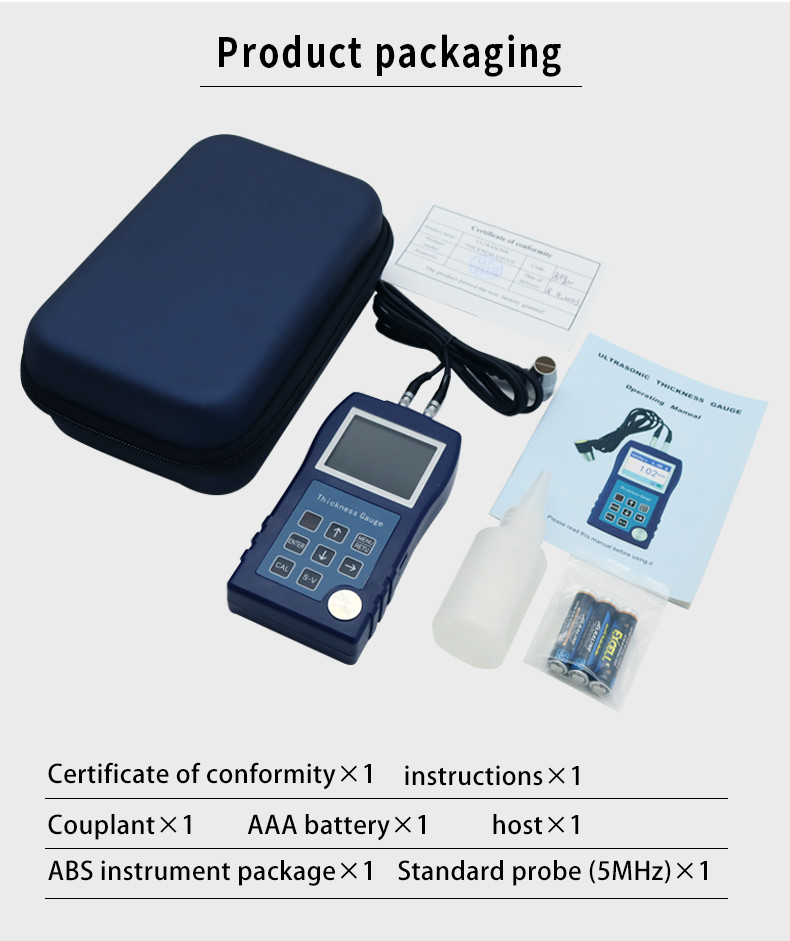

Important note: Because the ultrasonic thickness gauge has three sections of AAA battery and 50ml coupling agent liquid, the transportation cost of charged liquid is relatively high, and most general cargo logistics do not undertake delivery. If customers who place orders on their own choose general cargo logistics, we will take out the battery and coupling agent liquid and then deliver them. The coupling agent can be used instead of glycerin and lubricating oil. If you have any questions, please contact us in time. Thank you for your cooperation.

Product Overview

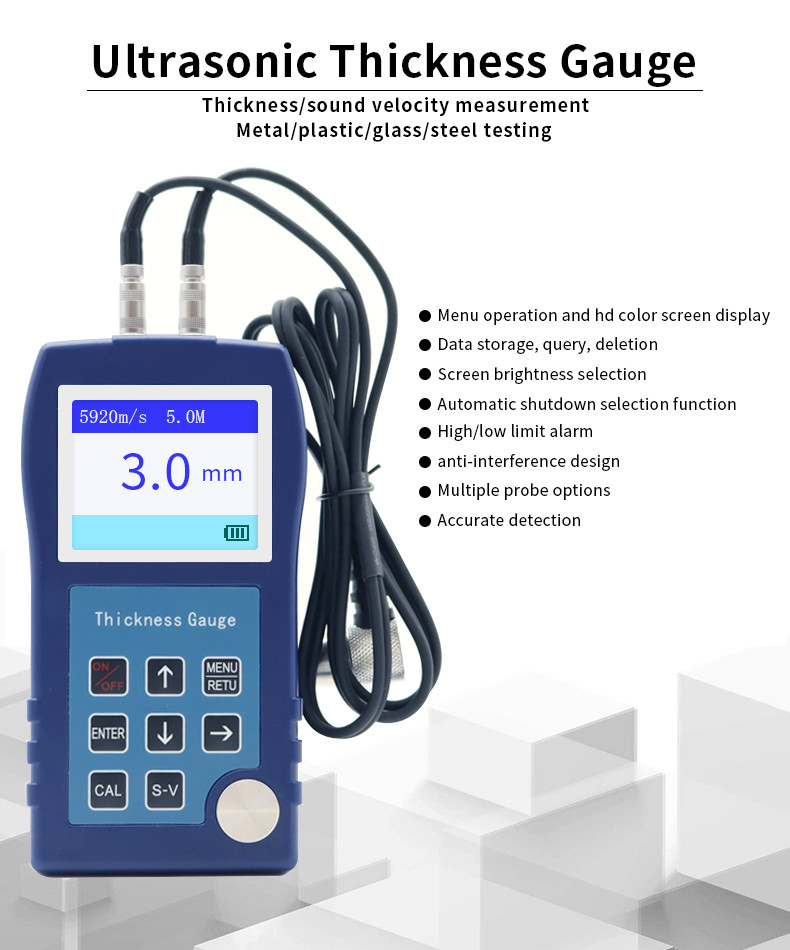

ULTRASONIC THICKNESS GAUGE

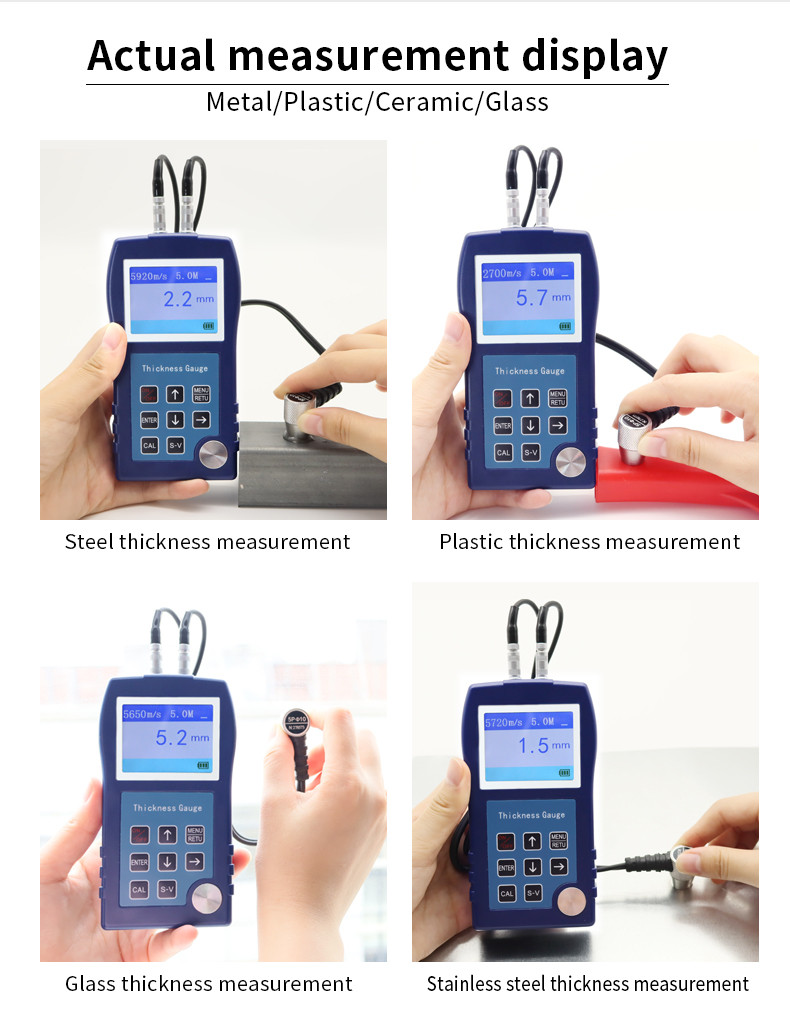

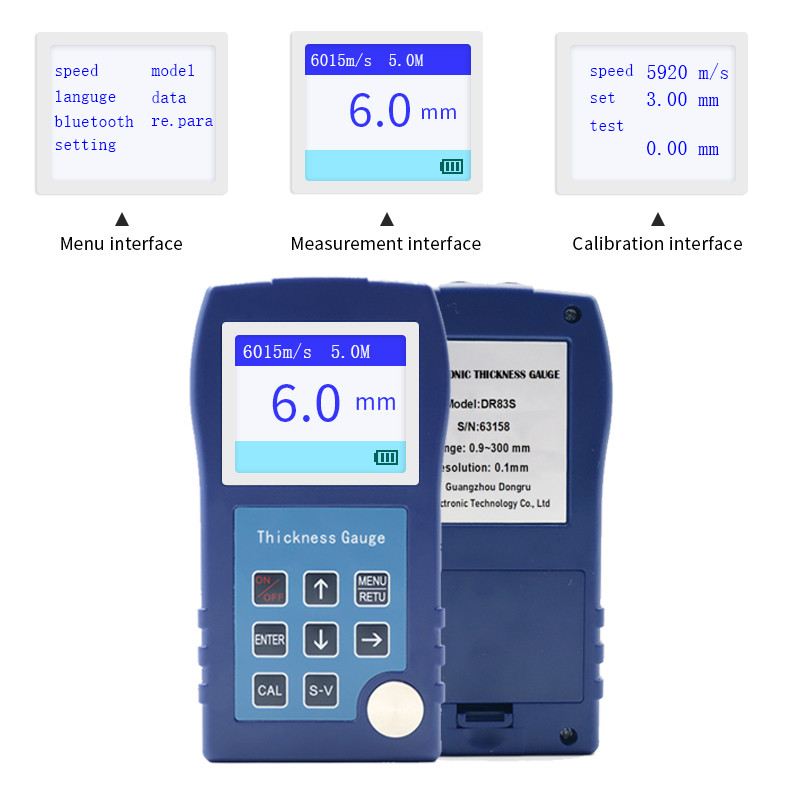

Ultrasonic thickness gauge is a kind of high-precision thickness gauge which uses ultrasonic measurement principle, adopts high-speed processor and high integrated chip design to realize portable, nondestructive, fast and accurate measurement of thickness and sound velocity of various materials. It is suitable for measuring the thickness of various materials, such as steel, metal, glass, ABS, plastics, PVC, ductile iron, etc., which can be transmitted by ultrasonic wave at a constant speed in its back.

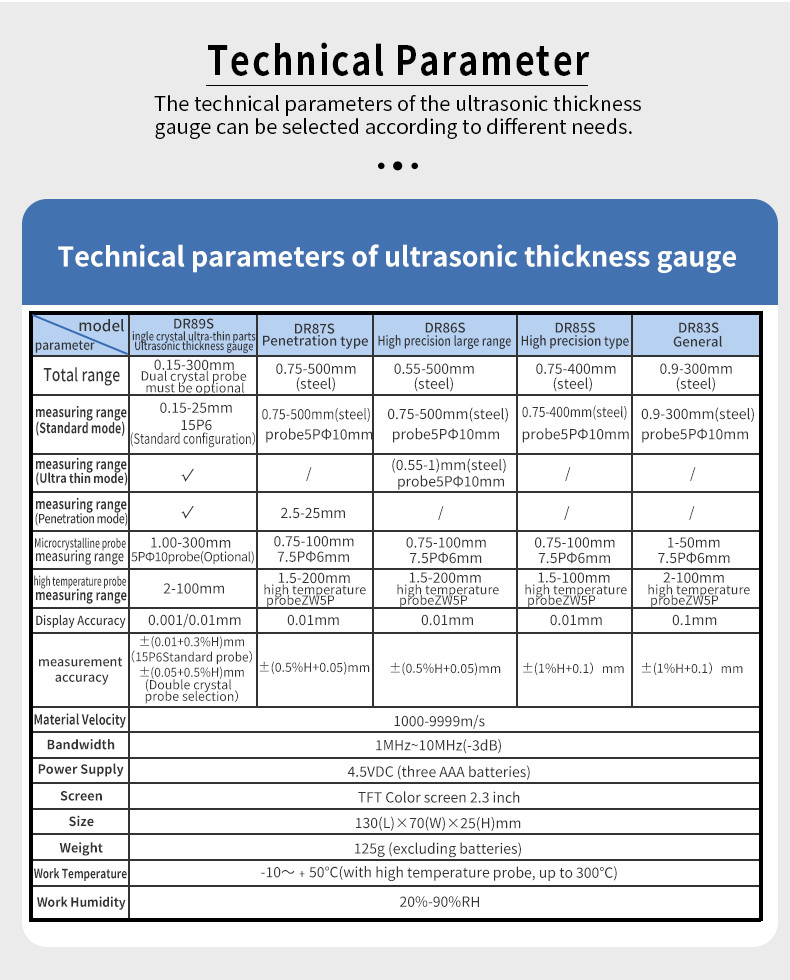

PRODUCT SPECIFICATIONS

MODEL	DR83S
Measuring Range(Standard)	0.9〜300mm

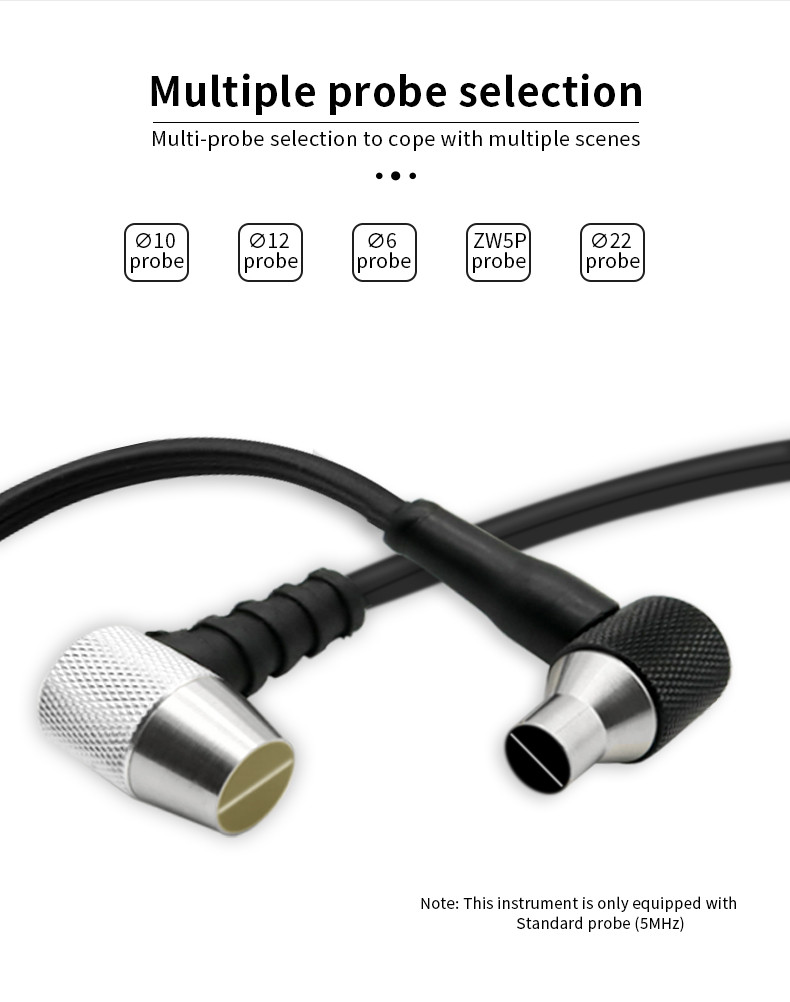

Standard mode	0.9〜300mm Probe：5PΦ10mm
Display Resolution	0.1mm
Measurement Resolution	±（1%H+0.1）mm
Material Velocity	1000～9999m/s
Bandwidth	1MHz～10MHz(-3dB)
Power Supply	4.5VDC (three AAA batteries)

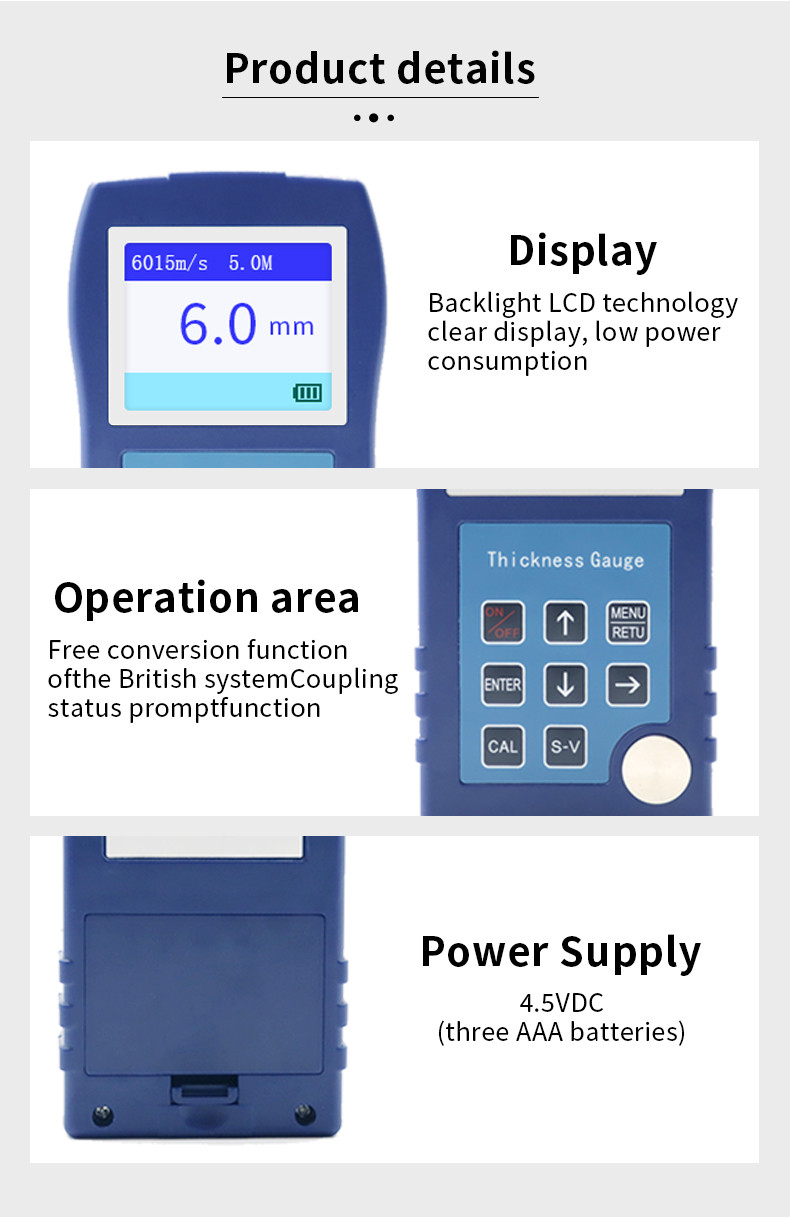

Screen	TFT Color screen 2.3 inch
Size	130（L）×70（W）×25（H）mm
Weight	125g (excluding batteries)
Work Temperature	-10～﹢50℃(with high temperature probe, up to 300℃)
Work Humidity	20%～90%RH
weight	157G

FAQ

Q1：Are you a factory or trading company?

A1：We are a factory.

Q1：MOQ?

A1：If you need scales with your specification, logo, packing, etc, please negotiate with us.

Q1：Can I add my logo on the machine?

A1：We dont have MOQ limit, you can order any quantity you want. Yes,OEM is available for us.But you should send us the Trademark authorization letter.

Q1：Do you have inspection procedures for these machine?

A1：100% self-inspection before packing

Q1：Payment Method?

A1： L/C at sight, T/T, Western Union and Paypal are all available. 30% deposit T/T in advance, rest against the Shipping Doc. 100% T/T in advance for sample order.

Q1：Shipping?

A1：

a. International Experess: DHL/TNT/FEDEX/UPS (For sample) b. By air (For sample orders.) c. By sea (15-45days), port of loading: Guang zhou d. By domestic logistics to your forwarder. (2-3days)
