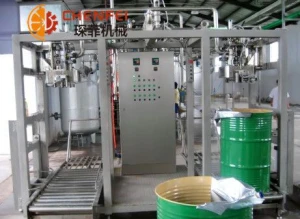

Double-head Large Bag Aseptic Filling Machine

Product Details

Equipment performance and technical indicators:

provide a variety of safety measures (position control, measurement control, temperature control) to prevent mechanical damage and ensure product quality;

Aseptic filling machines are widely used in the aseptic packaging of fluid foods such as juice, fruit pulp and jam. At room temperature, the product can be stored for more than one year, which can save the cost and risk of low-temperature refrigerated transportation.

The aseptic filling machine is directly connected to the sterilization machine, and the products after UHT sterilization can be filled directly in the aseptic bag. Aseptic bag is aluminum-plastic composite multi-layer bag, which can effectively isolate sunlight and oxygen; To ensure maximum product quality.

The temperature control system automatically adjusts the temperature of the filling chamber, and sterilizes the bag mouth and the filling chamber by steam jet method.

Flow weighing system is used to control, to achieve quantitative filling, filling more accurate;

Mirror welding technology is used to ensure that the weld is smooth and smooth, leaving no sanitary dead corners;

The valve and the moving parts of the filling head are protected by steam barrier, and the filling chamber is sterilized by steam.

The programmable controller is used to realize automatic operation of the equipment.

Equipment parameters are as follows:

Equipment name: double head aseptic large bag filling machine

Rated capacity: 6000 KG/H

Filling range: 1 ~ 220L

Filling energy: 220L 40 bags /Hour

Filling error: ±0.5% (flow meter)

Compressed air: 40M3/Hour (0.6Mpa)

Steam consumption: 40Kg (≥4kg/cm2)

lift: screw type

dimension: 3200x2100x2600mm
