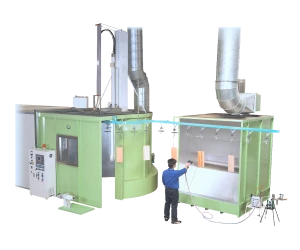

Disc Electrostatic Painting Machine

MOQ	1 Set
Port	Taichung Port

Contact Now

Quick Details (View All)

Electrostatic Coating	Through a high-speed rotating charged disc, the paint is flung out, forming charged particles that are strongly attracted to the workpiece surface, achieving a perfect edge coating effect.	Maximum Paint Utilization	With a paint adhesion rate of 80-90%, overspray and solvent waste are significantly reduced, lowering costs.
Uniform Coverage	Paint particles adhere evenly to the workpiece surface. Superior atomization of paint particles further enhances the uniformity of the coating thickness, resulting in a high-quality finish.	Paint Saving & Eco-Friendly	The strong electrostatic attraction effectively reduces paint overspray and waste, saving paint usage.
Stable Productivity	Consistent coating quality and stable production capacity lead to increased efficiency.	Wide Range of Applications	Widely used in various industries, including furniture, hardware, and bicycle accessories.

Product Details

Applied to wood furniture, metal, bicycle parts.

BigToyo's Disc Electrostatic Painting Machine utilizes electrostatic spraying technology to achieve a paint adhesion rate of up to 80-90%, significantly reducing overspray and waste, thus saving costs. The uniform distribution of paint particles ensures a smoother and more even coating, meeting the needs of various workpieces.

DC18 with 20000 rpm air motor and max. stroke 1800mm

DC24 with 20000 rpm air motor and max. stroke 2400mm

DC30 with 20000 rpm air motor and max. stroke 3000mm

TDC18 with 2 pcs 20000 rpm air motor and max. stroke 1800mm

TDC24 with 2 pcs 20000 rpm air motor and max. stroke 2400mm

TDC30 with 2 pcs 20000 rpm air motor and max. stroke 3000mm

Series	20000 rpm Disc			20000 rpm Twin Disc
Model	DC18	DC24	DC30	TDC18	TDC24	TDC30
Recipro Stroke	1800mm	2400mm	3000mm	1800mm	2400mm	3000mm
Control Unit	PLC+Screen
Max. Speed	0.7 M/sec
Drive Unit	Inverter + Planetary Reducer
Disc Diameter	ø168mm x 1			ø168mm x 2
H.V. Generator (Stand)	90 KV (Cassette High Voltage Generator + Controller)
H.V. Generator (C-type)	90 KV (Spark Guard + H.V. Meter + H.V. Regulator + H.V. Generator with Ground Switch)
Paint Feeding (Stand)	1:1 Diaphragm Pump + Paint Regulator + Paint Control Valve + Insulation Frame
Panit Feeding (Precision)	Inverter + Gear Pump + Insulation Fixing Seat + Motor & Reducer + Insulation Frame
Max. Paint Volume	300 cc/min			600 cc/min
Shaping Air	Air Regulator
Air Heater	400W x 1			400W x 2
Air Consumption	600 Lpm			1200 Lpm
Ω Track	ø1000mm
S Track				ø1000mm

No	Description	Model			No	Description	Model
1	Disc Circular Booth	CB18	CB24	CB30	8	H.V. Regulator	JN103A
2	Twin Disc Booth	TCB18	TCB24	TCB30	9	Gear Pump	GP30
3	Cassette H.V. Generator	CA90KV			10	3-way Valve	DS-01
4	Controller for Cassette	CA90KVCP			11	Filter for Booth	DSF-1
5	Classic H.V. Generator with Ground Switch	C90KV-GS			12	Disc ø168mm	D168
6	Spark Guard	SPG-6			13	Air Motor	B5
7	H.V. Meter	M150KV			14	Air Heater	H400W
