Applicable Industries | Hotels, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Restaurant, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining | After Warranty Service | Video technical support, Online support, Spare parts |
Local Service Location | Egypt, Canada, United States, Philippines, Saudi Arabia, Indonesia, Australia, UAE, Kazakhstan | Showroom Location | None |
Condition | New | Cooling Type | Counter Flow |
Material | Metal | Place of Origin | Jiangsu, China |
Brand Name | SANJIU | Voltage | three phases, 380~480v, AC |
Power | max. 22.5kW | Dimension(L*W*H) | depends on your kind option |
Weight | depends on your kind option | Certification | IS09001: 2008 |
Warranty | 1 Year, 18 months | After-sales Service Provided | Free spare parts, Video technical support, Online support, Engineers available to service machinery overseas |
Key Selling Points | Sustainable | Water flow | 5~250t/h |
Production time | Typically 3~4 weeks |

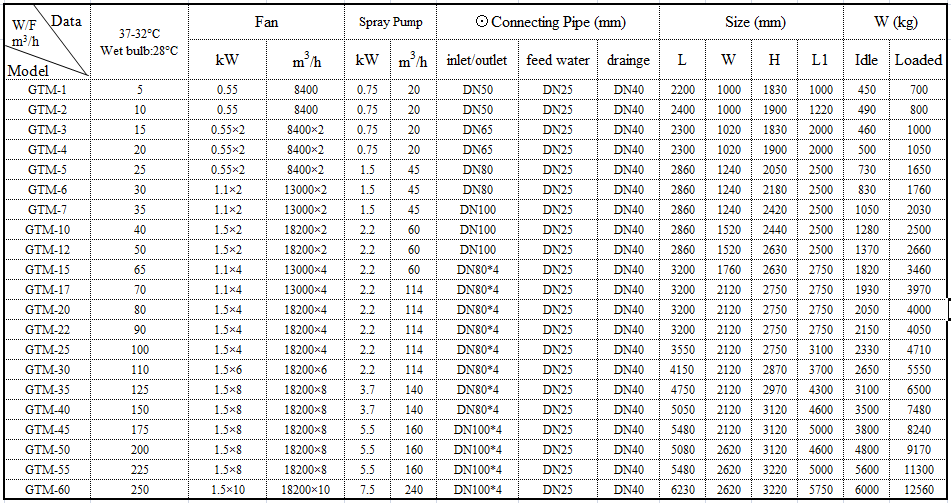

GTM Series Counter Flow Closed Water Cooling Tower
GTM Series have been developed since 2011, with capacities
ranging from 5 to 250 tons/ unit/ hour. This series is finished

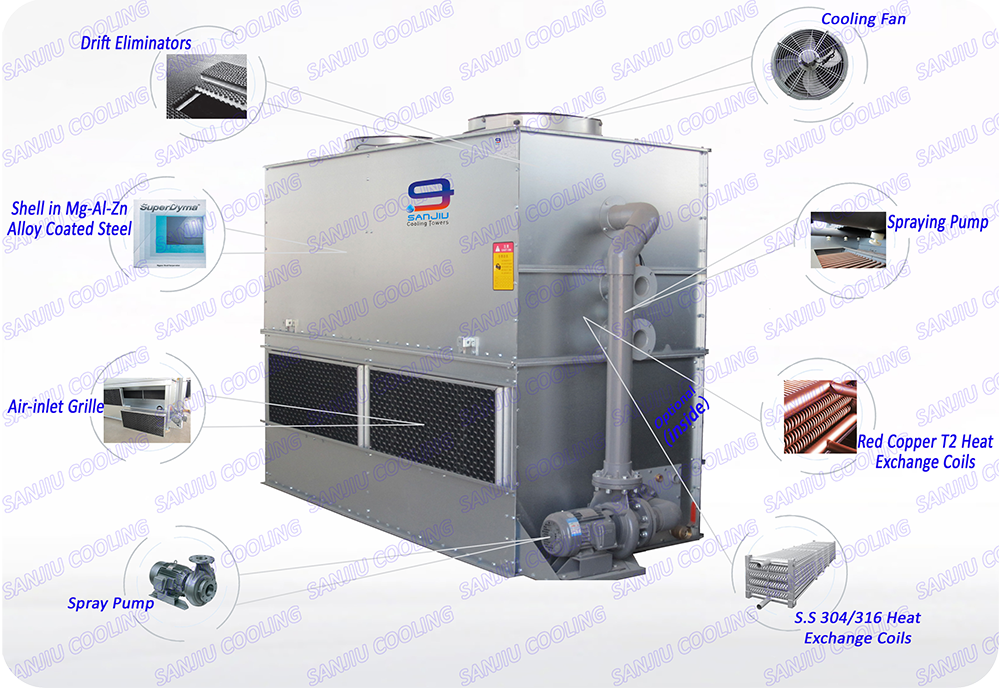

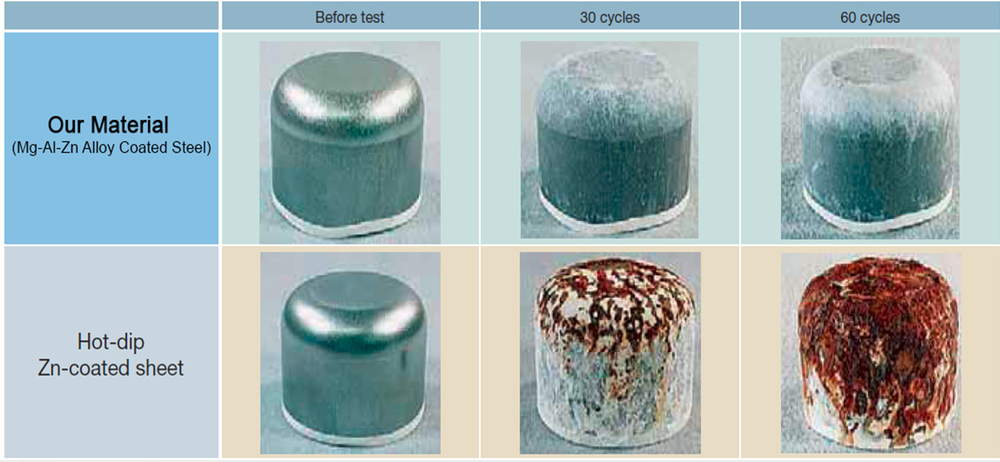

with alloy (Mg-Al-Zn) coated steel, or stainless steel
enclosure, stainless steel or copper heat exchange coils.
Besides, this series can be integrated with circulating pumps
and valves on options.

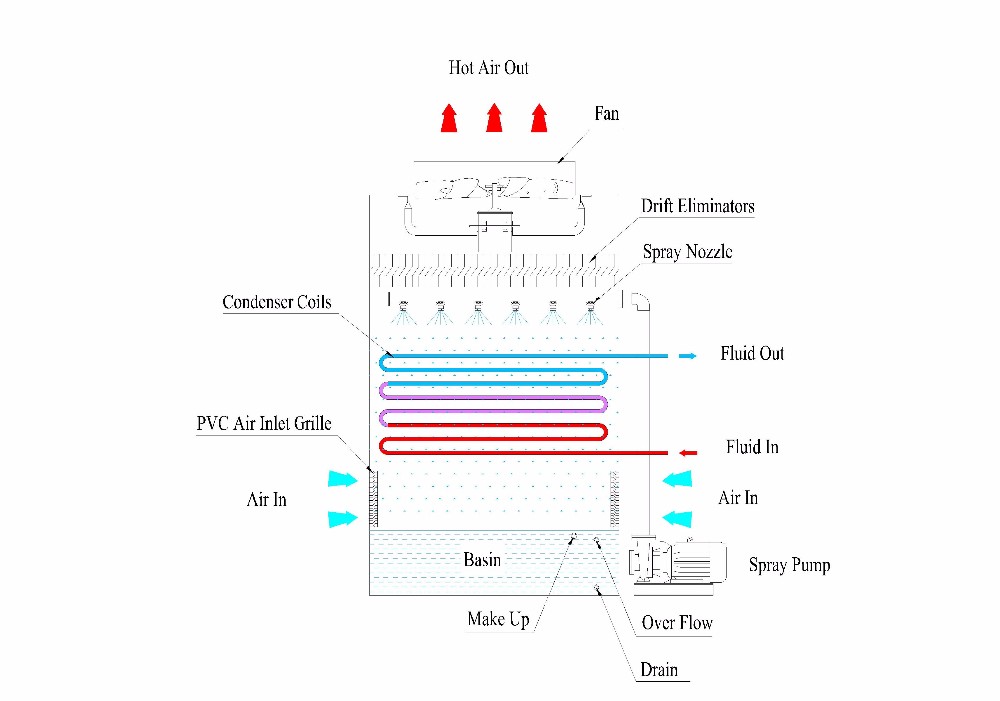

As counter flow towers, the cool air is inlet through both
sides of the tower from the bottom, then drawn upwards through
the whole heat exchange coils, against the spraying water in
the opposite direction, eventually outlet with
heat.
GTM Towers tend to be more compact, taking less installation
space. And it’s without PVC filling stuff, more suitable to

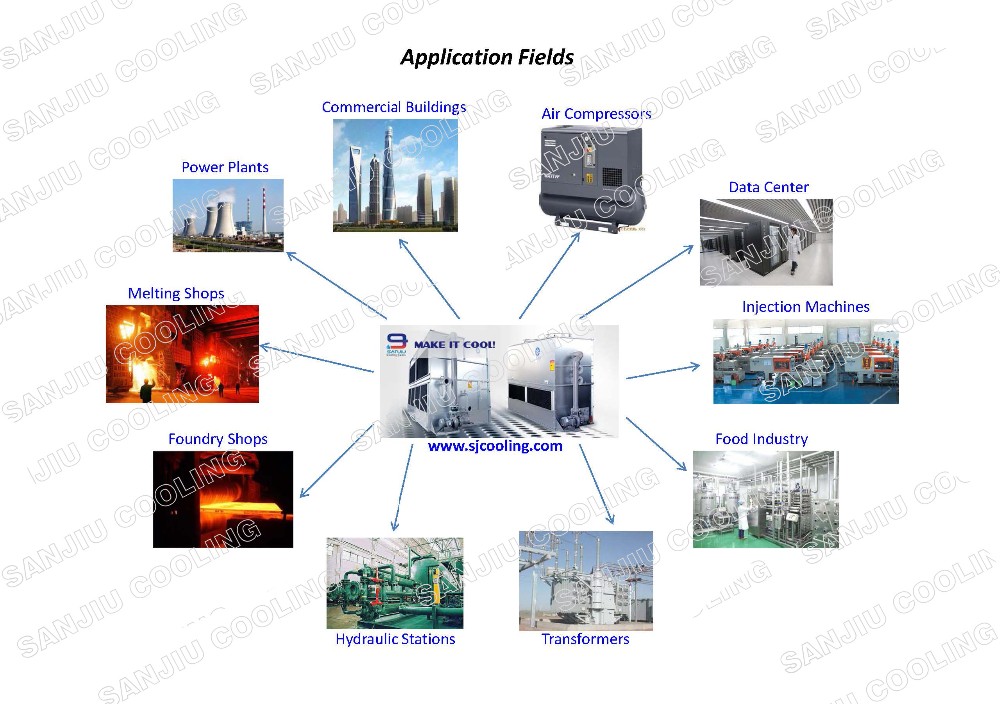

cool hot water of higher temperature. This series are also
widely applied in different fields, to provide circulating
cooling water or other liquid for HAVC system, air compressors,
melting shops, heating machines, chemical plants, and food
industries etc.

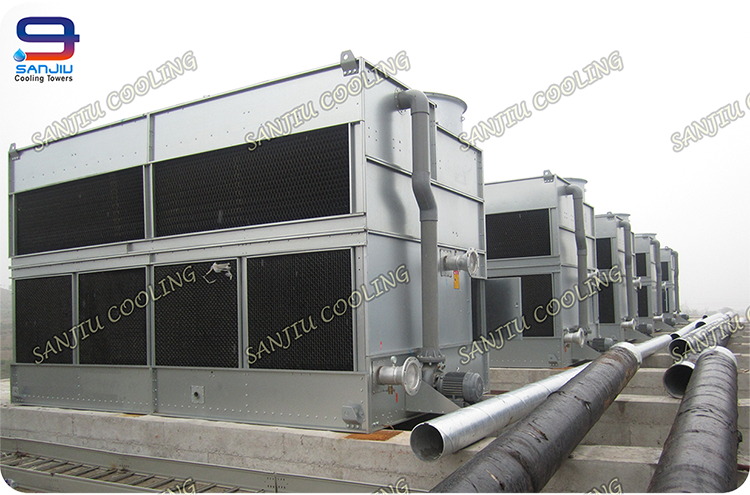

Closed Loop Water Cooling Tower
Below information are normally required to know for selection of a most proper tower model and solution:
Application: | (Explanations: Where the cooling towers will be used for? e.g. for HAVC system, Air Compressors, Melting Furnaces, etc.) | |||
* Water Flow Rate: | m³/h | (Explanations: How many Tons of water required per hour?) | ||
* Inlet Water Temp.: | °C | (Explanations: Temperature of hot water to be cooled) | (also descriped as "water temperature drop") | |
* Outlet Water Temp.: | °C | (Explanations: Temperature of cooled water, usually it shall be at least 3~4 °C higher than the wet-bulb temp.) | ||
* Wet-bulb Temp.: | °C | (Explanations: Highest wet bulb temp. of the location/area or city to install the tower is essential to know to evaluate the size of towers) | ||
* Power Supply: | (Explanations: 380V/3 Phases is standard, which we could have in stock, but for customized towers, the delivery time could be longer) |
For easier discussions, 24 hours on line service available: Angela is online: skype: oasanjiu Mob./WhatsApp: 13559666650
Many thanks for your interests, and your inquires are always well attended!
