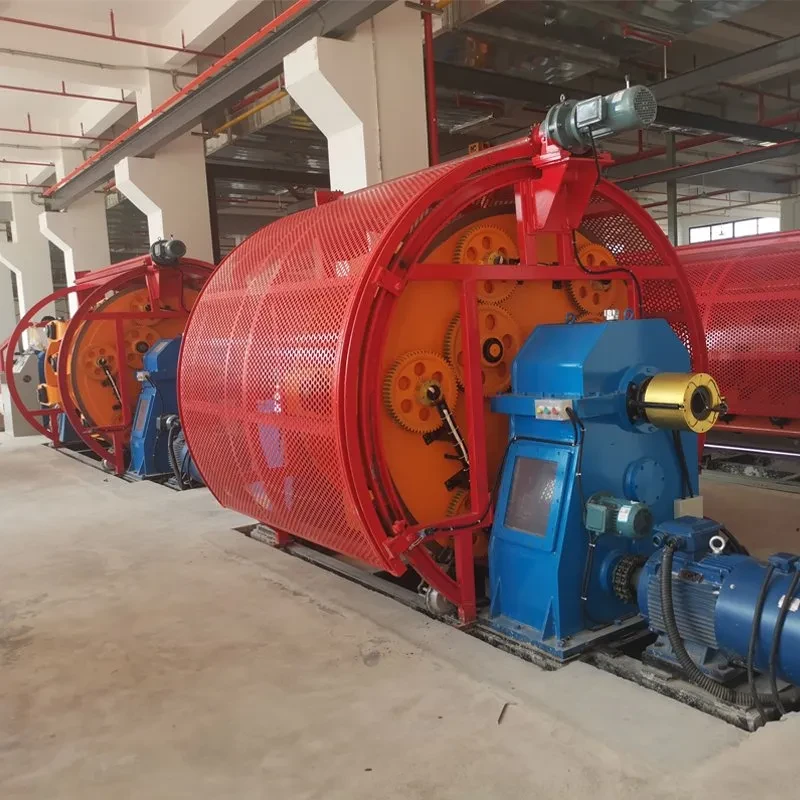

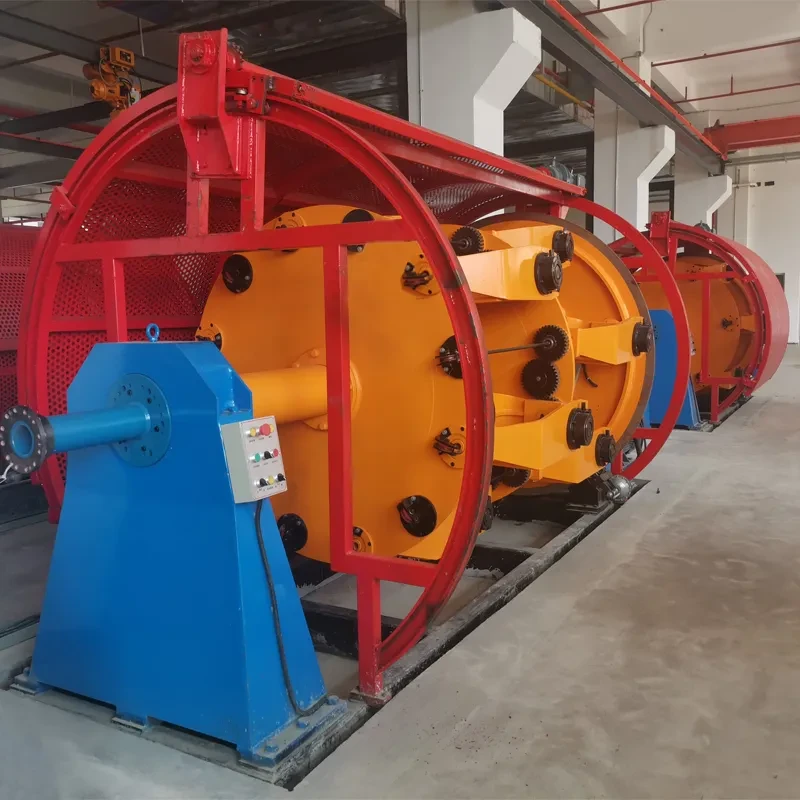

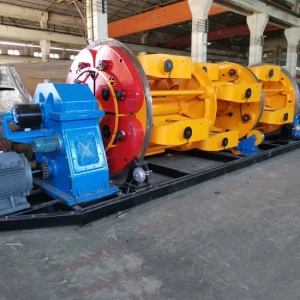

Chipeng Cage Type Stranding Machine for High Section Conductor Twisting High Section Wire Twisting Machine

Contact Now

Quick Details (View All)

Model NO.	Planetary Cable machine	Certification	ISO, CE, SGS
Warranty	12 Months	Automatic Grade	Automatic
Mould Life	300,000-1,000,000 Shots	Type	High-speed Stranding Machine
Single Strand Diameter	2-5mm	Maximum Stranding Diameter	55mm
Cage Speed	23~118r/Min	Stranding Pitch	41~2542mm
Traction Speed	4.86~65.4m/Min	Speed Changer	36 Stages
Pay-off Bobbin	Pn400-Pn630	Take-up Bobbin	Pn1000~Pn2000
Central Height	1000mm	Precision	Precision
Color	Customized	Reverse Torsion	Yes
Motor	Siemens	Transport Package	Standard International Shipment Packing
Trademark	CP	Origin	Foshan
HS Code	8479400000	Production Capacity	2 Sets/Month for Cage Stranding Machine

Product Details

Product Description

Company Info.

Overview
Product Description
Company Profile

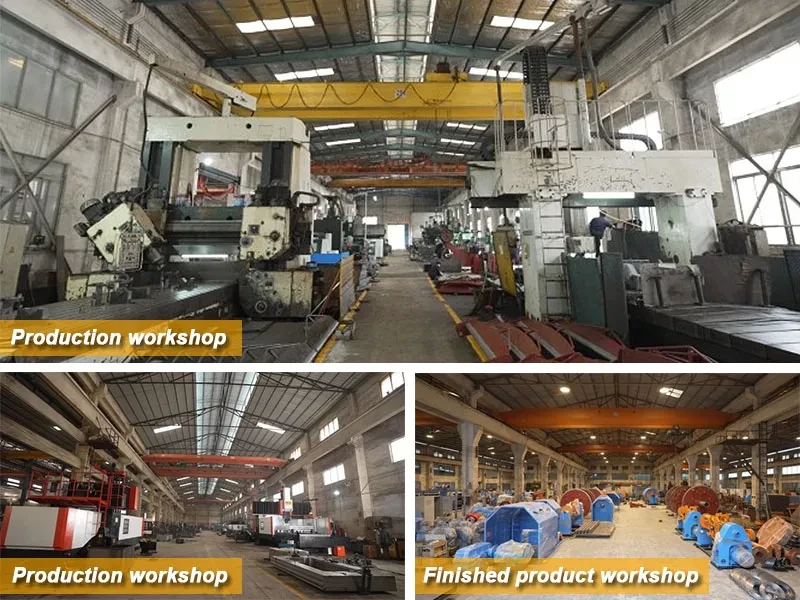

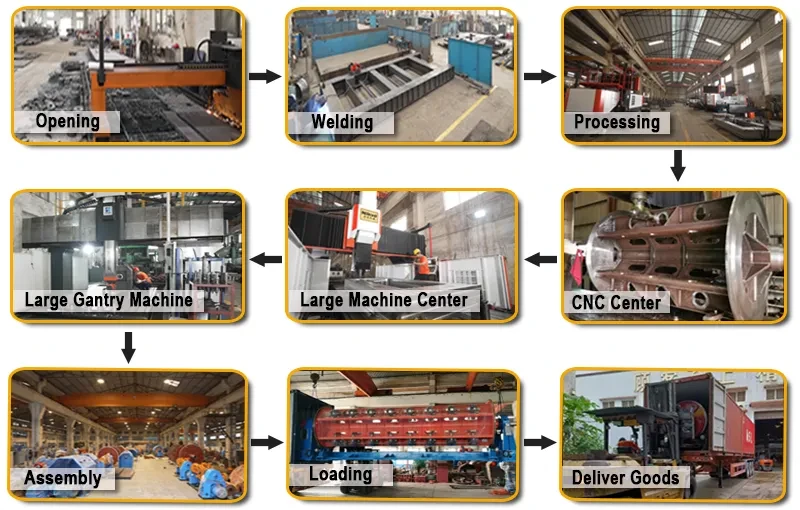

Production Process
Exhibition and partners
Certifications

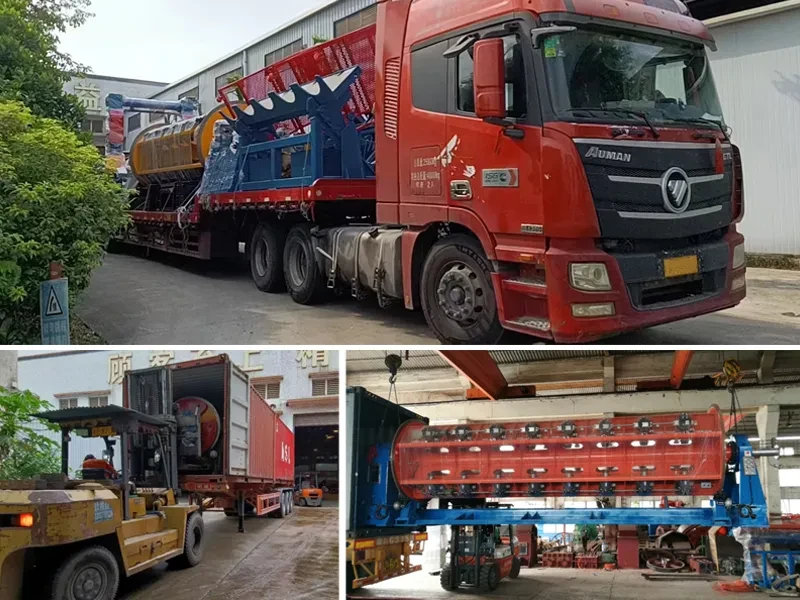

Packaging & Shipping
FAQ

Product Description

Traction wheel diameter	Φ1500mm	Main motor power	Y280M-4A-90kW (1480/min)
Center height of equipment	1000mm	Equipment size	45000*4000
total capacity	70KVA	maximum speed	33.6~80.4r/min
Maximum stranded outer diameter	Φ45mm	Maximum traction liear velocity	49.5m/min

Feature

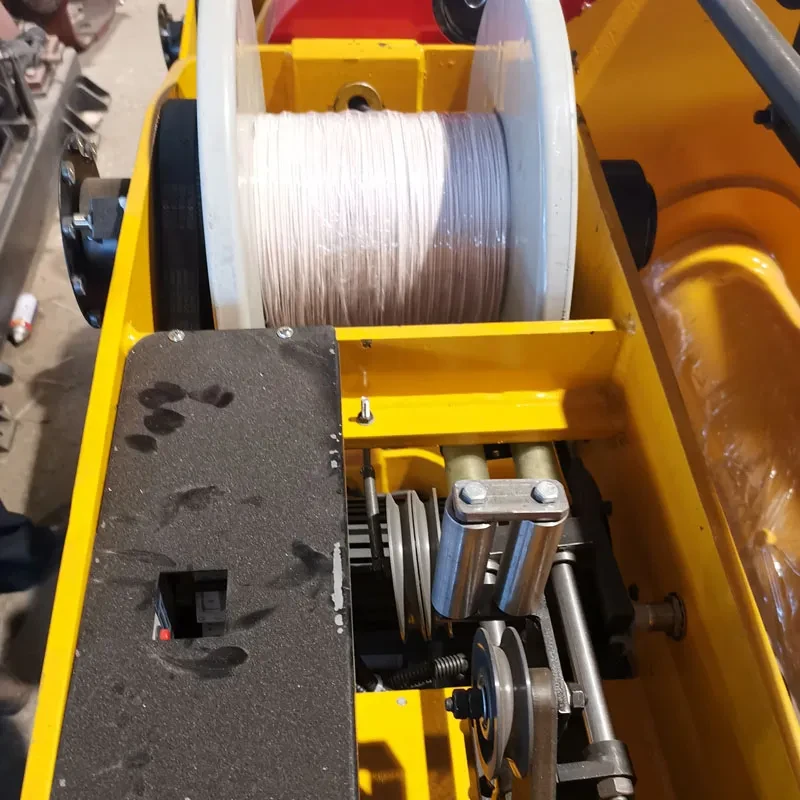

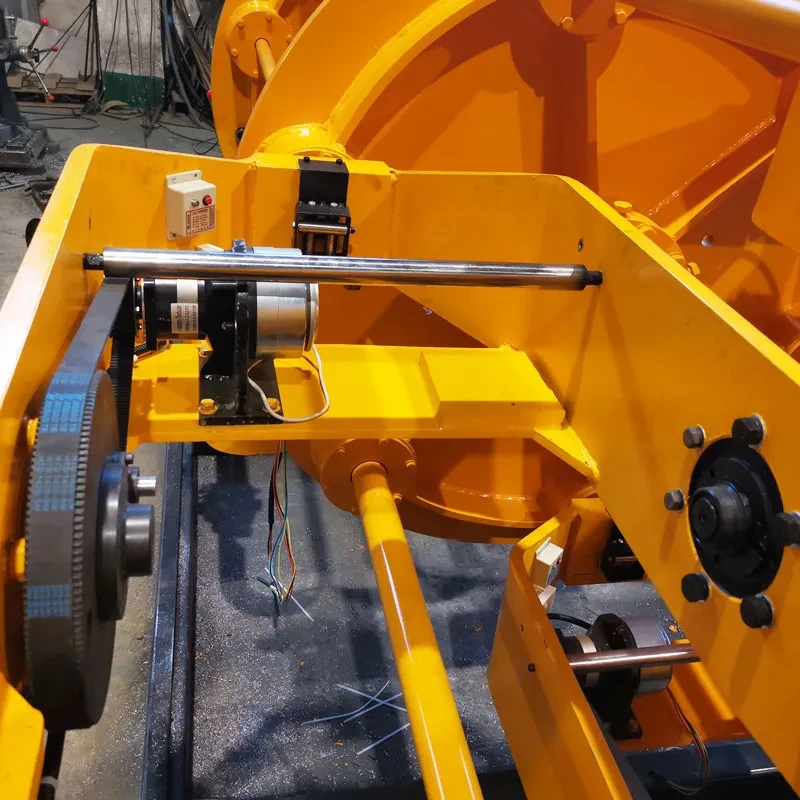

1. Pay-off tension mechanical friction control, tension size can be adjusted

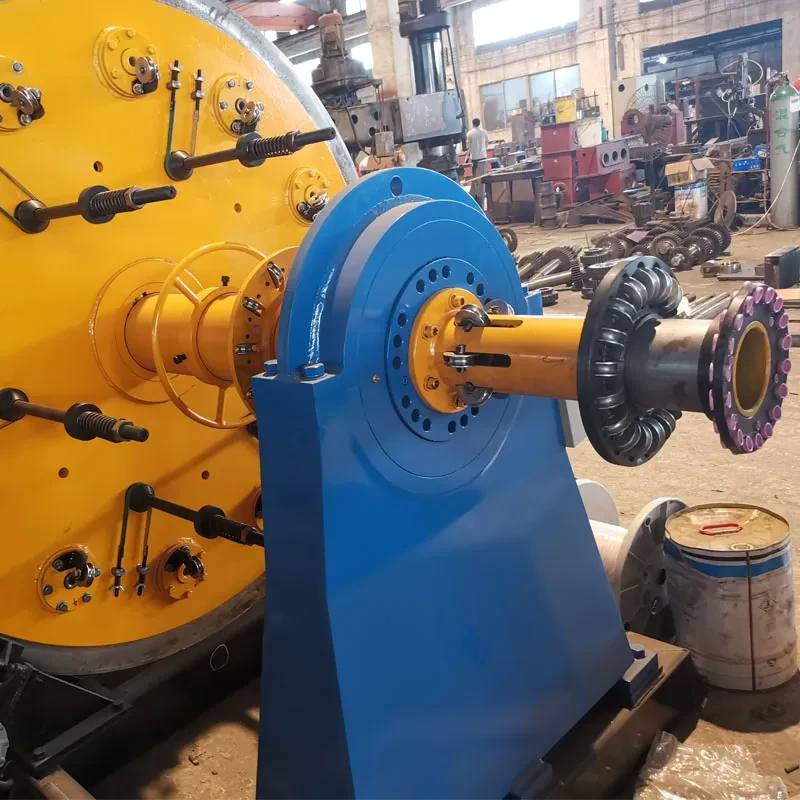

2. Cage with shaft structure, with manual clamping, with manual self-locking function, high reliability, easy to operate

3. Centrifugal break protection

4. A separate motor drives the gear pump to lubricate the gear transmission

5. Each strand is equipped with a set of vertical protective cover

This machine is used for stranding bare copper,aluminum,ACSR conductor and KVV cable with all time
Model Main Specification	JLY400	JLY500	JLY630
Single wire diameter	Φ1.2-Φ5mm	Φ1.5-Φ5mm	Φ2.0-Φ8.0mm
Max stranded diameter	Φ50mm	Φ45mm	Φ60mm
RPM	40-94r/min	33-80r/min	22-70r/min
Stranding pitch	25-1005mm	45-1473mm	76-1330mm
Line speed	39m/min	50m/min	48m/min
Pay off drum size in cage	PN400mm	PN500mm	PN630mm
Central pay off drum size	PN400-630mm	PN400-630mm	PN400-630mm
Take up drum size	PN1250-2000mm	PN1600-2000mm	PN1600-2000mm

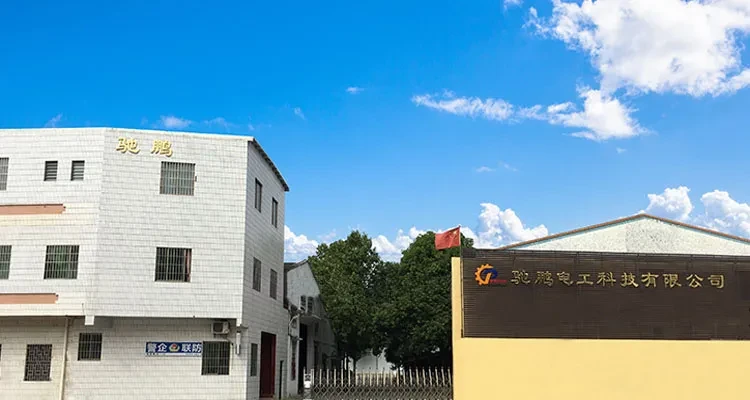

Guangdong Chipeng Electrical Technology Co.,Ltd has three factories, covers an area of 120000 square meters.They are located in Nanhai District, Foshan. Our company has a technical administration team who engages wire and cable equipment industrial more than ten years, as well as experienced engineer and skilled workers. Our company focuses on innovation and R & D of electrical machinery.Our products include cable laying up machine,cable stranding machine, cable extrusion machine and auxiliaries.We not only in the domestic sales, but also far sales in Asia, Southeast Asia, Africa and so on.

Q1.Are you the manufacturer or trading company?

-A:We are the manufacturer.Our company has a technical administration team who
engages wire and cable equipment industrial more than ten years.

Q2.What is your companys main production?
-A:Our main production cable laying up machine, stranding machine,cable extrusion machine.

Q3.how can i get quotation and make order?
-A:Send us your requests,we will quote exactly cost.

Q4.How long will the delivery time take?
-A:About 80 days

Q5.How is the after-sales service of your company?
-A:We have a strong after-sales service team to provide super after-sales service, We can send out ourengineers without 2 days to solve customers problem.

Q6.What is your machine quality?
-A:We have a strong quality inspection team.Before shipping out machine,we will check and ensure the good quality
