Model NO. | LBCF-10 | Feed Capacity | 5500 Kg/Batch |
Capacity for Wood Charcoal | 3.7t/D | Capacity for Wood Briquette | 4.4t/D |
Carbonization Capacity | 2 Furnace/Day | Carbonization Time | 6-12 Hours |
Normal Cooling Time | 8-10 Hours | with Water Cooling Time | 2 Hours |
Dimension | 2800*1650*2000mm | Diameter of Inside | 1.6m |
Weight | 4700kg | Transport Package | Standard Export Packing |
Specification | 4800*2600*2200mm | Trademark | LEABON |
Origin | China | Production Capacity | 50 Sets/Month |
It
adopts the advanced carbonized technology heat
flow,carbonized rate increased significantly,The carbonized
rate is about 80%, up by 99%.And the operation is very
convenient, good safety,high production efficiency,can save a
lot of energy, good environmental protection
performance.Shunt can also dry burning boiler flue gas and so
on.Truly the charcoal,gas and oil range of equipment.Is
currently the worlds most advanced carbonization furnace.
2.
Advantage
1.Due
to its design principle of rotary type, reduce its
carbonization time.
2.it can use different material as the fuel.
3.Saving energy, it can reuse the smoke produced during the
process of carbonization.
4.Compare with the hoist type carbonization, its biggest
advantage is it doesn’t need any hoist
equipment.
3. Technical
parameter
Model | LBCF-3 | LBCF-10 | LBCF-15 | |
Feeding Capacity (Kg/batch) | 1800kg/batch | 5500kg/batch | 7500kg/batch | |
Capacity (wood) |
Raw log:charcoal=3:1 | |||
Capacity: 1.2 t/day(charcoal) | Capacity: 3.7 t/d(charcoal) | Capacity: 5 t/day(charcoal) | ||
2 furnaces/day | ||||
Capacity (Wood briquettes) |
Wood briquettes:charcoal=2.5:1 | |||
Capacity: 1.4 t/day(charcoal) | Capacity: 4.4 t/day(charcoal) | Capacity: 6 t/day(charcoal) | ||
2 furnaces/day | ||||
Carbonization Time | For wood (moisture of raw material≤15%): 8-10 hours | |||
For briquettes: 6-8 hours | ||||
Cooling Time | 8-10 hours | |||
2 hours(with water) | ||||
Dimension |
2800*1650*2000mm Diameter of inside: 1.2m |
4800*2600*2200mm Diameter of inside: 1.6m |
6000*2300*2200mm Diameter of inside: 1.9m |
|
Weight | 2600kg | 4700kg | 6000kg |
Notes:
Raw material of the carbonization furnace:

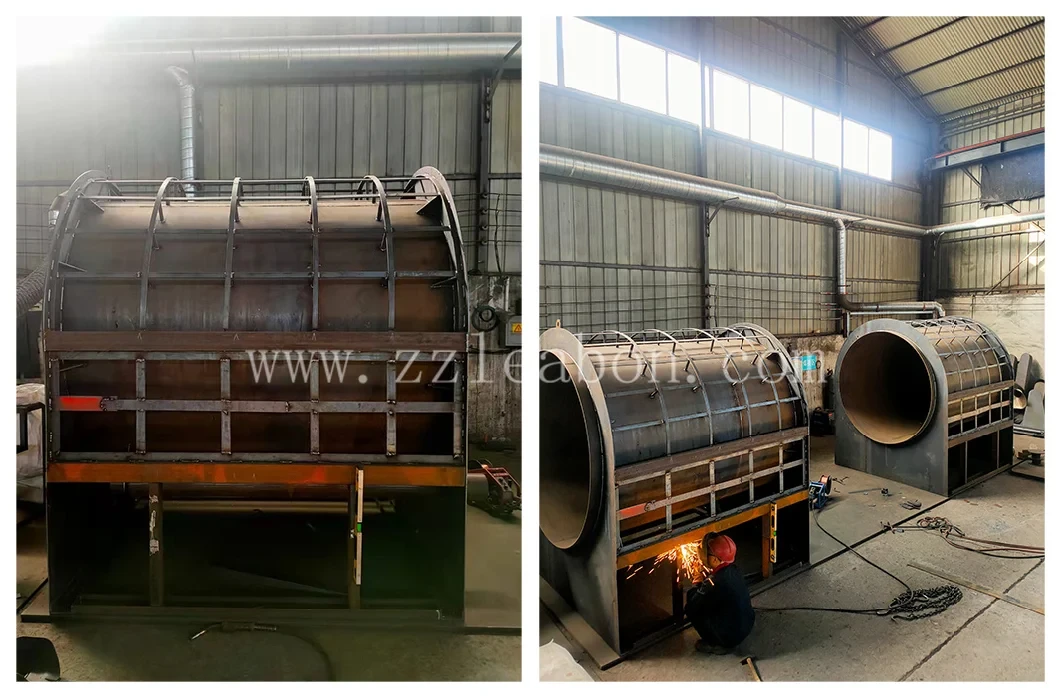

8mm Carbon steel as main raw material, rock wool for the
temperature keeping, and alumium plate as
cladding
Temperature based on the shape and moisture
of raw material.
Max temperature:900 ºC
Carbonization temperature of coconut shell:
400ºC
Carbonization temperature of
bamboo:300ºC
When the temperature reiceved 200ºC-300ºC,
the gas will come out, and the carbonization
start
