Charcoal Briquette Machine

Quantity	1 - 1
Price	USD5500

MOQ	1 set
Port	Qingdao
Packaging	Standard Export Plywood Packing
Lead Time	20-30 days

Contact Now

Quick Details (View All)

Model	XM430	Reducer	ZQ400
Ratio	1:31.5	Roller Size	430*250mm
Main Shaft Speed	12-14r/min	Matched Power	11kw
Capacity	3.5-4.5t/h	Pressure Type	Constant Pressure/Hydraulic Pressure

Product Details

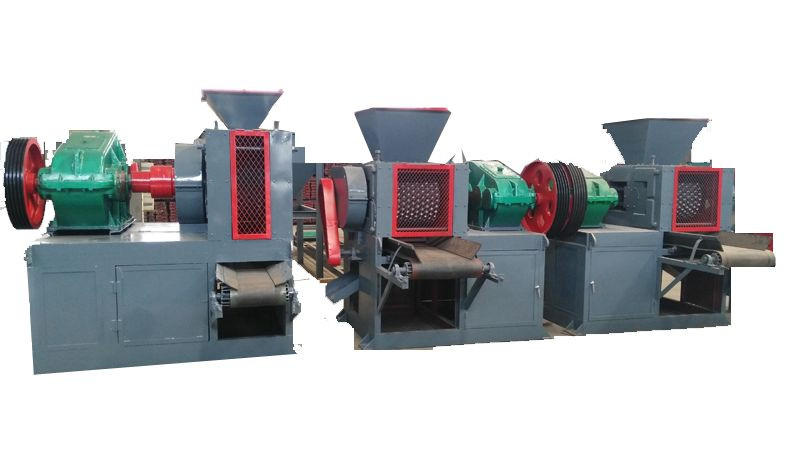

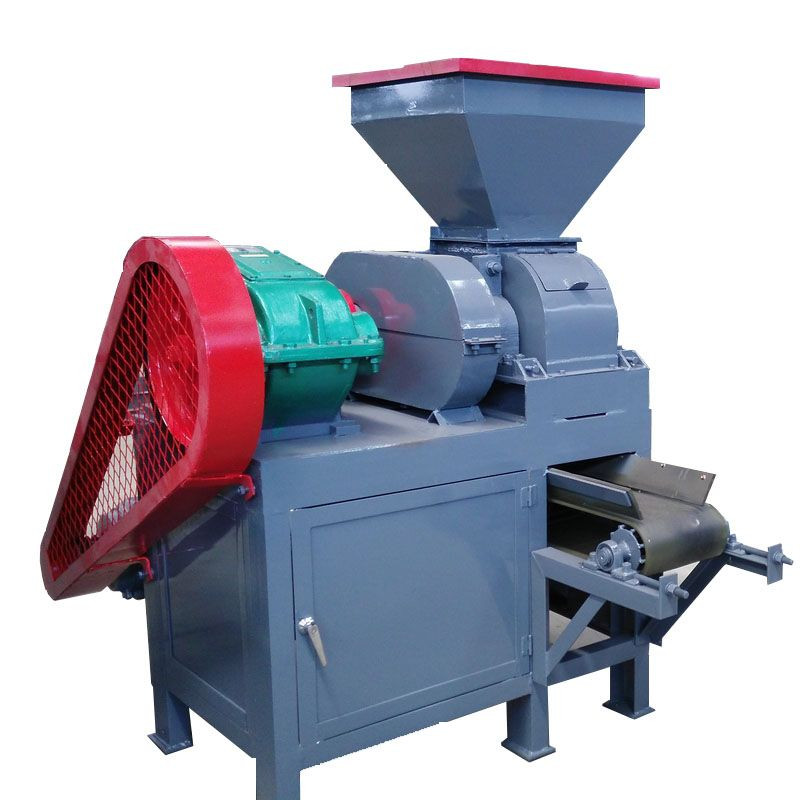

Charcoal Briquette Machine

Charcoal briquette machine is mainly used to briquette charcoal leftover, small pieces of coal, charcoal waste, carbon black, coke fines, etc. and make them be fully used to increase its economic value. The final briquette shape and size both can be customized from 25-60mm with oval, pillow and square shape as well as other favorite shapes in market. according to special requirement. In addition, the raw material range is very widely, like coal powder, fertilizer, salt, iron powder, and gypsum, chrome, copper, etc.

Technical Parameter:

Model	Reducer	Ratio	Roller Size(mm)	Main Shaft Speed(r/min)	Matched Power(kw)	Capacity(t/h)	Pressure Type
XM290	ZQ350	1:31.5	290*200	12-14	5.5	0.9-1.0	Constant Pressure
XM360	ZQ350	1:31.5	360*250	12-14	7.5	1.5-2.0	Constant Pressure/Hydraulic Pressure
XM400	ZQ400	1:31.5	400*250	12-14	7.5	2.5-3.5
XM430	ZQ400	1:31.5	430*250	12-14	11	3.5-4.5
XM500	ZQ650	40.17	500*470	10-12	37	7.5-8.5
XM650	ZQ850	40.17	650*470	9-11	45	9-10
XM750	ZQ1000	40.17	750*570	9-11	90	13-14
XM850	ZQ1250	50	850*570	8-10	110	15-17
Remarks: Above capacity is based on material specific gravity 0.8, briquette size: φ50*33mm

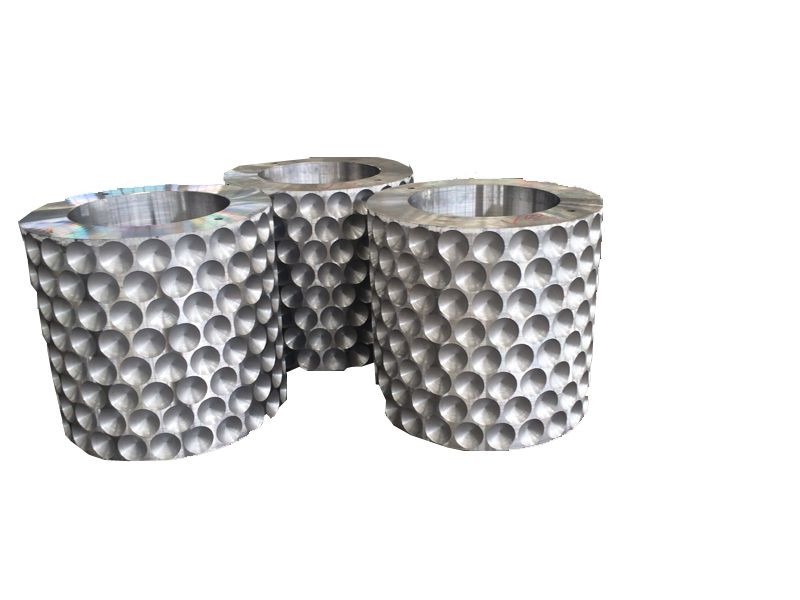

Roller material is 65Mn, high chrome alloy and 9Cr2Mo
According to different material adjust machine parameter to meet customer production
