ASME hex nut is widely used, mainly in the field of machinery and equipment, construction, automobile, railway and other industries. The mechanical property has grade 2, grade 5, grade 8 for inch series, grade 4, grade 8, grade 10, grade 12 for metric series.
Hexagon nuts are used in conjunction with screws, bolts, and screws to connect and tighten parts. ASME ANSI hex nut covers the dimensional requirements of inch series hex nut. The common standard of ASME/ANSI hex nut is ASME B18.2.2. It includes normal hex nut, hex thin nut, hex thick nut and heavy hex nut. The size from 1/4-4″ diameter. DIN standard is DIN934.

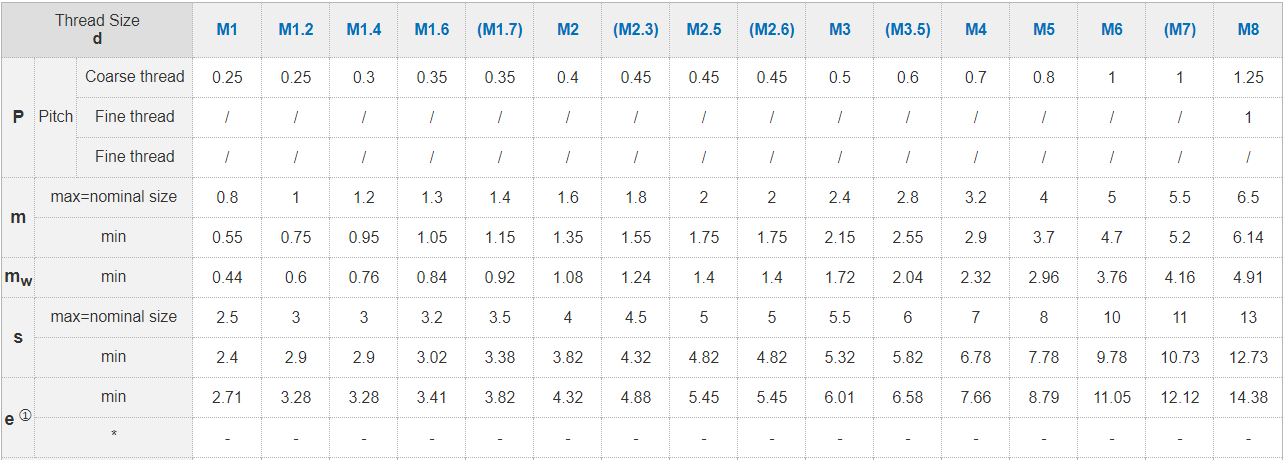

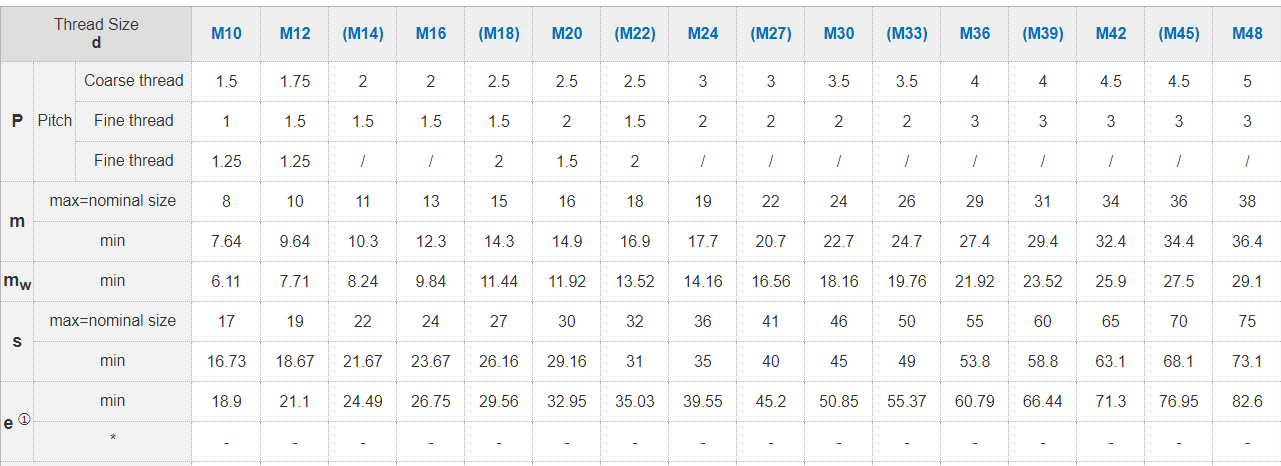

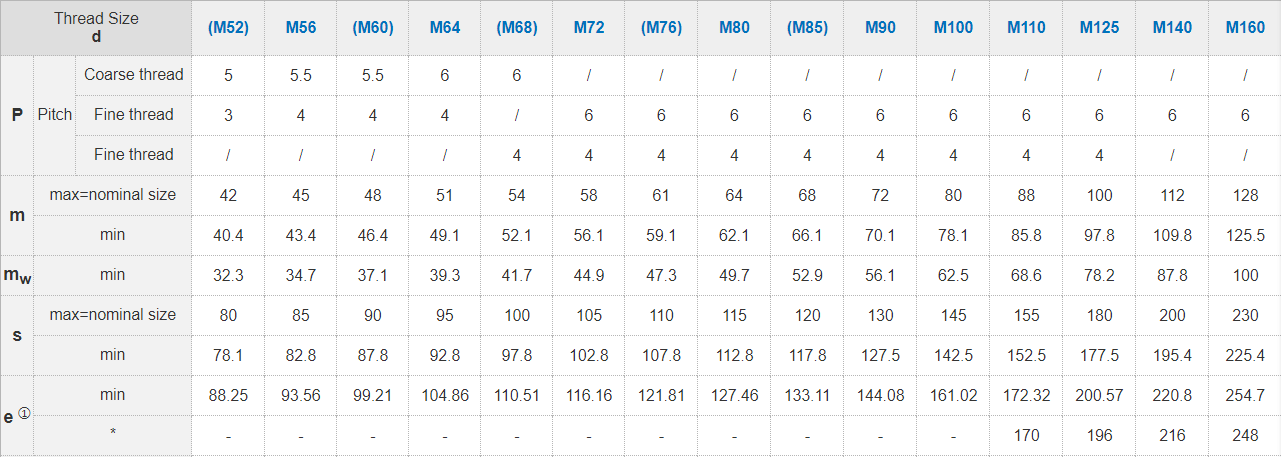

Dimension

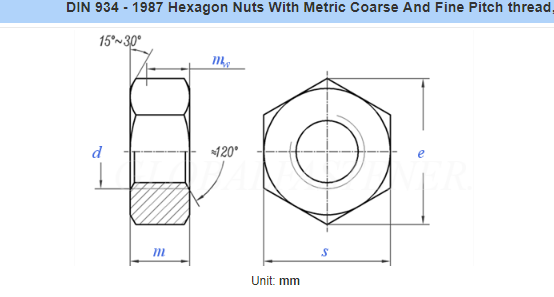

DIN934
Hexagon Nuts
