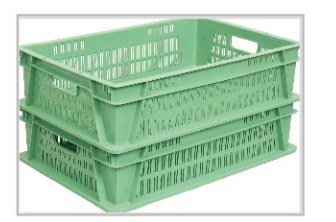

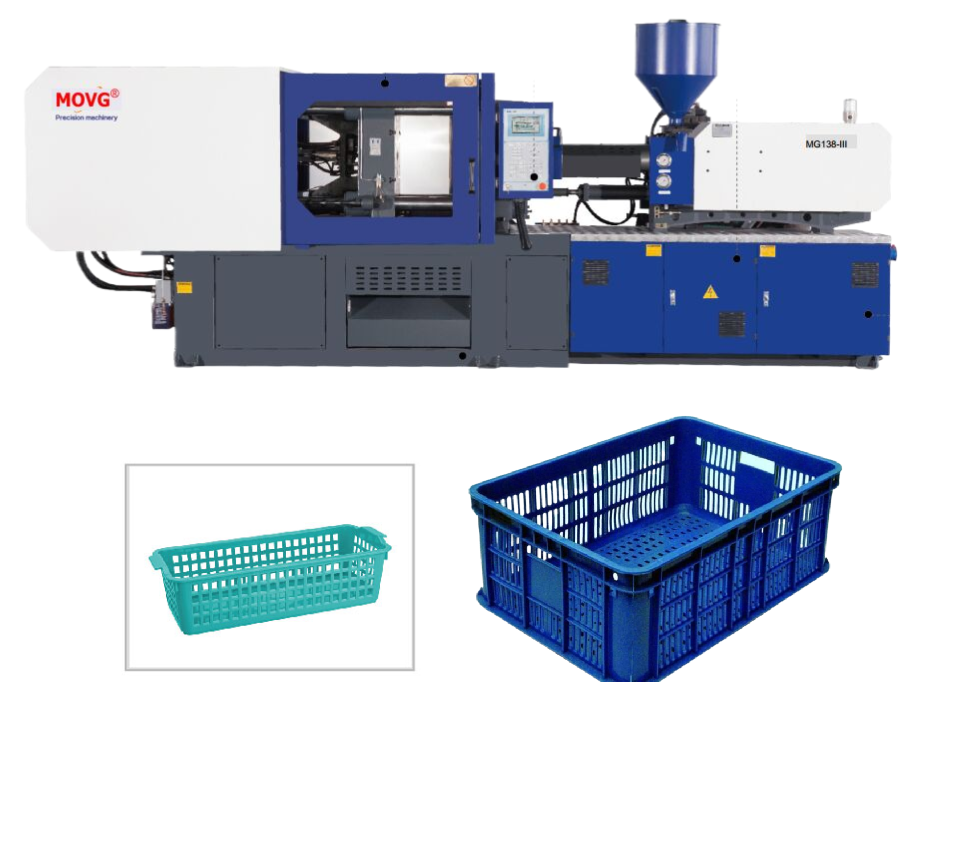

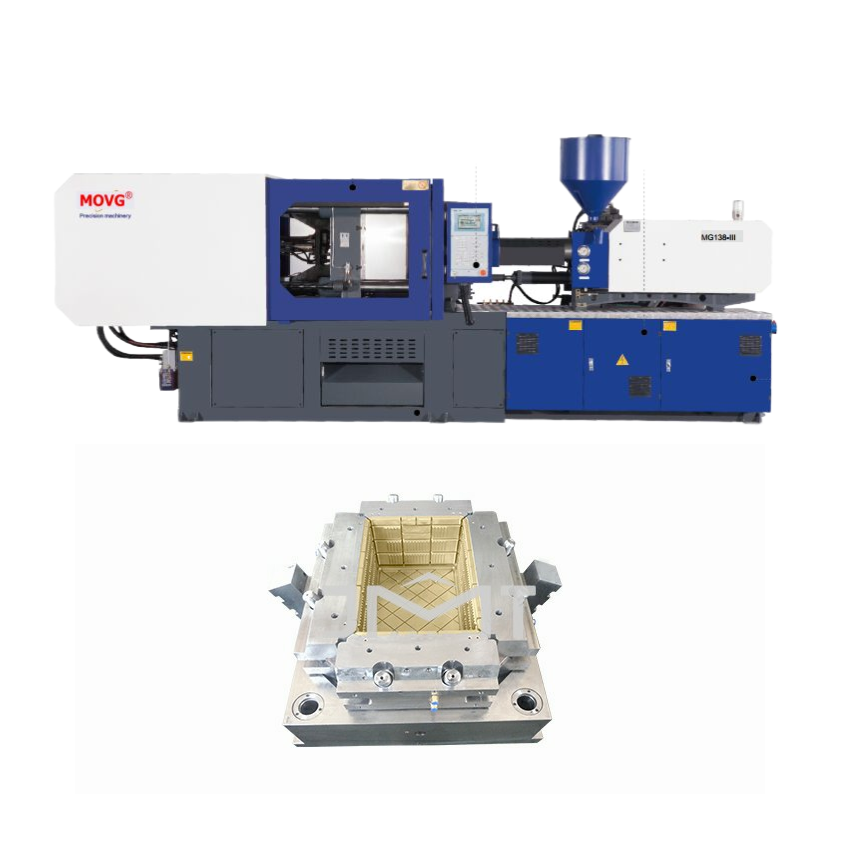

Box Making Machine Plastic Crate Injection Molding Moulding Machine for Plastic Fruit Basket

Name: Box Making Machine Plastic Crate Injection Molding Moulding Machine for Plastic Fruit Basket
Brand: Ningbo Muge Intelligent Technology Co., Ltd.
SKU: Tradewheel_2560245
Price: 30000 USD
Availability: InStock

FOB Price 30000 - 31000 USD / sets

Contact Now

Quick Details (View All)

Plastic Processed	PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, EPS, PA, Polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP, Polylactic Acid	Condition	New
Style	Horizontal	Distance between Tie Bars(Width)(mm)	660mm
Distance between Tie Bars(Height)(mm)	660mm	Plasticizing Capacity(g/s)	140
Mold Height(mm)	250 - 680 mm	Ejector Number	9
Ejector Stroke(mm)	160 mm	Ejector Force(kN)	70 kN
Theoretical Shot Volume(cmu00b3)	1709 cmu00b3	Injection Rate (g/s)	350 g/s
Machine Type	Hydraulic, Other	Injection Weight (g)	1555 g
Screw Speed (rpm)	0 - 200 rpm	Screw diameter (mm)	80 mm
Screw L/D Ratio	18.5	Distance between Tie Bars	660x660 mm
Weight (KG)	12500 kg	Type	Injection molding machine
Place of Origin	Zhejiang, China	Open Stroke(mm)	600 mm
Model Number	KC320GK	Brand Name	MOVG
Power (kW)	55 kW	Warranty	1.5 years
Key Selling Points	Energy saving	Applicable Industries	Manufacturing Plant
Showroom Location	None	Machinery Test Report	Provided
Video outgoing-inspection	Provided	Warranty of core components	1 Year
Core Components	Bearing, Motor, Pump, PLC, Pressure vessel, Engine, Screw

Product Details

Product Description

Q: Delivery time
A: Normally Machine Delivery from the factory in 0-60 weekdays after receiving the down payment.
Q: Are you trading company or manufacture?
A: We are factory

Q:What types of machines can factories manufacture

A:High speed bottle embryo machine, high-speed lunch box machine, fruit basket machine, pipe joint machine, dual color machine
