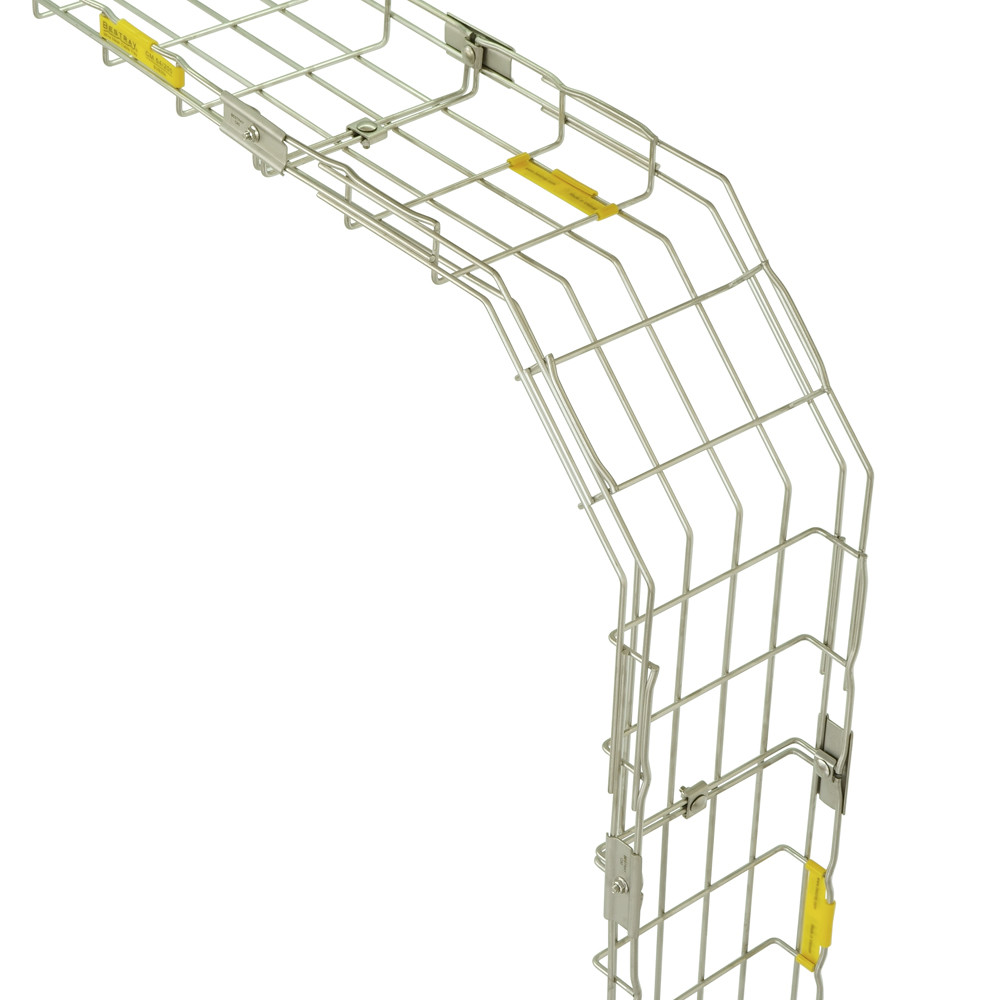

Bestray Vietnam Factory Cable Tray 90 Degree Vertical Elbow 105mm Height 304 Inox Steel Wire Mesh Cable Holder Trunking Metal

Name: Bestray Vietnam Factory Cable Tray 90 Degree Vertical Elbow 105mm Height 304 Inox Steel Wire Mesh Cable Holder Trunking Metal
Brand: BESTRAY JOINT STOCK COMPANY
SKU: Tradewheel_2658255
Price: 4.3 USD
Availability: InStock

FOB Price 4.3 - 35.56 USD / sets

Contact Now

Quick Details (View All)

Place of Origin	Ho Chi Minh City, Vietnam	Brand Name	Bestray
Model Number	OV9	Type	Wire Mesh
Material	Steel	Width	for all products from Bestray
Length	for all products from Bestray	Side Rail Height	for all products from Bestray
Thickness (mm)	4.0 5.0 6.0	Materials	Carbon steel (CT3, SS400), Stainless steel (SUS304, SUS316)
Finishes	Natural finish, Hot dip galvanize, Electro galvanized, Powder coating	OEM/ODM	Available

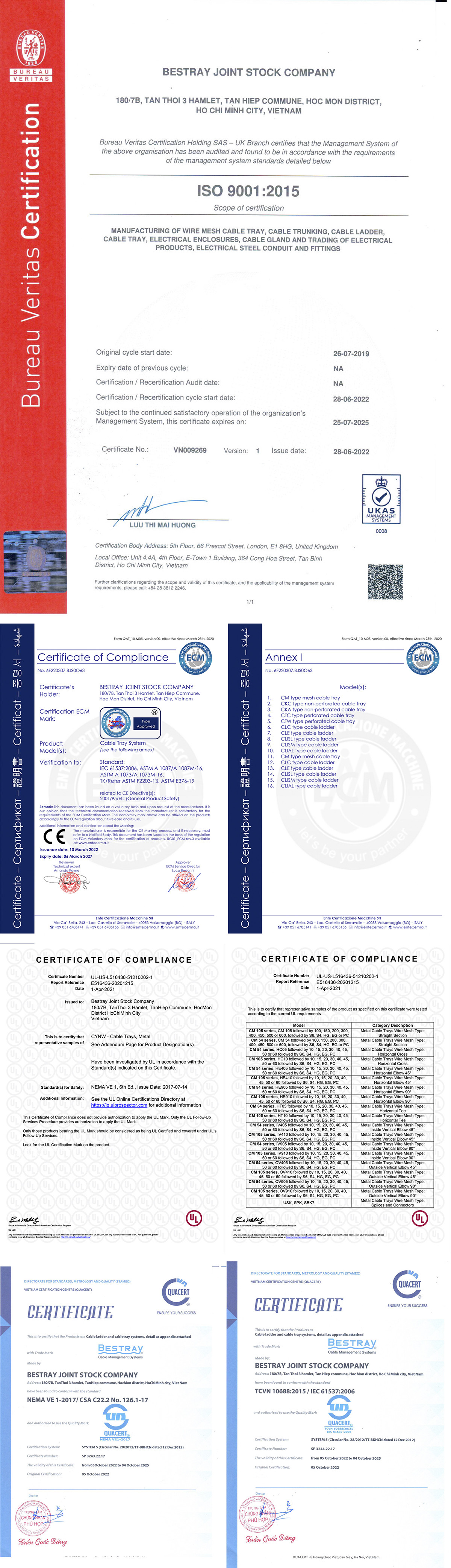

Sample	Available	Certificates	ISO 9001:2015 (BVC)
Comply with standards:	NEMA VE1-2017, IEC 61537-2006	Third party certify:	Quatest 3 (VN)
Catalogue	Available	Bussiness type	Manuacturer

Product Details

Product Specification

Dong Cong Quoc

Managing Director

We are proud to have researched, developed and innovated to make the Wire Mesh Cable Tray system more perfect and convenient, creating a synchronous solution that has never been done by any manufacturer before. We are committed to providing high quality products and timely delivery to customers.

STT	Wire Mesh Cable Tray Specifications

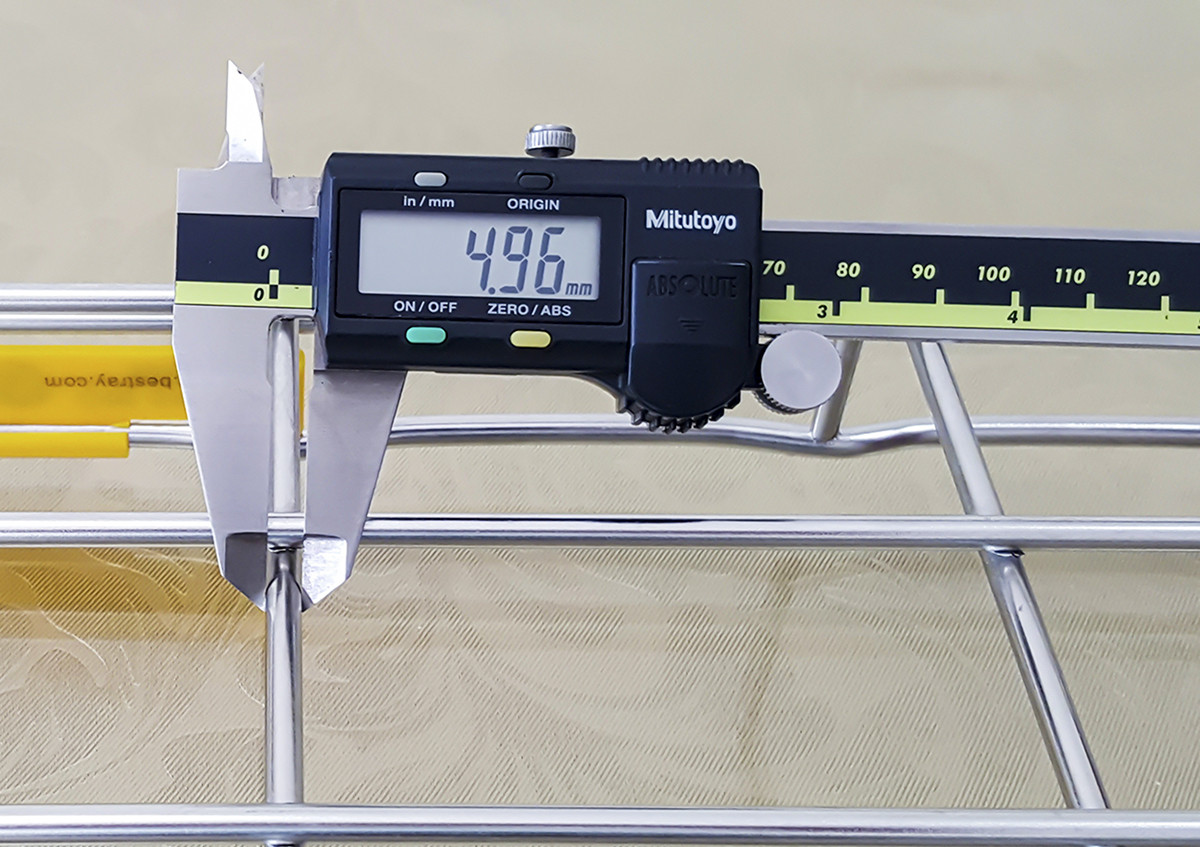

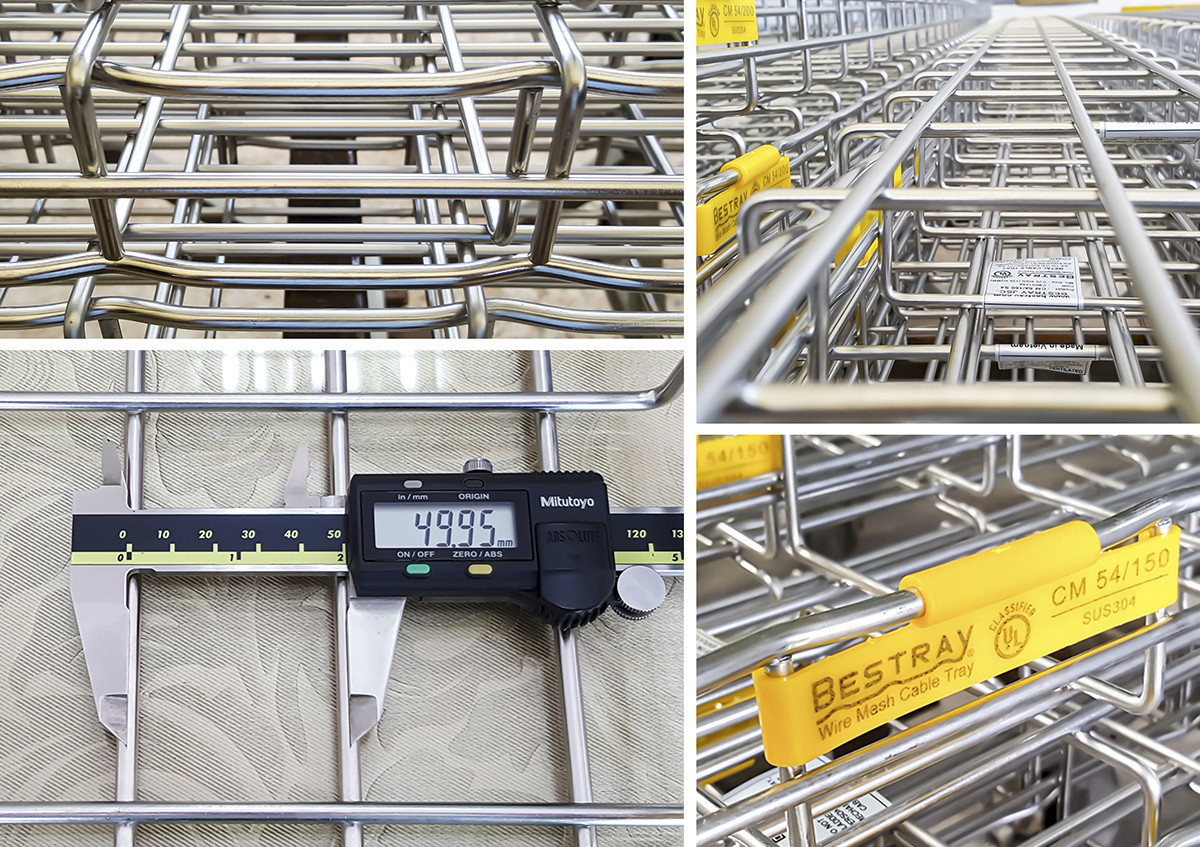

1	Top wires size are larger than body wires size, to make trays more stronger at the top edges, symmetrical and aesthetic.
2	"T welding" the body wires to the top wires, to make side rails smooth edges. safety for installers, as well as prevent any damage to cable or obstacle during pulling.
3	"Wave type" side rails on the top is designed to increase rigidity, provides maximizes strength length, higher load performance for trays.
4	Label Bestray is "3 position" type, PE plastic, yellow color and black letter by laser.

Products Description

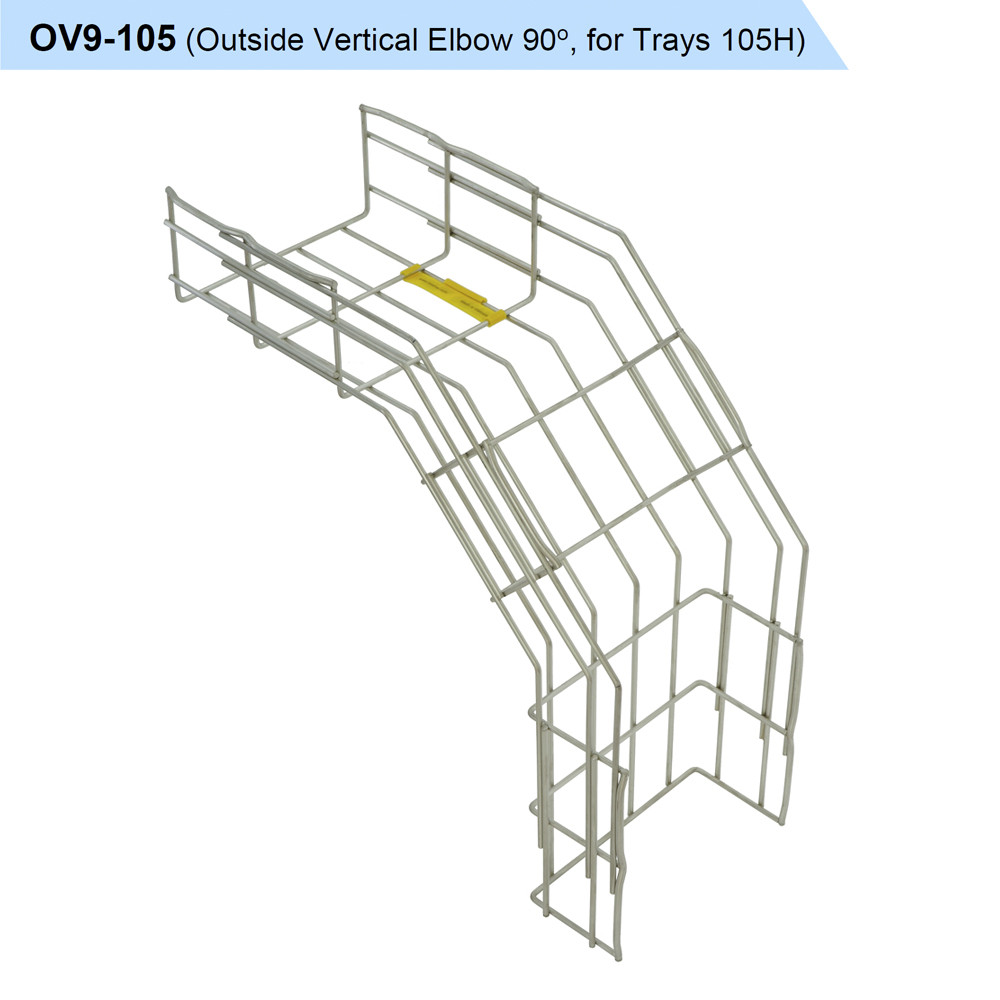

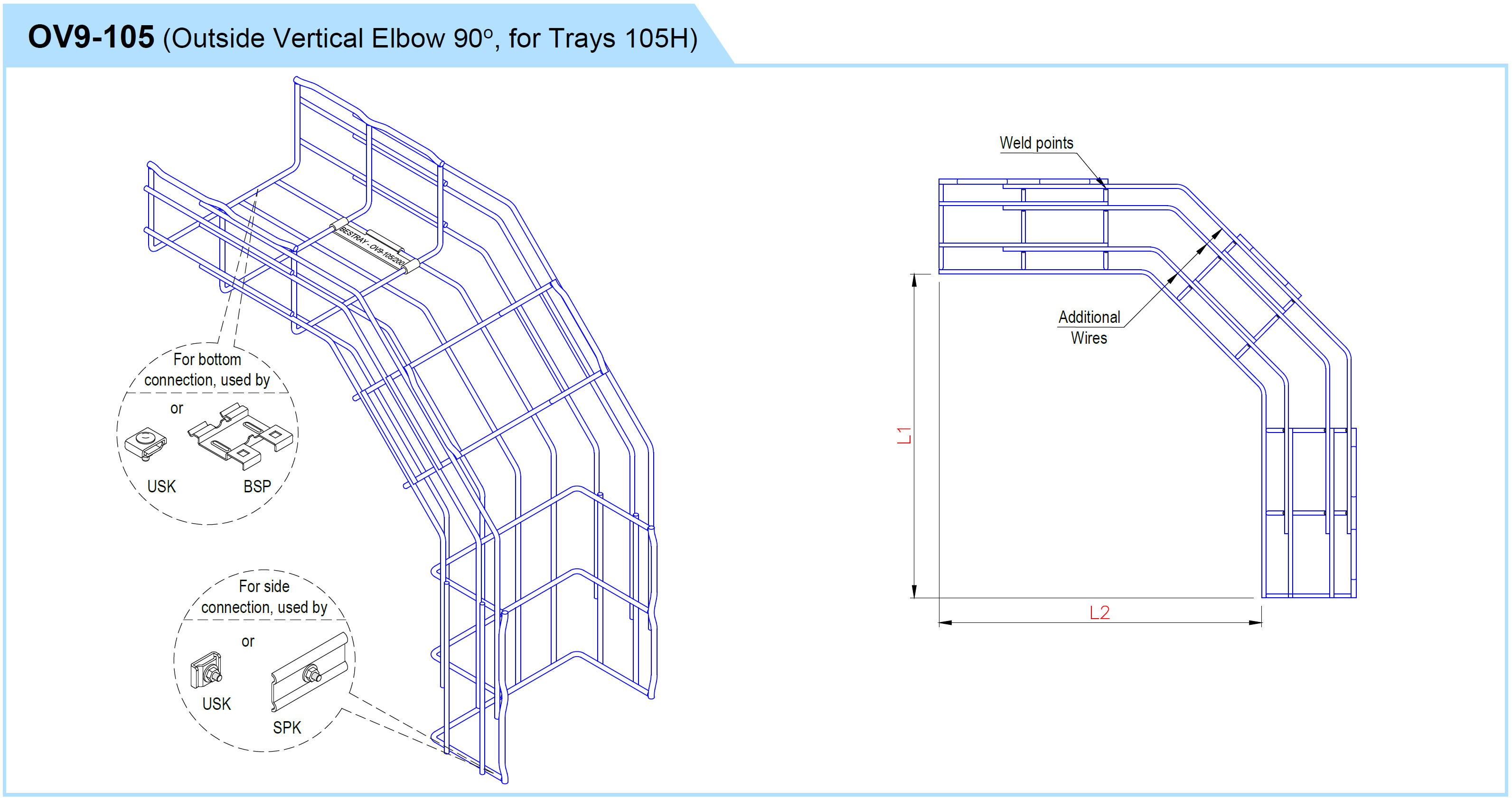

Product Name

L1 (mm)

L2 (mm)

Code

OV9 105/100

395

OV91010S4

OV91010HG

OV91010EG

OV91010PC

OV9 105/150

395

OV91015S4

OV91015HG

OV91015EG

OV91015PC

OV9 105/200

395

OV91020S4

OV91020HG

OV91020EG

OV91020PC

OV9 105/300

395

OV91030S4

OV91030HG

OV91030EG

OV91030PC

OV9 105/400

395

OV91040S4

OV91040HG

OV91040EG

OV91040PC

OV9 105/450

395

OV91045S4

OV91045HG

OV91045EG

OV91045PC

OV9 105/500

395

OV91050S4

OV91050HG

OV91050EG

OV91050PC

OV9 105/600

395

OV91060S4

OV91060HG

OV91060EG

OV91060PC

(xx): S6 (SUS316) S4 (SUS304) HG (Hot Dip Galvanized) EG (Electro Galvanized) PC (Powder Coating)

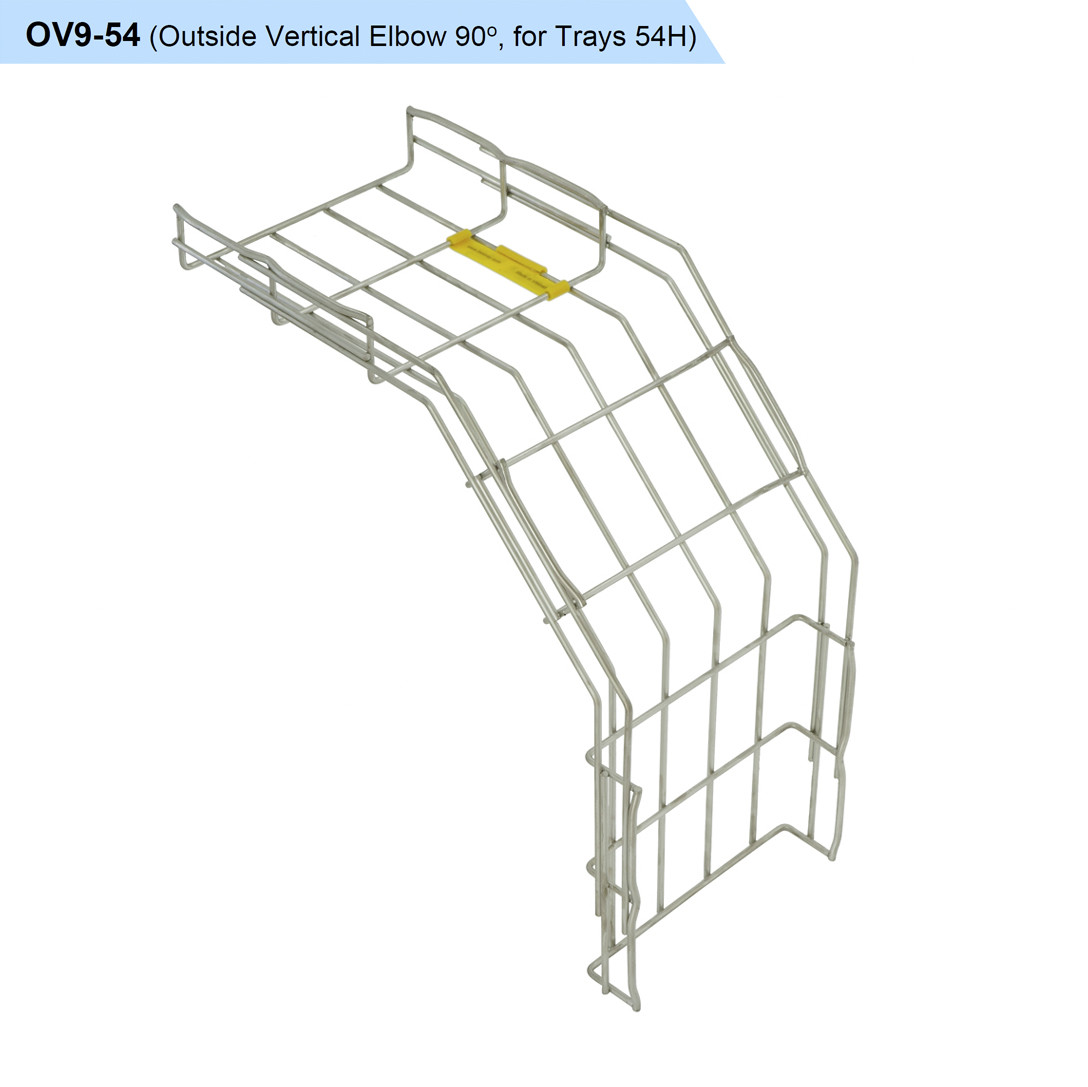

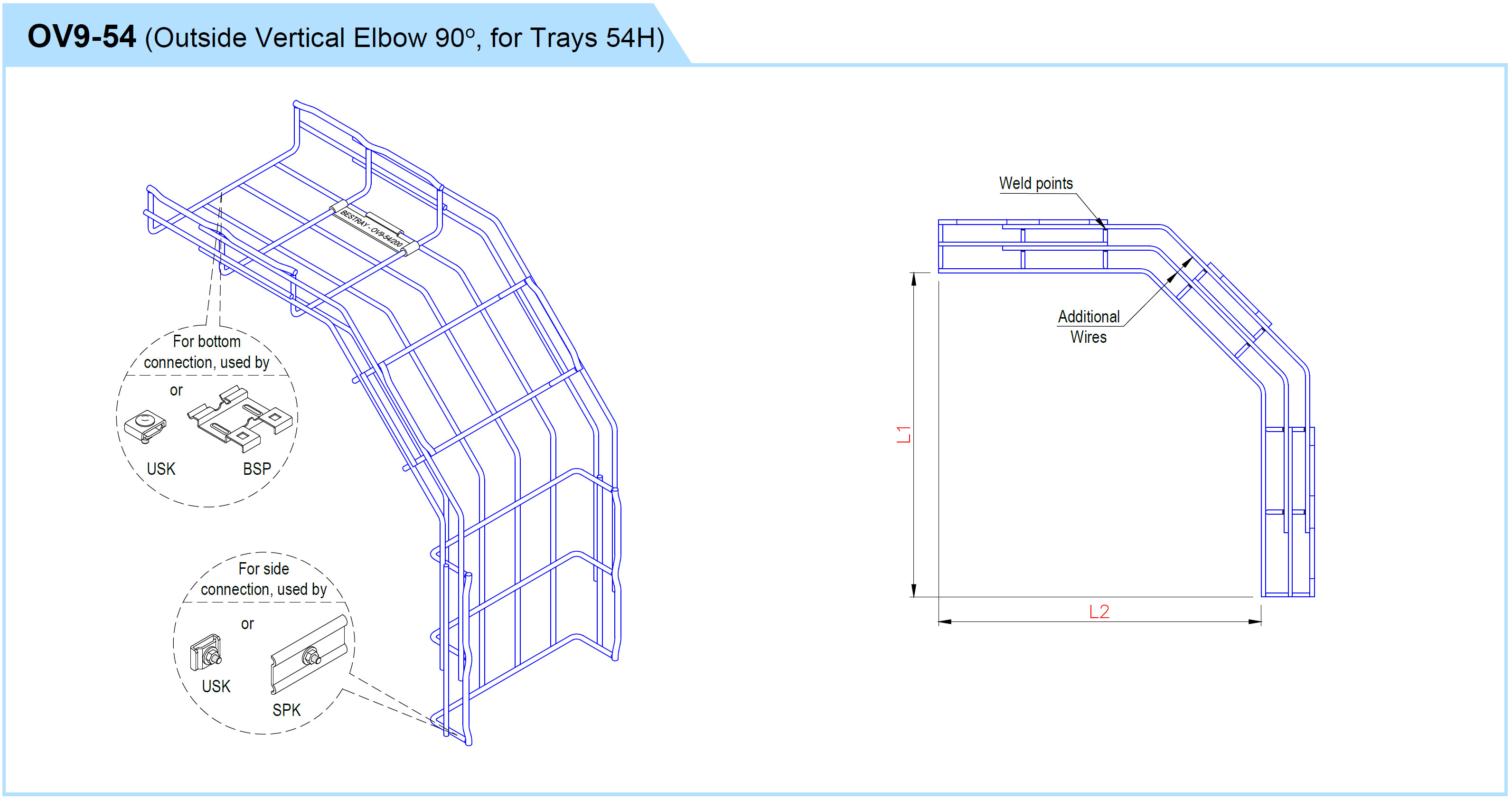

Product Name

L1 (mm)

L2 (mm)

Code

0V9 54/50

395

OV90505S4

OV90505HG

OV90505EG

OV90505PC

0V9 54/100

395

OV90510S4

OV90510HG

OV90510EG

OV90510PC

0V9 54/150

395

OV90515S4

OV90515HG

OV90515EG

OV90515PC

0V9 54/200

395

OV90520S4

OV90520HG

OV90520EG

OV90520PC

0V9 54/300

395

OV90530S4

OV90530HG

OV90530EG

OV90530PC

0V9 54/400

395

OV90540S4

OV90540HG

OV90540EG

OV90540PC

0V9 54/450

395

OV90545S4

OV90545HG

OV90545EG

OV90545PC

0V9 54/500

395

OV90550S4

OV90550HG

OV90550EG

OV90550PC

0V9 54/600

395

OV90560S4

OV90560HG

OV90560EG

OV90560PC

(xx): S6 (SUS316) S4 (SUS304) HG (Hot Dip Galvanized) EG (Electro Galvanized) PC (Powder Coating)

Materials / Finishes:		Dimensions:
S6	SUS316 (stainless steel)
S4	SUS304 (stainless steel)
HG	Steel/Hot dip galvanized
DC	Steel/Dacromet
PG	Steel / Pre-galvanized
EG	Steel / Electro galvanized
PC	Steel/Powder coating

Wire Mesh Cable Tray Features & Benefits:

- Stronger and lighter weight than traditional trays. Easy to handle, simple and fast assembly on site. Reduces material and labor cost.

- Provides greater versatility, easy flexible to install in confined spaces.

- The open structure provides natural ventilation for greater cable efficiency and also prevents build-up of dust, contaminants, bacterial proliferation and any animal matter.

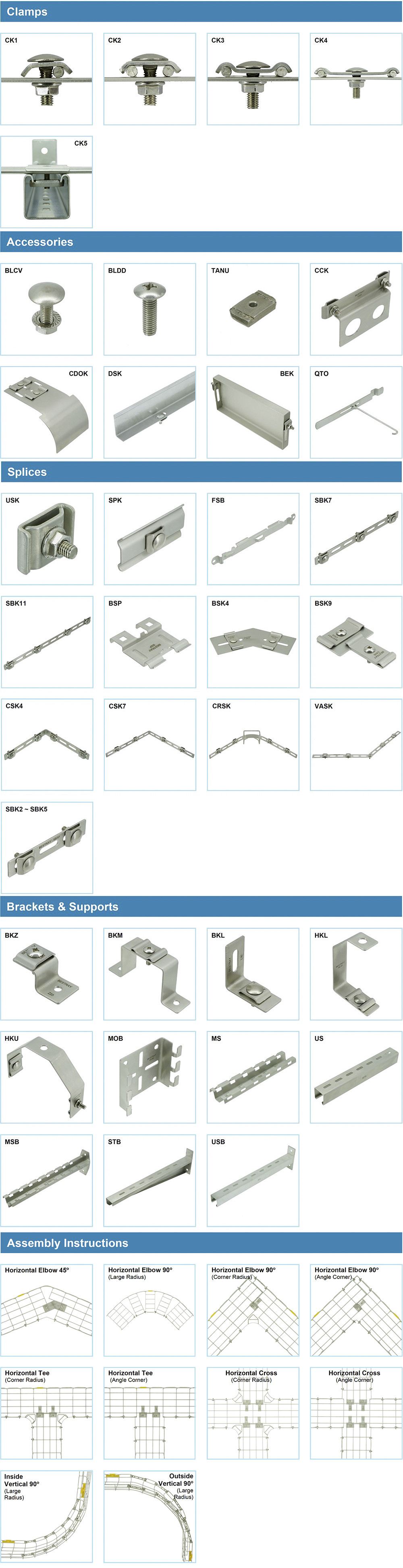

- Full range accessories are available, allow to modify, assemble, configure on site.

- Full size range assembled fittings are available, ready to install on site, saving time and cost.

Wire Mesh Cable Tray Applications:

- Welded steel wire mesh cable tray produced from high strength steel wires. Application for securely fasten or support of power
cable, control cable, data cable, optical fiber cable...

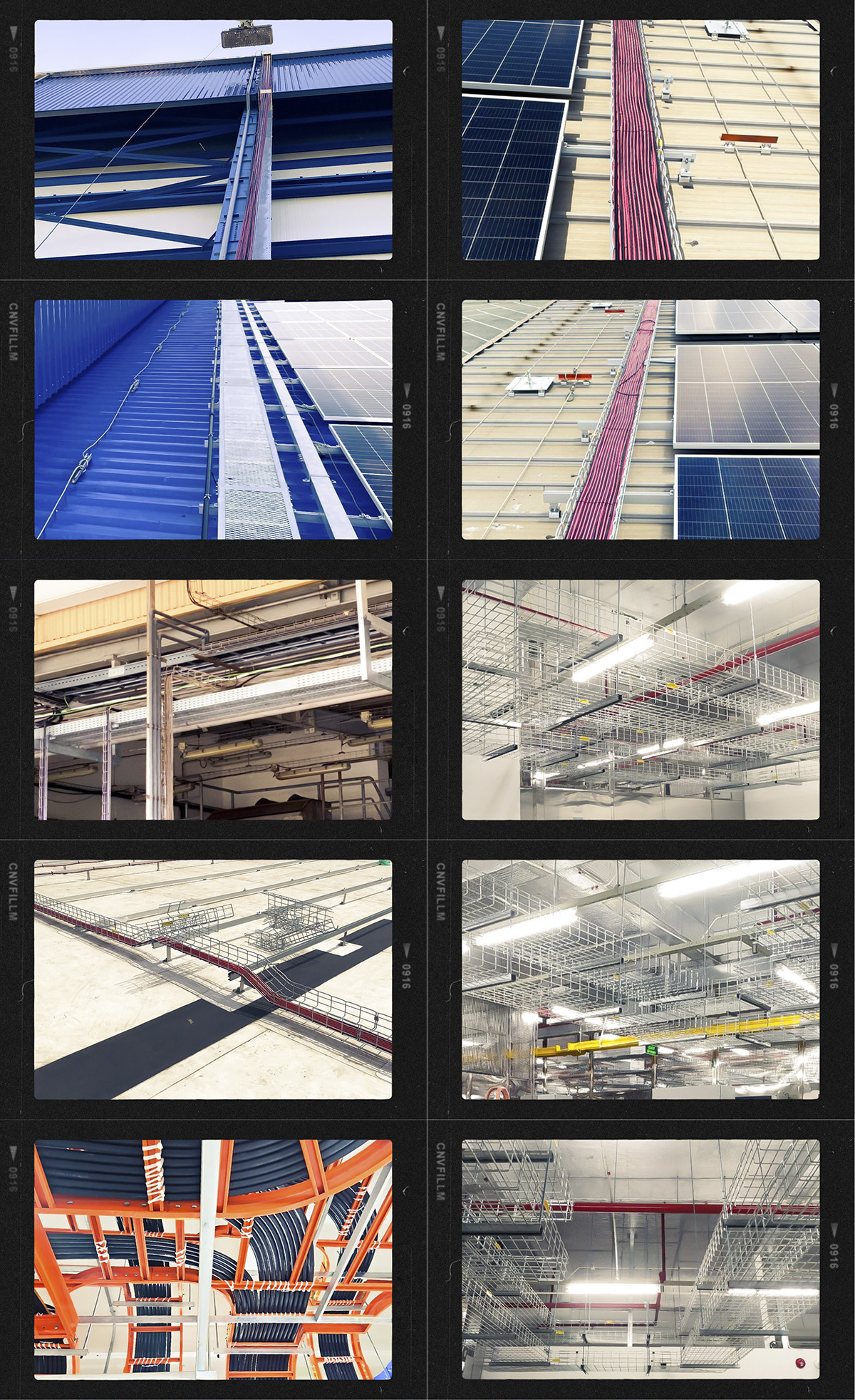

- Commercial applications such as: Airport, Metro Stations; Office, Commercial Buildings; Data Center Buildings...
- Industry applications such as: Food Processing; Pharmaceutical, Chemical;
Petrochemical, Oil & Gas; Energy, Power, Steel, Cement Industry...

Wire Mesh Cable Tray Dimensions:		Dimensions:
Inside Height (mm):	30, 54, 105, 155 (on request).
Inside Width (mm):	30, 50, 100, 150, 200, 300, 400, 450, 500, 600.
Length (mm):	3000.
Wire diameter Ø (mm):	4.0, 5.0, 6.0.

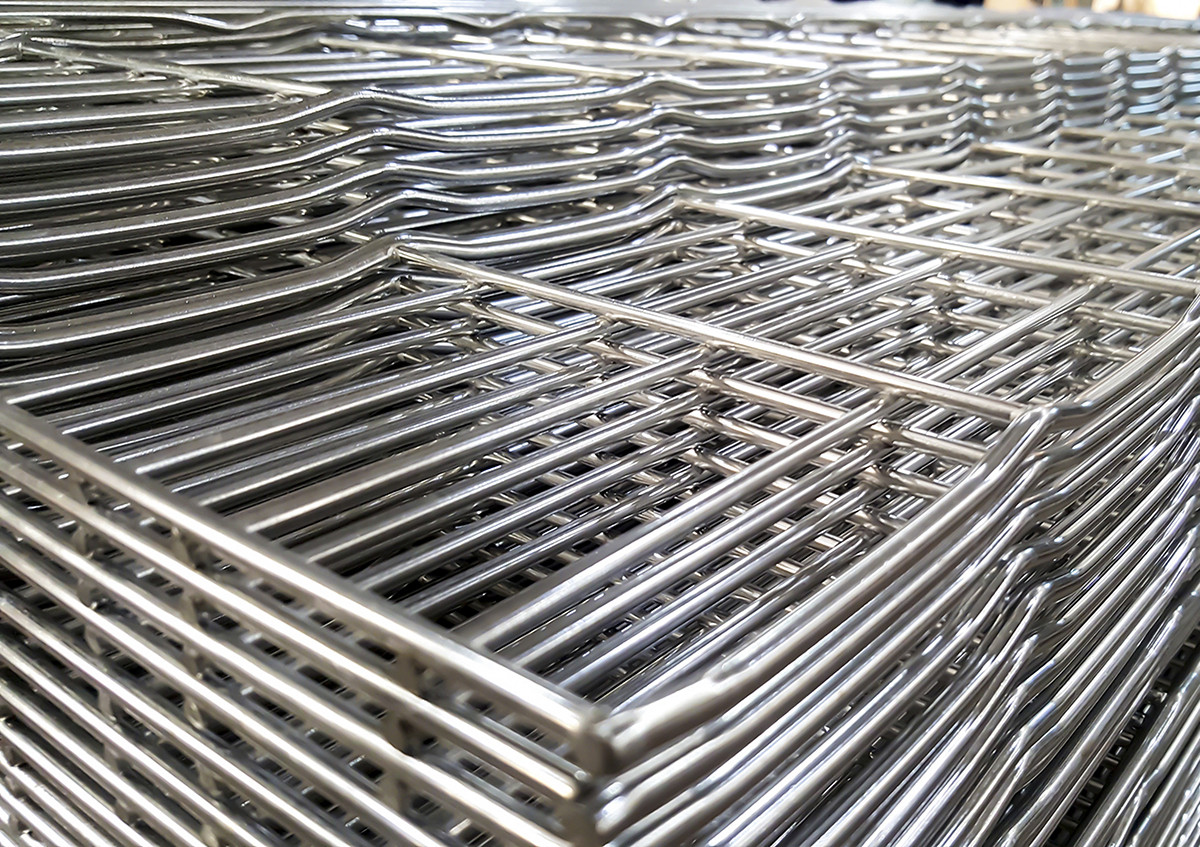

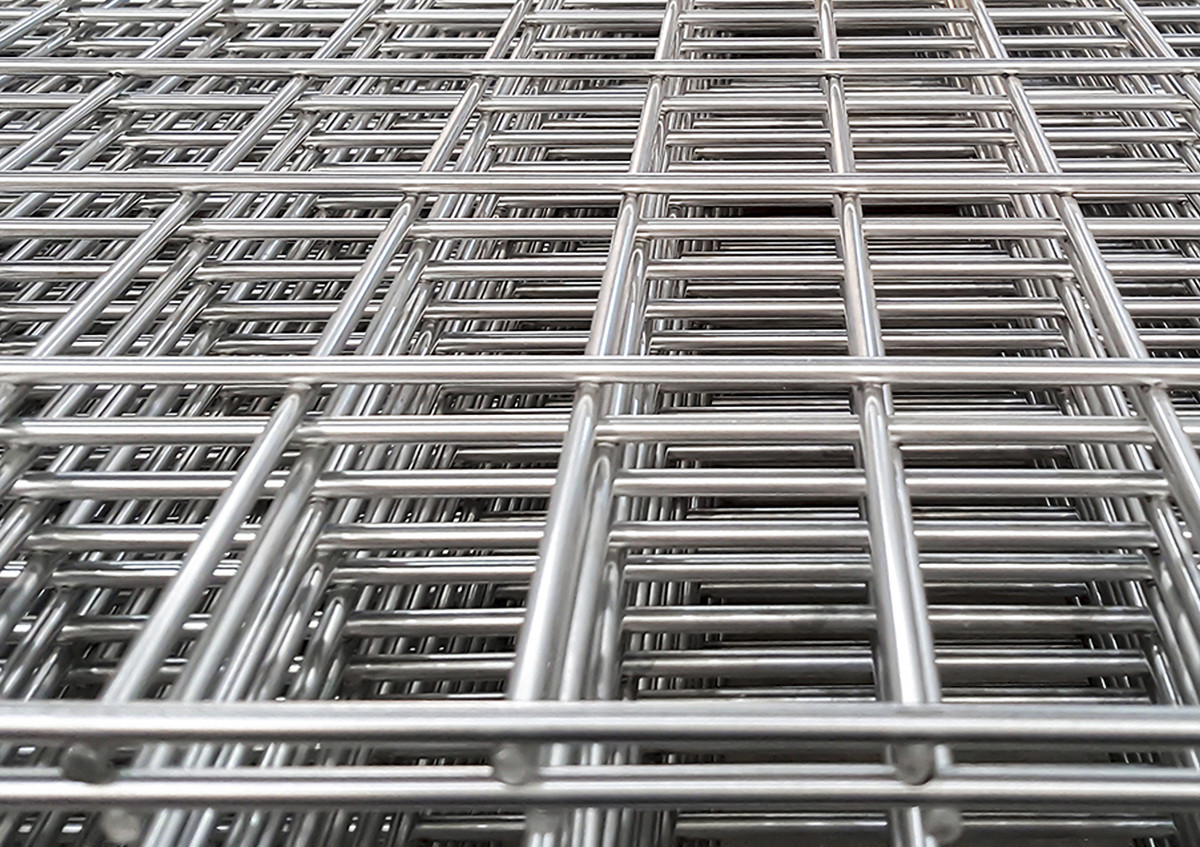

Product Show

Wire Mesh Cable Tray Highlights:

Welded steel wire mesh cable tray produced from high strength steel wires. Application for securely fasten or support of low power cable, signal control cable, data cable, optical fiber cable...

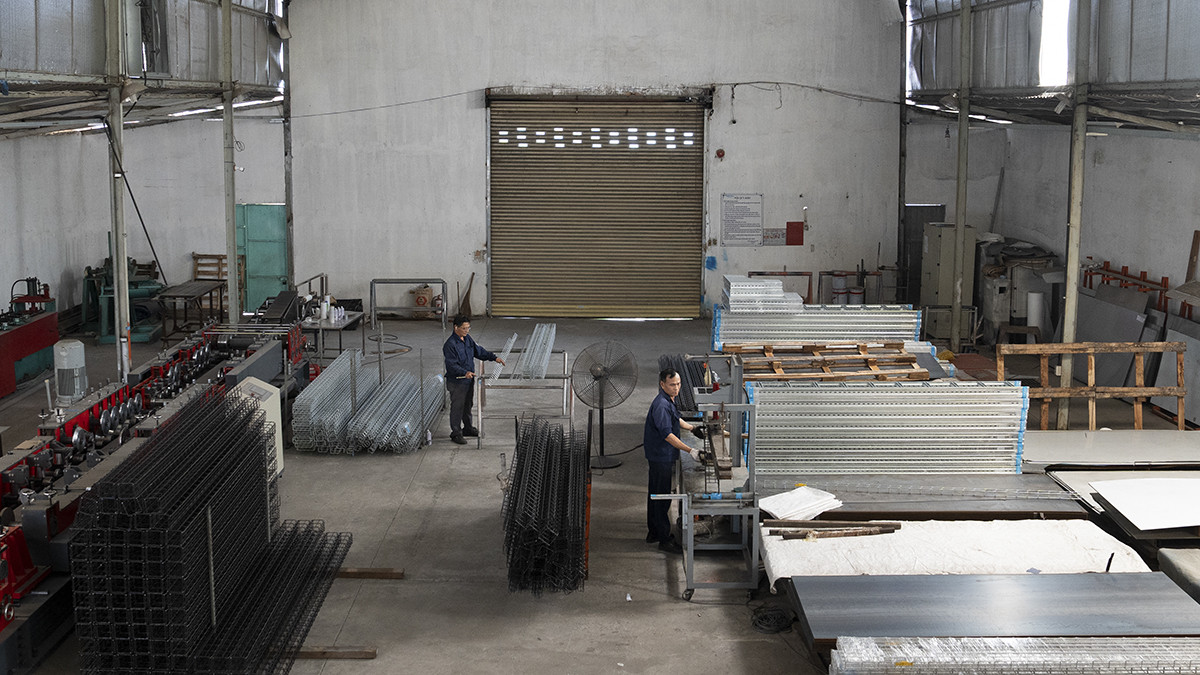

Company Profile

About Bestray:

BESTRAY JSC is a member of Huu Long JSC, with over 15 years of experience specializing in Consulting, Manufacturing, Trading and Services in the electricity industry.

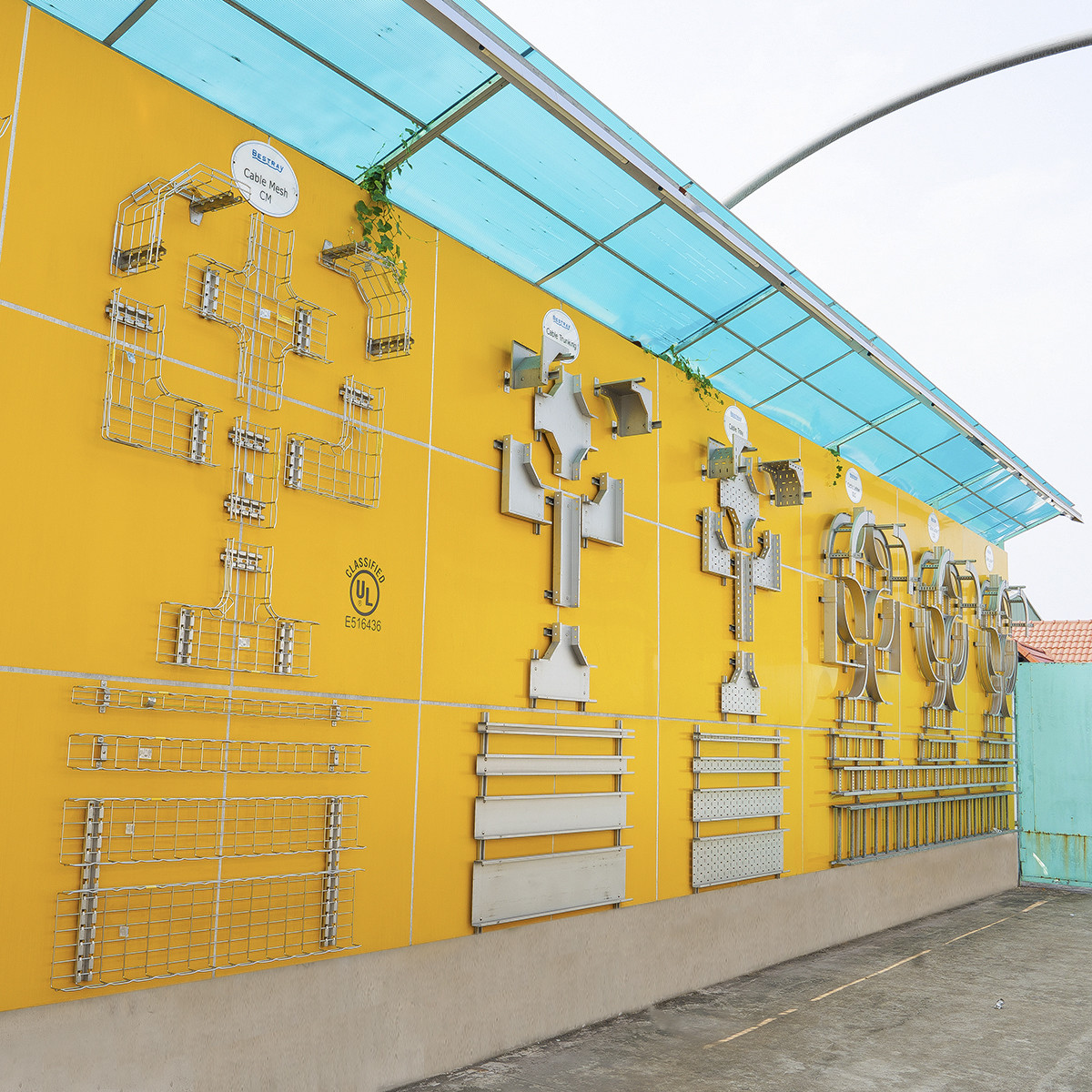

Wire Mesh Cable Tray Line:

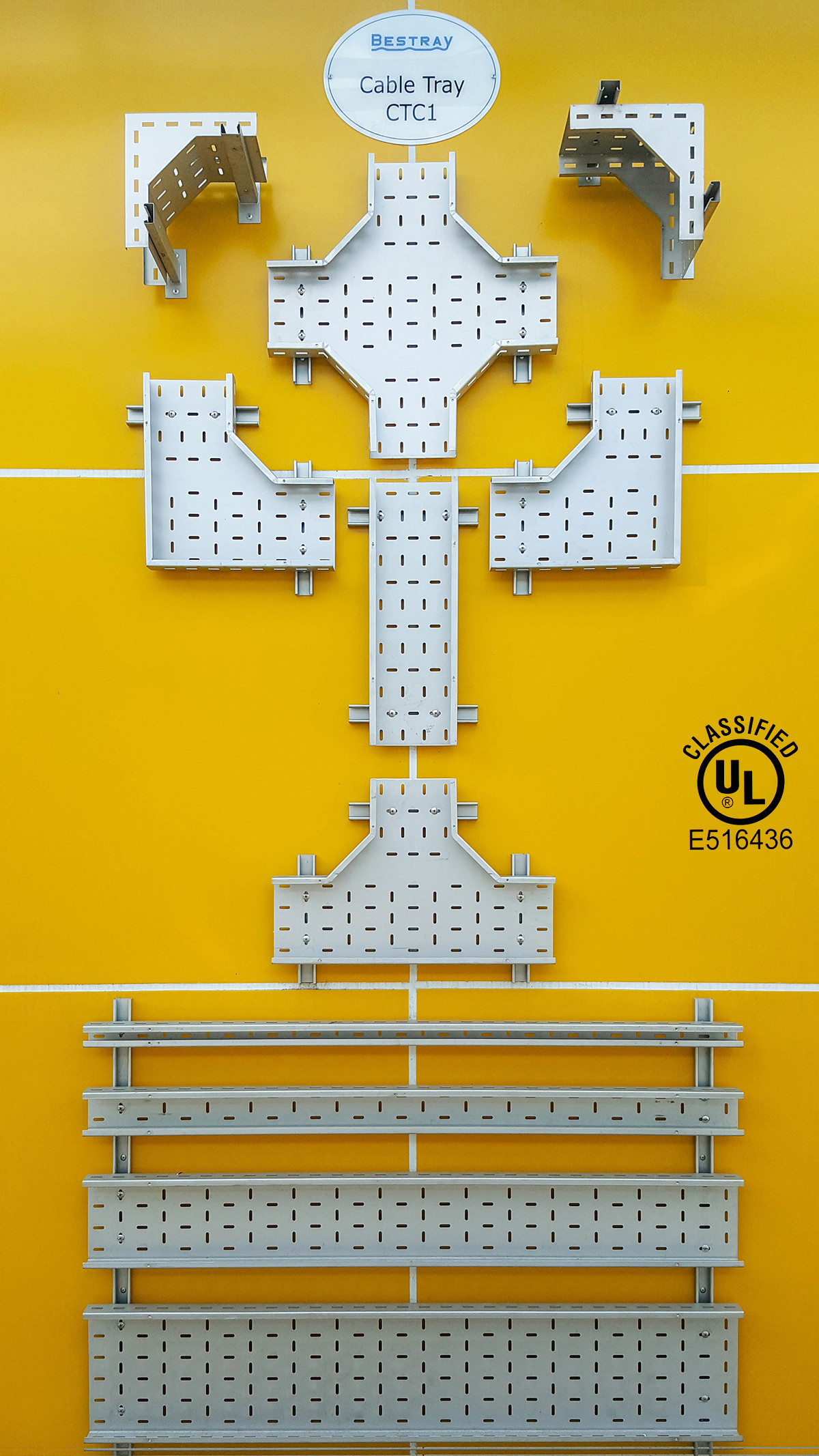

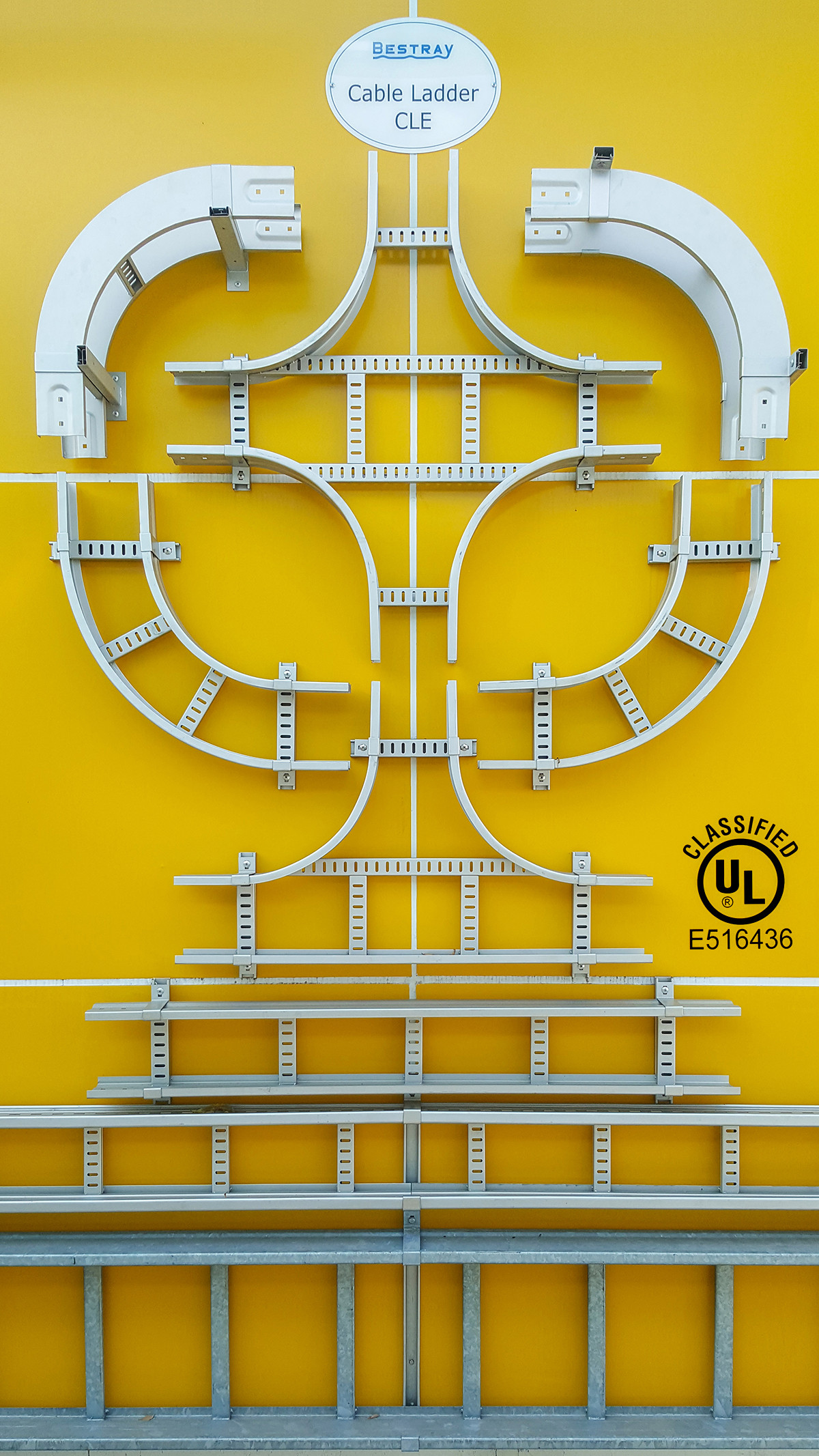

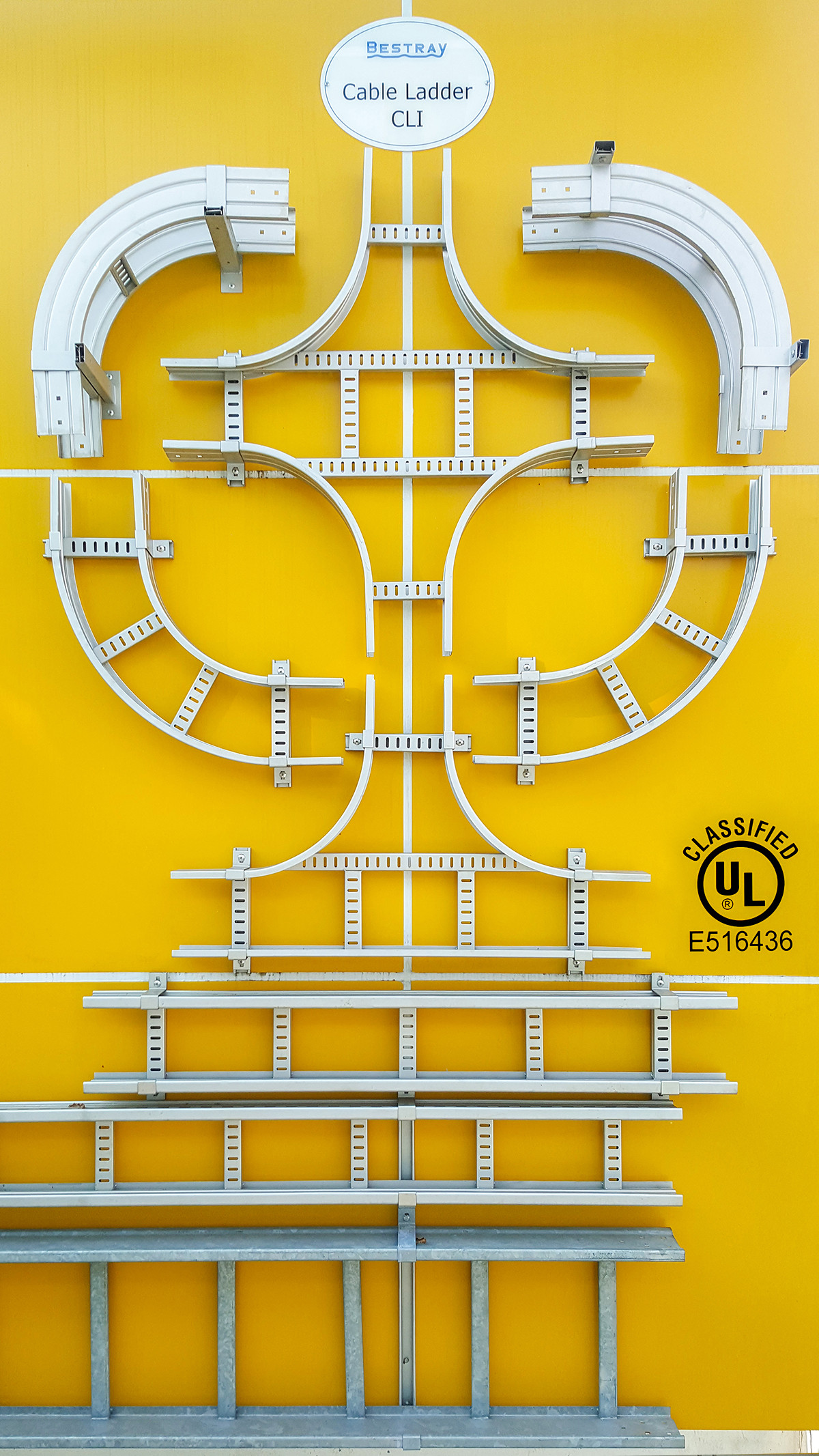

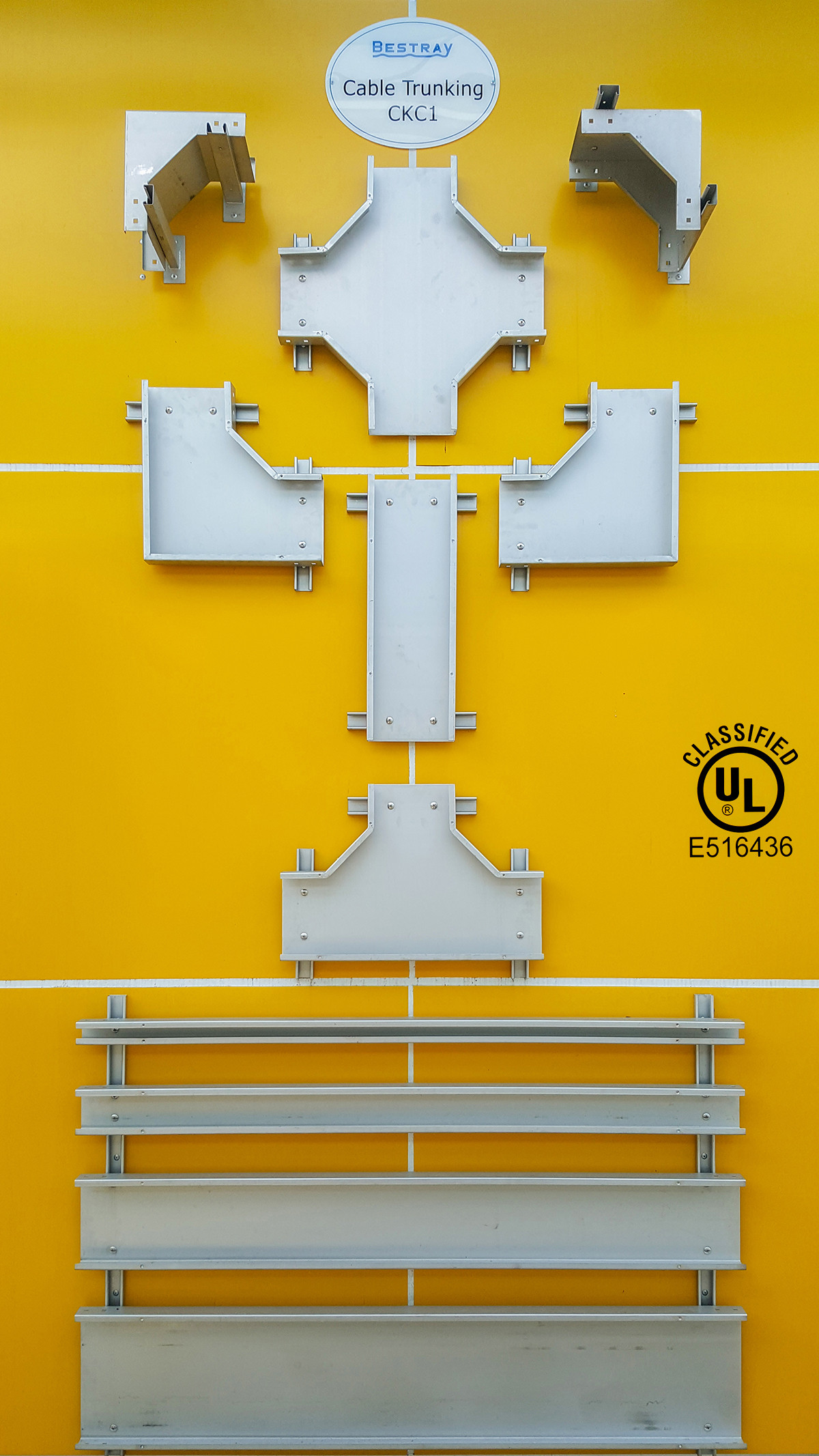

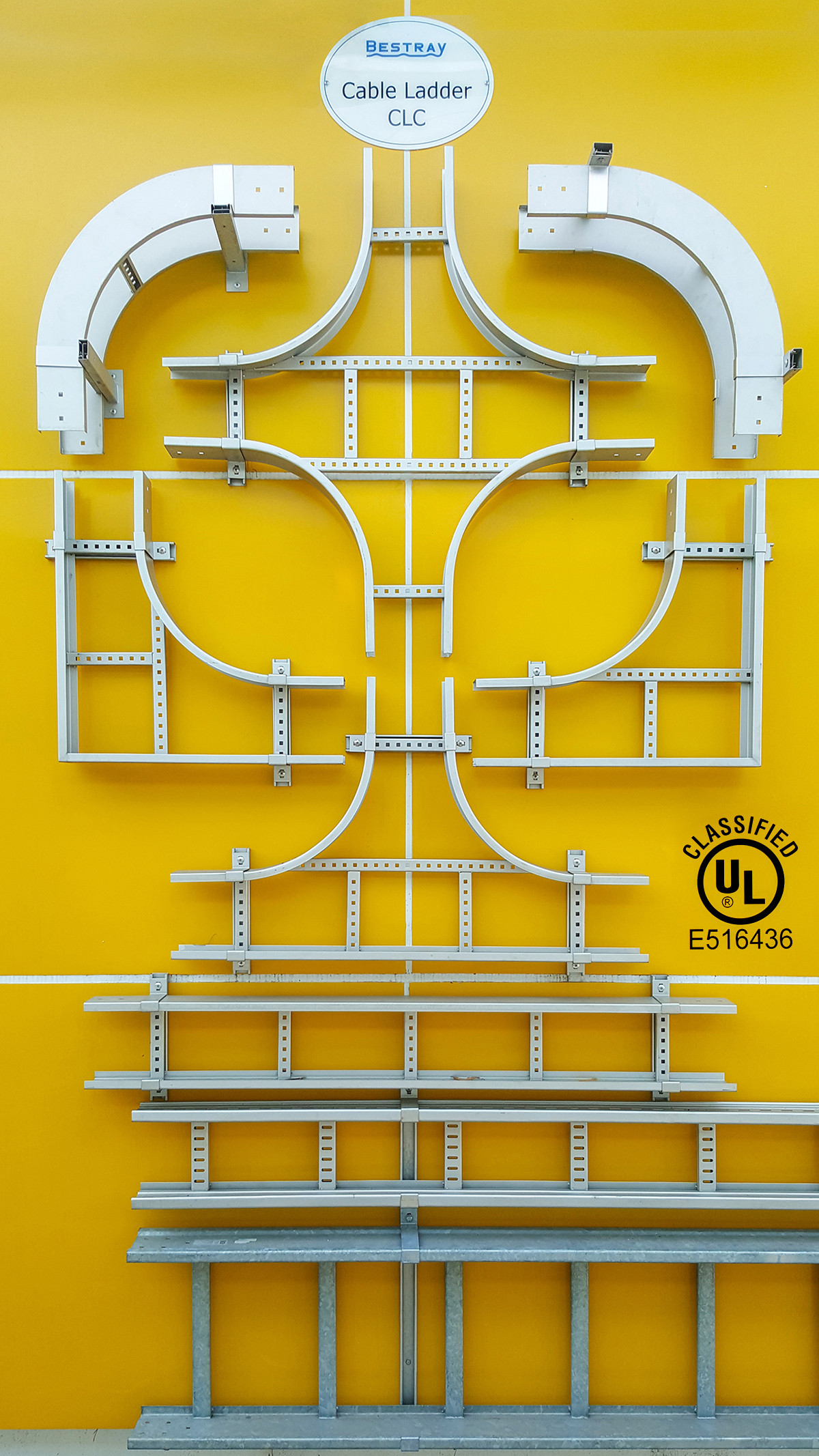

The Main product of Bestray is Wire mesh cable tray, Accessories and Support. Furthermore, we have Perforated cable tray, Cable
tray, Cable ladder, Cable trunking.

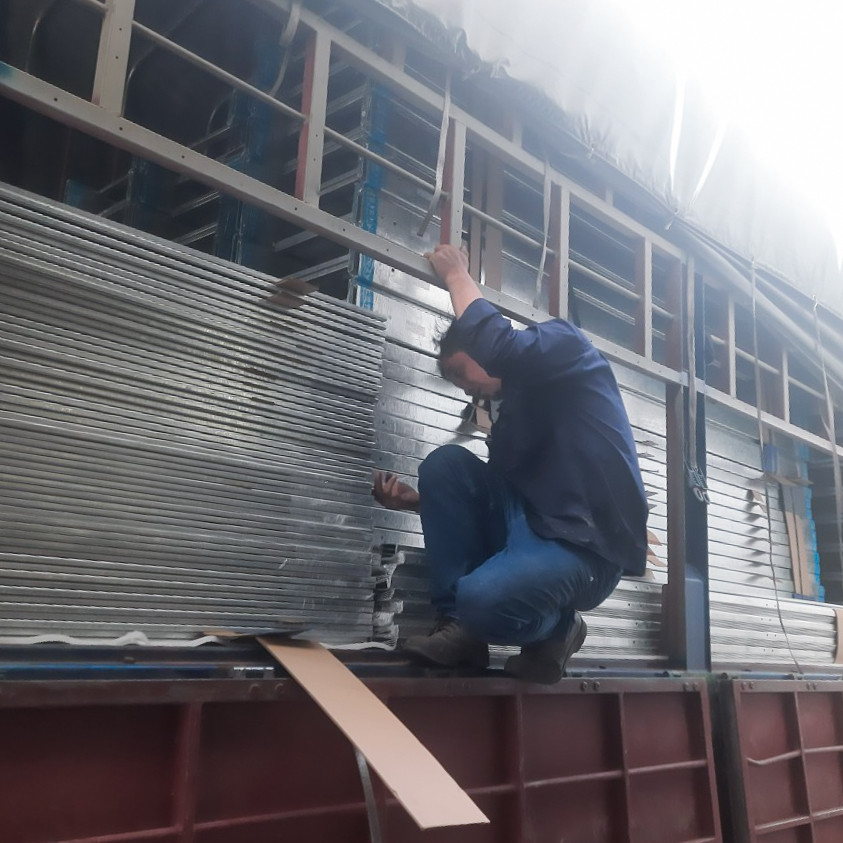

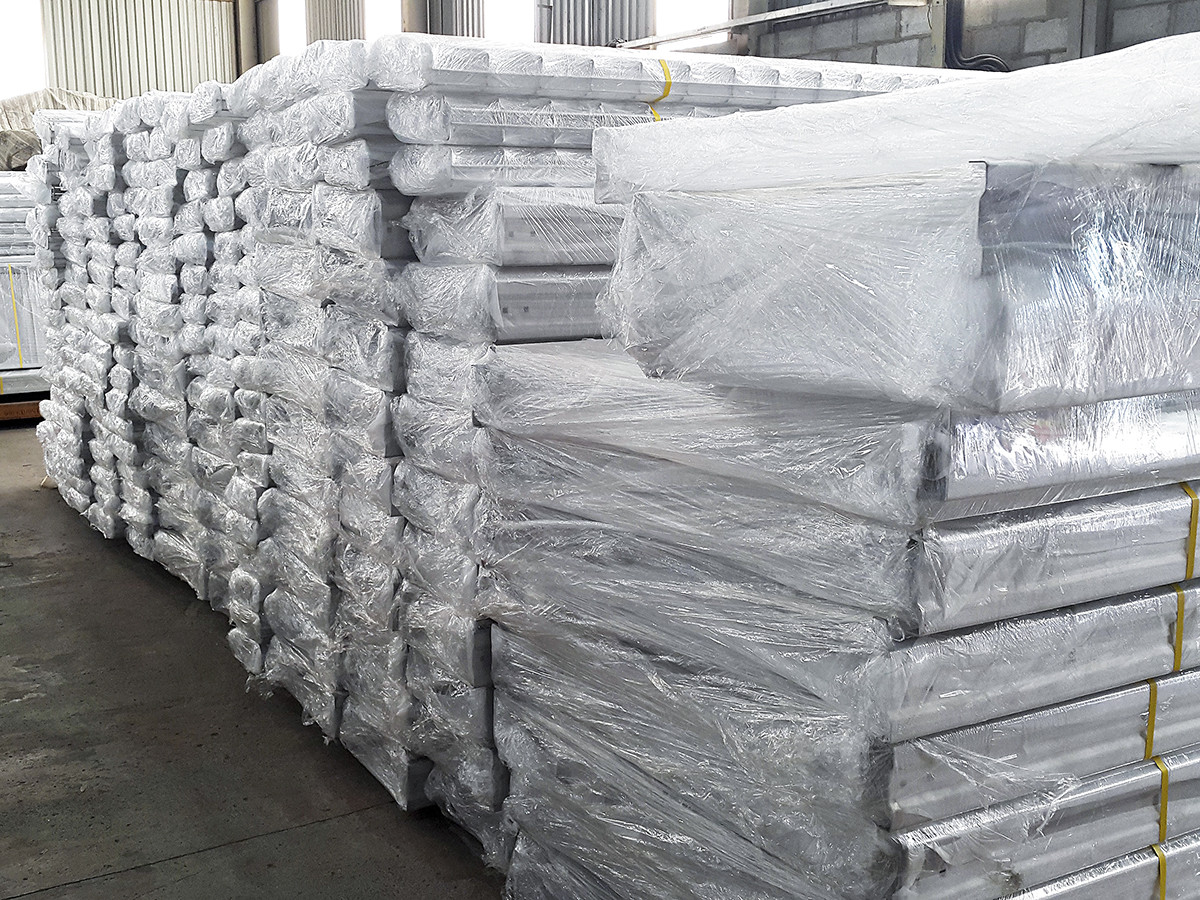

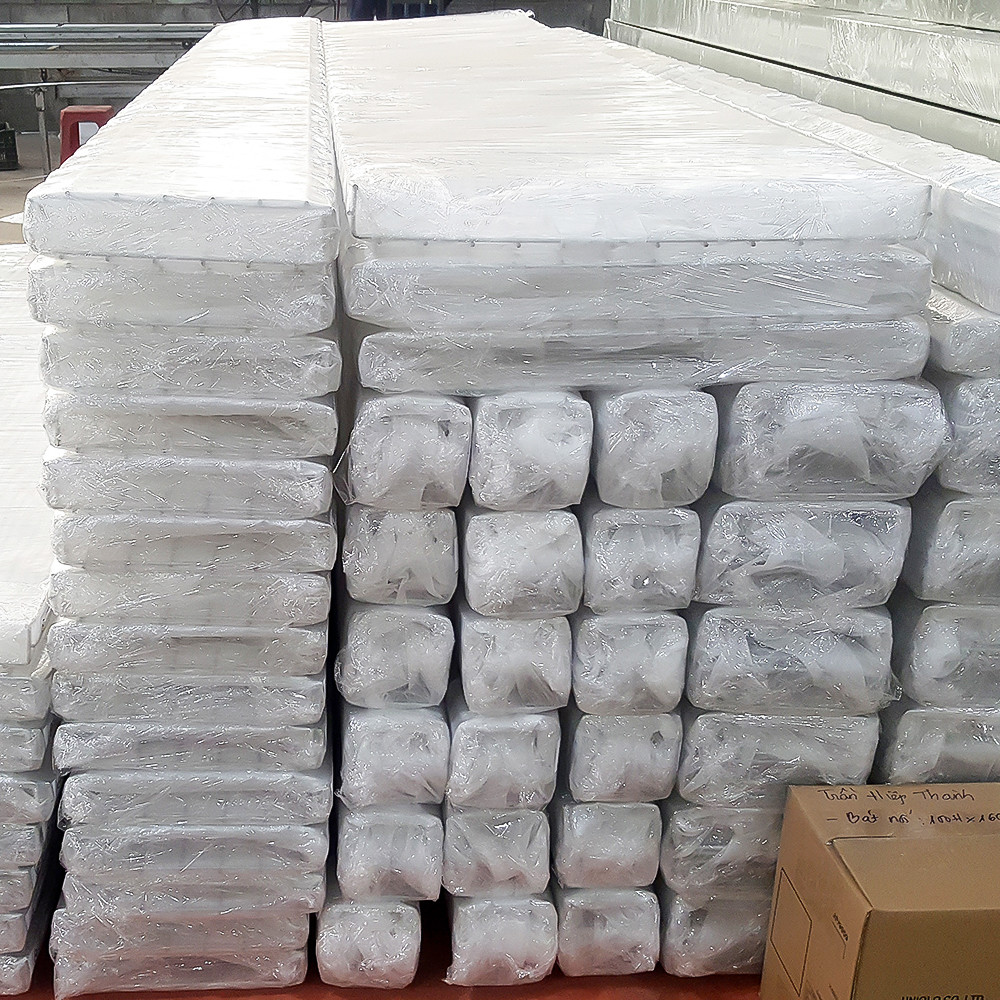

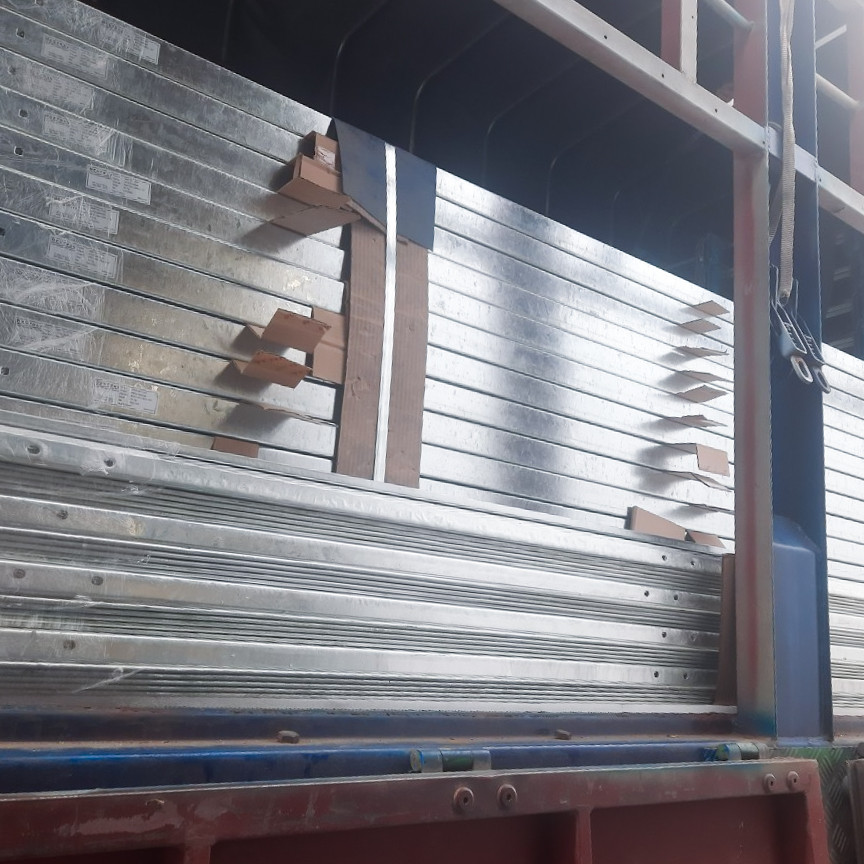

Packaging & Delivery

Why Choose Us

1. Direct Manufacturer	Secure quality control save time and cost
2. OEM&ODM	More than 3 years experience
3. Team	Professional research and brod on department, smooth coordination between the parts
4. Innovation	Always changing and improving for the better
5. Quality	More than 30% repeat orders are our proud performance
6. Warranty	All products you purchase from us can enjoy one-year quality warranty

FAQ

1. How long does it take for me to get the quotation?

For customized products, we will quote after you provide the requested details of the product within 12 hours.

Because we need the time to calculate the cost, but we will quote the soonest as possible.

For our standard product posted here, we can finish the quotation in 6 hours.

2. Do you provide samples?

Yes, we could offer free samples if the customer needs. However, you need to pay for the freight yourself.

3. How long is your delivery time?

Depend on your quantity, the usual specification for 40 feet container will be 20-25 days. Of course, if its urgent, Bestray can help to arrange it accordingly.

4. How can you commit to passing the test?

We have our factory inspection and institutional lab to do the below test.

- Safe loading test

- Galvanized thickness test

- Salt spray test

5. What are the advantages of your product?

Reduce installation costs and time; Easy for changing, adding, and moving; Bright surface means good material and quality.

Our electrical and network cabling equipment have the same quality as the internationally famus brand.

6. How do I get more information?

Please contact Mr. Khoa Nguyen, who expertise in the wire mesh tray system on .com, or send your inquiry to him through his e-mail: *****.

7. Whats your contact information?

Our address is TanHiep Commune, HocMon District, HoChiMinh City, VietNam. Welcome to visit us
