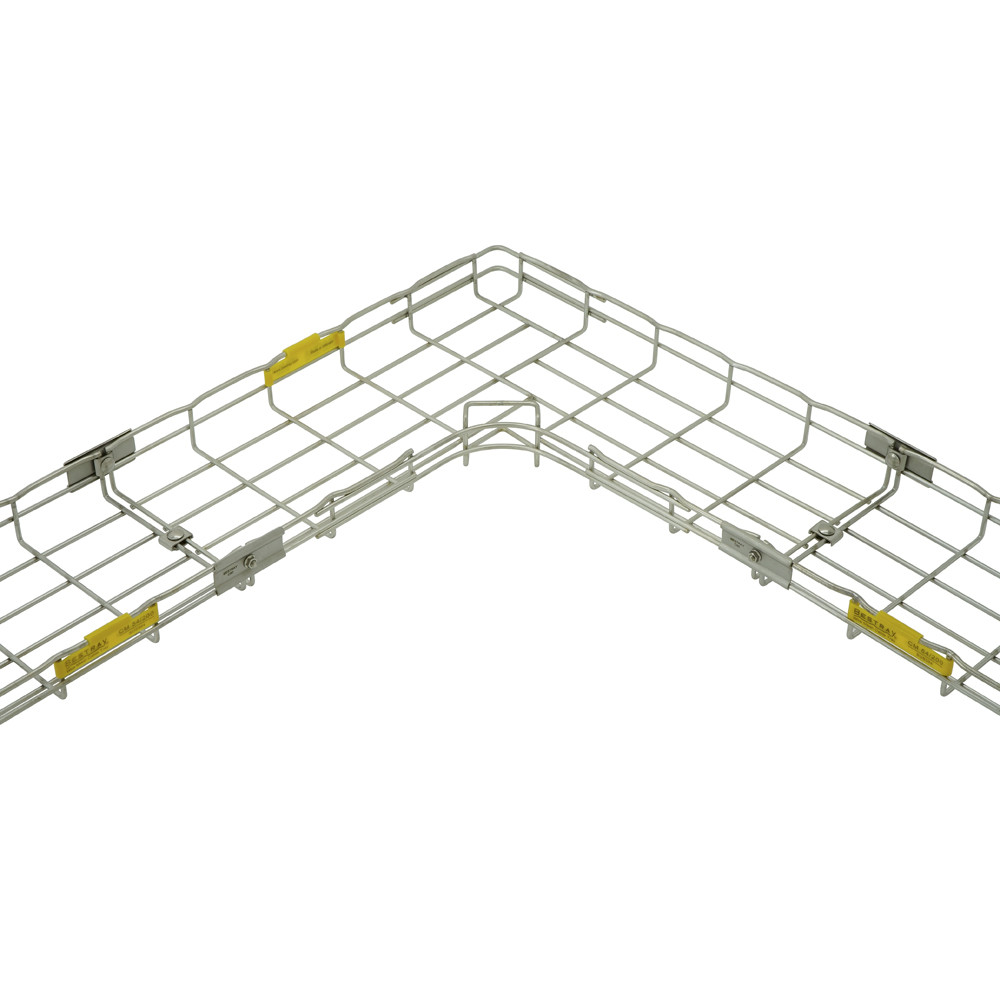

Stainless Steel Cable Tray Horizontal Elbow 90 Degree Inox 304, Cable Tray From Bestray Vietnam Factory Electric Wire Cable

Name: Stainless Steel Cable Tray Horizontal Elbow 90 Degree Inox 304, Cable Tray From Bestray Vietnam Factory Electric Wire Cable
Brand: BESTRAY JOINT STOCK COMPANY
SKU: Tradewheel_2658177
Price: 4.18 USD
Availability: InStock

FOB Price 4.18 - 81.58 USD / sets

Contact Now

Quick Details (View All)

Place of Origin	Ho Chi Minh City, Vietnam	Brand Name	Bestray
Model Number	HE9	Type	Wire Mesh
Material	Steel	Width	for all products from Bestray
Length	for all products from Bestray	Side Rail Height	for all products from Bestray

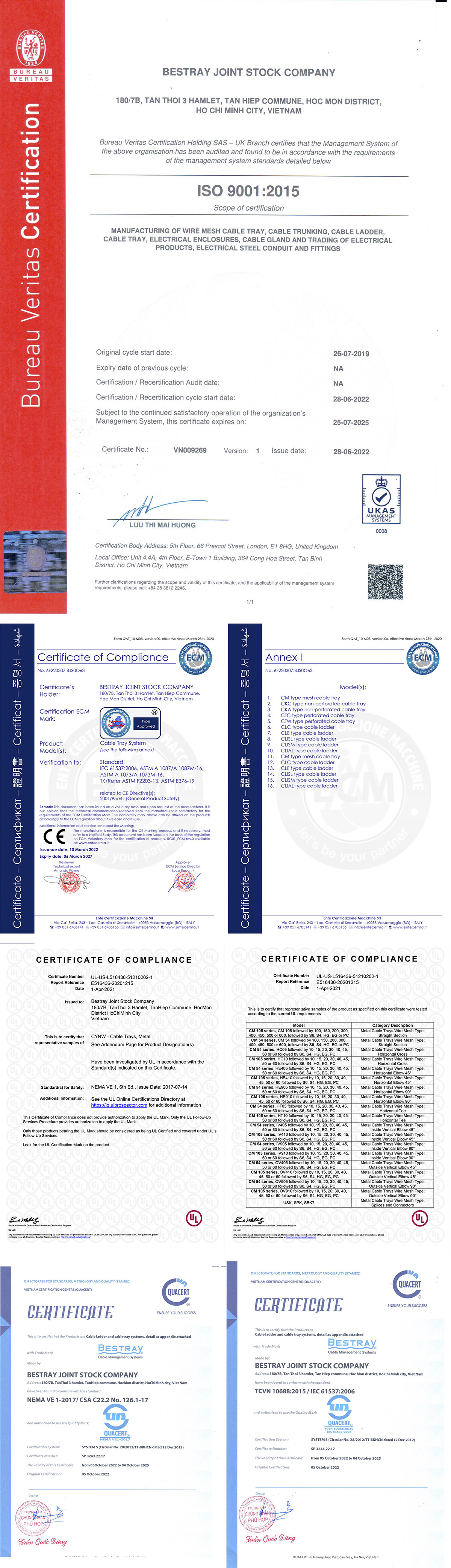

Certificates	ISO 9001:2015 (BVC)	Thickness (mm)	4.0 5.0 6.0
Finishes	Natural finish, Hot dip galvanize, Electro galvanized, Powder coating	Materials	Carbon steel (CT3, SS400), Stainless steel (SUS304, SUS316)
OEM/ODM	Available	Comply with standards:	NEMA VE1-2017, IEC 61537-2006
Bussiness type	Manuacturer	Sample	Available
Third party certify:	Quatest 3 (VN)	Catalogue	Available

Product Details

Product Specification

Dong Cong Quoc

Managing Director

We are proud to have researched, developed and innovated to make the Wire Mesh Cable Tray system more perfect and convenient, creating a synchronous solution that has never been done by any manufacturer before. We are committed to providing high quality products and timely delivery to customers.

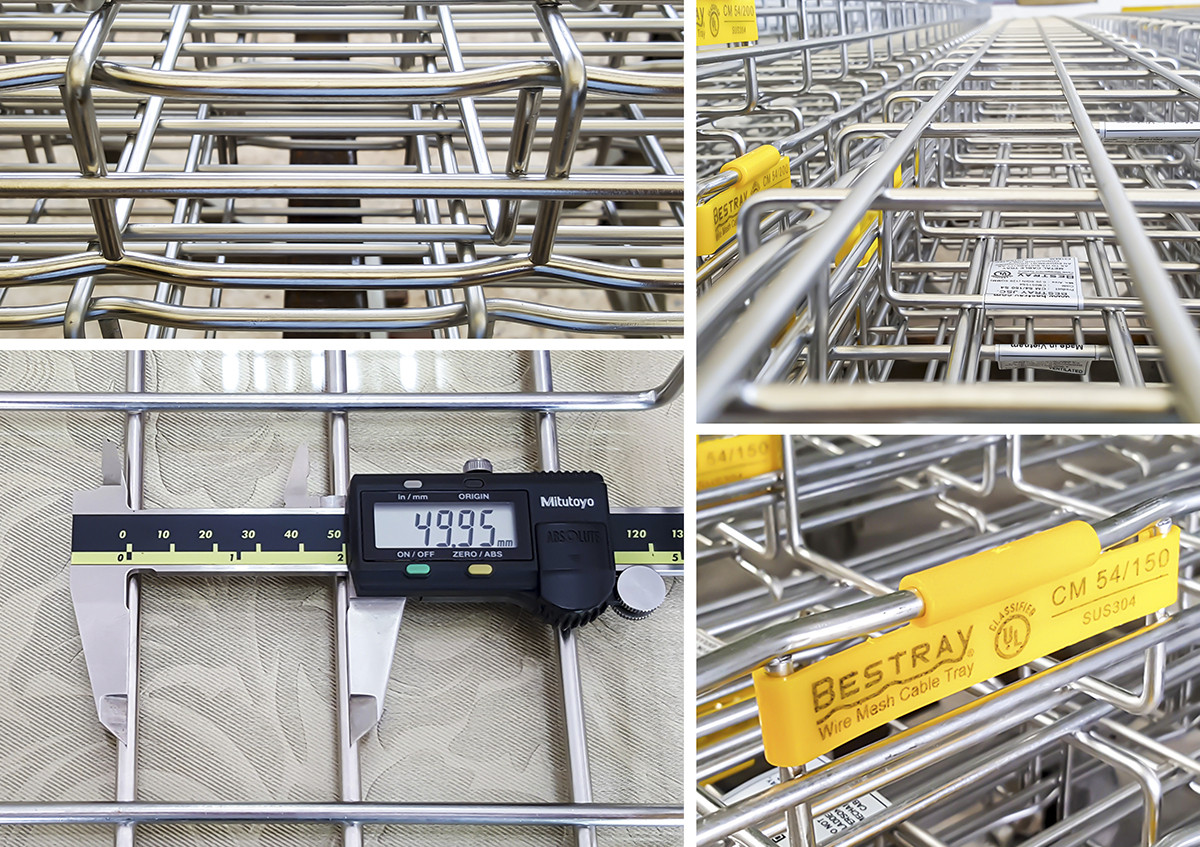

STT	Wire Mesh Cable Tray Specifications
1	Top wires size are larger than body wires size, to make trays more stronger at the top edges, symmetrical and aesthetic.
2	"T welding" the body wires to the top wires, to make side rails smooth edges. safety for installers, as well as prevent any damage to cable or obstacle during pulling.
3	"Wave type" side rails on the top is designed to increase rigidity, provides maximizes strength length, higher load performance for trays.
4	Label Bestray is "3 position" type, PE plastic, yellow color and black letter by laser.

Products Description

Product Name

L1 (mm)

L2 (mm)

Code

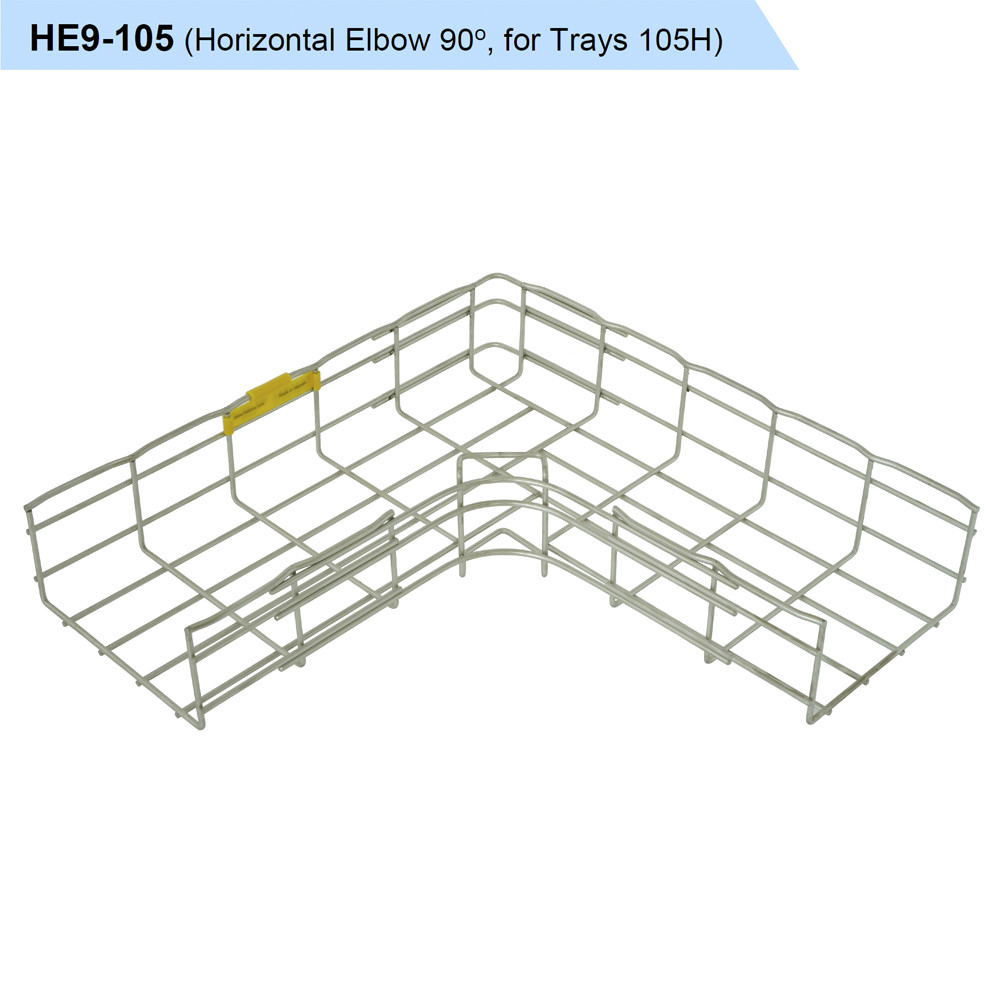

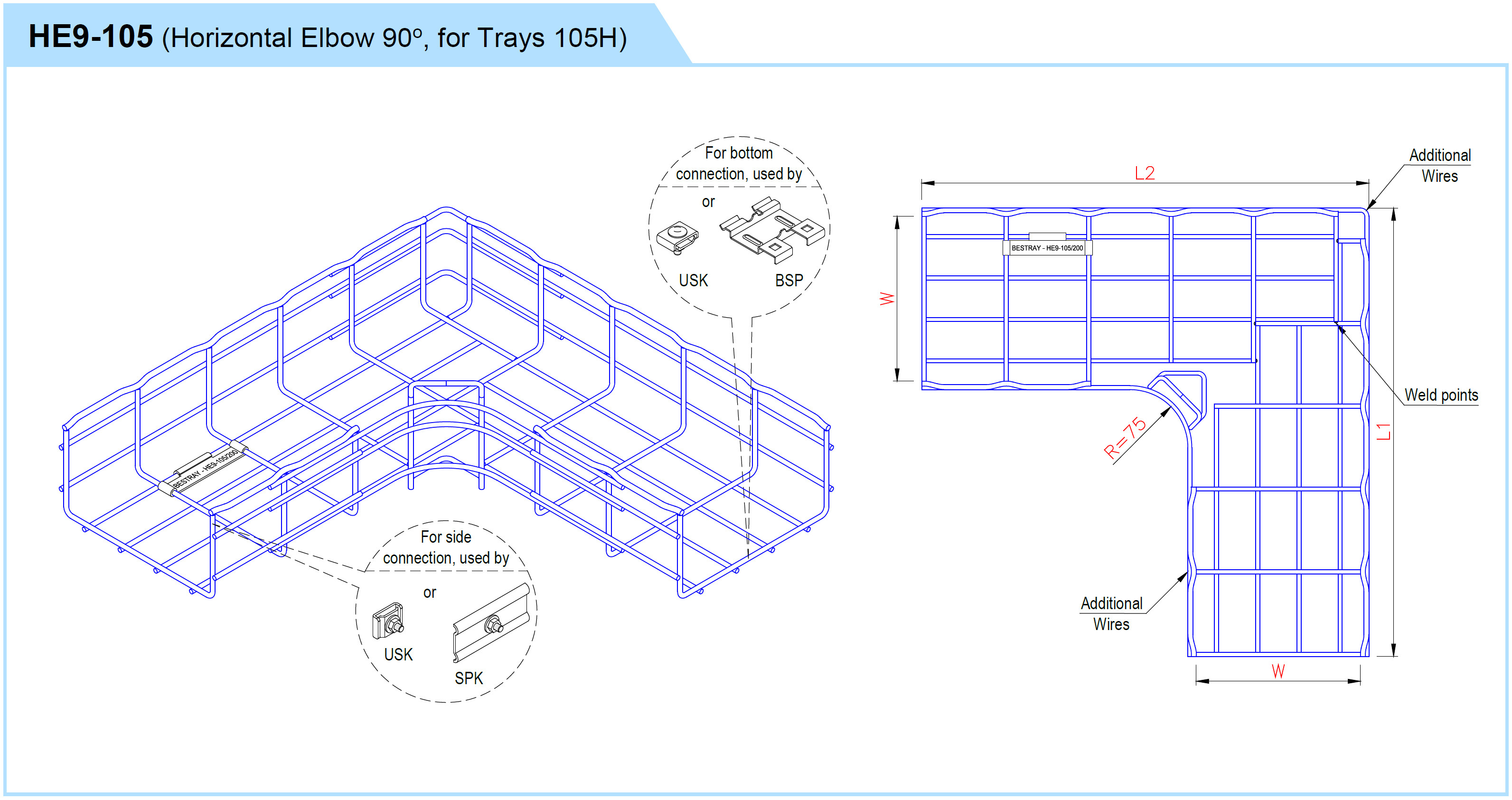

HE9 105/100

445

HE91010S4

HE91010HG

HE91010PC

HE9 105/150

445

HE91015S4

HE91015HG

HE91015PC

HE9 105/200

545

HE91020S4

HE91020HG

HE91020PC

HE9 105/300

645

HE91030S4

HE91030HG

HE91030PC

HE9 105/400

745

HE91040S4

HE91040HG

HE91040PC

HE9 105/450

745

HE91045S4

HE91045HG

HE91045PC

HE9 105/500

845

HE91050S4

HE91050HG

HE91050PC

HE9 105/600

945

HE91060S4

HE91060HG

HE91060PC

(xx): S6 (SUS316) S4 (SUS304) HG (Hot Dip Galvanized) EG (Electro Galvanized) PC (Powder Coating)

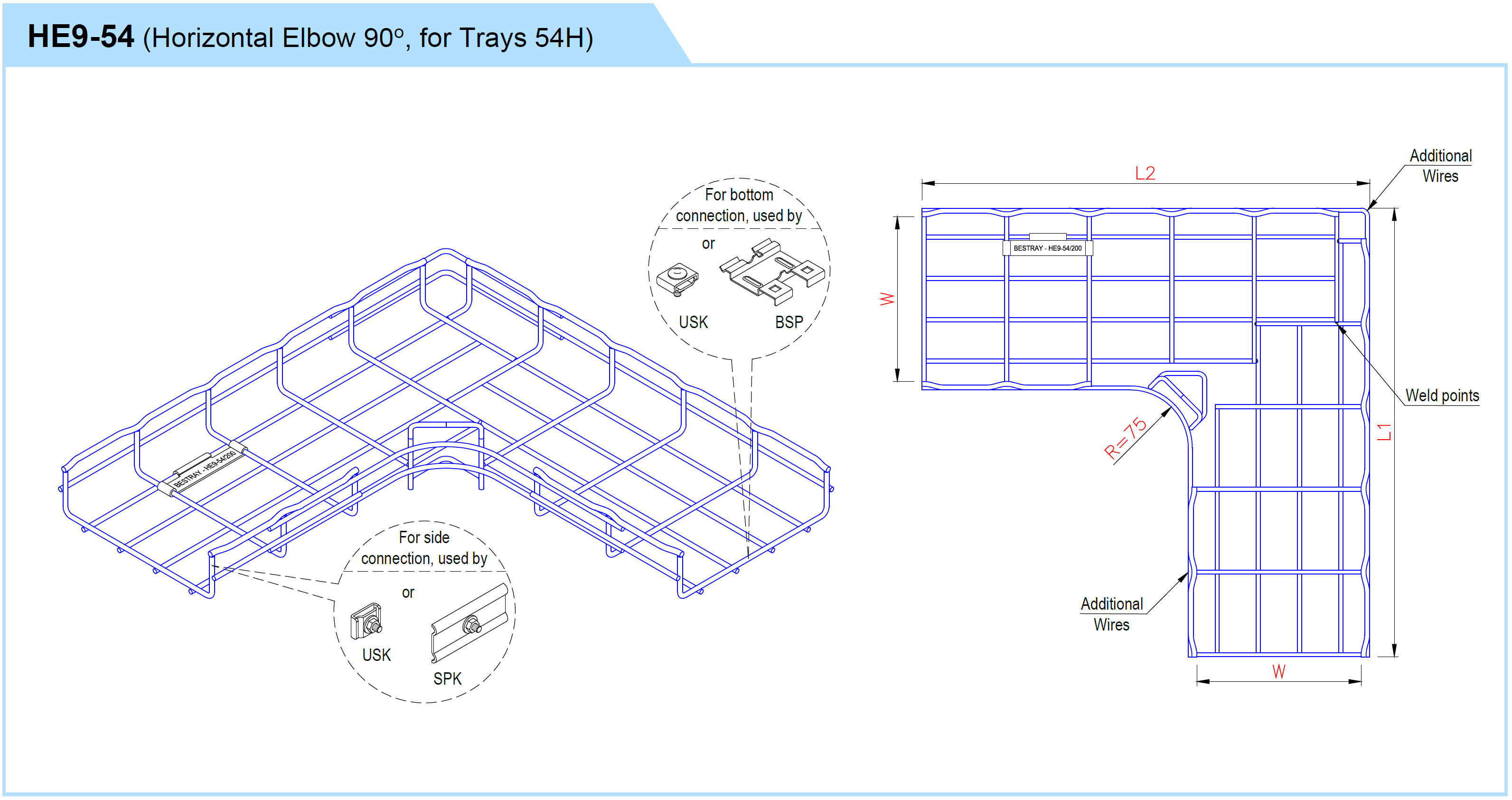

Product Name

L1 (mm)

L2 (mm)

Code

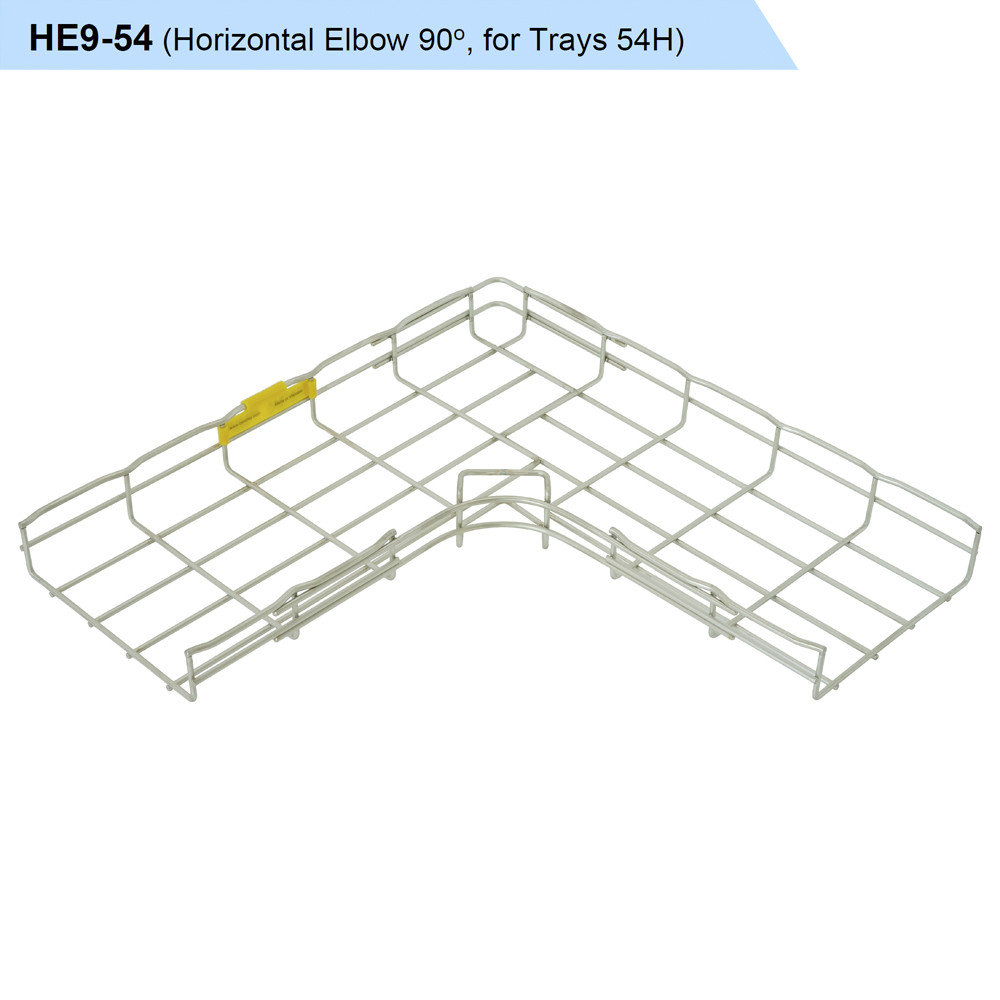

HE9 54/50

330

HE90505S4

HE90505HG

HE90505EG

HE90505PC

HE9 54/100

445

HE90510S4

HE90510HG

HE90510PC

HE9 54/150

445

HE90515S4

HE90515HG

HE90515PC

HE9 54/200

545

HE90520S4

HE90520HG

HE90520PC

HE9 54/300

645

HE90530S4

HE90530HG

HE90530PC

HE9 54/400

745

HE90540S4

HE90540HG

HE90540PC

HE9 54/450

745

HE90545S4

HE90545HG

HE90545PC

HE9 54/500

845

HE90550S4

HE90550HG

HE90550PC

HE9 54/600

945

HE90560S4

HE90560HG

HE90560PC

(xx): S6 (SUS316) S4 (SUS304) HG (Hot Dip Galvanized) EG (Electro Galvanized) PC (Powder Coating)

Materials / Finishes:		Dimensions:
S6	SUS316 (stainless steel)
S4	SUS304 (stainless steel)
HG	Steel/Hot dip galvanized
DC	Steel/Dacromet
PG	Steel / Pre-galvanized
EG	Steel / Electro galvanized
PC	Steel/Powder coating

Wire Mesh Cable Tray Features & Benefits:

- Stronger and lighter weight than traditional trays. Easy to handle, simple and fast assembly on site. Reduces material and labor cost.

- Provides greater versatility, easy flexible to install in confined spaces.

- The open structure provides natural ventilation for greater cable efficiency and also prevents build-up of dust, contaminants, bacterial proliferation and any animal matter.

- Full range accessories are available, allow to modify, assemble, configure on site.

- Full size range assembled fittings are available, ready to install on site, saving time and cost.

Wire Mesh Cable Tray Applications:

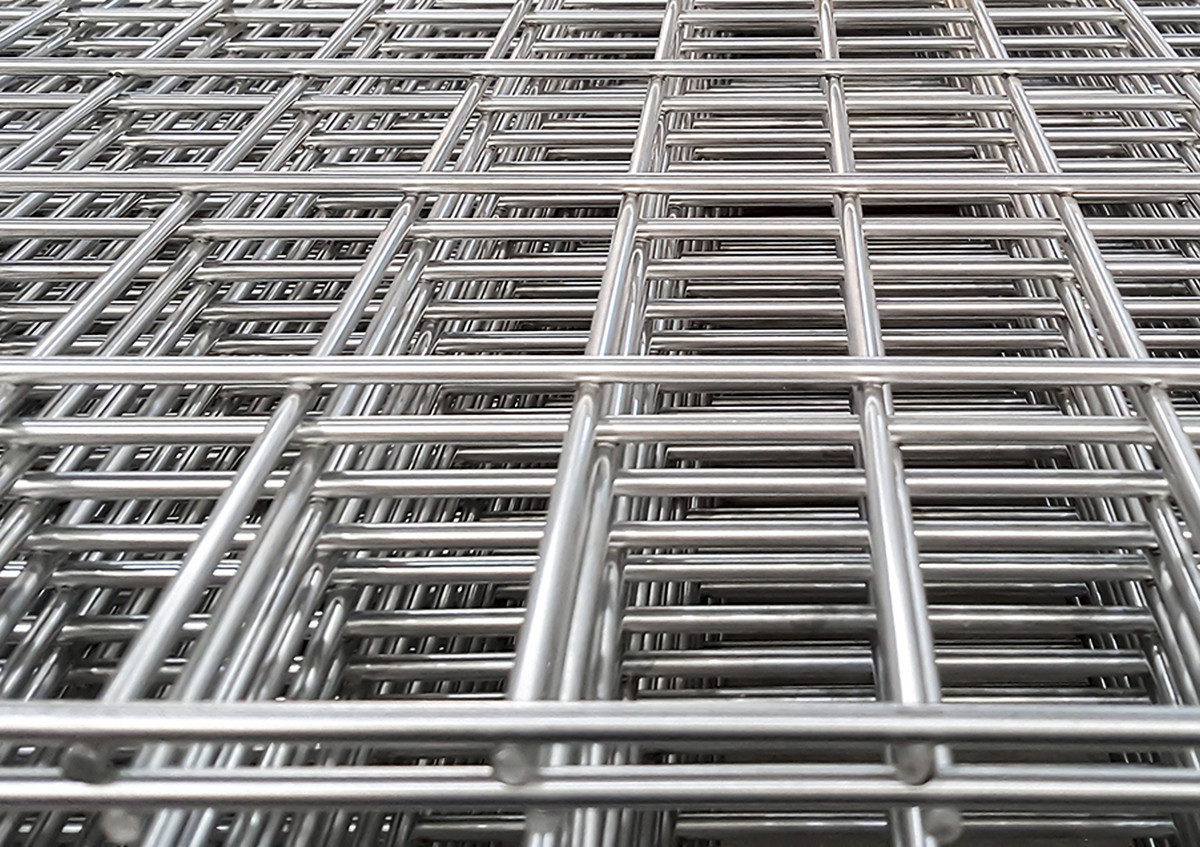

- Welded steel wire mesh cable tray produced from high strength steel wires. Application for securely fasten or support of power
cable, control cable, data cable, optical fiber cable...

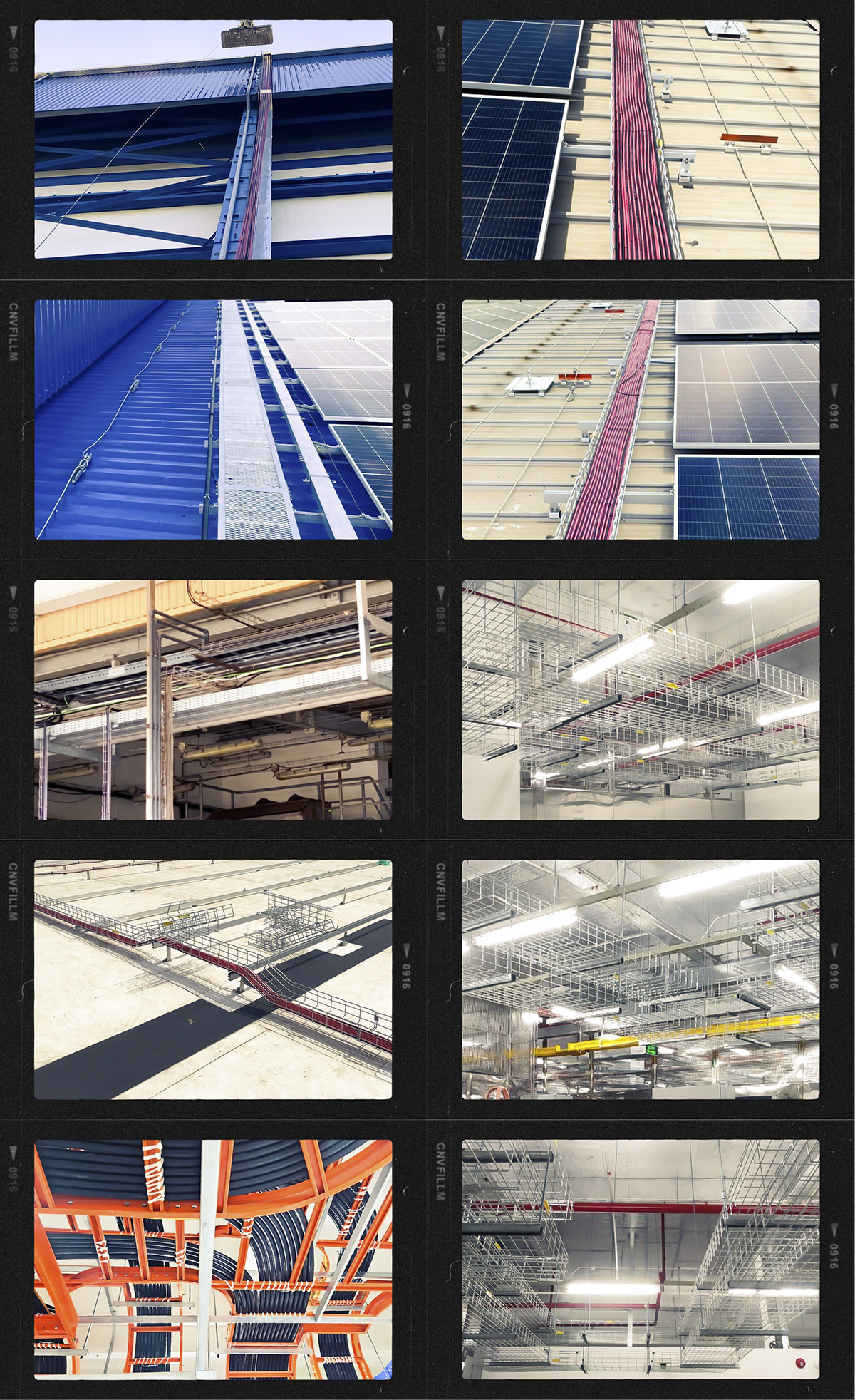

- Commercial applications such as: Airport, Metro Stations; Office, Commercial Buildings; Data Center Buildings...
- Industry applications such as: Food Processing; Pharmaceutical, Chemical;
Petrochemical, Oil & Gas; Energy, Power, Steel, Cement Industry...

Wire Mesh Cable Tray Dimensions:		Dimensions:
Inside Height (mm):	30, 54, 105, 155 (on request).
Inside Width (mm):	30, 50, 100, 150, 200, 300, 400, 450, 500, 600.
Length (mm):	3000.

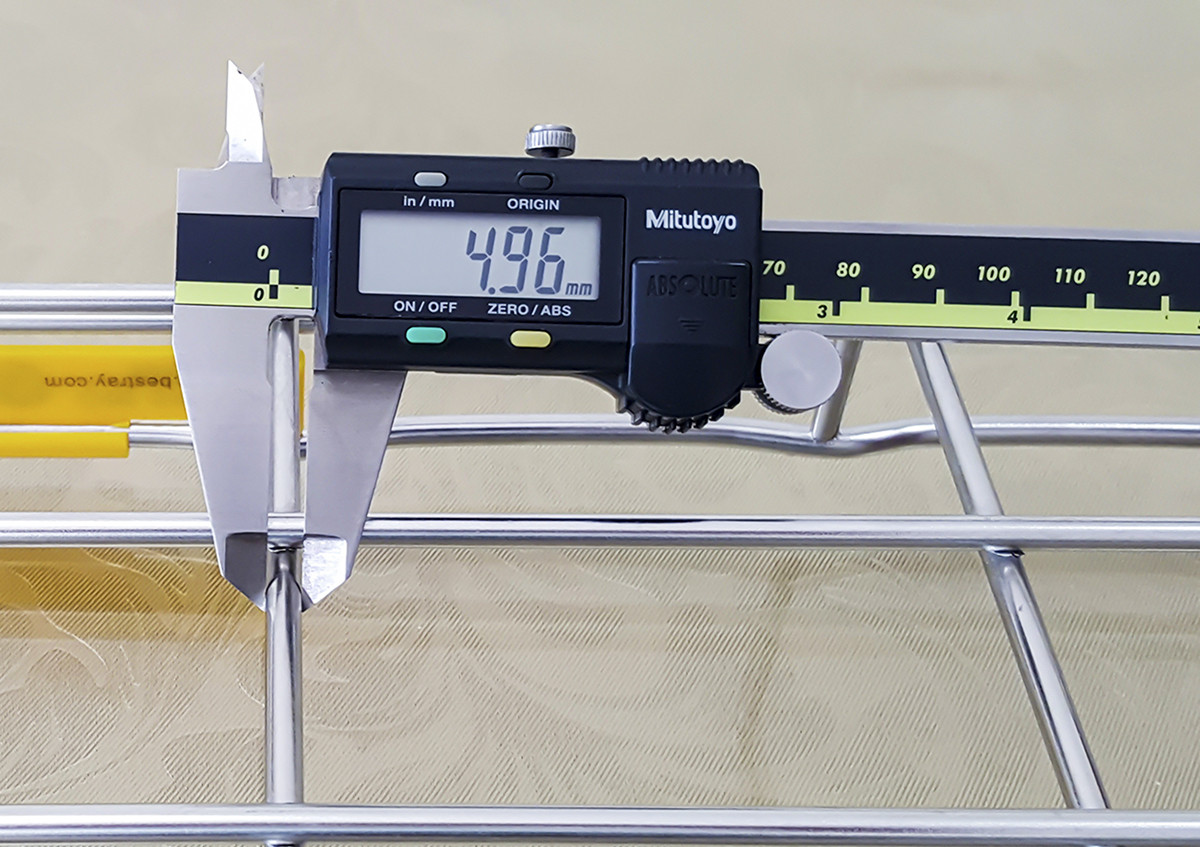

Wire diameter Ø (mm):	4.0, 5.0, 6.0.

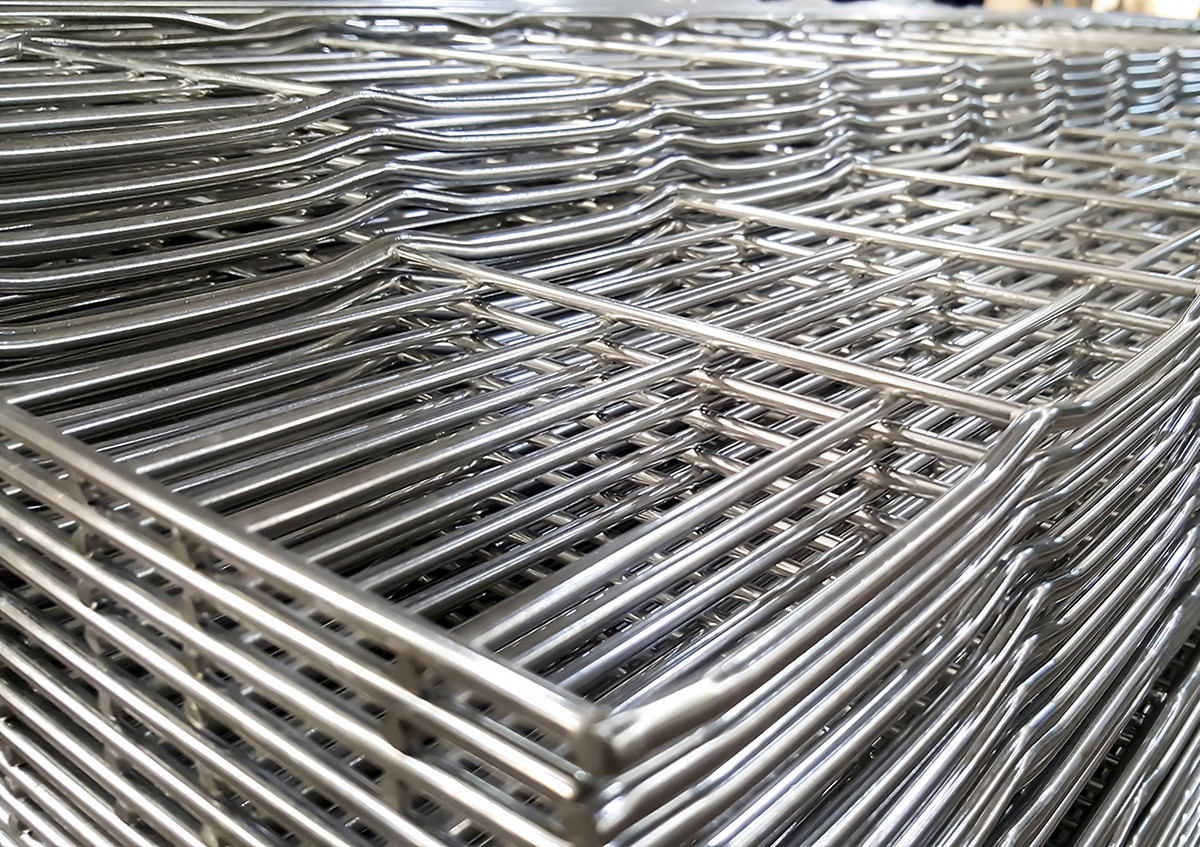

Product Show

Wire Mesh Cable Tray Highlights:

Welded steel wire mesh cable tray produced from high strength steel wires. Application for securely fasten or support of low power cable, signal control cable, data cable, optical fiber cable...

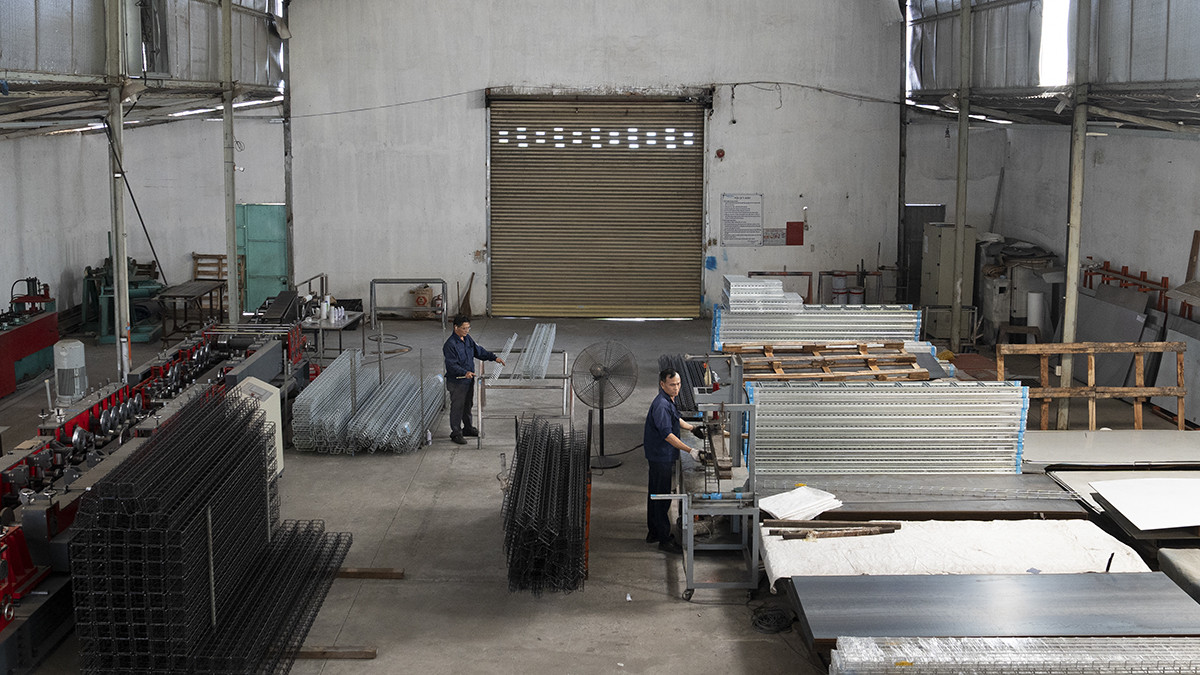

Company Profile

About Bestray:

BESTRAY JSC is a member of Huu Long JSC, with over 15 years of experience specializing in Consulting, Manufacturing, Trading and Services in the electricity industry.

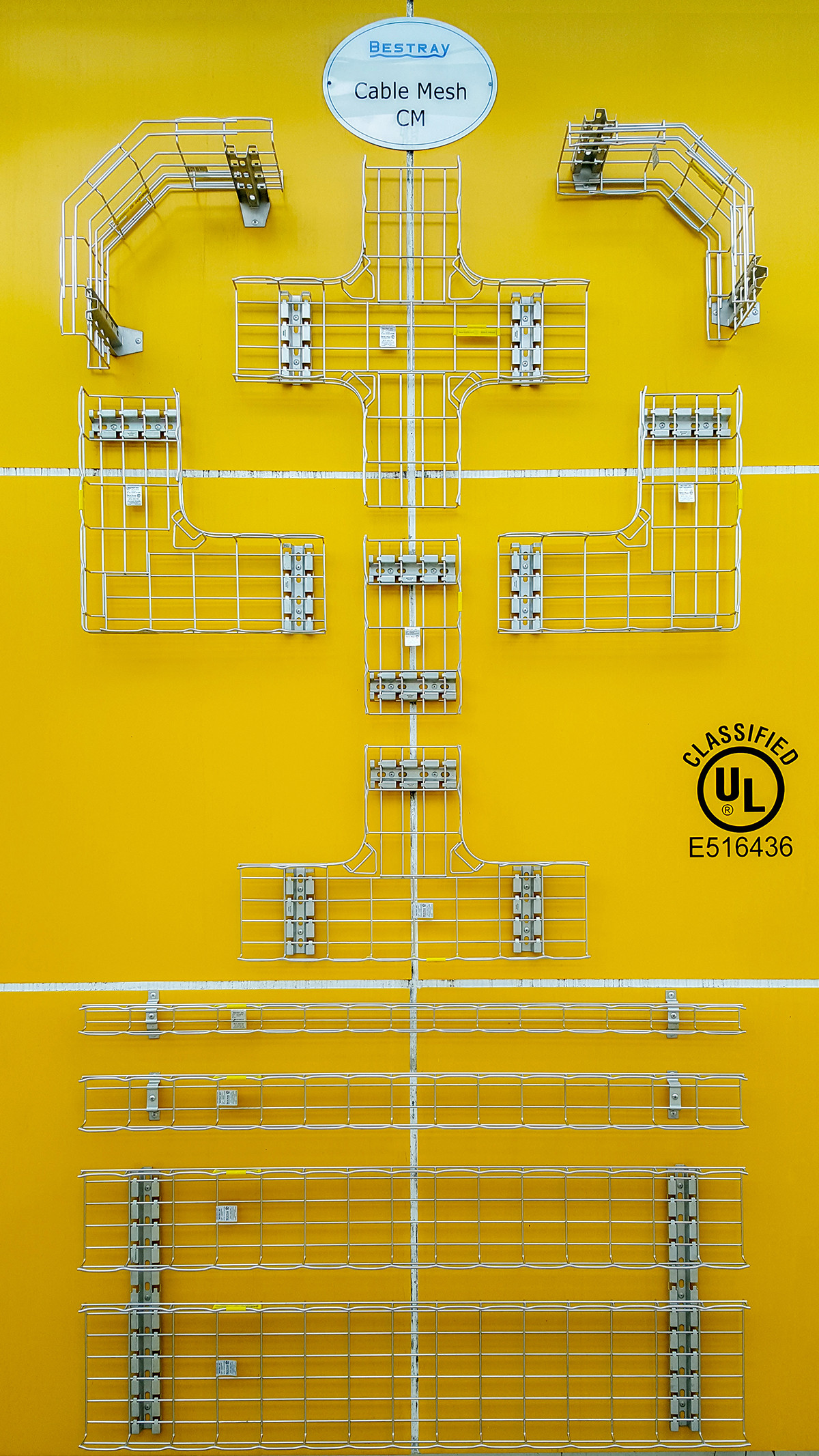

Wire Mesh Cable Tray Line:

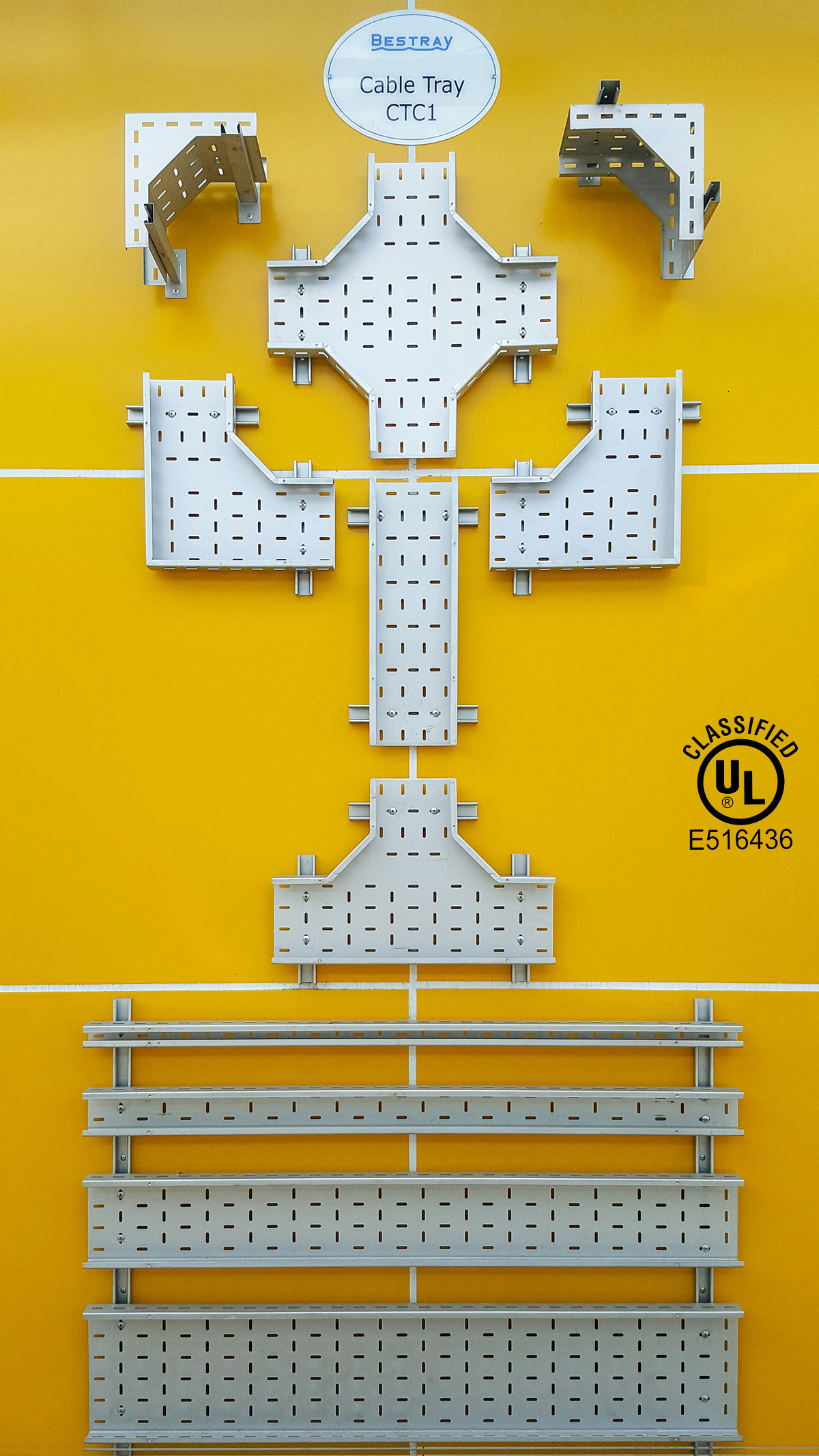

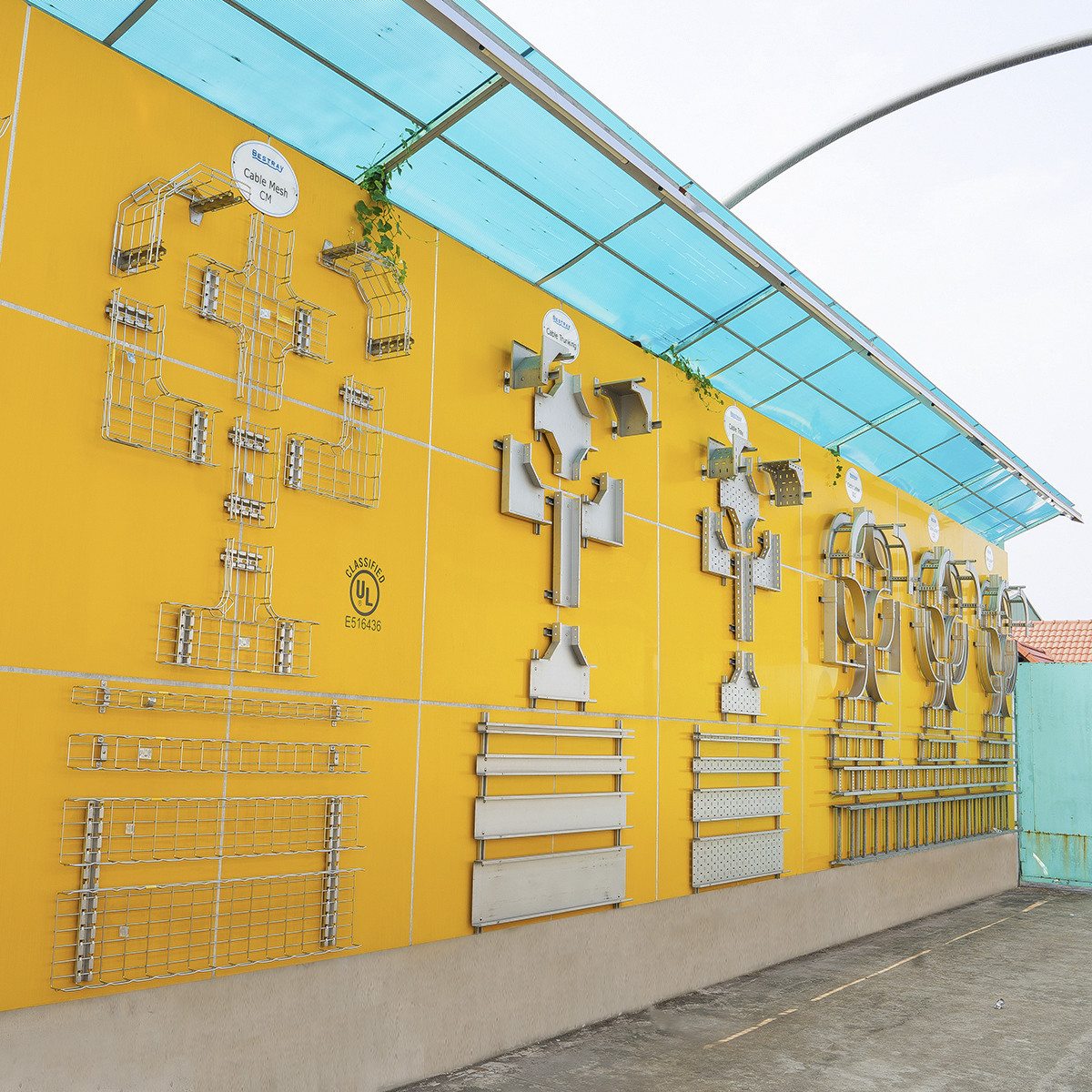

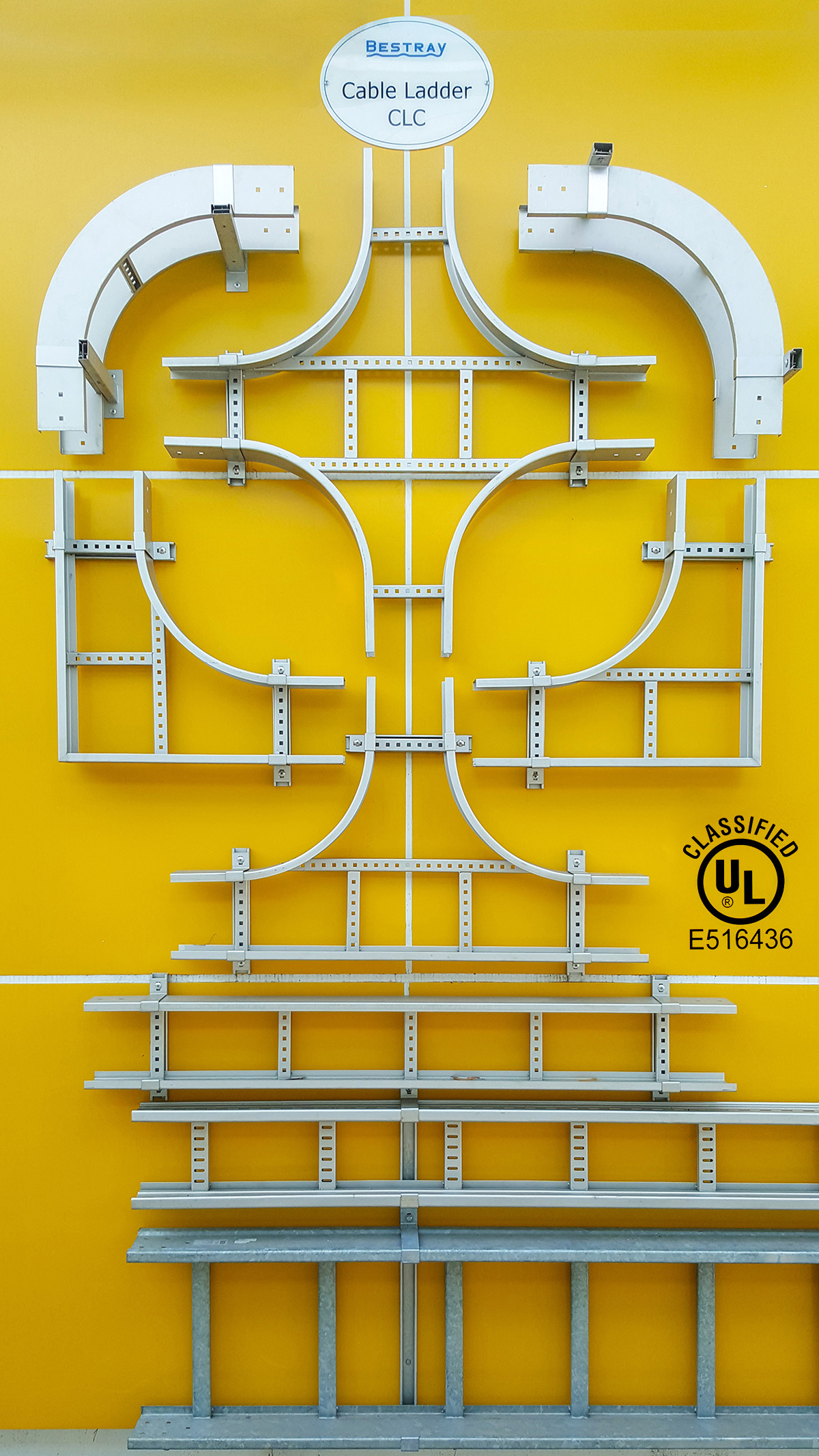

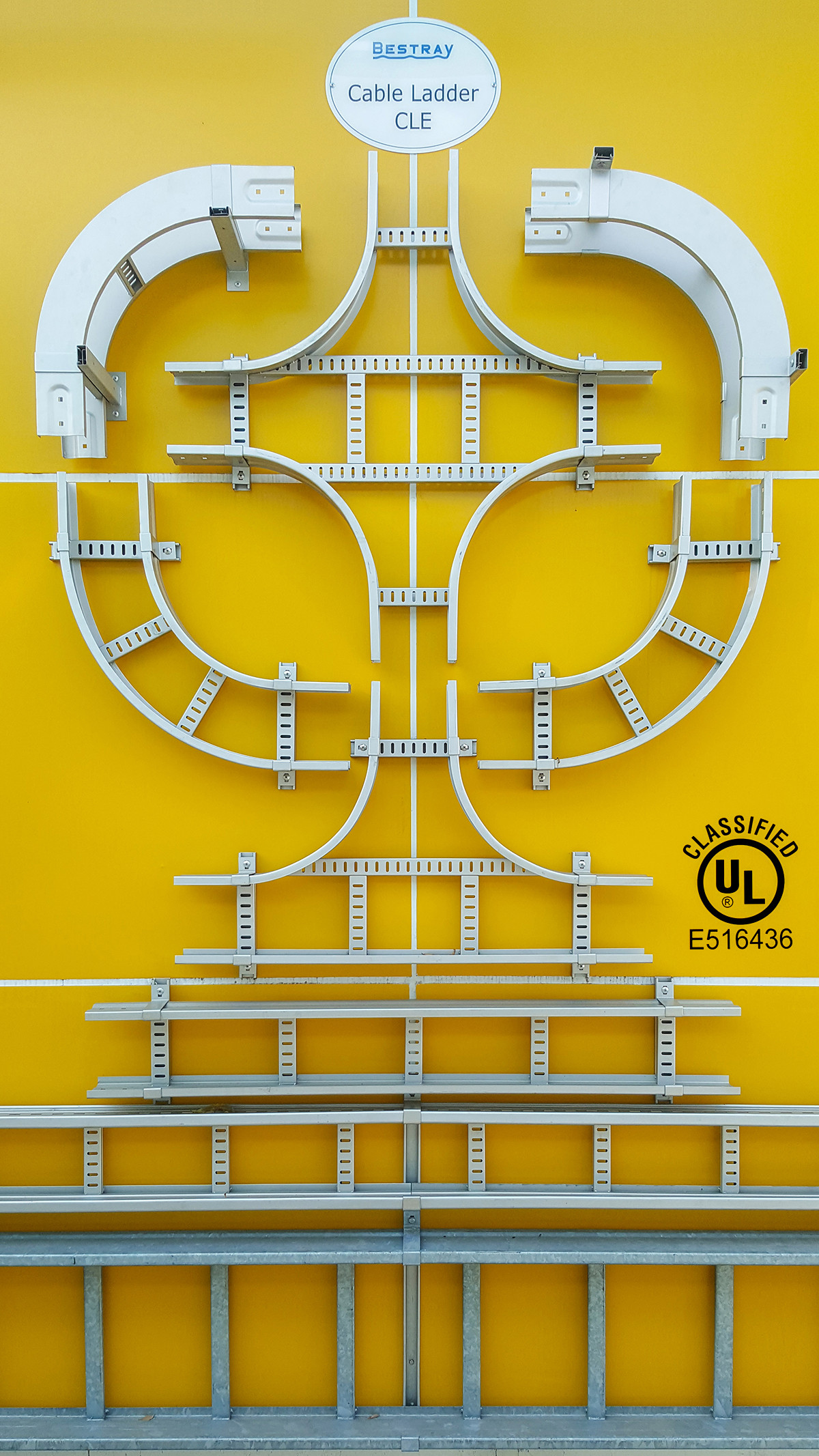

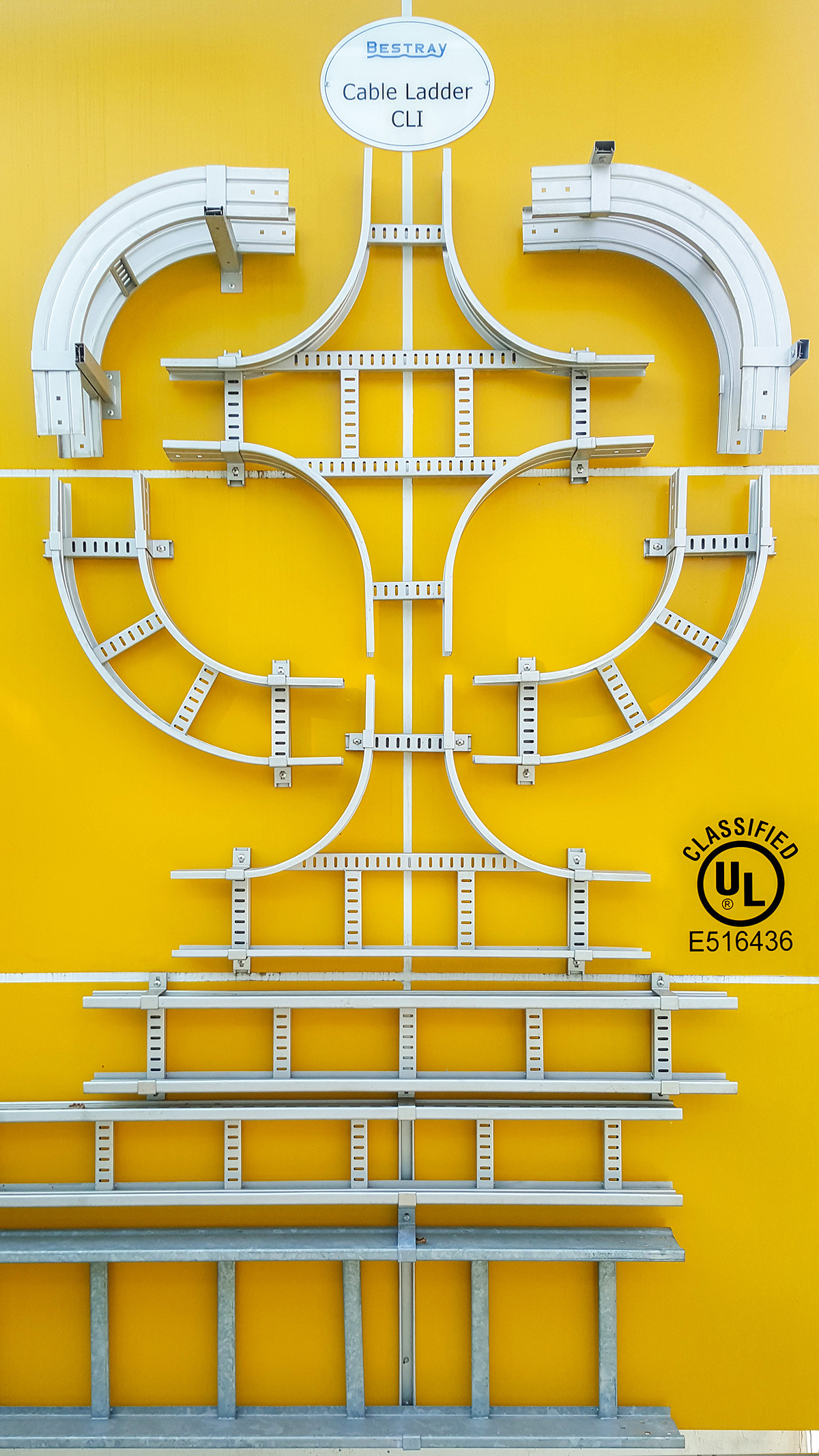

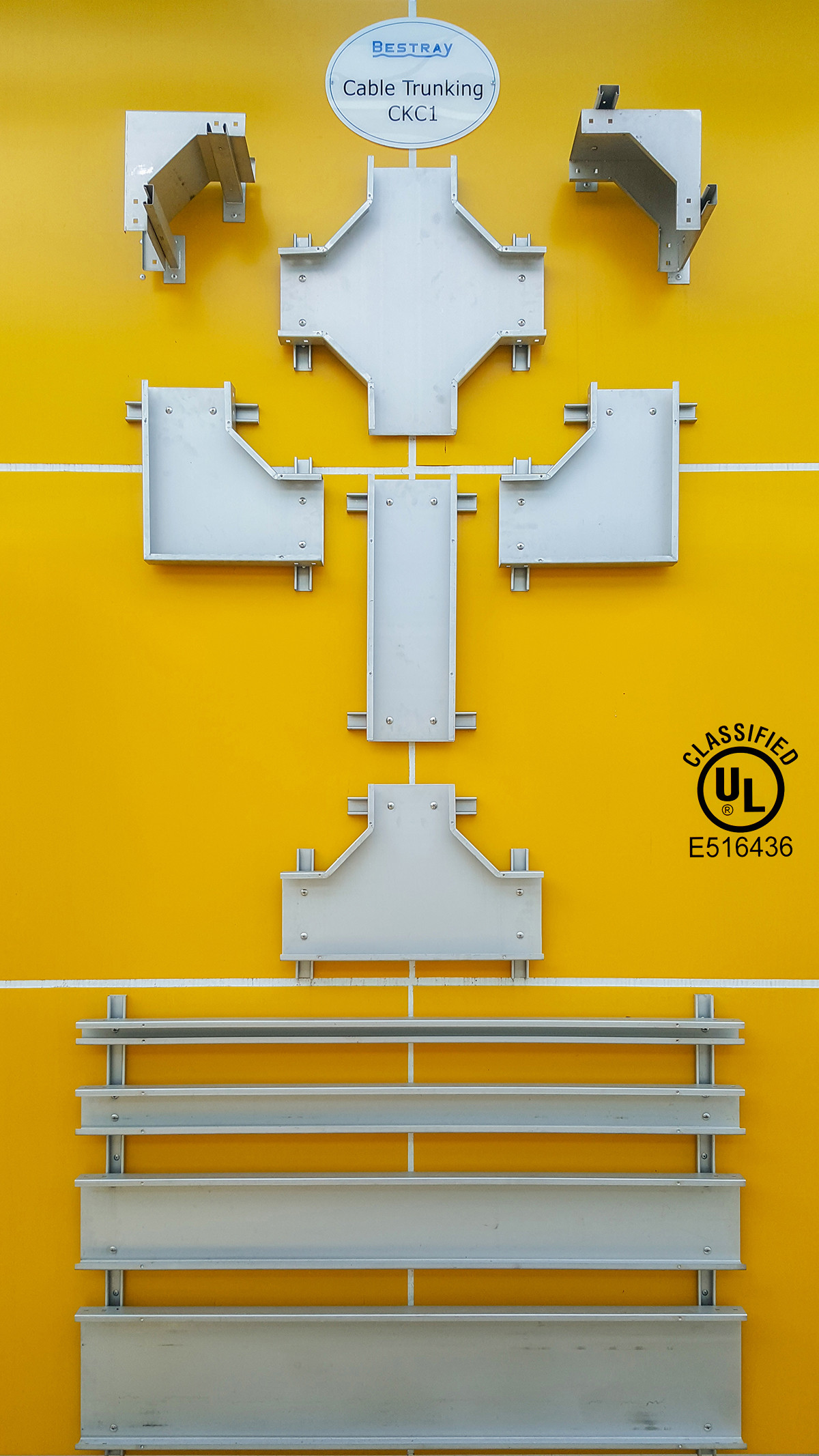

The Main product of Bestray is Wire mesh cable tray, Accessories and Support. Furthermore, we have Perforated cable tray, Cable
tray, Cable ladder, Cable trunking.

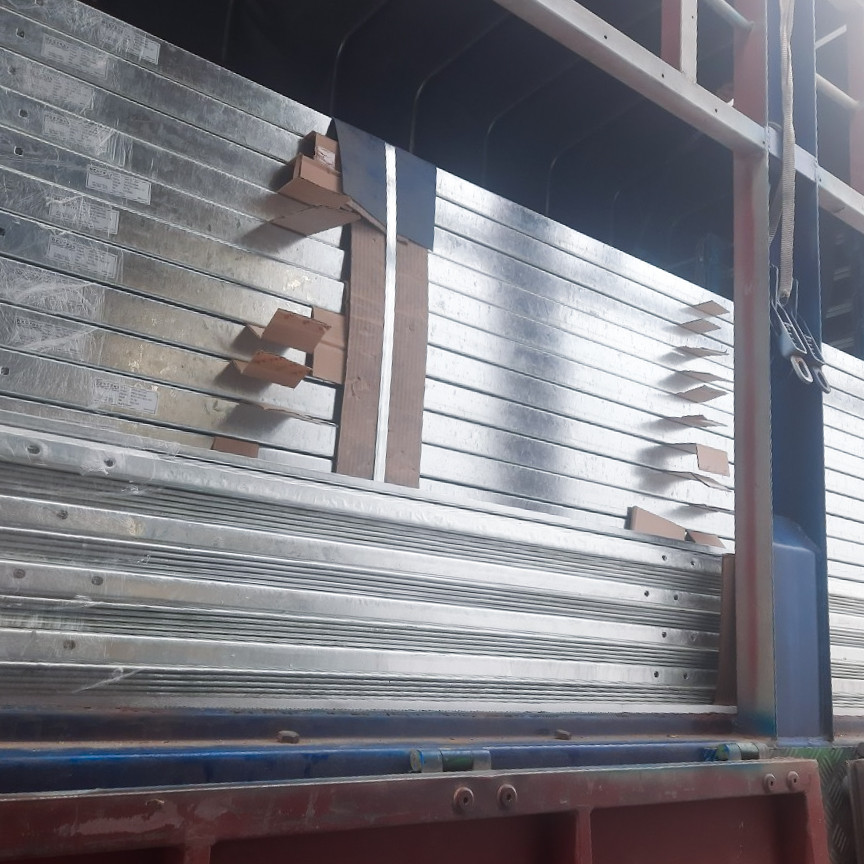

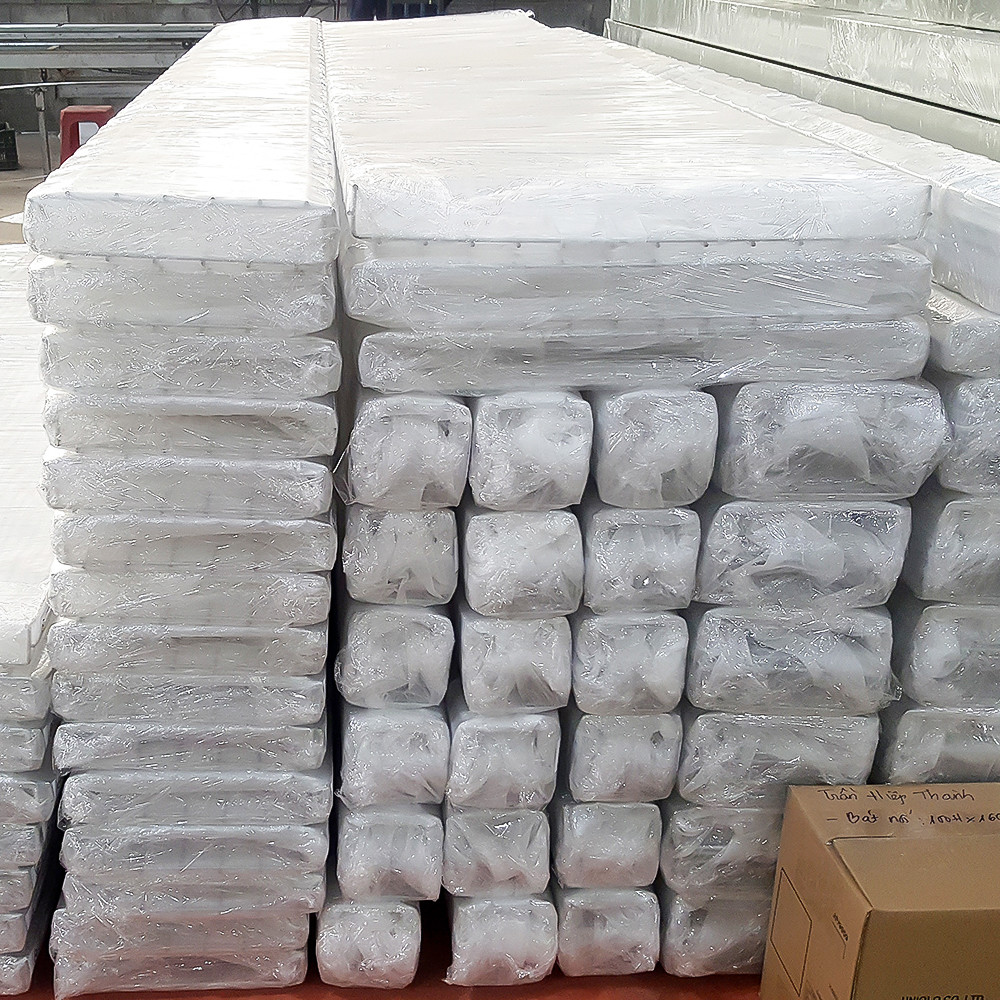

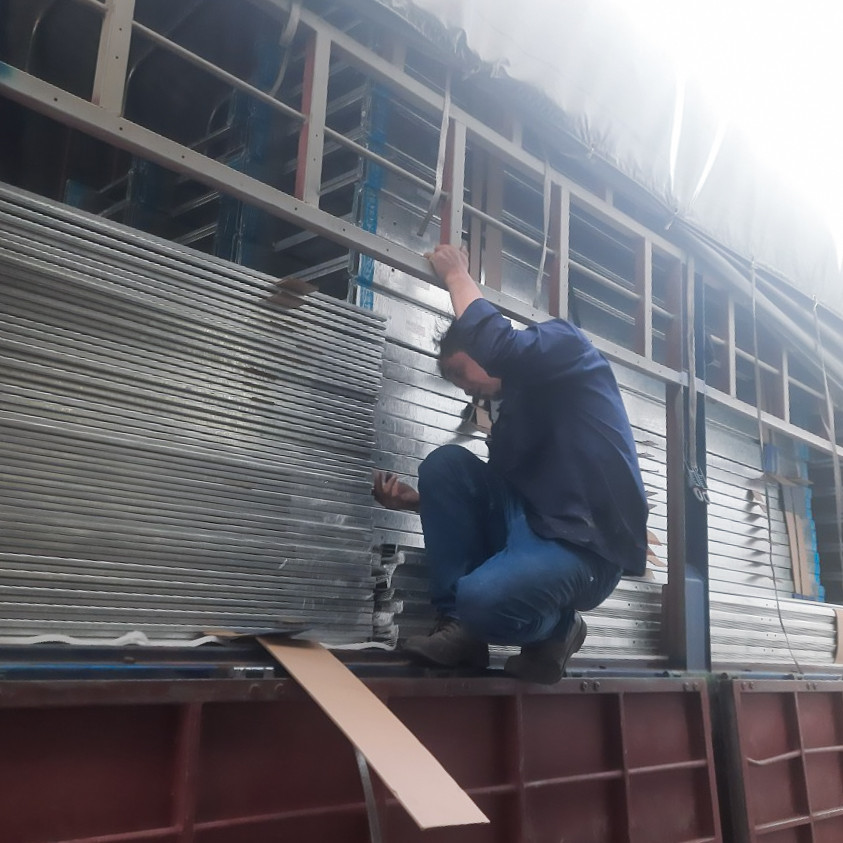

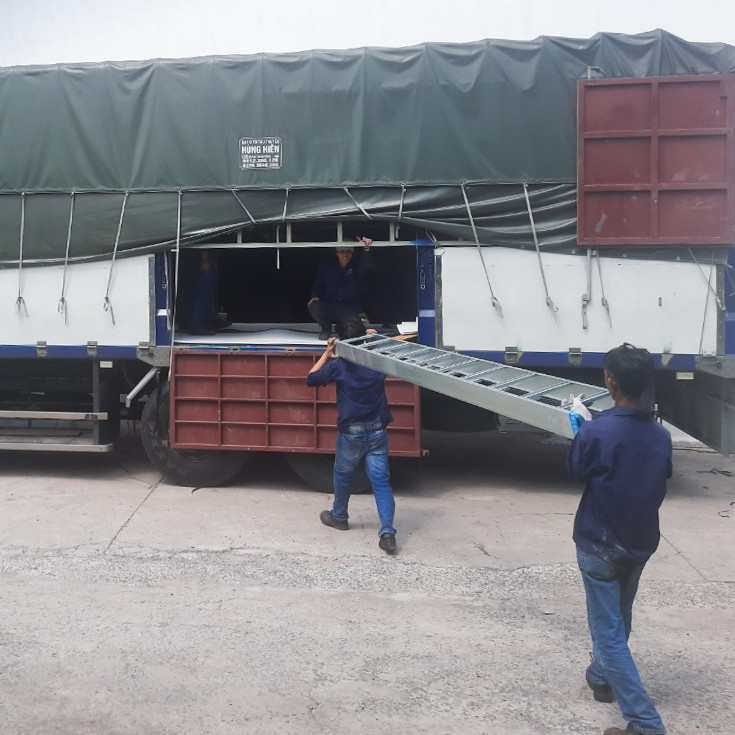

Packaging & Delivery

Why Choose Us

1. Direct Manufacturer	Secure quality control save time and cost
2. OEM&ODM	More than 3 years experience
3. Team	Professional research and brod on department, smooth coordination between the parts
4. Innovation	Always changing and improving for the better
5. Quality	More than 30% repeat orders are our proud performance
6. Warranty	All products you purchase from us can enjoy one-year quality warranty

FAQ

1. How long does it take for me to get the quotation?

For customized products, we will quote after you provide the requested details of the product within 12 hours.

Because we need the time to calculate the cost, but we will quote the soonest as possible.

For our standard product posted here, we can finish the quotation in 6 hours.

2. Do you provide samples?

Yes, we could offer free samples if the customer needs. However, you need to pay for the freight yourself.

3. How long is your delivery time?

Depend on your quantity, the usual specification for 40 feet container will be 20-25 days. Of course, if its urgent, Bestray can help to arrange it accordingly.

4. How can you commit to passing the test?

We have our factory inspection and institutional lab to do the below test.

- Safe loading test

- Galvanized thickness test

- Salt spray test

5. What are the advantages of your product?

Reduce installation costs and time; Easy for changing, adding, and moving; Bright surface means good material and quality.

Our electrical and network cabling equipment have the same quality as the internationally famus brand.

6. How do I get more information?

Please contact Mr. Khoa Nguyen, who expertise in the wire mesh tray system on .com, or send your inquiry to him through his e-mail: ******.

7. Whats your contact information?

Our address is TanHiep Commune, HocMon District, HoChiMinh City, VietNam. Welcome to visit us
