Basic Electrostatic Powder Coating System for Beginner Powder Coat Oven Spray Booth Manual Gun OptiFlex 2B Metal Coating Machine

Name: Basic Electrostatic Powder Coating System for Beginner Powder Coat Oven Spray Booth Manual Gun OptiFlex 2B Metal Coating Machine
Brand: Linhai Changhe Coating Equipment Co., Ltd.
SKU: Tradewheel_2671188
Price: 5799 USD
Availability: InStock

FOB Price 5799 - 5799 USD / sets

Contact Now

Quick Details (View All)

Type	powder coating set	Substrate	Steel
Condition	New	Machine Type	powder coating set, Drying Oven, Curing oven, Coating Equipment
Video outgoing-inspection	Not Available	Machinery Test Report	Not Available
Marketing Type	Hot Product	Warranty of core components	1 Year
Core Components	PLC, Engine, Motor	Coating	Painting
Place of Origin	Zhejiang, China	Brand Name	Changhe
Voltage	Based on Local	Power	Customized
Dimension(LWH)	Customized	Warranty	1 Year
Key Selling Points	Easy to Operate	Applicable Industries	Machinery Repair Shops, Manufacturing Plant
Showroom Location	None	Weight (KG)	3000
Size	customized	Component	gun, booth, oven

Product Details

Products Description

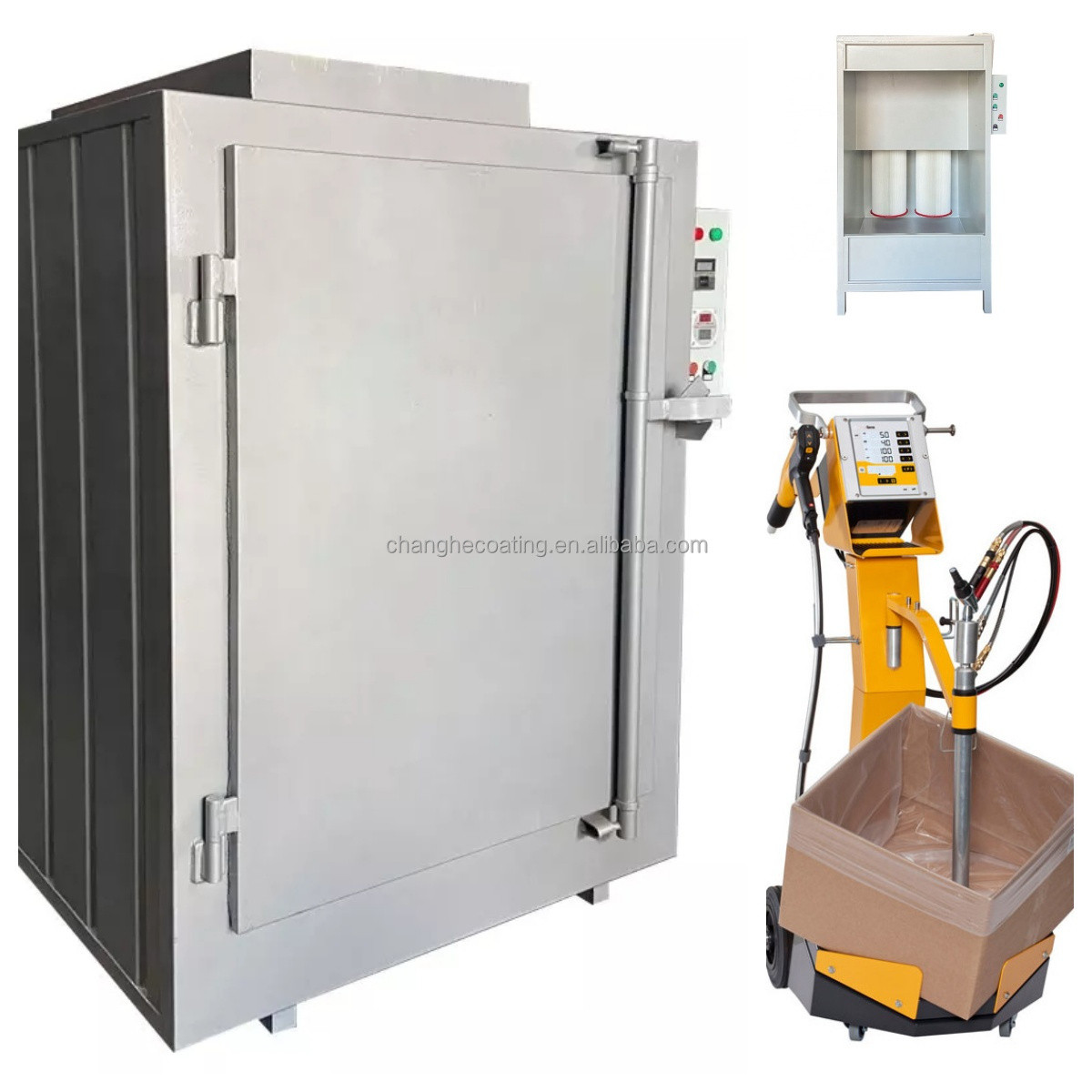

Basic Manual Powder Coating System

This manual powder coating system including powder coating gun, powder coating booth and powder curing ovens, the package gives an easy and quick start of powder coating businesses. Efficient and economical solution for DIY coating rims, and other small objects, such as bike and bicycle accessories.

-This combination manual spray coating system is sold very well all over the world, suitable for small, medium or large production . -Once build this spray project ,can be used for many years ,gain big profit for your company ,no matter investment or used by your factory ,it is a great project and sustainably Profitable.

Details Images

Powder Coating Machine

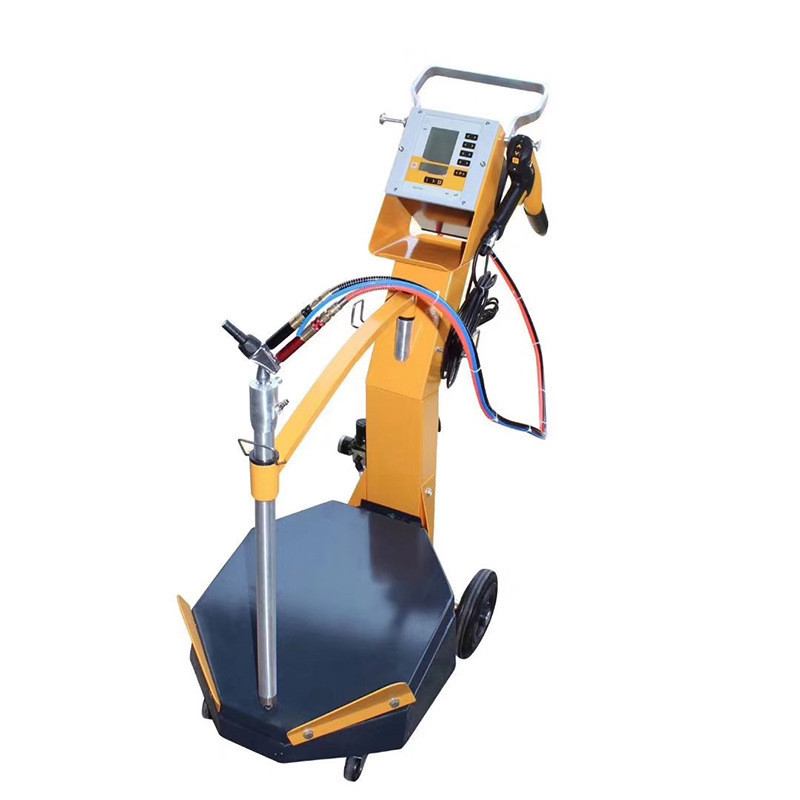

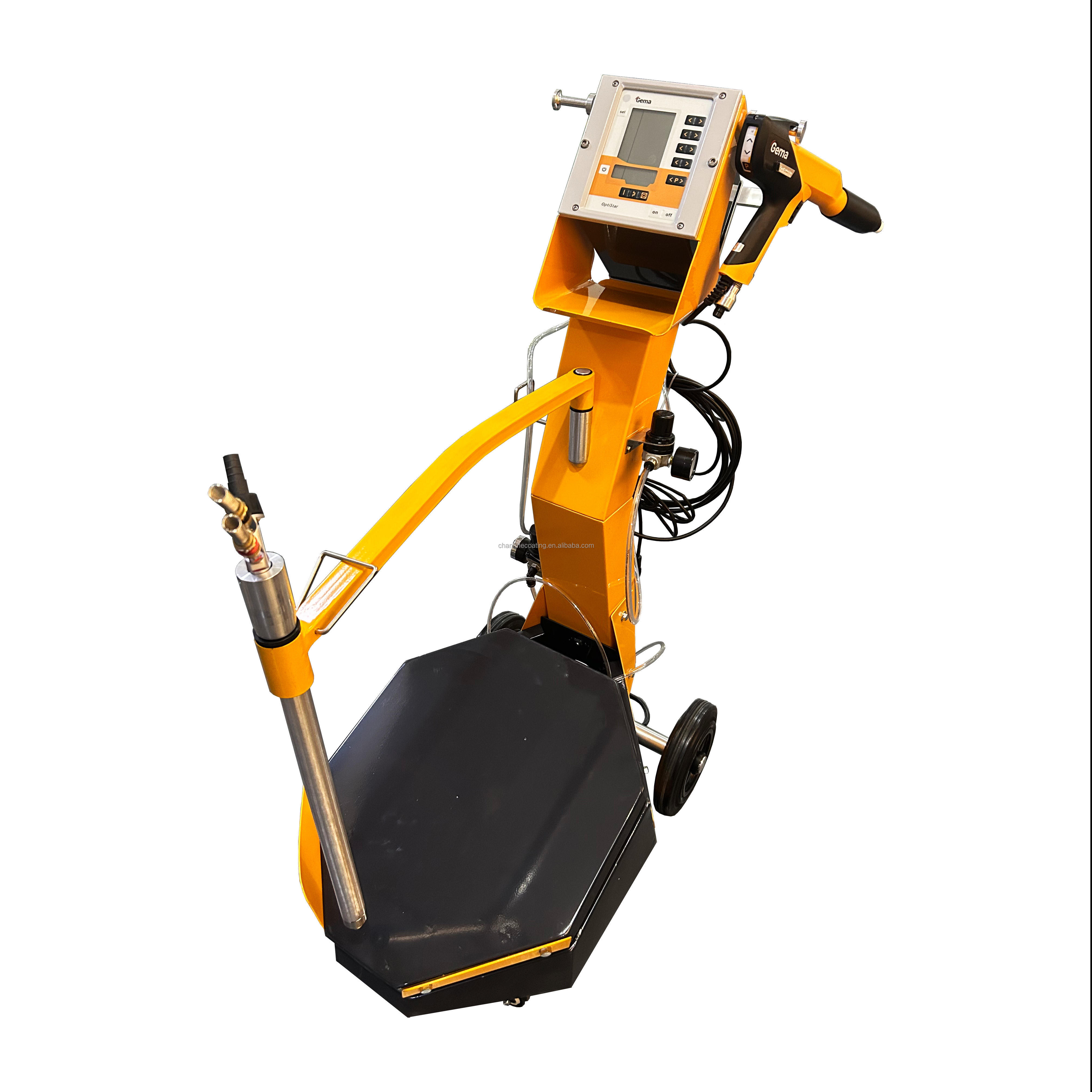

CH-2B Powder Spray Machine

Advantage:

1) The box feed type system conveys powders directly from the original box to the gun, users do no need to clean the container during color change, suits the demands of frequent color change.

2) Box feed type designed for quick color change, allows the original powder carton placed on the inclined vibration cart for fluidizing and fully emptying, powders are conveyed directly from the carton to the gun for spraying.

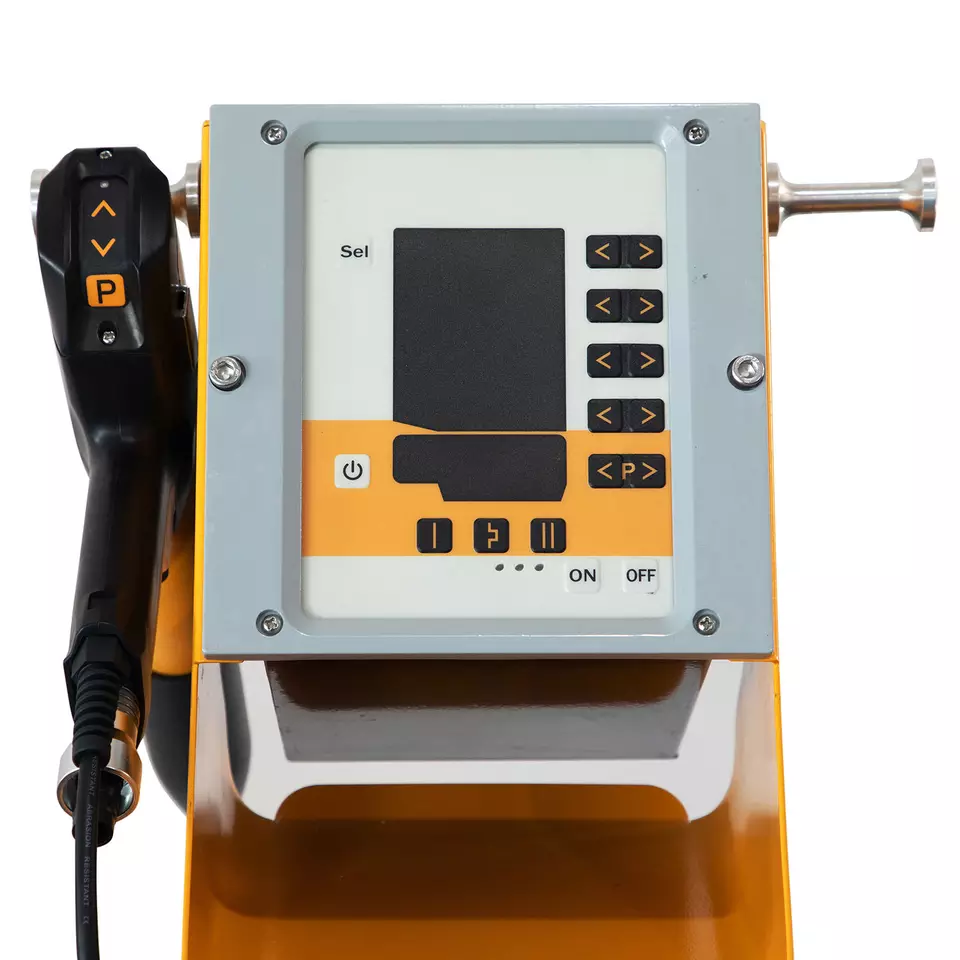

CG13 Gun Control Unit

*Current, voltage, powder output and atomization can be set separately.

*One key to switch to the corresponding parameters when changing workpieces.

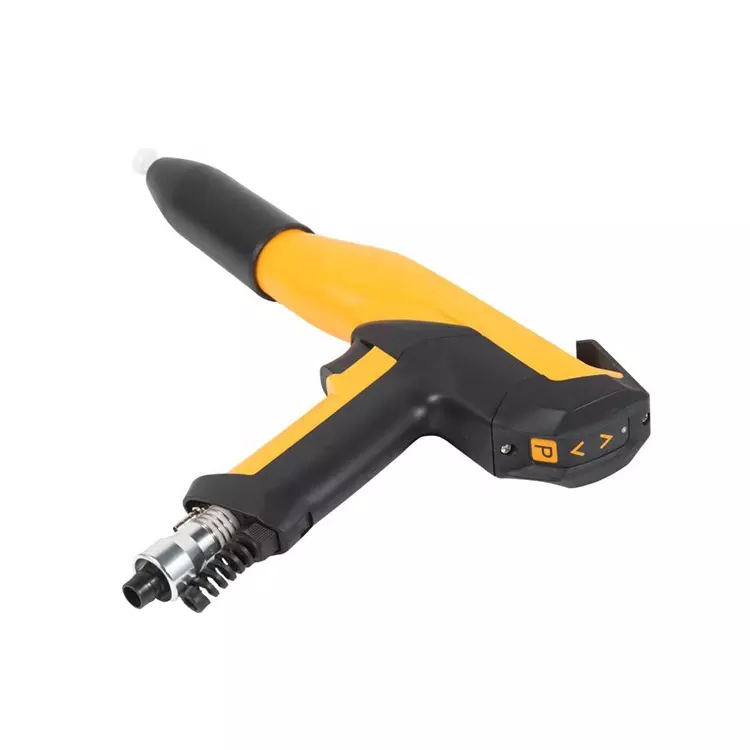

GM03 Manual Gun

*The remote control button is at the back of the gun.
*No matter how far away the user is from the control unit. The powder output and program can be adjustable at any time.

Powder Suction Tube

*Self- cleaning facilitates color change.
*Bottomed fluidization ring with the help of the vibrating table.
*The fluidized ring further fluidization of the powder.

Model CH-2B
Component	controller + manual spray gun + trolley + accessories
Function	different shape of workpiece, flat / re-coat / corner
Electrical data
Nominal input voltage	100-240 VAC
Frequency	50-60 Hz
Connected load (without vibrator)	140 VA
Connection and output for vibrator (on Aux output)	110/230 VAC max. 100 W
Connection for rinsing function (valve)	24 VDC max. 3 W
Temperature range	0 °C - +40 °C (+32 °F - +104 °F)
Max. surface temperature	120 °C (+248 °F)
Volume of Powder Box	NO NEED POWDER BOX

Powder Coating Booth

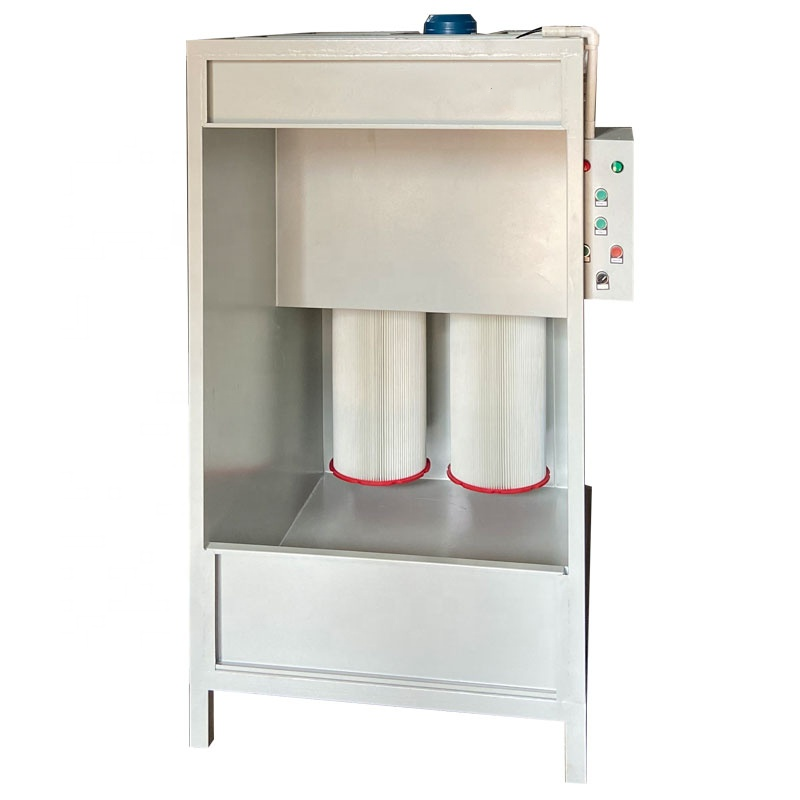

CH-101520P Manual Powder Spray Booth

Size: W1000x D1500 x H2000 mm

*Powder spraying in the powder coating booth to guarantee the surface coating quality
*Size can be customized as your workpiece size and needs
*Compact structure, small footprint and low noise design
*Pulse-jet valve device to clean filters automatically to prevent powder accumulation
*Quick release filter,convenient replacement, saving time

Model	CH-101520P
Working Size (LxWxH)mm	1000 x 1500 x2000
Power	Electric 2.2kw
Voltage	415V/380V can be customized as local
Frequency	50hz or 60hz
Filter Type	Cartridge
Filter Count	2 pcs
Filter Material	Polyester
The size, color and specifications can be customized all according to your needs.

Powder Coating Oven

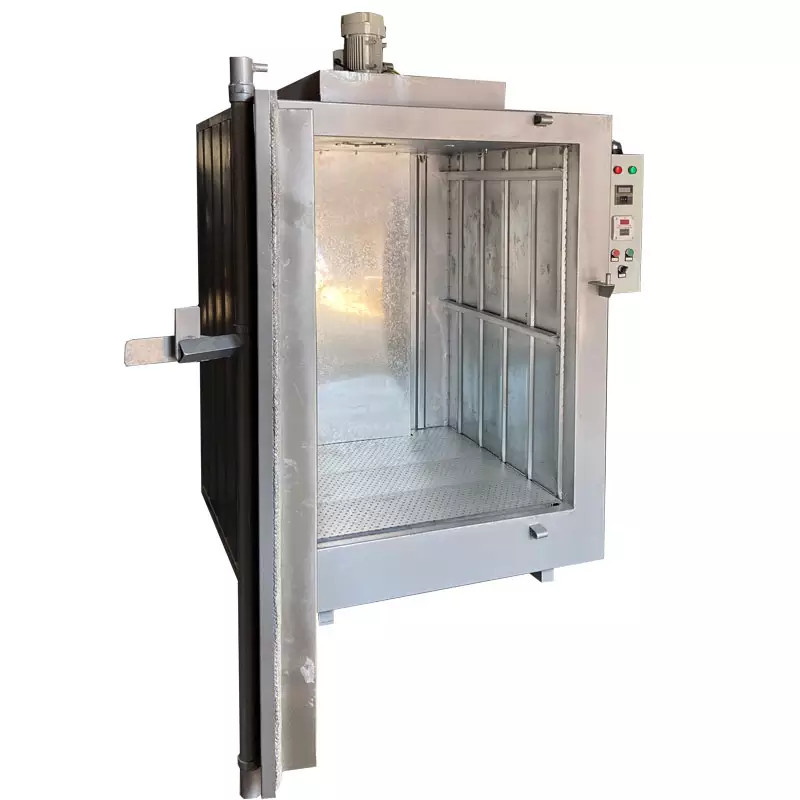

CH-101013D Electric Powder Curing Oven

Working Size: Length1000 *Width1000*Height1300 mm

▶Suitable for curing powder or paint on the metal surface

▶Size can be customized as your workpiece size and needs

▶Heating energy can be Electric or Gas / Diesel / LPG
▶Multi-layer design, galvanized sheet+2 layers of rock wool+skeleton
▶Hot air circulate, the temperature is even and consistent.
▶Equipped with a trolley, strong bearing capacity, move smoothly

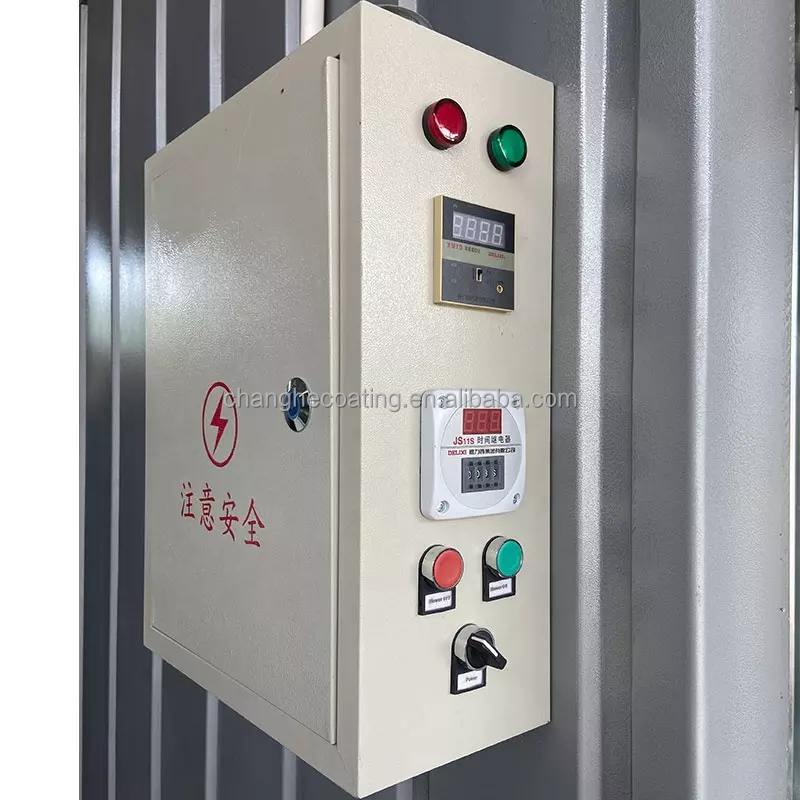

Controller Panel

The user-friendly panel gives you an easy access to set heating temperature, time and working of fan. Once the curing time
arrives, the oven will stop heating automatically.

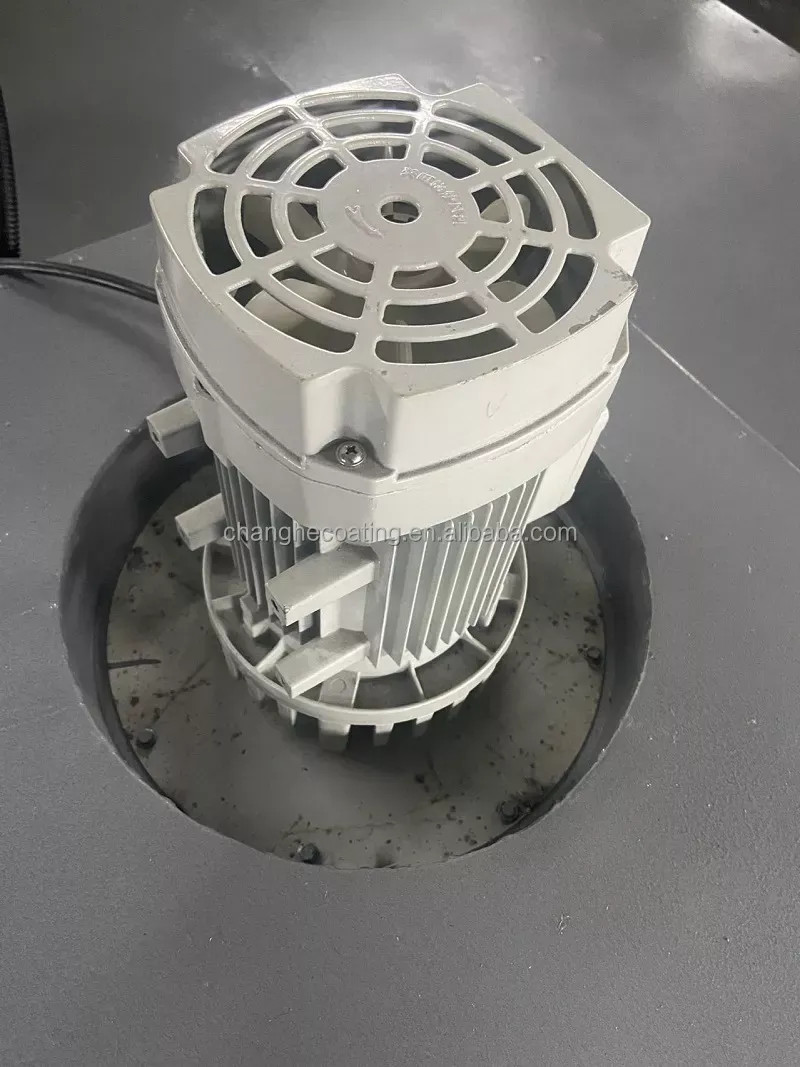

Circulation Fan

Powerful fan circles hot air in the oven chamber, ensures uniform heat distribution with temperature stability less than 3 degree.

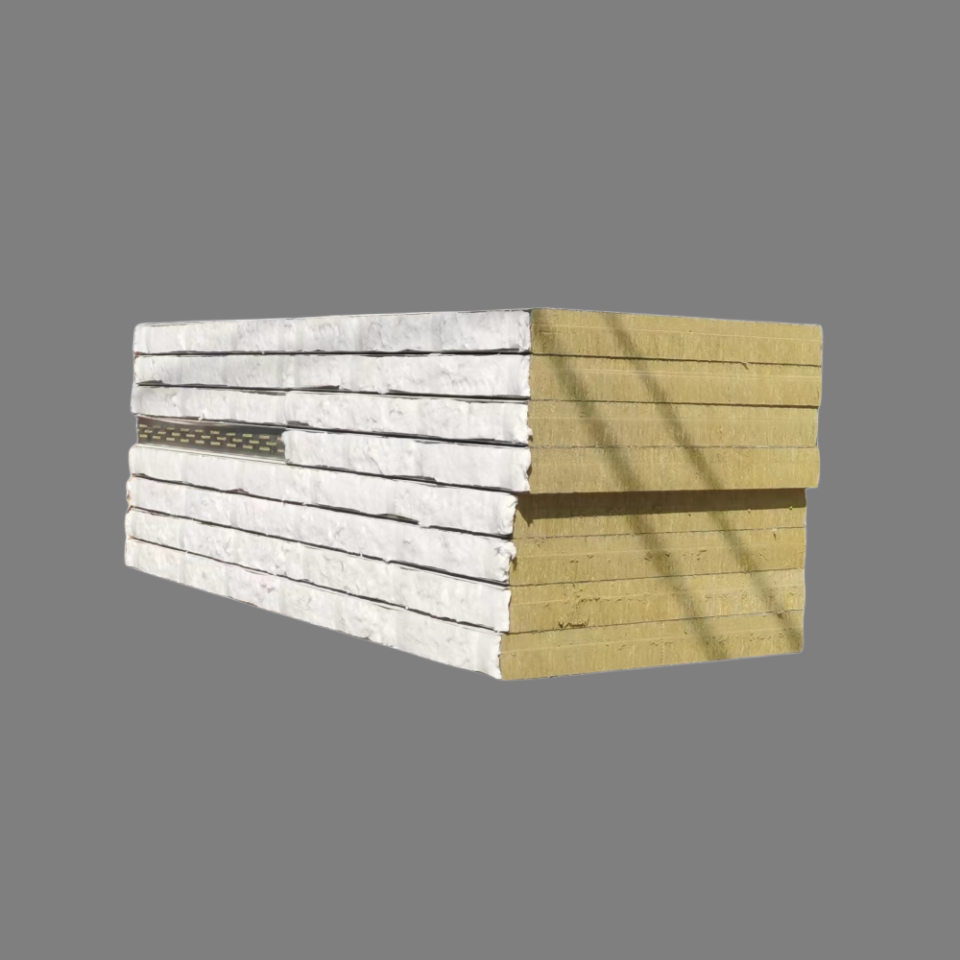

100mm Rockwool

The oven utilizes a sandwich panel design. Rock wool insulation of at least 100mm is inserted between galvanized inner wall and color steel external skins, effectively minimums temperature dropping.

Model	CH-101013D
Working Size (LxWxH)mm	1000 x 1000 x1300
Heating Source	Electric , LPG,Natural Gas, Diesel oil
Wall Insulation	100% new rock wool board with 100 mm thickness
Heating Temperature & Time	180° C (15-30min)
Temperature Stability	< ± 3-5°C
Voltage/ Frequency	415V/380V (50-60hz) , customized as local
Circulation / Air Flow	Vertical ,Variable through holes on the walls
Transportation	Trolley
The size, color and specifications can be customized all according to your needs.

Recommend Products

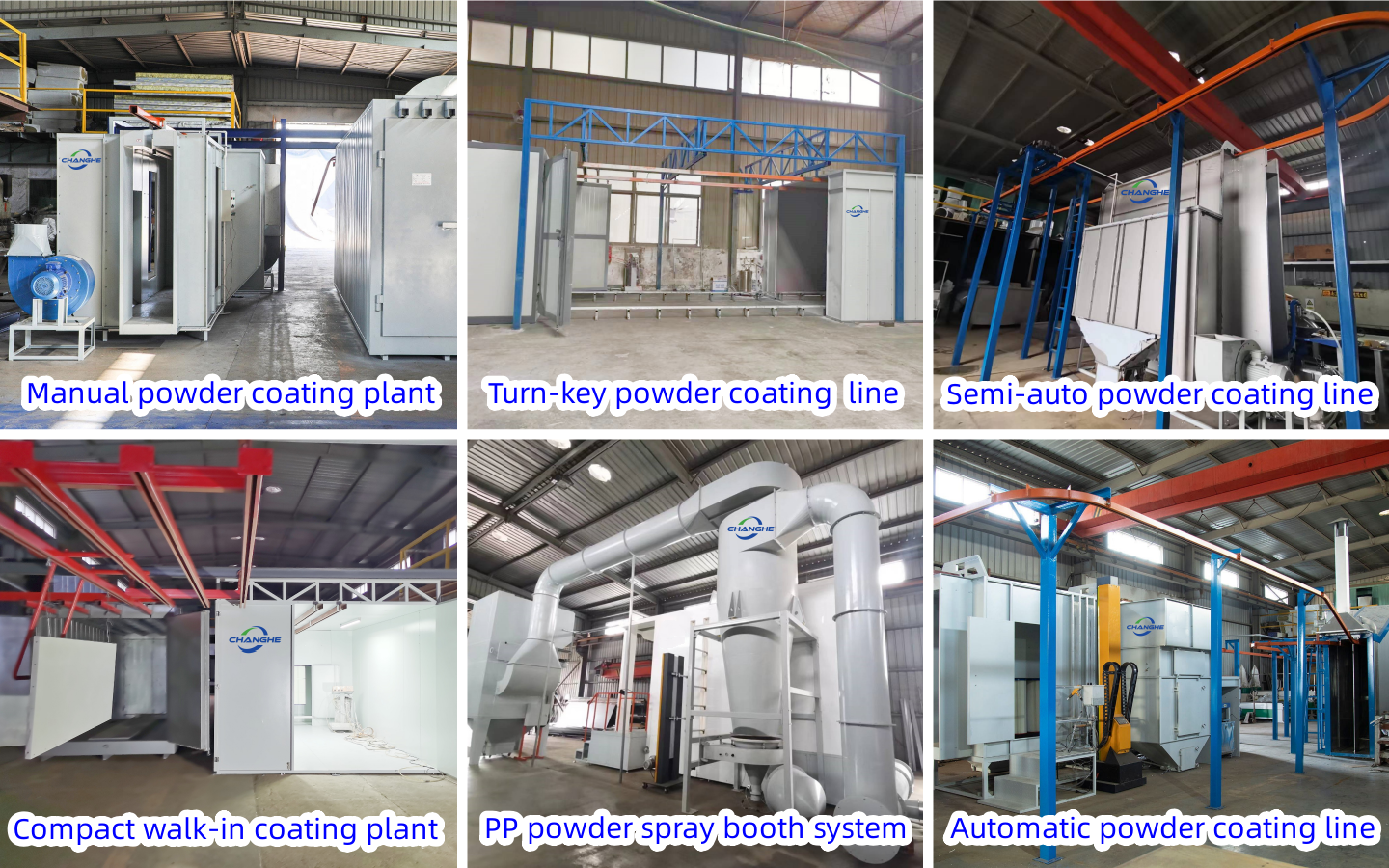

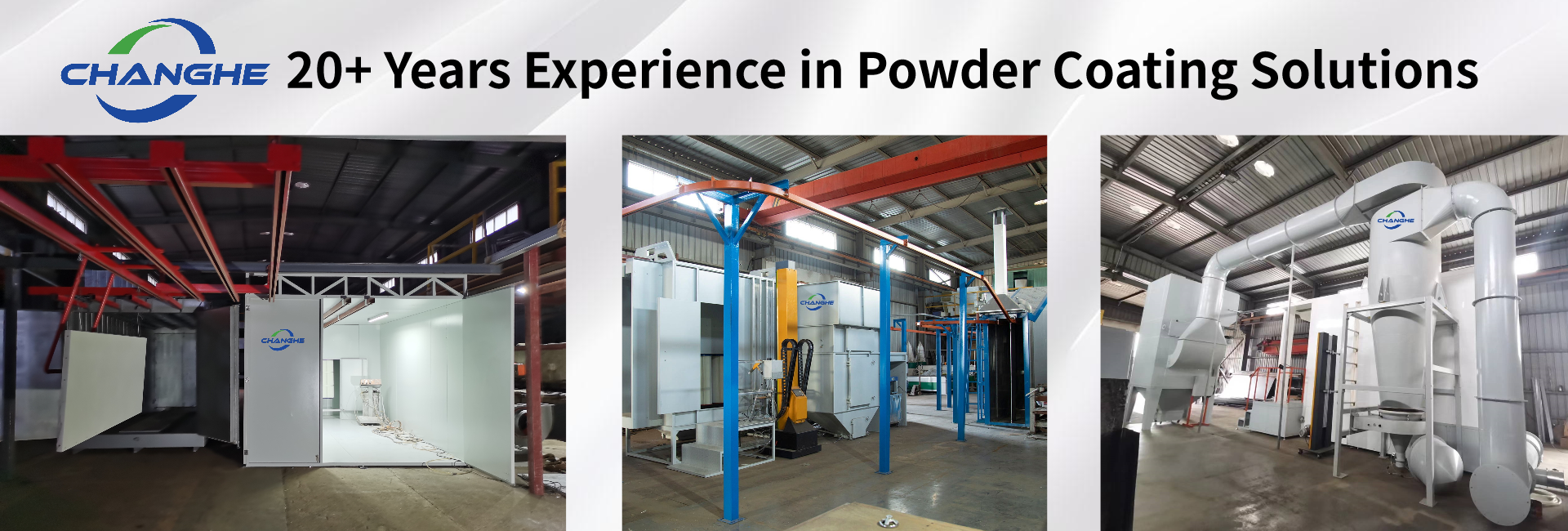

Project Case

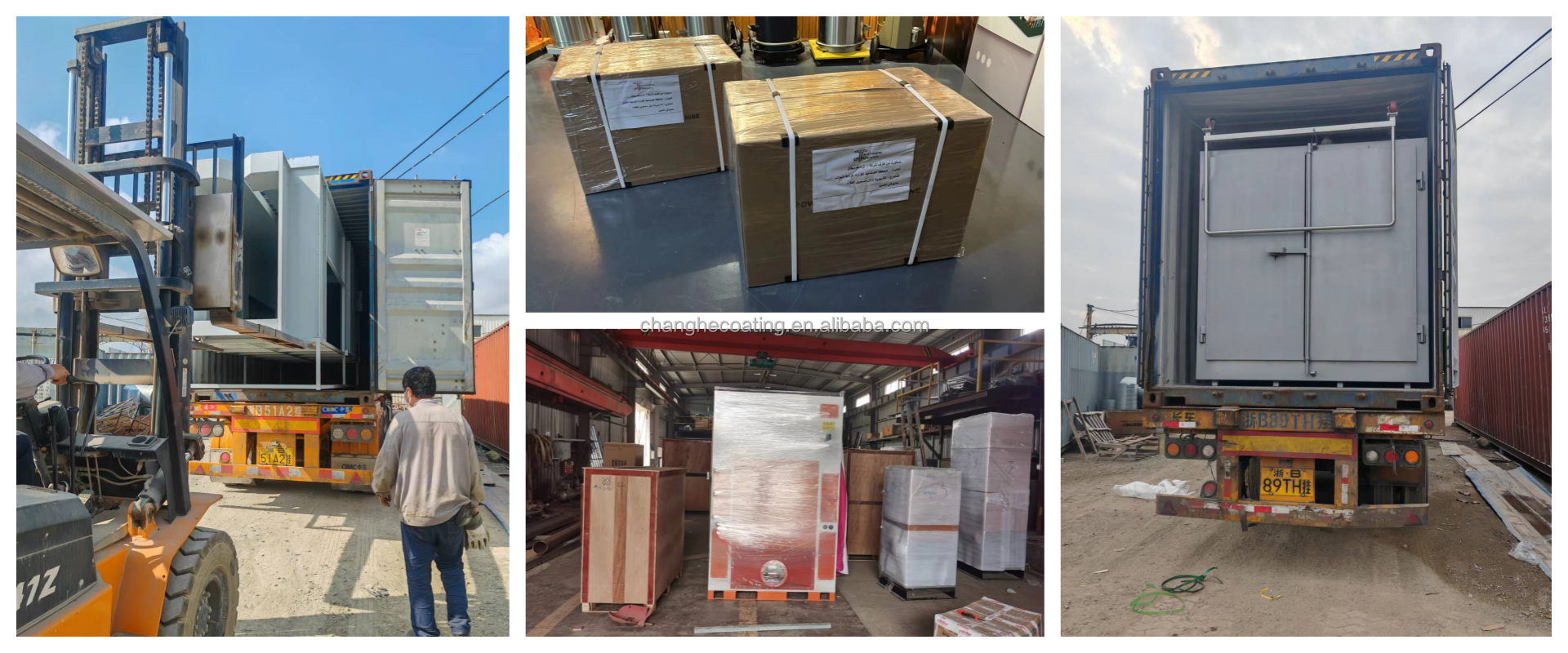

Package & Delivery

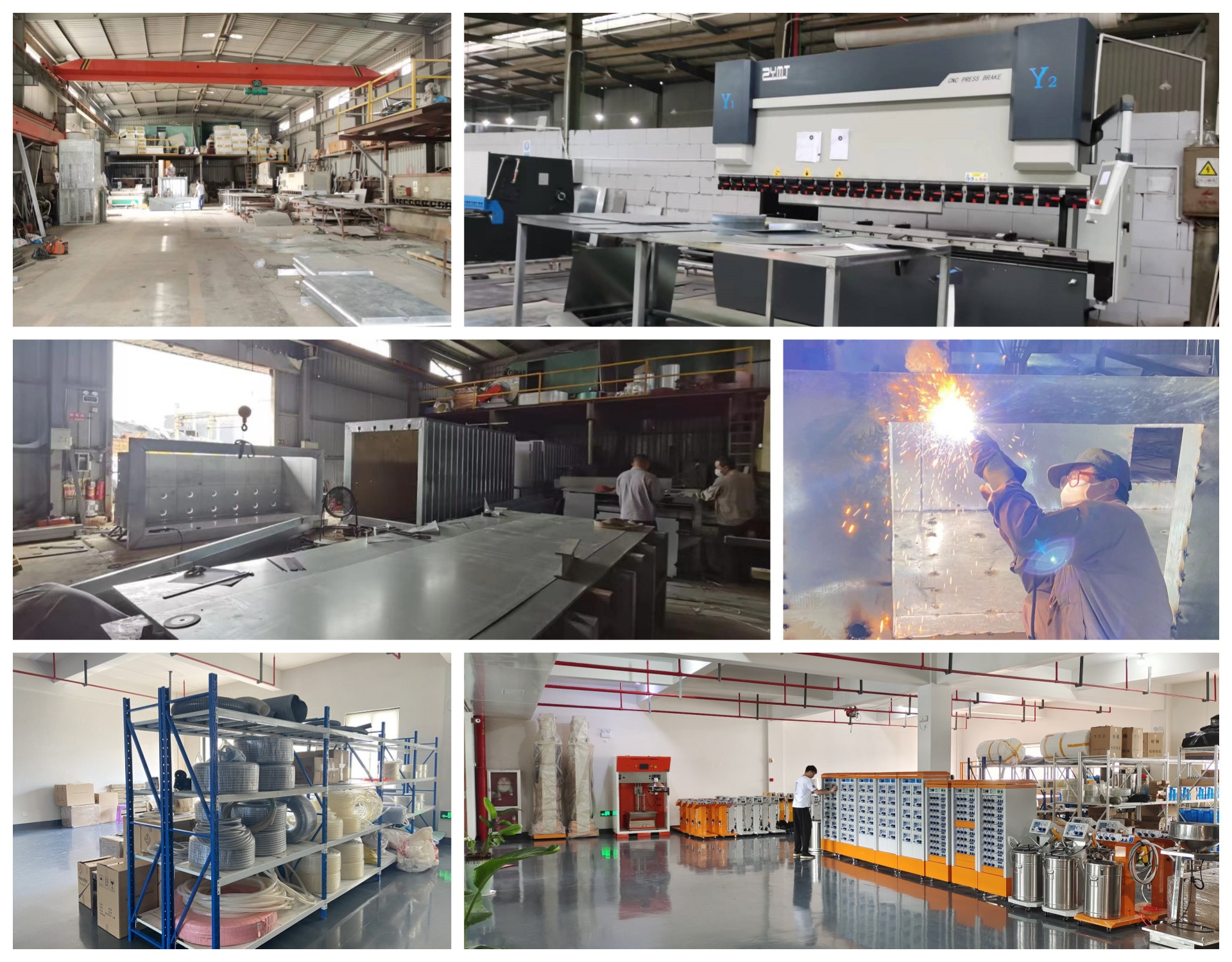

Company Profile

Linhai Changhe Coating Equipment Co.,Ltd.

Changhe, an experienced manufacturer of electrostatic powder coating equipment since year 2010. Changhe can provide you with innovative, rational and economical powder coating equipment one stop solution. Our team has more than 20 years of experience in coating equipment design, manufacture, installation, commissioning and on-going support. Changhe’ s products apply to aluminum profiles, car wheels, distribution cabinets, metal furniture, hardware, crafts and other metal surface treatment.

FAQ

Q1: Are you a factory ?
Yes, we are manufacturer. We have more than 20 years experience coating equipment industry engineers.

Q2: What kind of coating equipment can you supply?
Most products which are related to the coating industry. Our product is non-standard customized. Our experienced engineer will design the drawing for you according to your needs, product and factory situation.

Q3: I don’t know how to choose the suitable equipment.
Don‘t worry. We have professional technicians who can tailor products for you. Please don’t hesitate to contact us for any questions, we will provide you with the best solution.

Q4: Can you install for us?
Yes, we can install overseas for you. But the engineers overseas installation cost, round trip air tickets, accommodation, meals and transport charges are on the buyers.

Q5: What about the payment?
We accept T/T, Credit Card, Apple Pay, Google Pay, Paypal,etc.

Q6: What about the lead time?
Generally, 5-7 days for powder coating machine and its spare parts. 15-30 days for powder spray booth and curing oven. 45-60 days for powder coating line.
