MOQ | 1 Piece/Pieces |
Type | Filling Machine | Applicable Industries | Food & Beverage Factory |
Condition | New | Application | Beverage, Food, Tea/Juice/Beverage etc |
Packaging Type | Bottles, CANS, case | Packaging Material | Glass, Plastic, Wood |
Automatic Grade | Automatic | Driven Type | Electric |
Voltage | 380V / 220V | Place of Origin | Jiangsu, China |
Brand Name | JIAYUAN | Dimension(L*W*H) | 3600x2800x3150 size by model |
Weight | 5000KG | Certification | CE SGS |
Warranty | 2 years | After-sales Service Provided | Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas |
Key Selling Points | Competitive Price | Name | bottle filling machine price list |
The machine's material | food grade SUS304/316 | Capacity | 1000 - 2000BPH |
Function | Bottle Washing/Rinsing Filling Capping/Sealing | Control | PLC+ Touch Screen |
Bottle type | PET Plastic Bottle / Glass Bottle | Bottle size | 0.5L-5L (Customized) |
Bottle shape | round / square / unique |
Automatic Watermelon/Orange/Mango/Grape Juicer Production Line Processing Machine
3 In 1 Bottle Filling Machine Price List

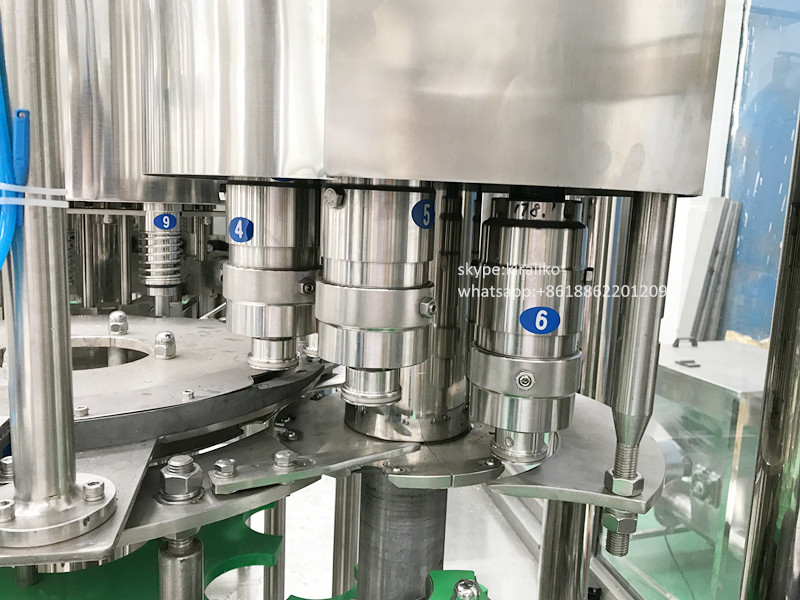

This water filling machine is used to fill pure water, mineral water and other non-carbonated beverage.All the machine parts which contact with liquid is high quality stainless steel 304. The relative fittings are from international famous brand.This machine is comprised of rinsing, filling and capping system. It has 32 washing heads, 32 filling heads and 10 capping heads, can reach capacity 12000-15000 bottles per hour.
Characters:
1, Full filling is to avoid the bottle from sinking after
the bottle cooling off, and to decrease the dissolved
oxygen to the utmost extent.
2, Reasonable structured storage hopper and material supply
system keep the material in the constant flow speed,
constant pressure and without frothing. Usually high
position tank is adopted.
3, The storage hopper has the characteristic of gas
discharge, full sealing and temperature detecting. In
moderate and high speed production line, the material
distributor replaces the big liquid tank to realize the
complete CIP.

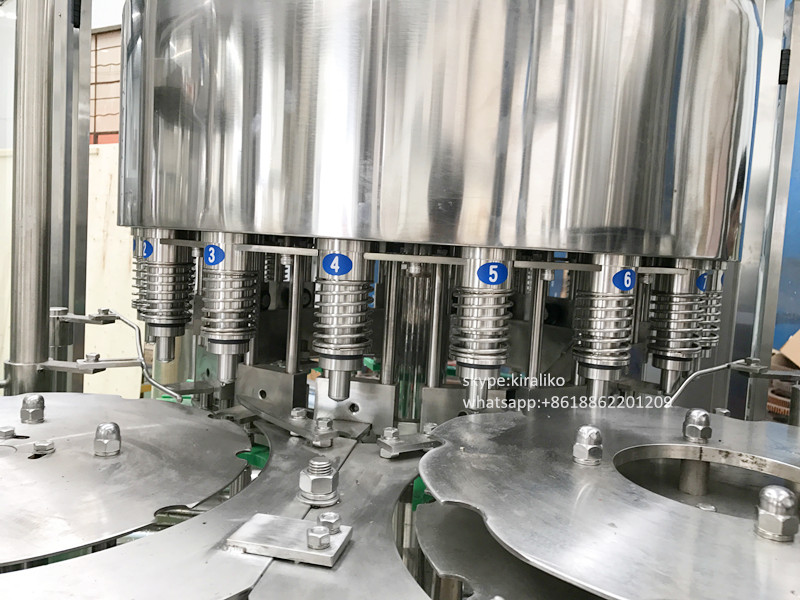

4, Sanitary filling head system is of umbrella structure,
high filling speed.
5, Perfect filling temperature control system.
6, Return tank system has the function of supplying the
material automatically.
7, Perfect CIP system
Technical Parameters
Model | RCGF 8-8-3 | RCGF16-12-6 | RCGF18-18-6 | RCGF24-24-8 | RCGF32-32-10 | RCGF40-40-12 |
Production capacity(500ml)(b/h) | 1500-2000 | 3000 | 6000 | 10000 | 14000 | 15000-20000 |
Filling precision | ±2MM(Liquid Level) | ≤±5MM(Liquid Level) | ||||
Feedback consumption | ≤10% | ≤10% | ||||
Polyester bottle standard(mm) | (BottleDiameter)50-92;(Height):150-310 | (BottleDiameter)50-92;(Height):150-310 | ||||
Suitable cap shape | (Plastic Screw Cap) | (Plastic Screw Cap) | ||||
Water pressure of washing bottle(Mpa) | 0.18 | 0.18 | ||||
Wash bottle consumption water (kg/h) | 600 | 800 | 1600 | 2500 | 3500 | 3500 |
Gas sourse pressure(Mpa) | 0.6 | 0.6 | ||||
Gas consumption(m3/min) | 0.1 | - | 0.3 | 0.4 | 0.5 | 0.5 |
Total power | 2.2 | 5.88 | 6.68 | 7.68 | 9.18 | 9.18 |
Total weight | 2200 | 2500 | 3000 | 4000 | 5000 | 5000 |
Dimensions(L*W*H)(mm) | 2000×1600×2200 | 2100×1500×2200 | 2450×1800×2200 | 2750×2180×2200 | 3600×2800×3150 | 3600×2800×3150 |

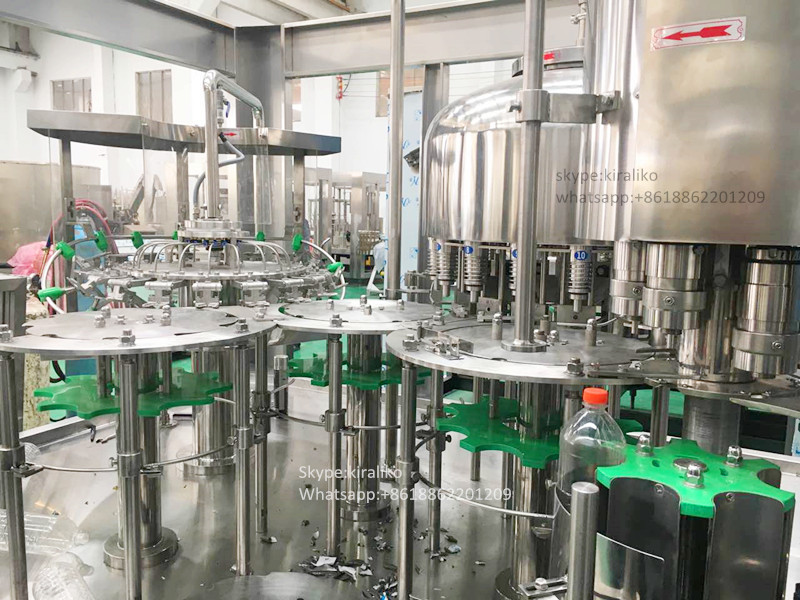

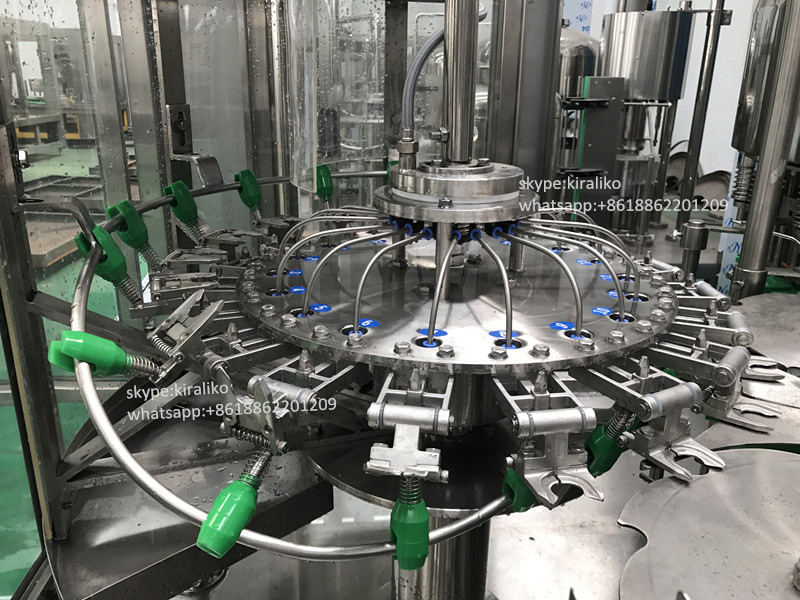

Machine Pictures

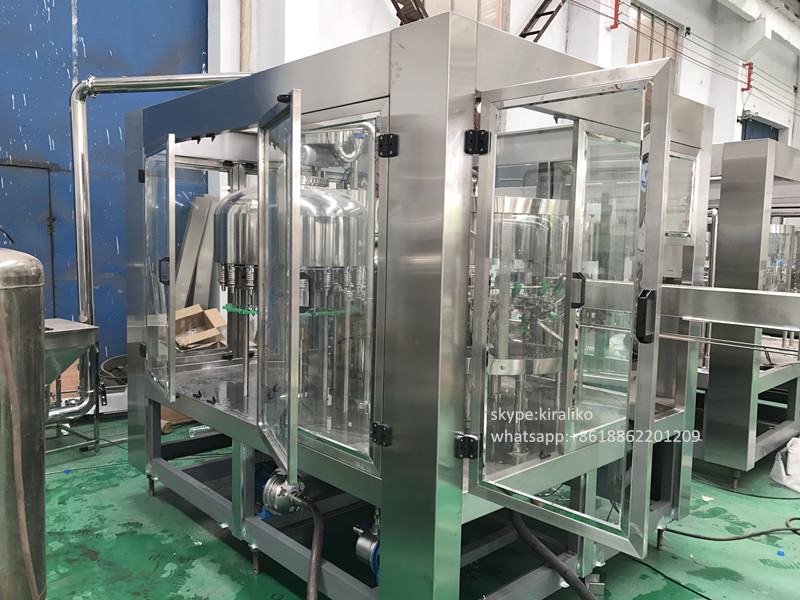

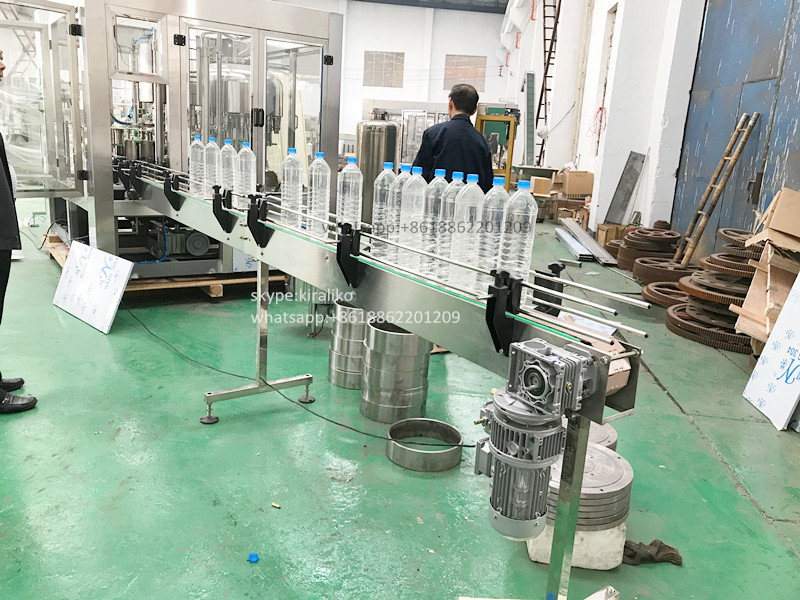

Overall Look

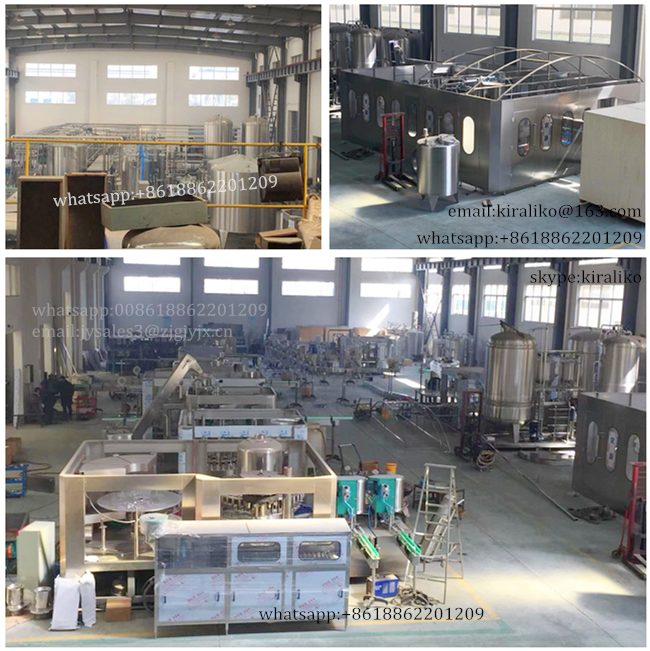

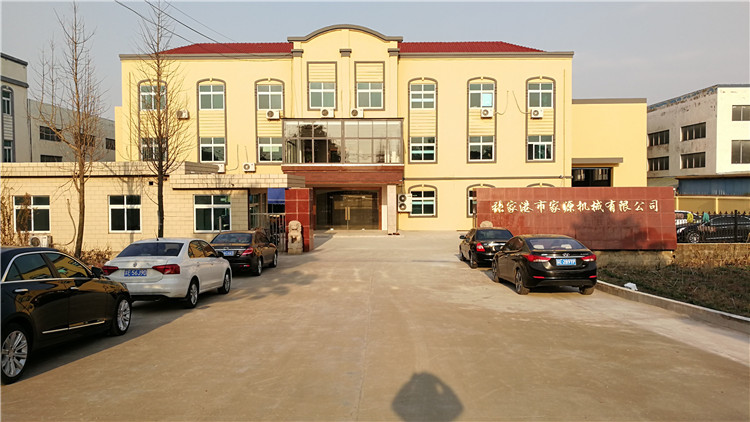

Zhangjiagang Jiayuan Machinery Co.,Ltd is a professional beverage machinery manufacturer, we dedicate ourselves to provide you the best machine with best price.

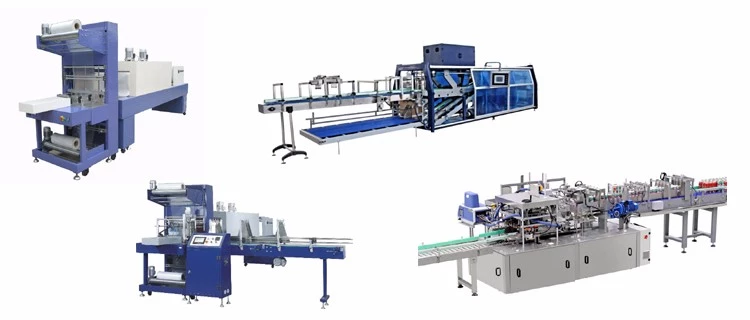

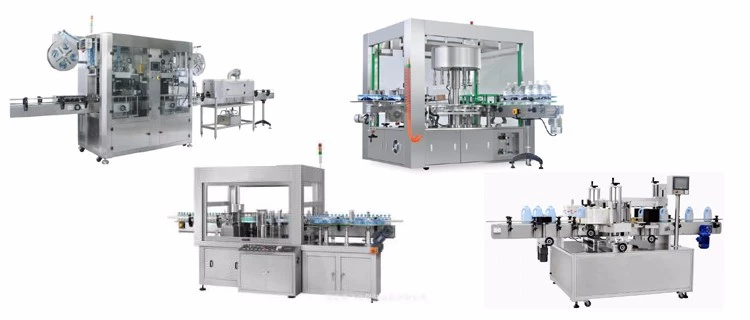

We can provide beverage production line as below:
1. Complete minereal/purewater production line;
2. Complete carbonated beverage production line;

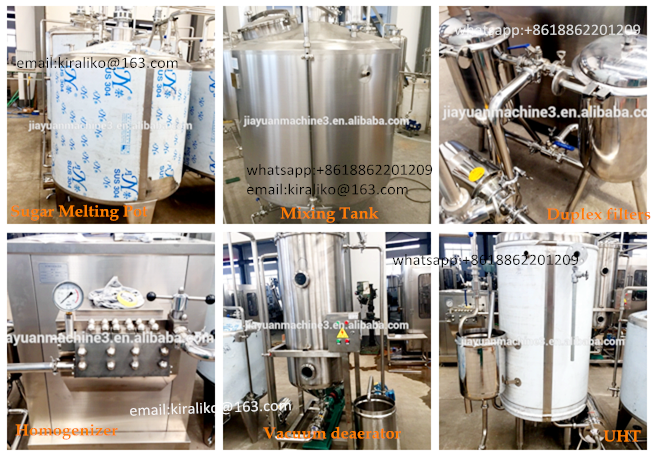

3. Complete juice production line;
4. 5 gallons water production line;
5. Canning beverage production line;
6. Glass bottle beer production line;
7. Milk/tea filling&package line;
8. Oil filling&package line;
