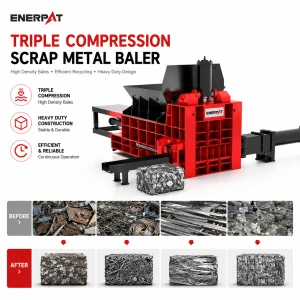

Automatic Triple Compression Scrap Metal Baler Press Machine for Steel and Aluminum Recycling

MODEL

AMB-TH-2080

AMB-TH-2210

AMB-TH-2212

AMB-TH-2812

AMB-TH-2815

AMB-TH-6020

AMB-TH-60201

BalesHxW(L)

mm

250 x 250 （var.)

300 x 300 （var.)

300 x 300 （var.)

400 x 400 （var.)

400 x 400 （var.)

600 x 600 （var.)

600 x 600 （var.)

Motor Power

kW

1 x 55

1 x 55

1 x 90

2 x 55

1 x 55

1 x 90

2 x 55

1 x 90

2 x 55

1 x 90

2 x 90

3 x 90

3 x 90

3 x 90

Cycle time
(no-load)

S

25

34 - 23

38 - 26

40 - 36

46 - 28

60

69

Bales/h
(90% availability)

1/h

137

101 - 149

90 - 132

86 - 95

74 - 122

57

50

Max. production
capacity, Fe
(bale weight)

t/h

10

（69 kg）

13 - 19

(124 kg)

12 - 17

（124 kg)

24 - 26

(264 kg)

21 - 34

(264 kg)

47

(791 kg)

59

(1,130 kg)

Max. production
capacity, Cu + Ms
(bale weight)

t/h

11

(78kg)

15 - 22

(141 kg)

13 - 20

(141 kg)

27 - 30

(301 kg)

23 - 39

(301 kg)

54

(903 kg)

67

(1,290 kg)

Max. production
capacity, Al
(bale weight)

t/h

4

(28kg)

5 - 7

(44 kg)

4 - 6

(44 kg)

8 - 9

(94 kg)

7 - 12

(94 kg)

16

(272 kg)

20

(389 kg)

Cylinder forces,
1st compactor

t

72

112

112

161

189

343

343

Cylinder forces,
2nd compactor

t

91

136

161

220

252

494

494

Cylinder forces,
final compactor

t

160

200

200

350

350

800

1,000

Spec. pressure final compactor

N/ cm²

2,128

2,063

2,063

2,104

2,104

2,144

2,749

Press box,
(W x L x H)

mm

795 x 1,925 x 600

1,020 x 2,235 x 800

1,245 x 2,235 x 800

1,245 x 2,840 x 1,100

1,500 x 2,840 x 1,100

2,000 x 6,000 x 1,600

2,010 x 6,000 x 1,600

Feed opening,
(W x L)

mm

725 x 1,450

945 x 1,655

1,170 x 1,655

1,170 x 2,130

1,425 x 2,130

2,910 x 4,930

1,910 x 4,930

Machine dimensions

(W x Lx H)

mm

4,550 x 5,800 x 3,000

5,290 x 6,605 x 3,735

5,990 x 6,605 x 3,775

6,360 x 8,035 x 4,600

7,060 x 8,035 x 4,615

10,155 x 15,650 x 6,110

10,495 x 15,650 x 6,110
