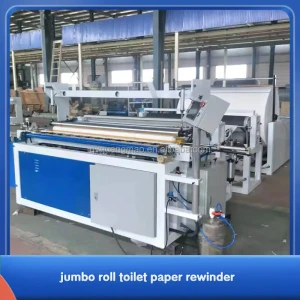

Automatic toilet paper processing machine

Product Details

Function: This machine can roll the big roll into various small rolls of smaller diameters according to the needs without changing the width of the big roll, and then cut the smaller diameter toilet rolls into small toilet rolls of different widths. Technical parameters1 Model 2200mm 2 Maximum feed width of base paper roll 2150mm 3 Raw toilet paper large roll 4 Maximum diameter of base paper roll Φ1100mm 5 Core diameter of base paper roll 76.2mm 6 Jumbo roll stand 2 Jumbo roll stand 7 Finished roll diameter Φ60-150mm 8 Finished roll core diameter Φ20-50mm 9 Punching spacing 100-120mm 10 Punching method Spiral punching blade (double blade) 11 Design speed 100-180m/min12 Control system Programmable logic controller (PLC) 13 Embossing system Single-layer embossing (decorative) According to customer requirements 14 Power 7.5kw 15 Dimensions (length × width × height) 6500mm×3000mm×2000mm 16 Weight about 2600kg 17 Color Normal colors are blue and white, can be customized
