auto LSR machine making medical silicone menstrual cup

FOB Price 46000 - 46000 USD / Set

Quick Details (View All)

Place of OriginGuangdong, China Brand NameTYM
Model NumberTYM-W4545 FunctionFOR medical silicone menstrual cup
Size3.5*0.9*1.75m Weight2.2T
Clamping Force120 T Opening Stroke150-550mm
Tie-Bars Space400*400mm Main produce productssilicone menstrual cup
Pump Pressure21 Mpa Motor Power7.5 KW
Machine Dimension3.5*0.85*1.63 m

Product Details

auto LSR machine making medical silicone menstrual cup

Product Description

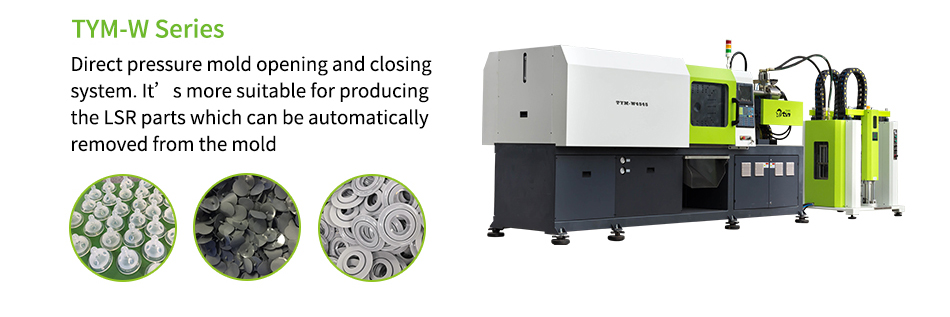

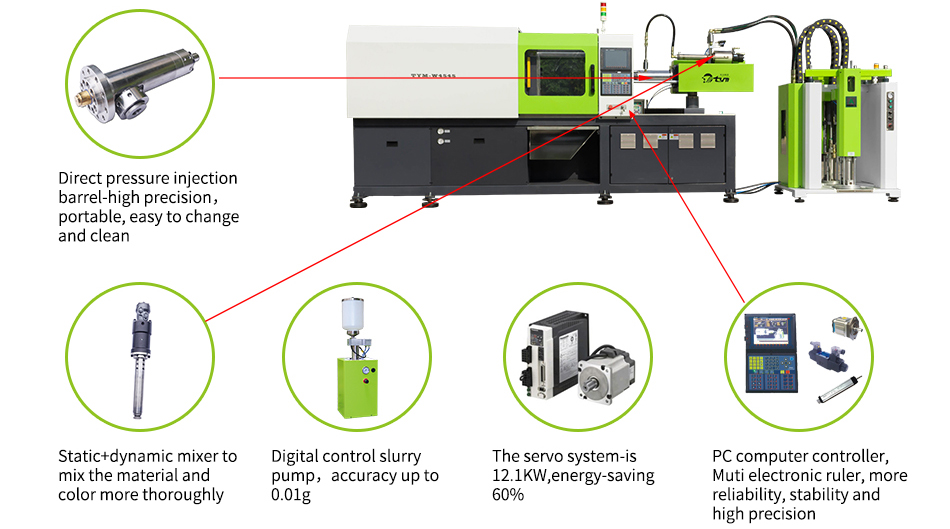

Horizontal Liquid Silicone Rubber (LSR) injection molding machine

Direct pressure mould opening and closing system, horizontal injection structure, it can adjust the mould faster, and control the position more precisely. It is more suitable for producing the LSR parts which can be automatically removed from the mould.



The main feature of the horizontal LSR molding machine:

A.Newly-optimized integrated all-in-one design.

B. Meet multiple requirements on the automatic manufacturing technique for LSR products.

C. Shorter the mould closing and opening time, improve the production efficiency.

D. Remote control function.

E. Multi-section mould closing and opening and injection, speed adjusting stepless.

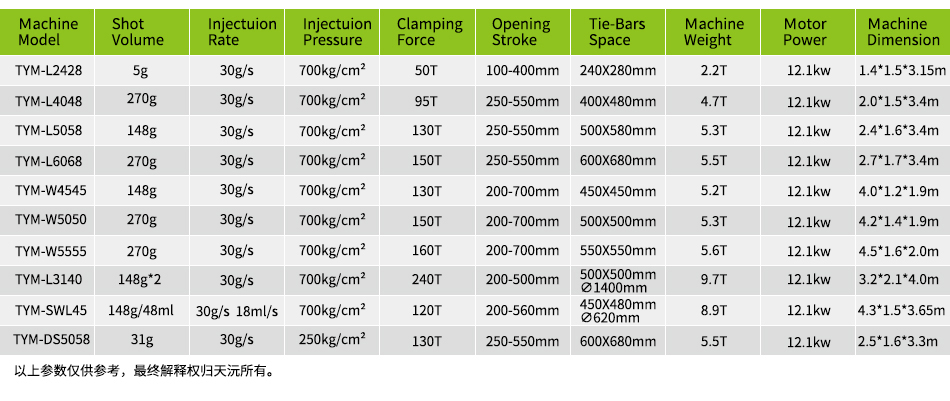

ITEM

DESCRIPTION

UNIT

TYM-W4040

TYM-W4545

TYM-W5050

TYM-W5555

Injection Unit

Shot Volume

g

165

165

300

300

Injection Rate

g/s

30

30

30

30

Injection Pressure

Kg/cm2

200

200

200

200

Clamping Unit

Clamping Force

T

120

130

150

160

Opening Stroke

mm

215-615

215-615

215-615

215-615

Tie-Bars Space

mm

400*400

450*450

500*500

550*550

Ejection Force

T

4.3

4.3

4.3

4.3

Ejection Stroke

mm

150

150

150

150

Pump Pressure

Mpa

21

21

21

21

Others

Motor Power

KW

12.1

12.1

12.1

12.1

Machine Weight

T

2.8

3.5

4.1

4.9

Machine Dimension

m

4.1*1.5*1.95

4.1*1.6*2.0

4.1*1.6*2.3

4.2*1.6*2.4
