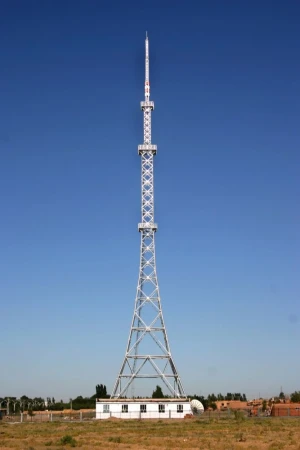

Angular Tubular Steel TV Tower for Enhanced Signal Reception

FOB Price 100 - 10000 USD / Unit

Quantity	10 - 10000
Price	UNIT

Port	Qingdao,China
Packaging	Fumigation of solid wood and steel frames
Lead Time	30 days

Contact Now

Quick Details (View All)

application	frame part	certificate	iso9001
grade	q235 q345b	model number	q345b q235b
place of origin	china	product name	steel structure building
purlin	c.z shape steel channel	standard	gb
surface treatment	hot dip gavalnized	tolerance	u00b11%
type	light

Product Details

Description :

Materials:

Legs Q420B, or ASTM A572 GR65, Q345B, or ASTM A106 pipe or angle steel
Braces and plates Q235B, or ASTM A36, or S235, Or ST 37-2
Bolts: Chinese grade 6.8 and 8.8, which similar to ASTM A394

Fabrication
A) Dimension and tolerance for angle are according to GB/T1591-1994, similar to EN 10056-1/2
B) Hot dip galvanization in accordance with GB/T 13912-2002, which similar to ASTM A 123
C) The welding will be performanced according to AWS D1.1 standard.

Connections:
Bolts (ISO 8.8,.6.8,4.8 ) , flat washers, nuts and spring washers (5% hardware overage)
Anti-Corrosion Treatment: All steel elements are hot-dip galvanized (ASTM A123) and Painted(white/orange/red)
Anchoring: Anchor rods /anchor bolts used with leveling nuts and a positioning template

Ladder:
Caged or open ladder with Safety climbing prection circle or rail
Usually installed inside the tower
Option for attachment to any tower face
Vertical cable hangers
Shipment: Standard 20feet or 40feet container
