| MOQ | 1 set |
| Port | FOB Nearest Port |
| Packaging | Plastic Film, Steel Frames, and Wooden Boxes |
| Lead Time | Negotiation |
| Model NO. | MSB-E Series | Customization | Available |
| Crushing Degree | Coarse Crusher | Crushing Style | Extruding and Milling |
| Transport Package | Wooden Box | Cutter Material | 42CrMo |
Materials & Applications
Aluminium Can;Blue Barrel;Waste Leather；Ton Bags；Oil Barrel；Electronic Waste；Scrap Metal；Waste Plastic；Waste Rubber
Product Introduction

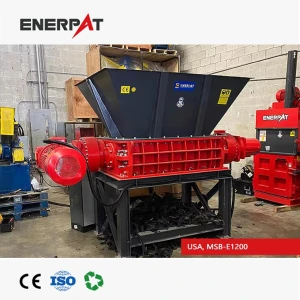

MSB-E Series Double Shaft Shredder is a heavy-duty industrial shredding machine designed for reducing the volume of various waste materials. Utilizing two counter-rotating shafts with high-strength blades, it delivers efficient cutting and tearing performance for demanding recycling applications.
CE certified and available in a wide range of models, the MSB-E Series can process light scrap metals, bulky waste, wood, plastics, cardboard, textiles, municipal solid waste, and e-waste. The shredded output can be used directly or further processed in downstream recycling systems.
Technical Specifications
| Model | MSB-E300 | MSB-E600 | MSB-E800 | MSB-E1000 | MSB-E1200 |
| Motor Power (KW) | 7.5/11 | 11/15 | 15/30/60 | 37 | 44/90/150 |
| Blade Diameter (mm) | ∅170-300 | ∅270-300 | ∅270-450 | ∅270-450 | ∅320-520 |
| Shaft Speed (RPM) | 13-18.5 | 9-32 | 10-32 | 10-32 | 7.5-32 |
| Shredding Chamber Length (mm) | 300 | 600 | 800 | 1000 | 1200 |
| Blade Material | Germany | Germany | Germany | Germany | Germany |
| Blade Thickness (mm) | 20 | 20/30 | 20/30 | 30/40 | 30/40 |
| Machine Size (mm) | 1500×1300×1850 | 2500×1300×1850 | 2700×1300×1850 | 3300x1900x2200 | 3600×2000×2200 |
| Machine Weight (kgs) | 1000 | 1500 | 2300 | 5200 | 6400 |
Product Superiority

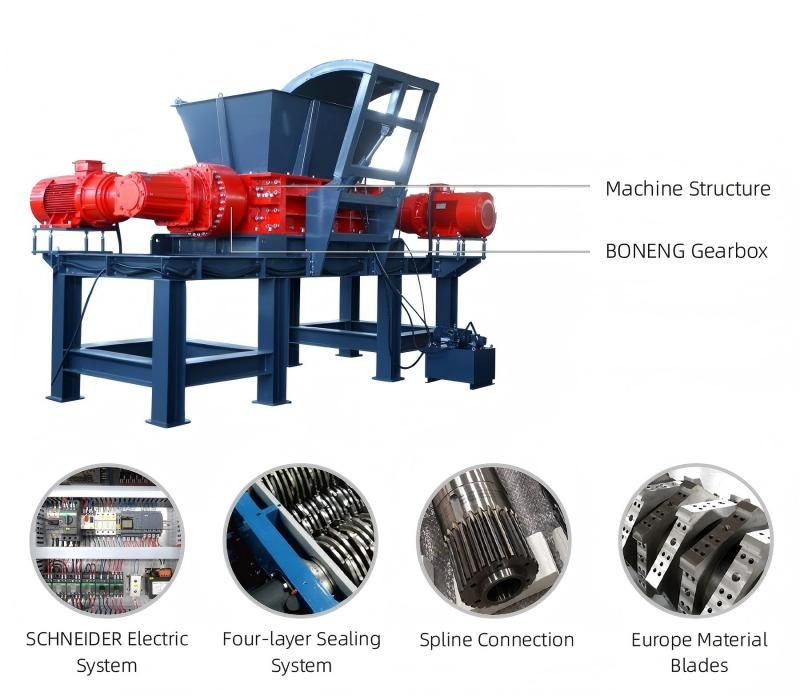

1. Detachable Shredding Box
Integrally detachable shredding chamber for easy overall disassembly. The whole main shaft can be taken out quickly for cutter and bearing inspection, maintenance and replacement. Centered assembly ensures stable operation and long service life.
2. Heavy-duty Planetary Reducer
Heavy-duty planetary reducer with reinforced cast housing. High-strength alloy steel gears with professional heat treatment and precision grinding. Delivers stable power, low noise and excellent heavy load capacity.
3. Quick-replace Detachable Cutters
Modular detachable cutter design. Worn blades can be replaced rapidly just by adjusting bolts. Significantly cuts daily maintenance time and cost.
4. Premium Electric Control System
Adopts Siemens/Schneider PLC and touch screen for smart control. Top-brand electrical components ensure stable, safe and trouble-free long-term running.
5. 4-layer Bearing Sealing System
Four-fold bearing sealing design with superior dustproof and waterproof performance. Well adapts to dusty outdoor working sites and extends bearing service life.
6. Custom Optional Auxiliary Devices
Optional hydraulic pressing device boosts shredding speed. Optional rotary screen keeps final shredded materials in uniform particle size.
7. High-strength Splined Main Shaft
High-strength splined main shaft with uniform stress transmission. Spiral blade bases improve shredding efficiency and save power. All blade bases pass full ultrasonic non-destructive testing.
8. Heavy-duty Self-aligning Bearings
Fitted with original FAG/SKF heavy-duty self-aligning bearings. Effectively cushions strong impact during shredding, supporting non-stop heavy-duty production
