| MOQ | 1 Unit/Units |
| Condition | New | Type | Wheel Tractor |
| By wheel | 4WD | Usage | FARM TRACTOR |
| Drive Type | gear drive | Certificate | ISO9001 |
| Brand Name | OEM | Model Number | SD804 |
| Place of Origin | Shandong, China | type | 4 * 4 wheel type |
| overall dimension | 3300*1400*2400 | front wheel | 6.0-12/6.5-16 |
| rear wheel | 13.6-20/11.2-24 | transmission box | 8F+4R shifts |
| Structure Weight (kg) | 1850kgs | Min.Ground Clearance(mm) | 290(the high under rear draw frame ) |
| Rated Rev.(r/min) | 2400 | Rated power (kW) | 58.8/59 |
| fuel | diesel | After-sales Service Provided | Overseas service center available |
| Power(W) | 22.1W |
|

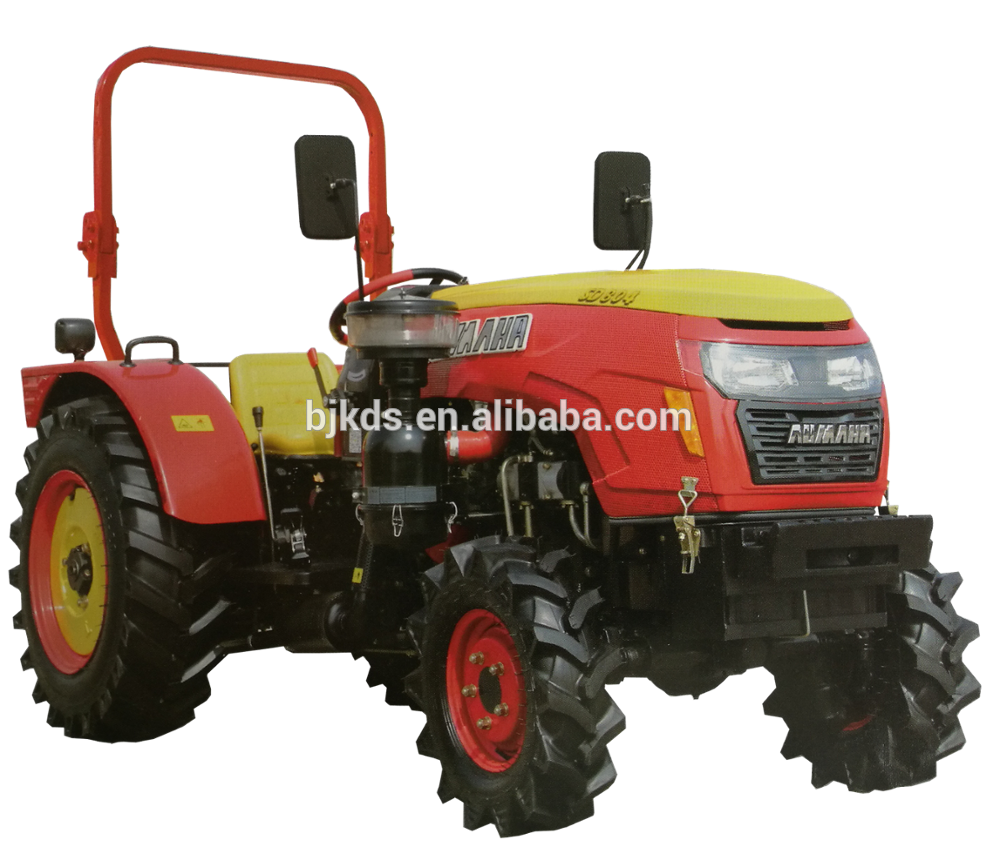

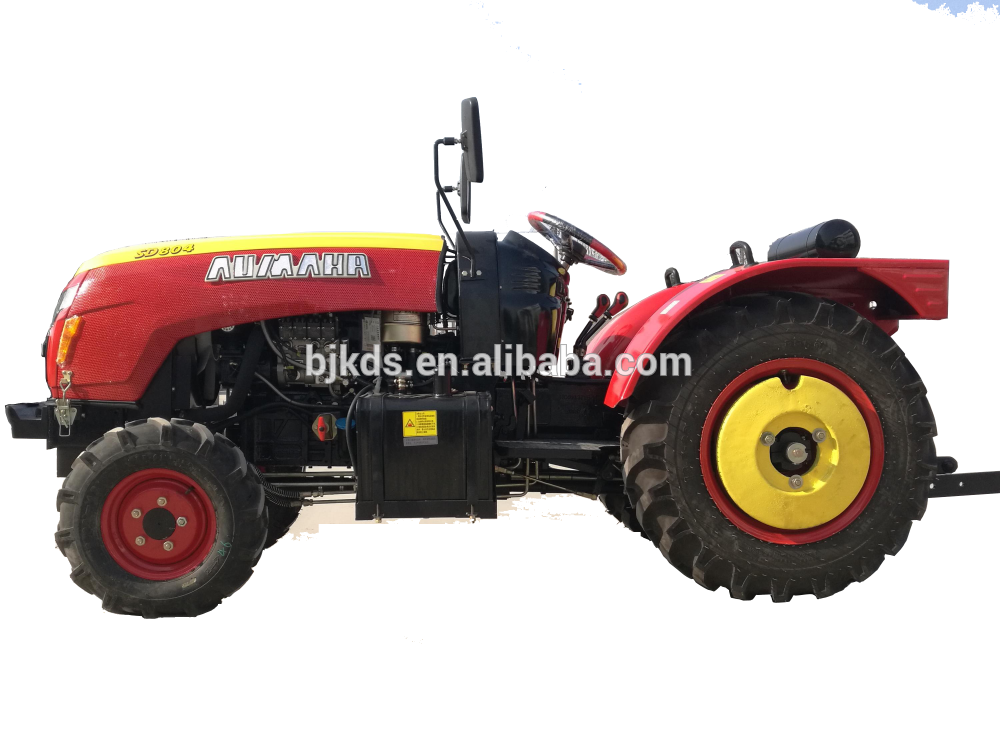

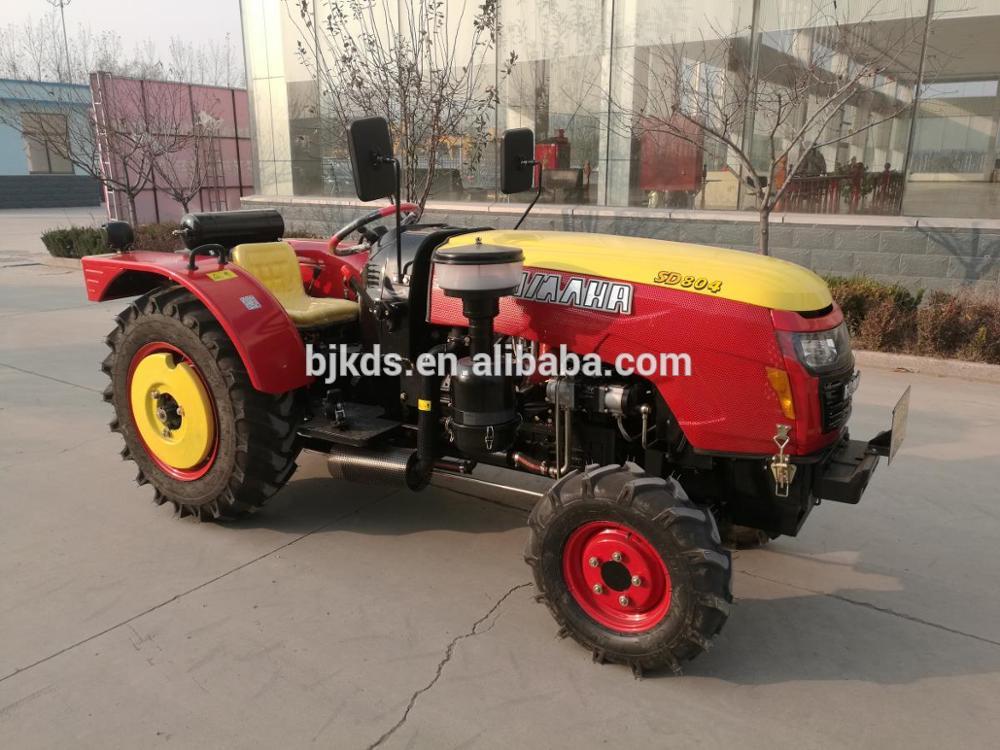

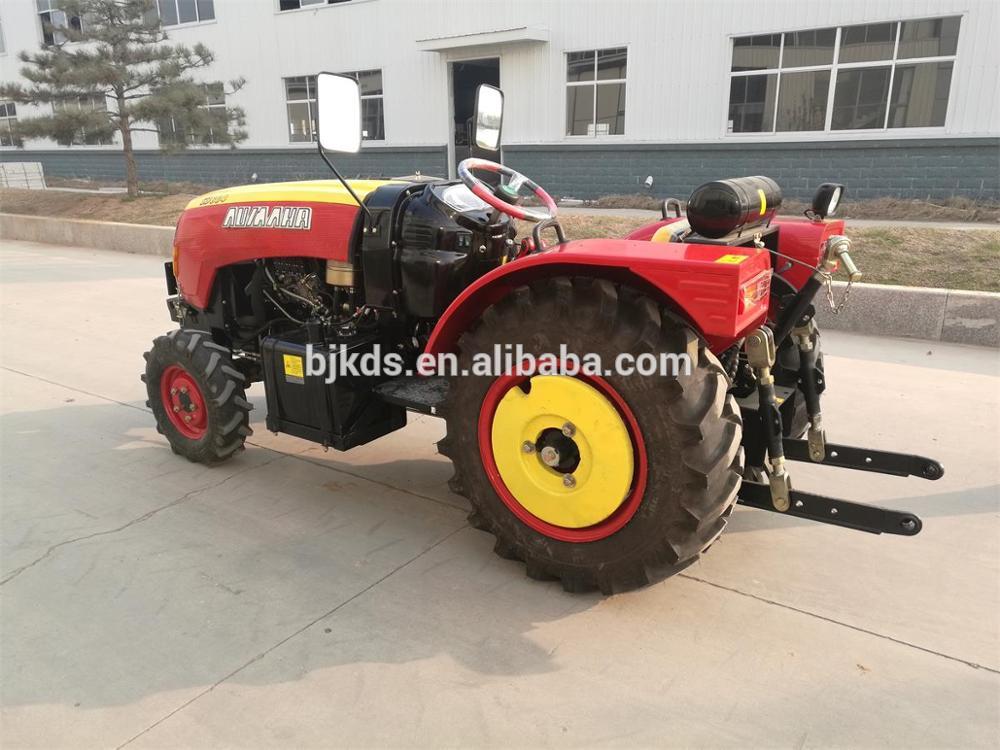

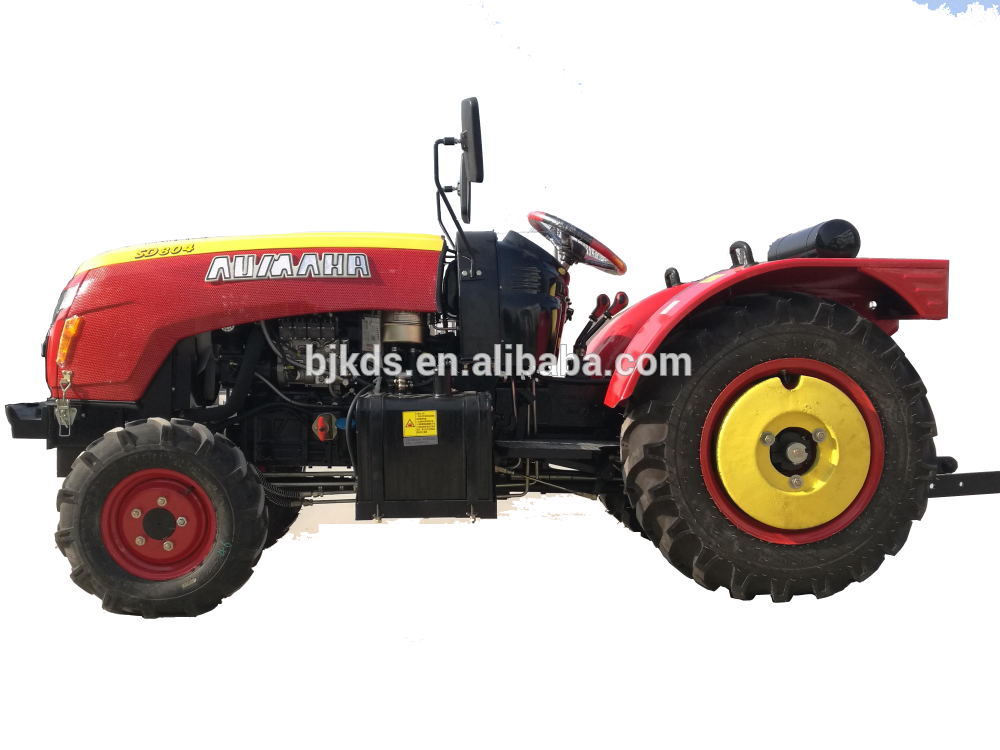

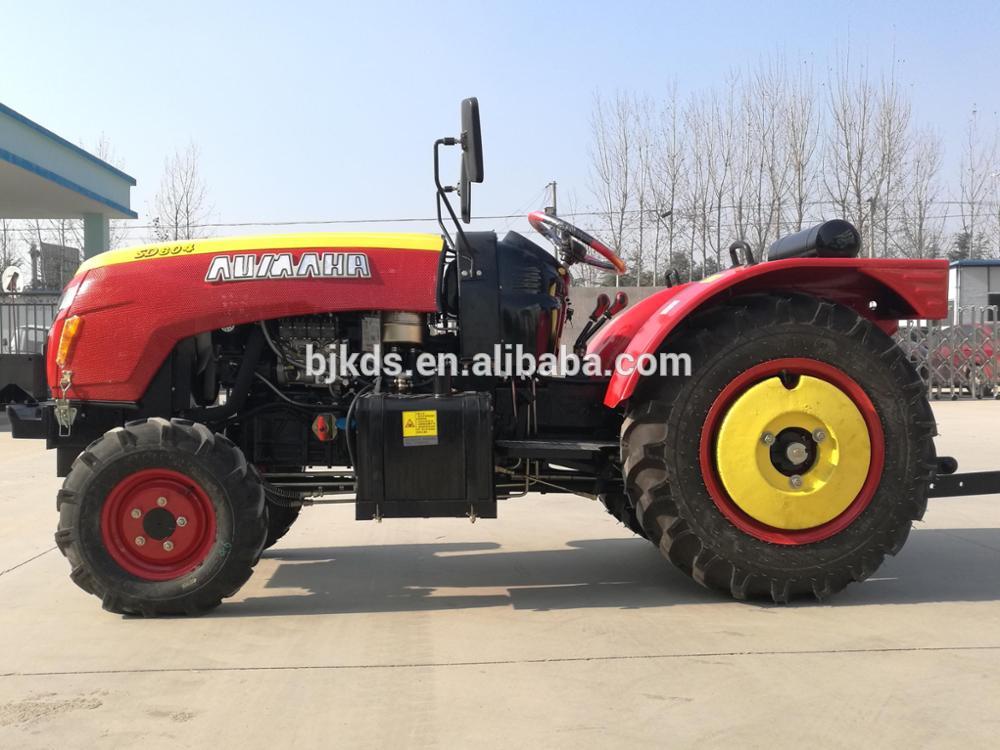

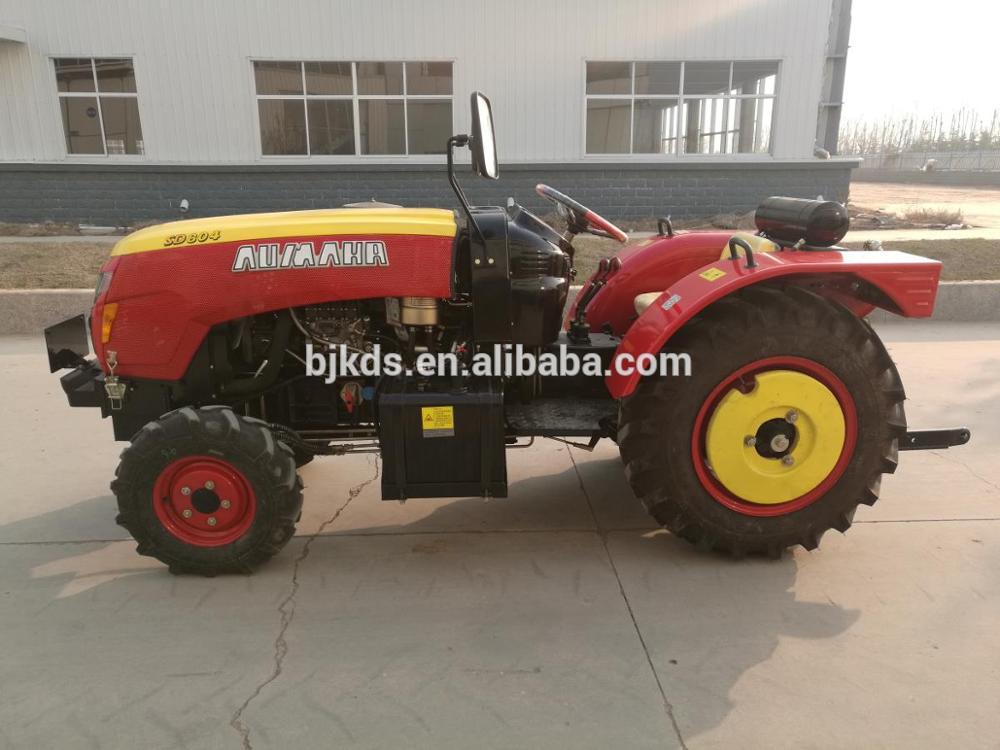

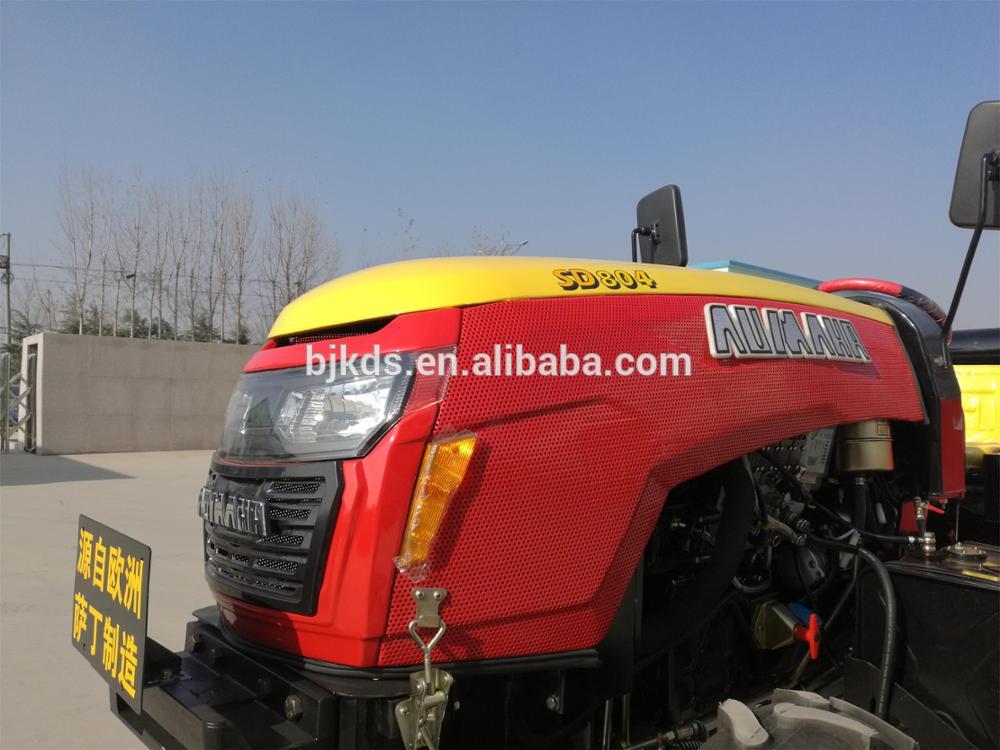

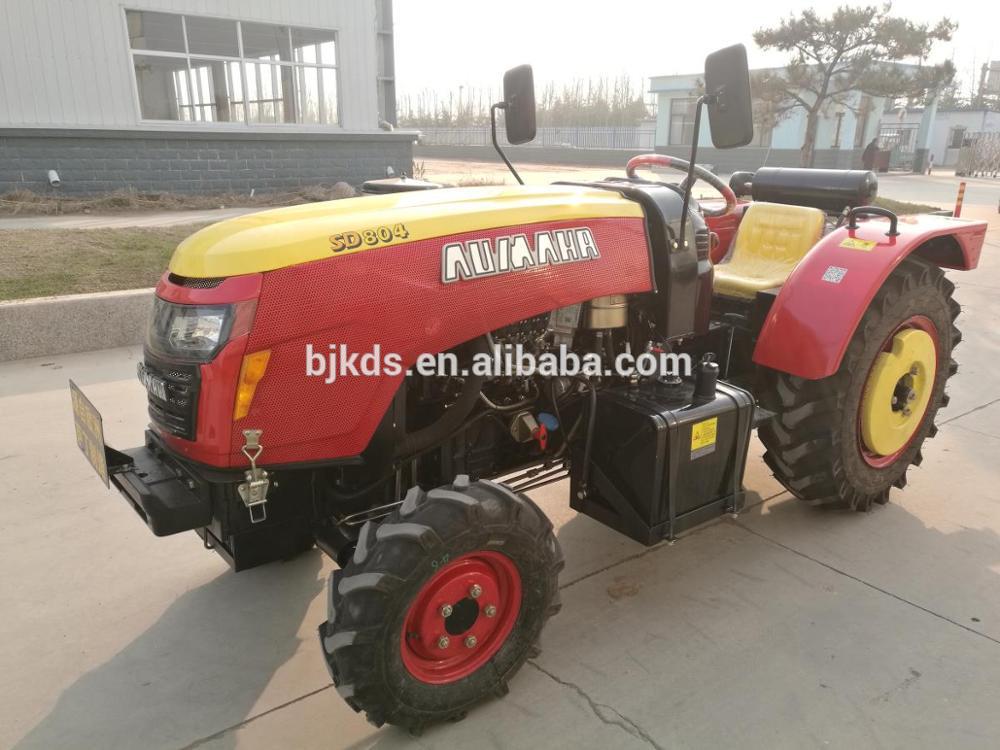

Model |
SD804 (GARDEN TRACTOR) |
||
|
Type |
4×4 wheel type |
||
|
Dimension of tractor (mm) |
overall dimension |
Length |
3300 |
|
width |
1400 |
||
|
High |
2040 |
||
|
Wheel base |
1850 |
||
|
Tread |
front wheel |
1050(980/1050/1140/1160)Adjustable |
|
|
rear wheel |
1100(1000-1300)Stepless Adjustable |
||
|
Min.Ground Clearance(mm) |
290(the high under rear draw frame ) |
||
|
Structure Weight (kg) |
1850 |
||
|
Engine |
|
|
|
|
Type |
Four cylinder,Inline, water cooled, 4-stroke, direct injection,turbo-charging |
||
|
Rated power (kW) |
58.8/59 |
||
|
Rated Rev.(r/min) |
2400 |
||
|
Fuel |
diesel |
||
|
Tire |
front tire |
6.0-12/6.5-16 |
|
|
rear tire |
13.6-20/11.2-24 |
||
|
clutch |
dry, double stage, constant integrate |
||
|
transmission box |
8F+4R shifts |
||
|

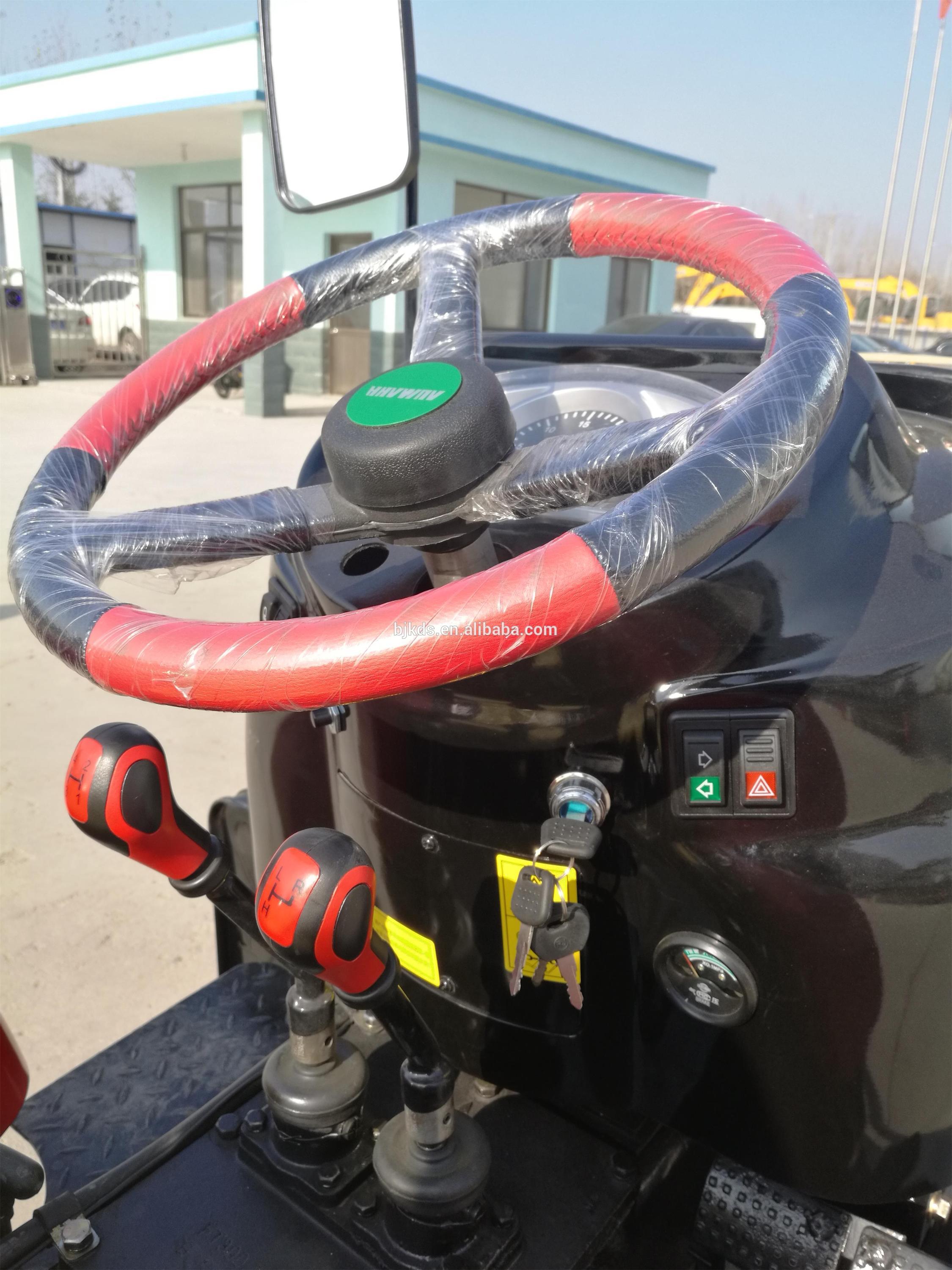

steering |
Power steering |
||
|

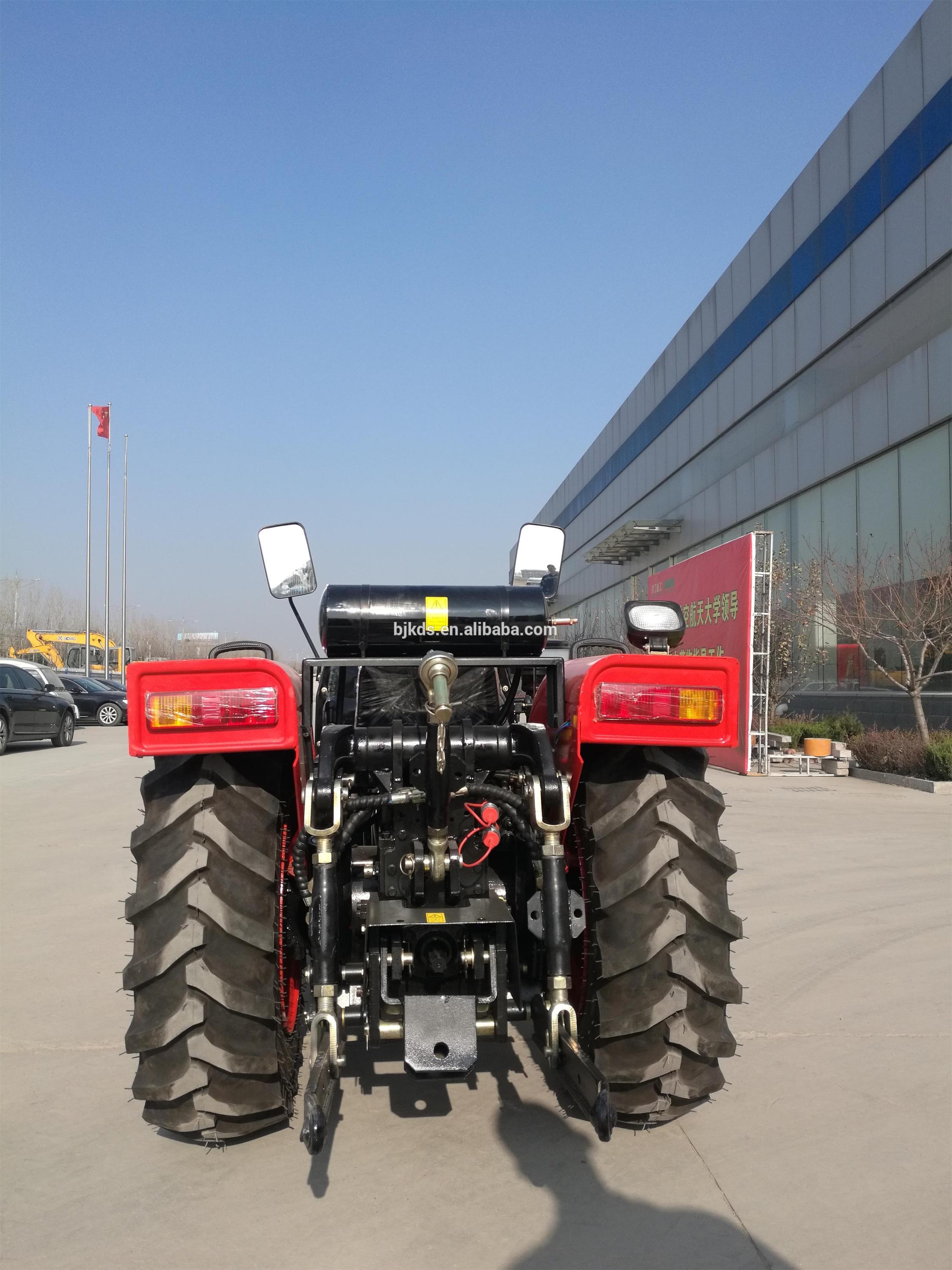

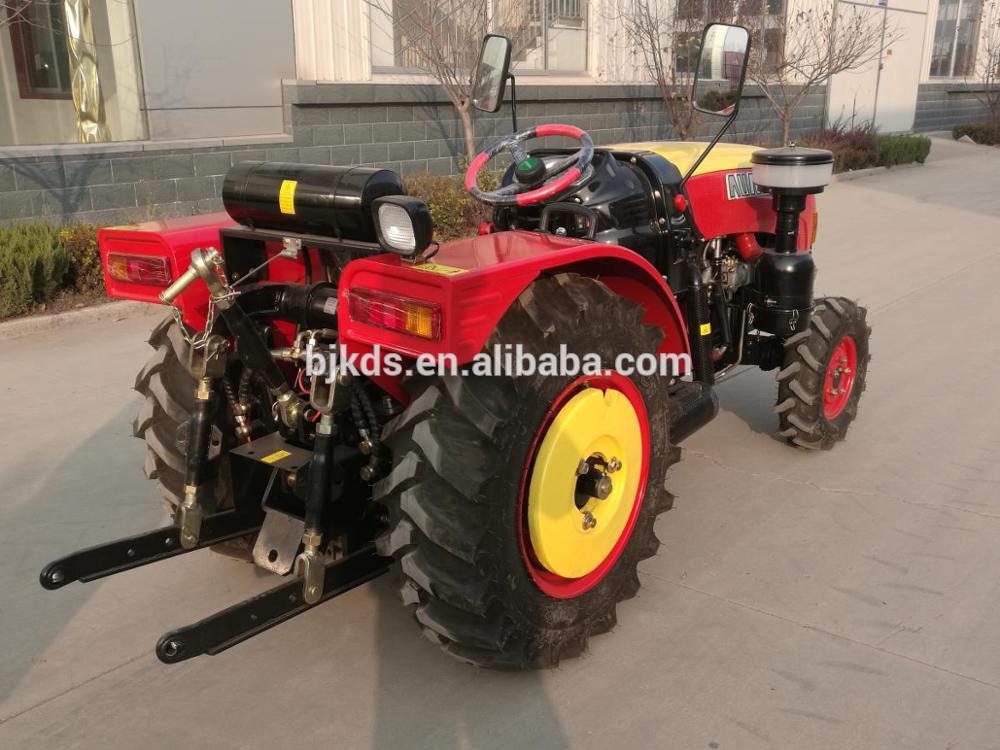

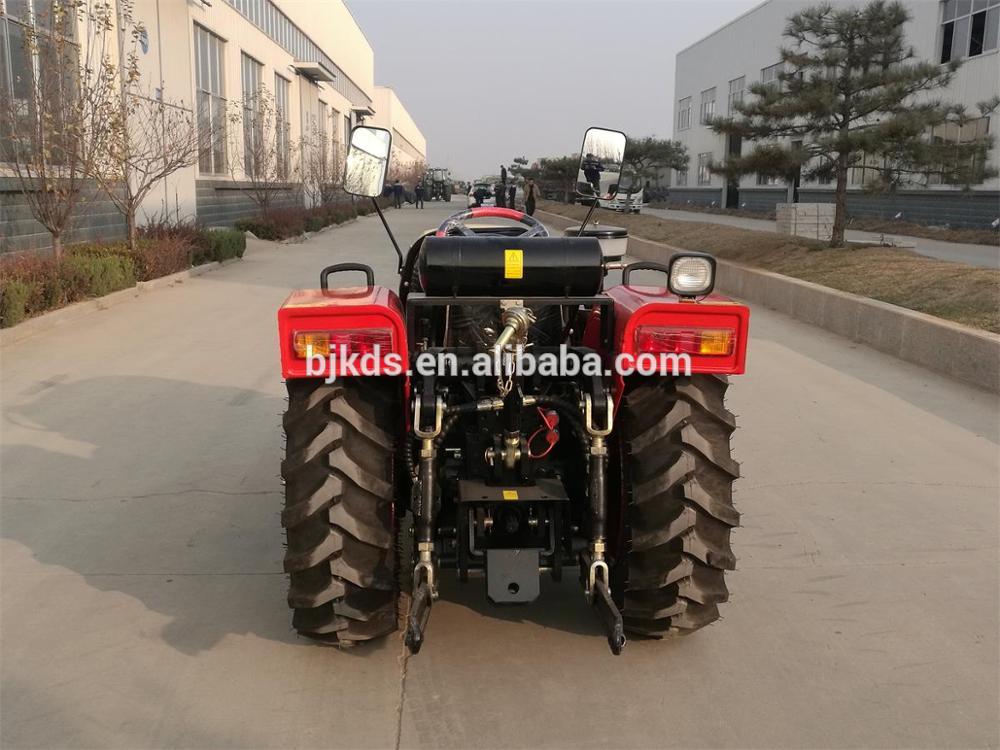

suspension type |
I type three point suspension |
||
|
PTO shift |
Type |
I35 ,Six spline |
|
|
Rated Rev.(r/min) |
540/760 Or 540/1000 or 760/1000 |
||
Iron packing
Shipping time : 15 days

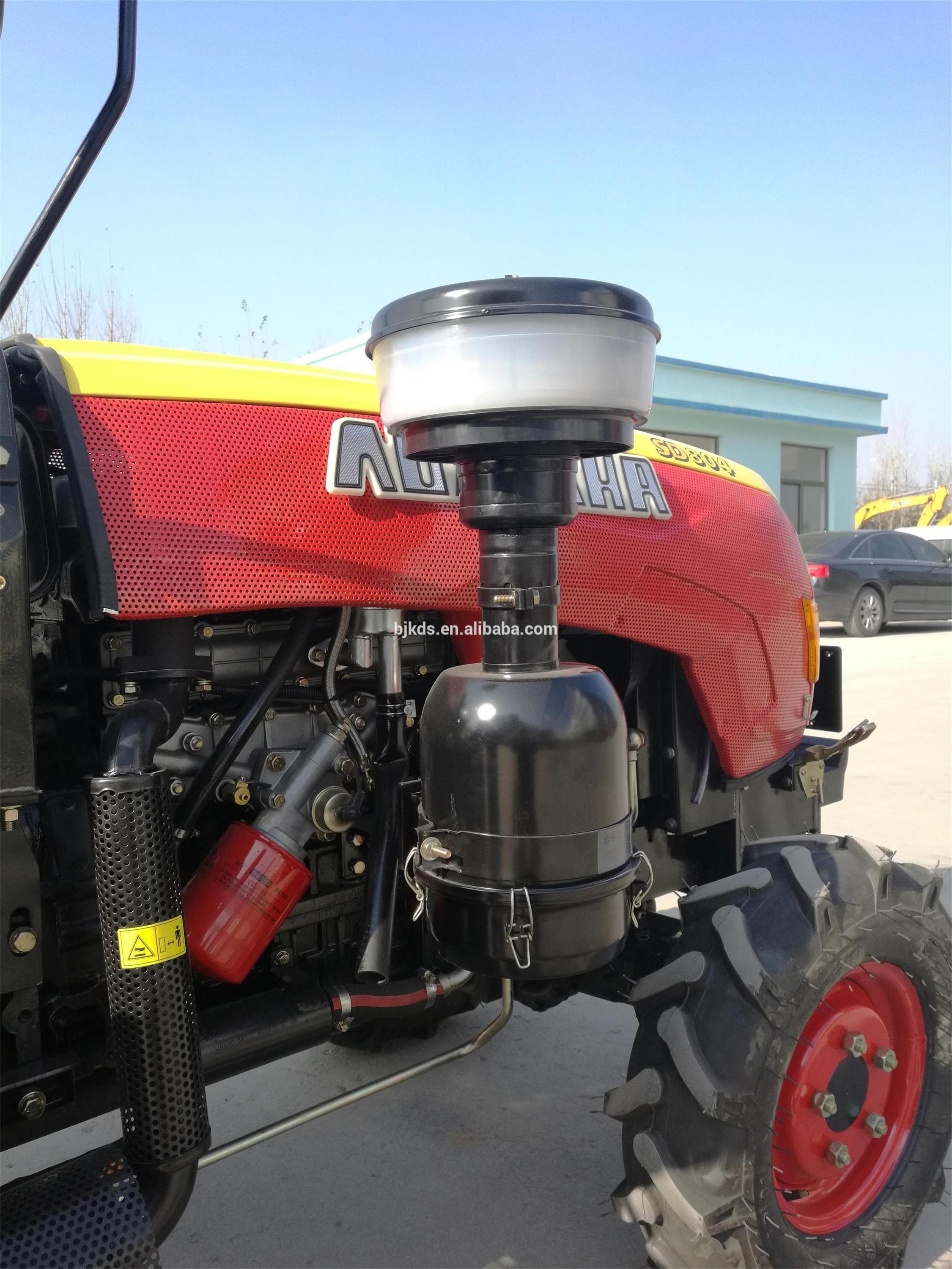

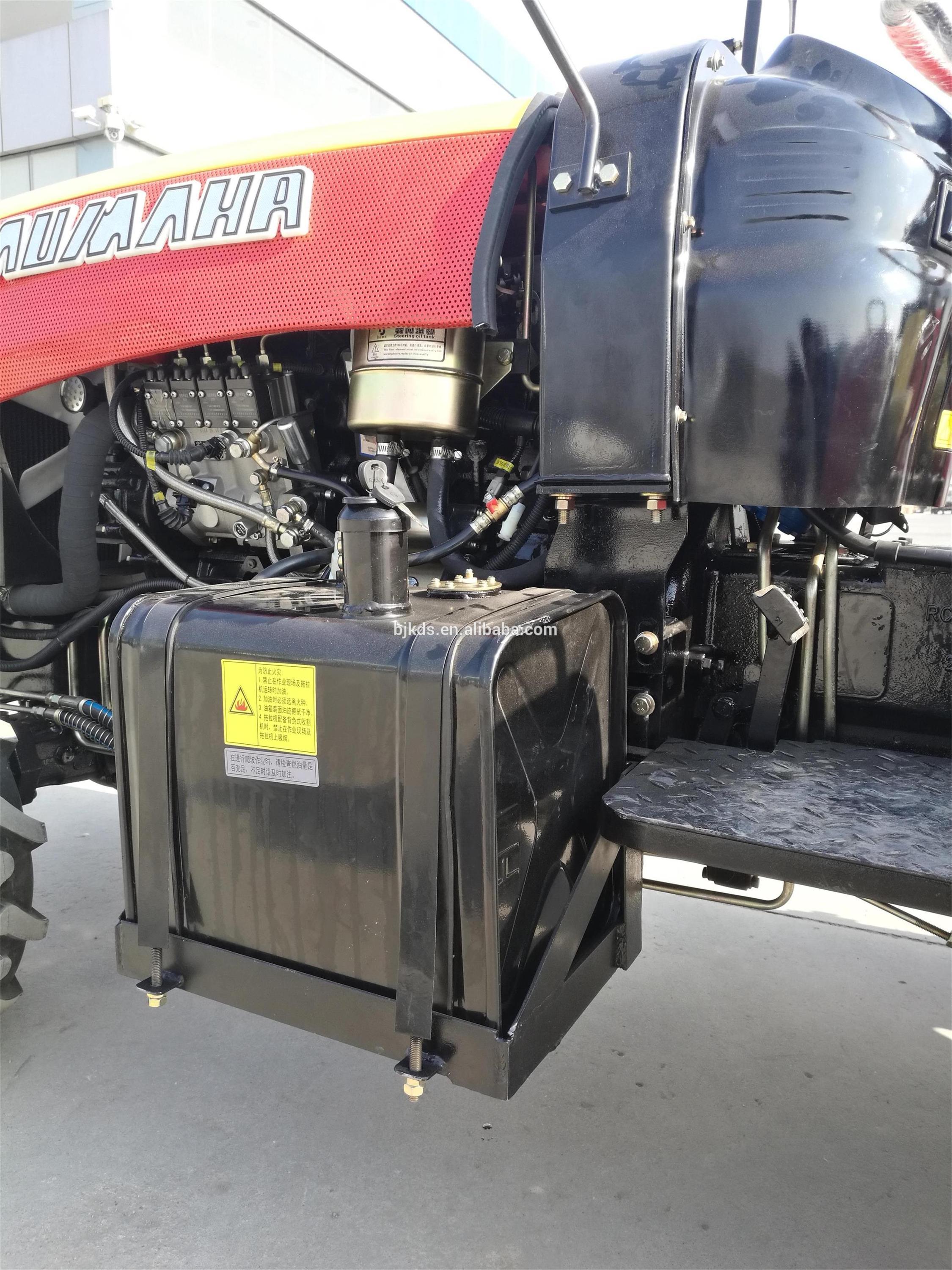

Chinese highly cost-efficient in-line diesel engines with high fuel efficiency, low
maintenance cost, standard preheater and excellent cold start;
Center console with simple structure, high cost efficiency and easy maintenance;
8F+2R gearbox with easy operation and convenient maintenance;
Optional single/double-acting clutches for different needs and operation;
Farmland tires, turf tires, construction tires and many other tires to meet needs of different working conditions.
