Adaptive Ethernet Interface RS485 Coupler Module Remote Rack Extension PLC Dedicated Controllers Supports Ethercat Communication

Name: Adaptive Ethernet Interface RS485 Coupler Module Remote Rack Extension PLC Dedicated Controllers Supports Ethercat Communication
Brand: Unionscience Technology Group Co., Ltd.
SKU: Tradewheel_2728734
Price: 99.99 USD
Availability: InStock

FOB Price 99.99 - 99.99 USD / pieces

Contact Now

Quick Details (View All)

Place of Origin	Yunnan, China	Brand Name	LicOS
Memory	/	I/O number	0000
Communication interface	Modubus, rs485, Other	Product name	coupler
Condition	100%new 100%Original	Warranty	12 Months
Application	INDUSTRIAL AUTOMATION	Service	One-stop Service
Series	GR200 Series	Size	410.510.8CM

Product Details

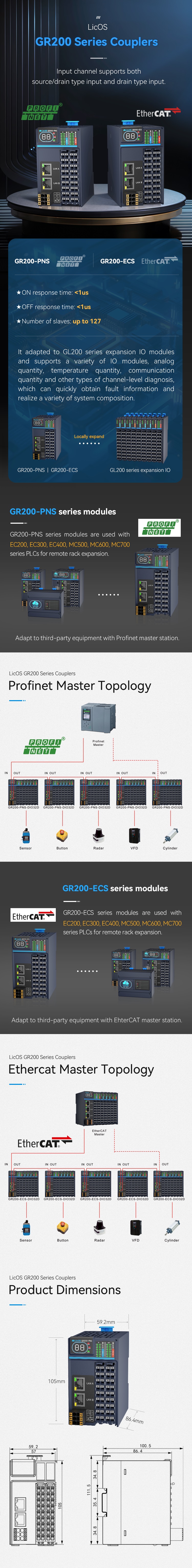

Products Description

Product Name	PLC coupler module
Model	GR200-ECS
Brand	LicOS
Place of Origin	Yunnan，China
Condition	100% New 100% Original
Series	GR200 series
Core Points	1. Remote IO communication coupler, 24VDC power supply, can adapt to EC400-PS2 power module. 2. 2-channel 10M/100Mbps adaptive Ethernet interface, supporting EtherCAT communication. 3. For remote rack expansion, 16 GR200 series IO modules can be expanded. 4. Number of stations: up to 127.
Technical Consulting Support	Yes
Warranty	1 year

Products Parameters

Product model			GR200-ECS	GR200-ECS-DIO32D
Supply voltage			24VDC(20.4V DC～28.8V DC)
Communication interface			2-channel 10M/100M adaptive Ethernet interface
Communication mode			EtherCAT
Transmission medium			Category 5 twisted pair
Electrical isolation			500Vrms (supply voltage/fieldbus)
Current consumption			130mA@24VDC
Input IO	Number of channels	×	16
		Contact type	×	Transistor, (Source/Drain)
Output IO	Number of channels	×	16
		Contact type	×	Transistor, (drain)
IO module scan			Scanning cycle ≤ 10ms	Scanning cycle ≤ 10ms
Carry IO capability			16 I/O	16 I/O
Diagnostic information			Communication diagnosis, data diagnosis and configuration diagnosis
Communication rate			100Mbit/s（100Base-TX）
Topology			Bus type
Transmission distance			100m (station distance)
Number of slave stations			Up to 127
Ynchronization mode/communication model			DC distributed clock or I/O synchronization
Operating temperature			—20℃ ~ 55℃
Storage temperature			—40℃ ~ 70℃
Operating humidity			10% ~ 90% RH, no condensation
Storage humidity			Relative humidity≤95% RH, no condensation
Elevation			≤2000m
Noise immunity			Power line 2kV
EMC immunity rating			Zone B，IEC61131-2
Vibration resistance			IEC60068-2-6, 5Hz ~ 8.4Hz, 3.5mm p, 8.4Hz ~ 150Hz, 1G, X/Y/Z triaxial, 10 cycles/axial
Impact resistance			IEC60068-2- 27,150 m/s2.11ms, ± X/Y/Z 6 directions, 3 times/direction, 18 times in total
