50 60 Ton Terminal Port 3 Axles Flatbed Semi Truck Container Trailer

Contact Now

After-sales Service	One Time Purchase, Long-Life Service	Warranty	24months for This Terminal Container Trailer
Type	Semi-Trailer	Load Capacity	50T
Certification	ECE, GCC, CE, ISO9001, DOT, CCC, ISO/TS16949, for Terminal Semi Trailer	Wheel Base	7000-8000mm

Container Chassis Parameters for Terminal Flatbed Port Container Semi Trailer

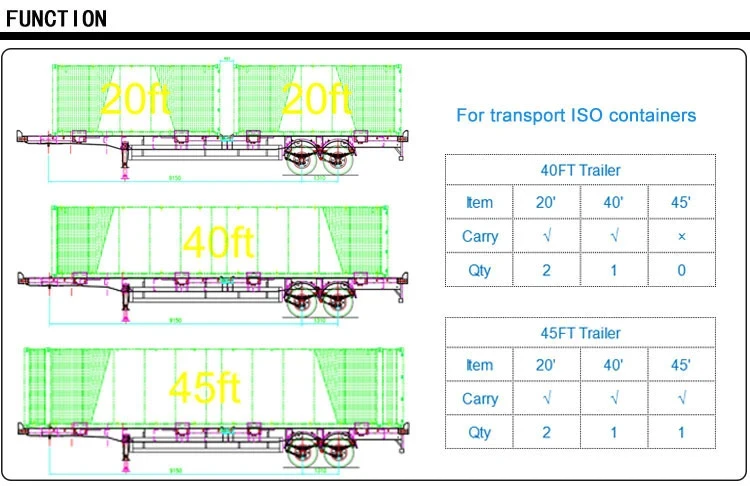

Dimension of the 3 Axle 20&40Feet Flatbed Terminal Container Semi Trailer
Overal Size		1279527901550/mm
Inside Size		1203025001500
Fifth Wheel Height		1300mm
Wheel Base		2050mm
Track		1310mm
(The above dimension will be adjusted according to the tractor specification.)
Weight:
Payload:		60,000kg
Tare weight:		Approx. 7,300kg
G.V.W.R.:		Approx. 67,300kg

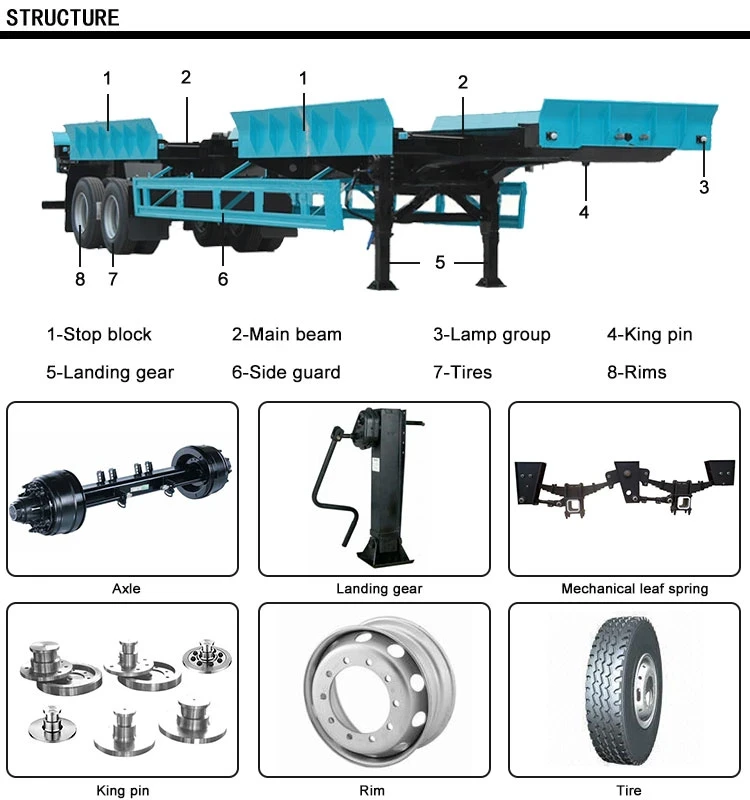

Specification
Mainbeam		Material is Q345B; Section height 500mm, 14/8/16;
Side Beam		Q345B; 160mm Channel steel;
Twist locker		twist lockers 12pcs; 10 pcs of container stopper;
Kingpin:		90# or 50# Assembly type Kingpin
Welding standard:		All welding are to be done by qualified welder per applicable national standard
Running gear:
Suspension:		6 sets of the heavy mechanical suspensions(leaf spring 13mm90mm13pcs)
Axle:		Standard axle, 3pcs*13 ton capacity
Brake system:		A system with emergency brake and parking brake; Dual line ,air brake, piggyback spring on all axles; Six units of T30/30 chamber; two units of reliable local brand 40L air tank;
Emergency relay valve:		WABCO relay valve
Tire:		12R22.5, 12 pcs.
Rim:		9.00-22.5, 12 pcs.
Landing gear:		28T
Electrical System:
Voltage:		24 Volt
Receptacle:		7-pin ISO 1185 socket;
Reflector:		Per customer requirement
Cable		One set of 6-core standard Cable
Accessories:
Mud guard:		Steel mud guard
Spare wheel carriers:		1sets
Tool box:		One piece, 1.5m×0.5m×0.5m(Size can be chosen freely)(equipped with 1 unit tyre spanner, 1 unit gudgeon sleeve and 1 unit cranking bar).
Remarking:		Acrylic anticorrosive paint
