Type | Equipment Indicator Lights | Warranty(Year) | 1-year |
Luminous Efficacy(lm/w) | 2 | Light Source | LED |
Color Temperature(CCT) | PURE WHITE | Beam Angle(°) | 360° |
IP Rating | IP67 | Certification | ce |
Emitting Color | Red,Green,Yellow,White,Blue | Lamp Body Material | Stainless Steel |
Base Type | Round/Flat | Place of Origin | Zhejiang,China |
Brand Name | Kelever or OEM | Lighting solutions service | LED |

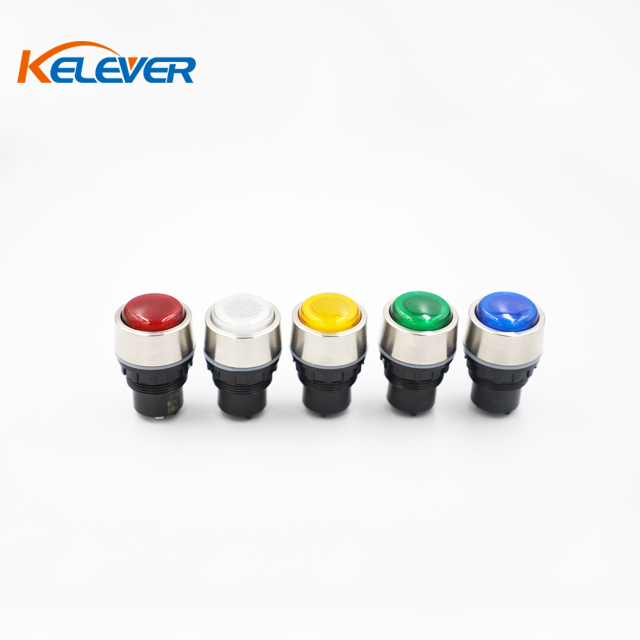

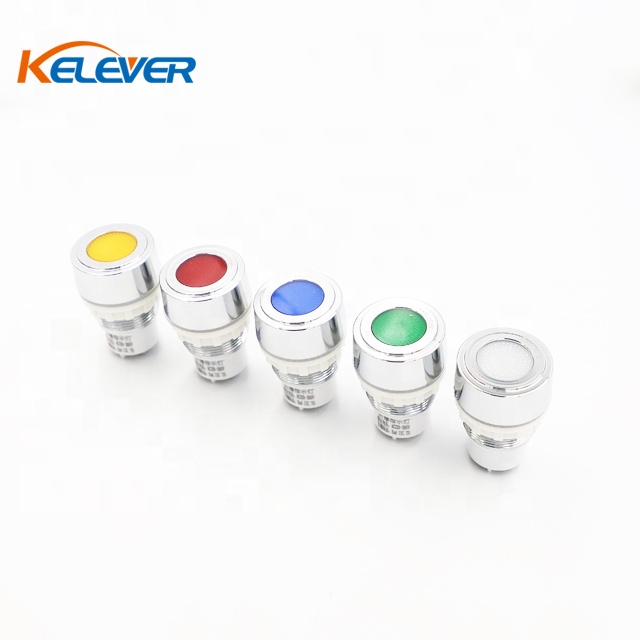

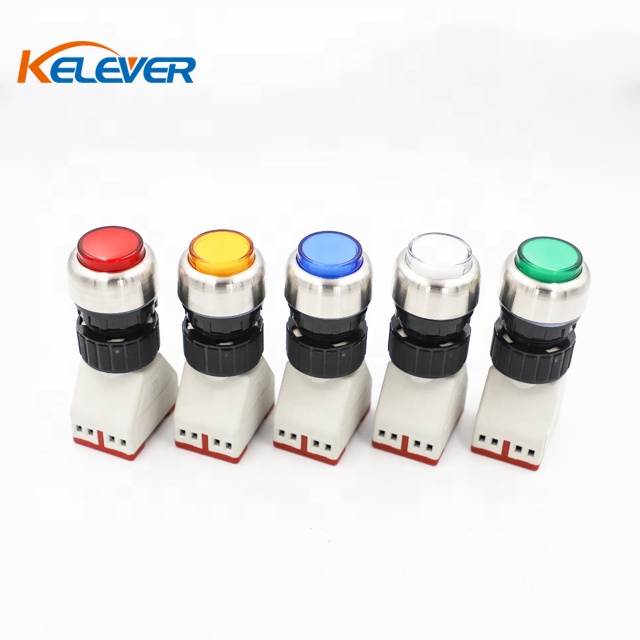

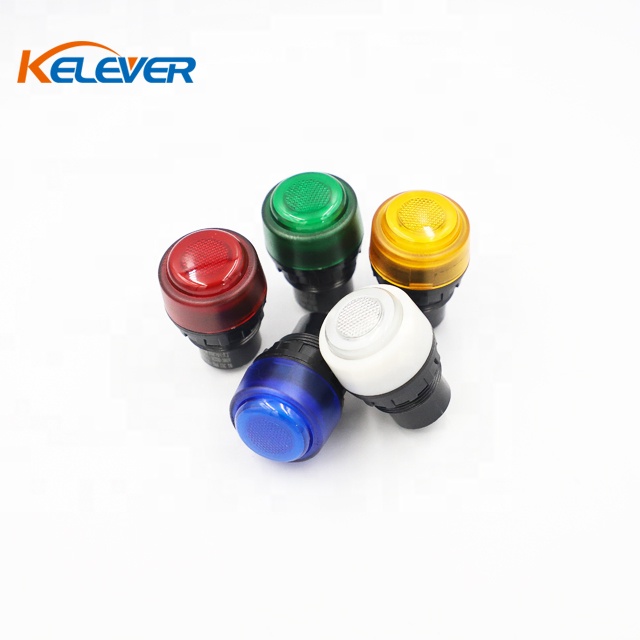

Panel mounting hole | 30mm | Product name | explosion proof indicator light |
Material | Stainless Steel/Plastic | Brightness | ≥100cd/m2 |
Current | ≤20mA | IP Degree | IP66 |
Temperature | -40u2103~+80u2103 | LIFE | ≥30000 Hours |
Connection type | Screw Foot | Certificate | CE |
Input Voltage(V) | 220V | Lamp Power(W) | 0.8 |
Ex mark
|
Ex Ⅱ2G Ex de ⅡC
|
Application
|
zone 1,zone2,zone21 and zone22
|
Ambient temperature use
|
-40℃≤Ta≤55℃
|
Degree of proterction
|
IP66(Match operation head)
|
Rated voltage/Rated current
|
AC 250V/6A DC24V/1A
|
LED Color
|
red, green, yellow, orange, blue, white
|
LED Voltage
|
6V, 12V, 24V, 48V, 110V, 220V
|

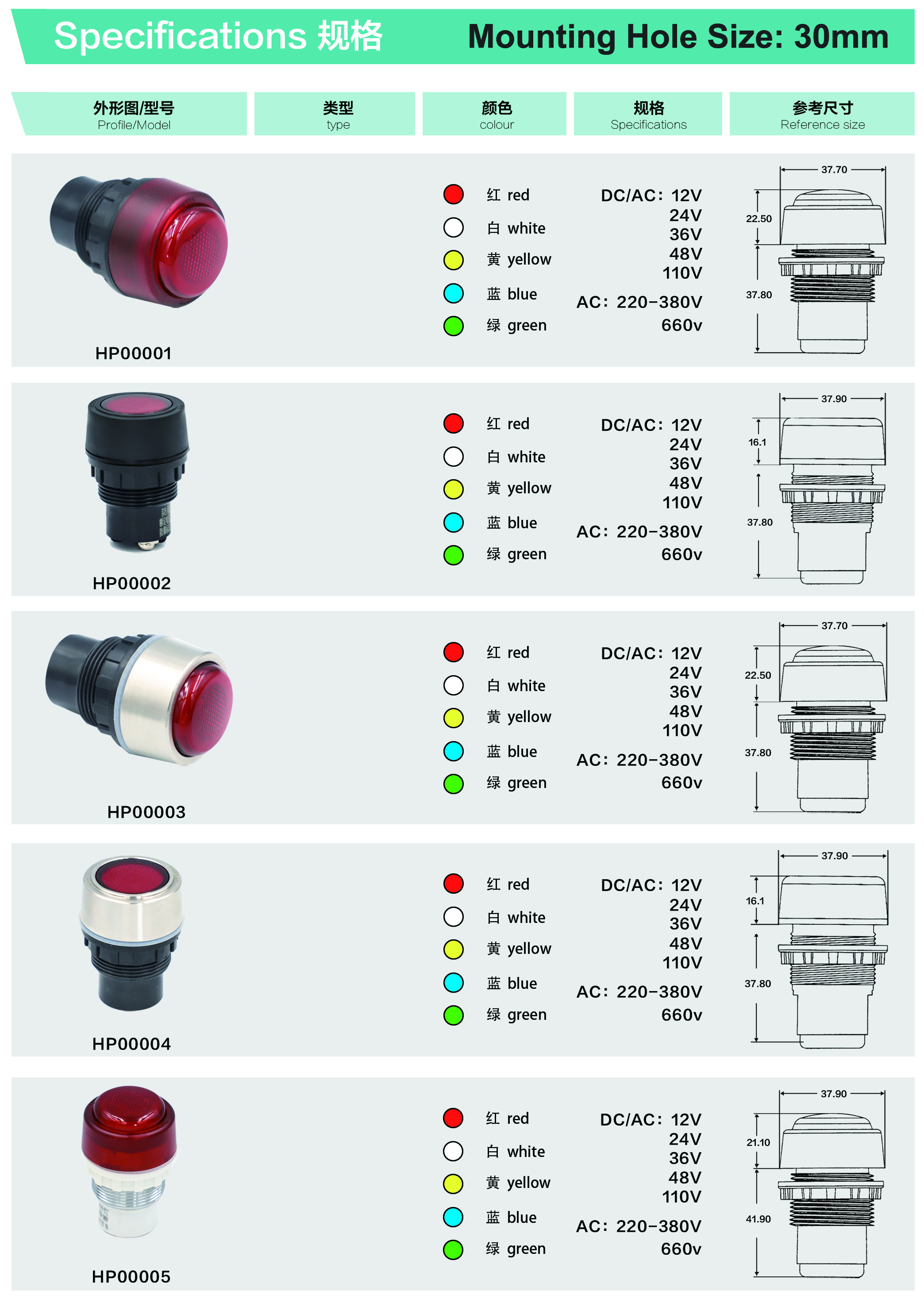

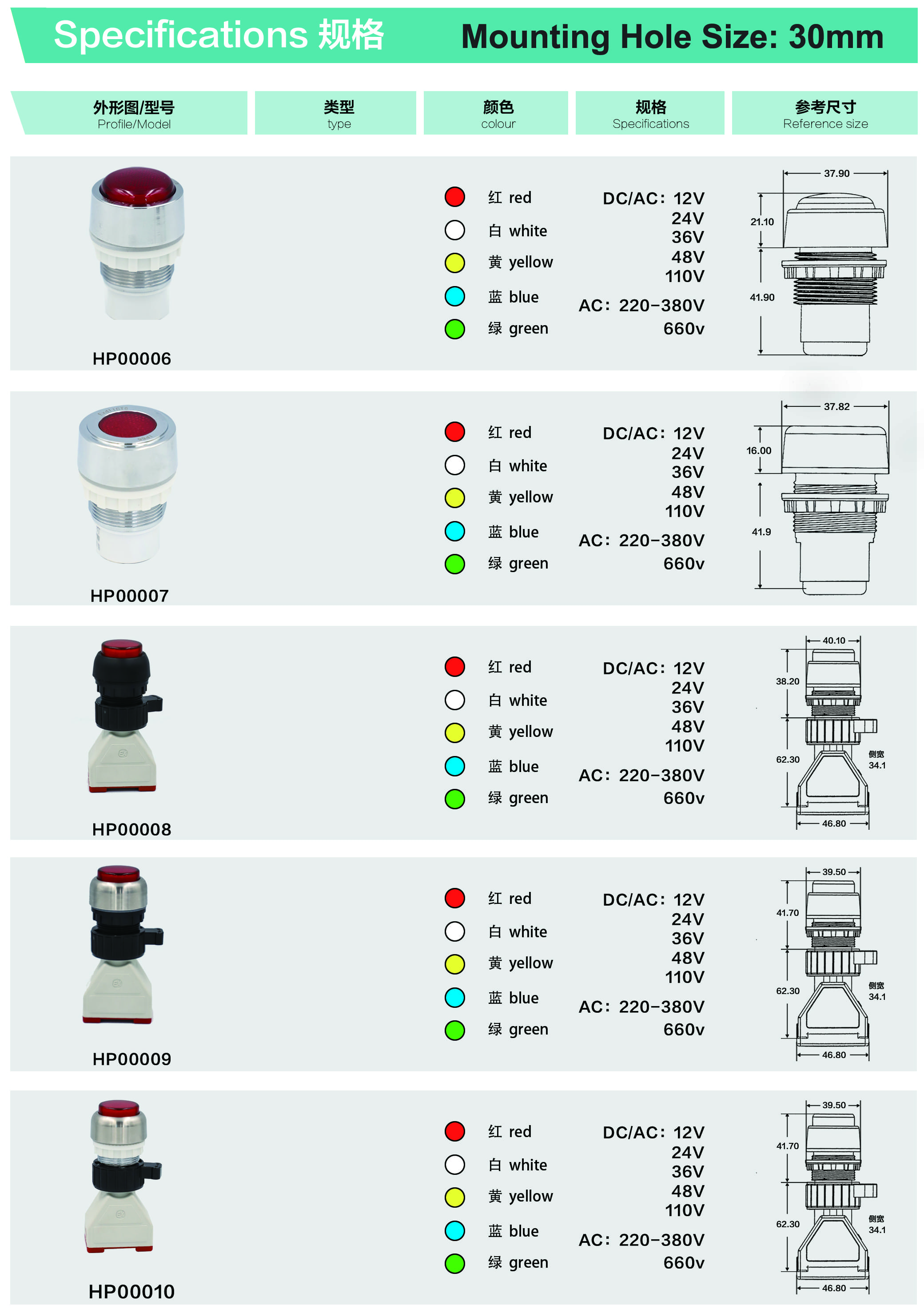

Mounting hole size
|
30mm
|
Material
|
Stainless steel/Plastic
|
Installation
|
35X7.5mm Din Rail or Screw
|
Standard
|
IEC60079 EN60079
|
