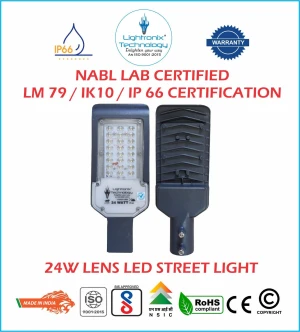

24 WATT LED STREET LIGHT - LENS MODEL

GENERAL INFORMATION

Order Code

LT-24WSL-LENS

Make

Lightronix Technology

Country of Origin

INDIA

Lighting Source & Type

SMD 3030 LED

Number of LED

24

OPTICAL PARAMETERS

Led Beam Angle

120 Degree

CRI (Color Rendering Index)

>80

LED Life Span

>60000 Hours

Color

White/Warm White/Cool White (As Per Order)

Color Temperature

2700-6500K(As Per Order)

Led Voltage/Current

6.2V/150mA

LED Make

Bridge lux/Osram

Optical Lens

Yes

Luminous Efficiency

140 Lm/W

Total Lumens

3360(±5%)

Optical Efficiency

>93%

Thermal Efficiency

>90%

ELECTRICAL PARAMETERS

Wide Input Voltage Range

90-310VAC(With Auto Cutoff)

Operating Frequency

50/60HZ

Power Consumption

24 Watt

Power Factor

>0.95

THD

<10%

Driver Surge Protection

4-6KV

External Surge Protection

10KV (As per Requirement)

Control Gear

Constant current LED Driver

Operating Temperature

-40 to 75°C

Max. Case Temperature

+90°C

Working Humidity

20~95% RH non-condensing

Driver thermal Protection

Yes

Electrical Efficiency

>90%

Supply Phase

Single Phase Supply

Over voltage Protection

440VAC Protection

Under voltage Protection

90VAC

Auto cutoff Voltage

Lower Side<90VAC & Higher Side>310VAC

PCB INFORMATION

PCB Thickness

1.6mm(±5% Tolerance)

PCB Material

Pure Aluminum-Copper

Copper Layer Thickness

Standard 0.35 Micron

Copper Conductivity

>1 Watt

PCB Size

110x60 mm
