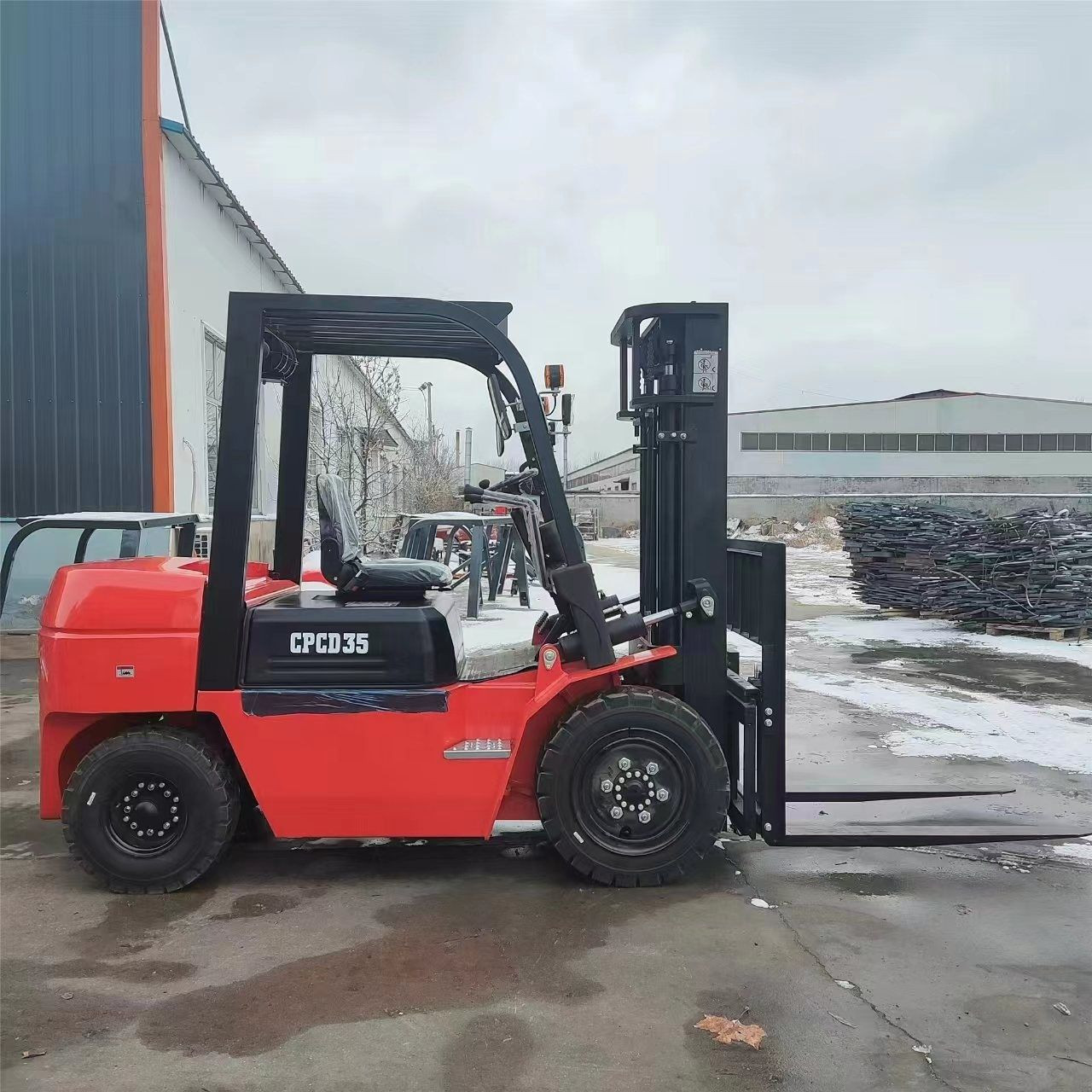

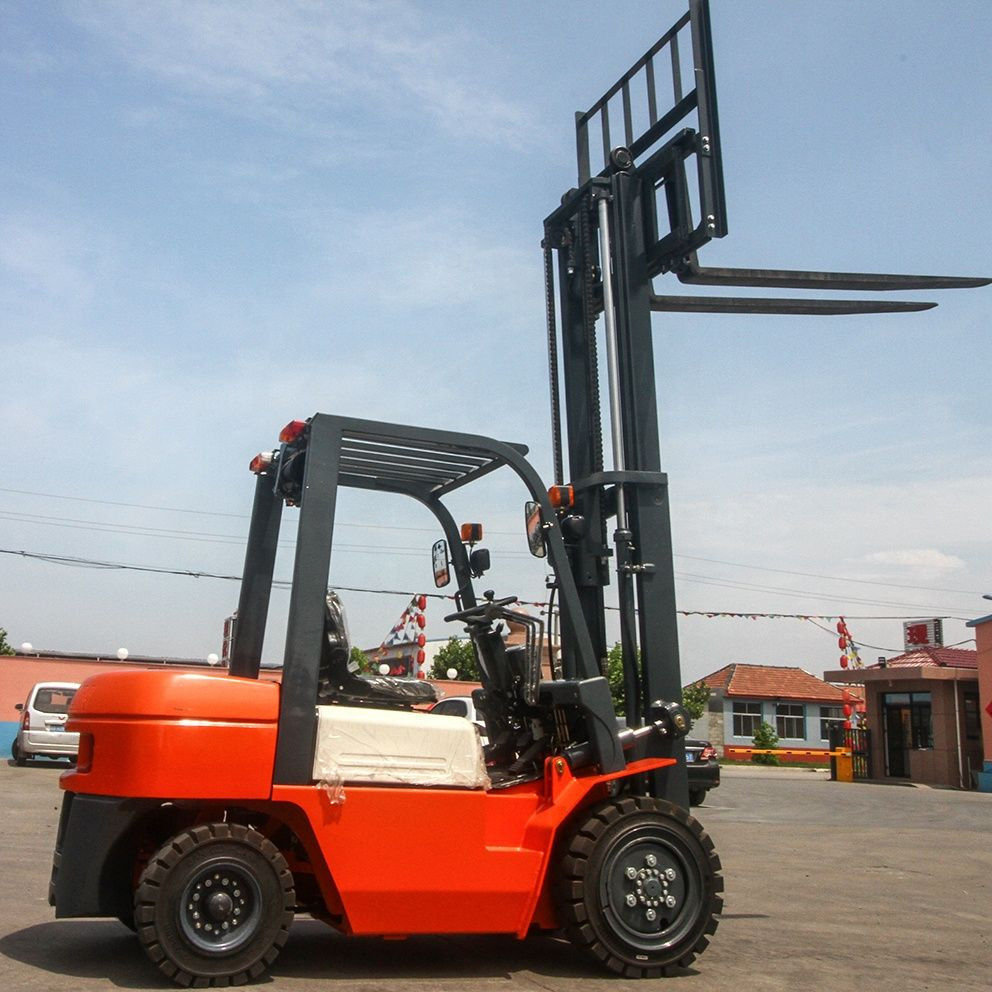

2023 Better Safety Reliability forklift 3 Ton 3.5 Ton Diesel/Electric/LPG Forklift factory sale electric forklifts

FOB Price 6618 - 6619 USD / 1 unit

Quantity	3 - 200
Price

MOQ	1 unit
Port	qingdao
Packaging	Fixed packaging or wooden box packaging
Lead Time	15-20

Contact Now

Product Details

specification		CPC20	CPC25	CPC30	CPC35	CPC40	CPC50	CPC60	CPC70	CPC80	CPC100
Load capacity	kg	2000	2500	3000	3500	4000	5000	6000	7000	8000	10000
Load center	mm	500	500	500	500	500	600	600	600	600	600
Fork dimension	mm	107012240	107012240	107012545	107012550	107015050	122015060	122015060	122015065	152017070	152017585
Mast tiliting angle	%	6/12	6/12	6/12	6/12	6/12	6/12	6/12	6/12	10/12	10/12
Min turning radius	mm	2220	2240	2400	2550	2710	3250	4120	4180	3755	4150
Overhead guard height	mm	2140	2140	2165	2165	2180	2500	2500	2500	2570	2570
Front overhang	mm	448	485	495	495	500	590	615	590	710	710
Max travel speed(full load)	km/h	19	19	19	19	19	24	23	22	26	26
Max traction power	KN	12.3	12.3	13.5	13.5	20	54	51.4	53	52	52
Max gradeability	%	20	20	20	20	20	35	20	20	20	20
Total length with fork	mm	3422	3646	3752	3763	4000	4690	4270	4810	5175	5497
Total length without fork	mm	2502	2576	2682	2693	2930	3510	3590	3680	3955	4277
Mast extende height	mm	4220	4220	4265	4265	4270	4400	4380	4420	4420	4420
Mast lowered height	mm	2060	2060	2060	2060	2190	2500	2500	2625	2840	2840
Wheelbase	mm	1600	1600	1700	1700	1900	2250	2250	2250	2800	2800
Tread(front/rear)	mm	970/970	970/970	1000/970	1000/970	1160/1065	1470/1700	1470/1700	1470/1700	1600/1700	1600/1700

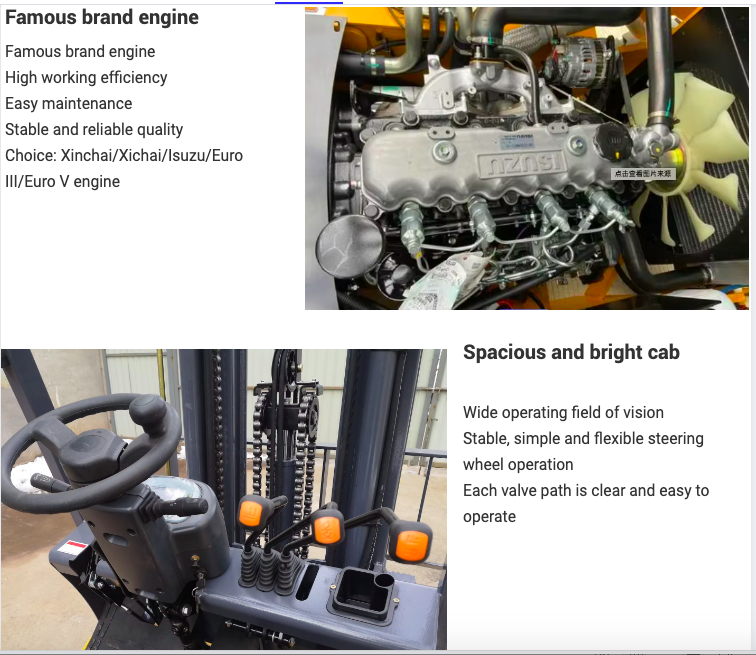

Engine		XINCHAI	XINCHAI	XINCHAI	XINCHAI	XINCHAI	XINCHAI	XICHAI	XICHAI	XICHAI	XICHAI
wha t	sa pp	86	150	9520	8091	please	add	me
Transmission		Mechanical/Hydraulic	Mechanical/Hydraulic	Mechanical/Hydraulic	Mechanical/Hydraulic	Mechanical/Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic
