1300/1600mm Width Sheet to Sheet Stainless Steel Grinding and Polishing Line for No. 4 Hairline Finish Surface

Contact Now

Quick Details (View All)

Model NO.	ADV 508	Condition	New
Voltage	380V	Application	Metal Sheet
Product Name	Adv 508 Stainless Steel Sheet Finishing Line	Polishing Method	Wet Grinding
Effective Processing Width	30-1600 mm	Processing Thickness	0.5-60 mm
Belt Size	2200*1620 mm	Roller Brush Size	3001650 mm(DiameterLength)
Conveying Speed	0.5-5m/Min Frequency Control	Pump Motor Power	1.1 Kw
Grinding Head Quantity	1 to 4 Heads	Transport Package	Wooden Packaging
Specification	9000kg	Trademark	ADV
Origin	China	HS Code	8460902000
Production Capacity	10 Sets/Month

Product Details

Product Description

Company Info.

Overview
Product Parameters
Product Description
Application industry
Why choose us!
Company Profile
Exhibition
FQA

Product Description

No	Item	Specification
1	Model	ADV 508
2	Effective processing width	30-1600 mm
3	Processing thickness	0.5-60 mm
4	Belt size	2200*1620 mm
5	Roller brush size	3001650 mm(diameterlength)
6	Conveying speed	0.5-5m/min frequency control
7	Total power	120 kw(Determined according to product max width and grinding head station)

Tips:Sheet Metal Polishing Finishing Machine With Cleaning Dryer Line

1.The ADV 508 wet grinding series could be equipped with the powerful abrasive belt head and the brush head and therefore it is the ideal machine for grinding and finishing stainless steel and sheet metal.

2.This complete machine has an integrated coolant filter system to cool the metal products during machining. This ensures that the abrasive belts service life is extended.
3.The wet-working system uses filter paper to filter the coolant before it is recirculated. An integrated cleaning & drying machine dries the metal products while they are exiting the machine.
4.The standard available width is 630mm, 1000mm, 1300mm, 1600mm, or customized.
5.The equipment can complete large burr rough grinding and surface brushed at one time. It is used for large surface sanding treatment to remove scratches and make the surface uniform, which can remove the oxide layer on the surface of the workpiece powerfully.

Working Process

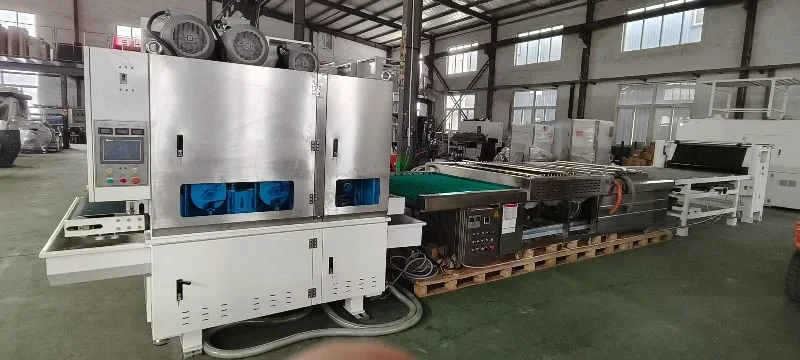

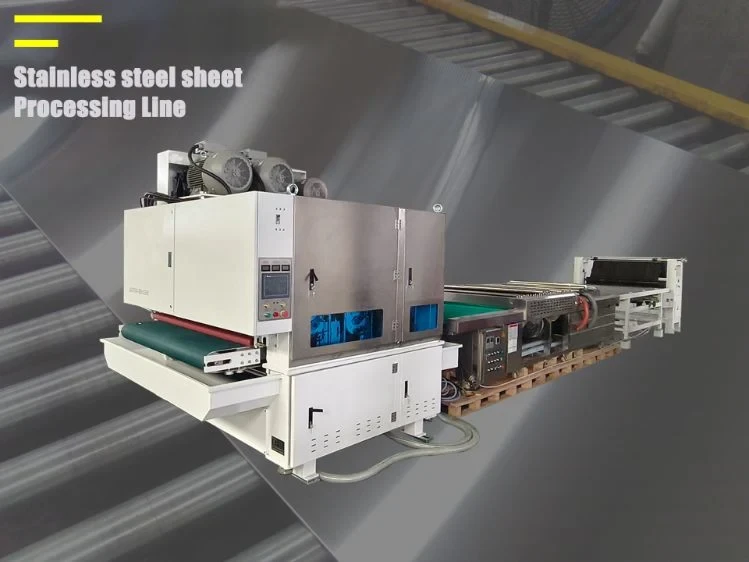

The stainless steel sheet polishing production line is mainly composed of wet metal sanding machine, washing and drying machine, lamination machine.

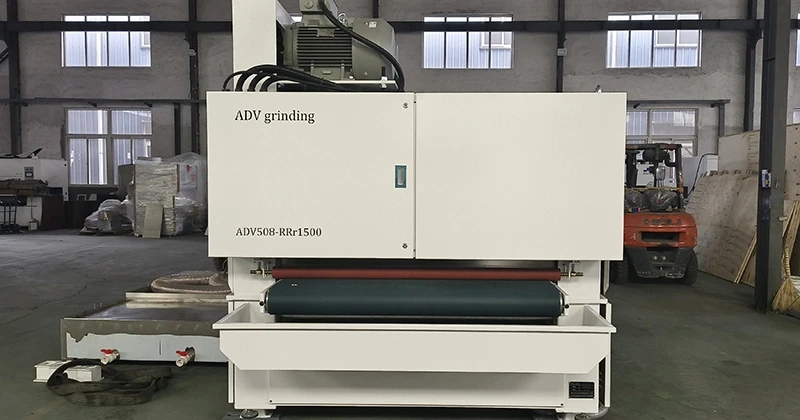

Wet metal sanding machine

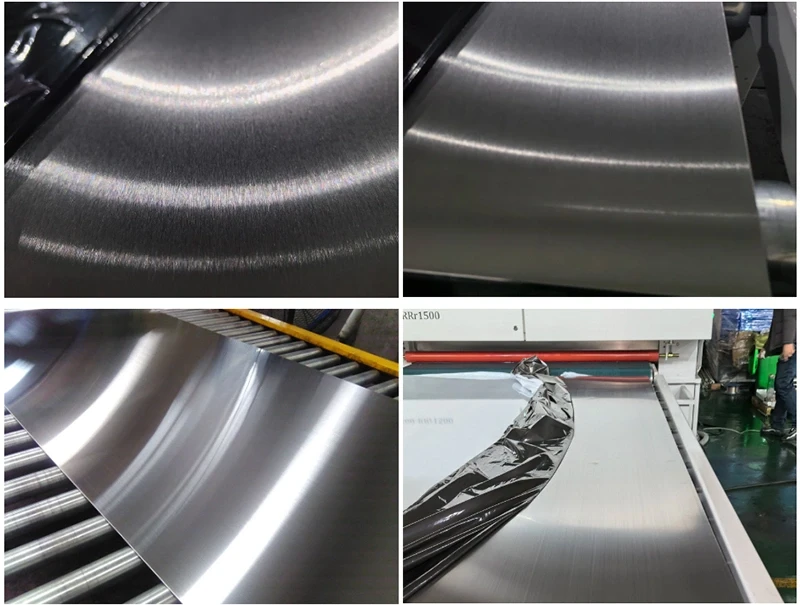

The ADV 508 wet grinding series is the ultimate machine for fast and efficient deburring and finishing, No. 3, No.4, SB, Hairline finish can be achieved.The machine can be easily operated thanks to a clear PLC touch screen panel. Ask our experts for more information.

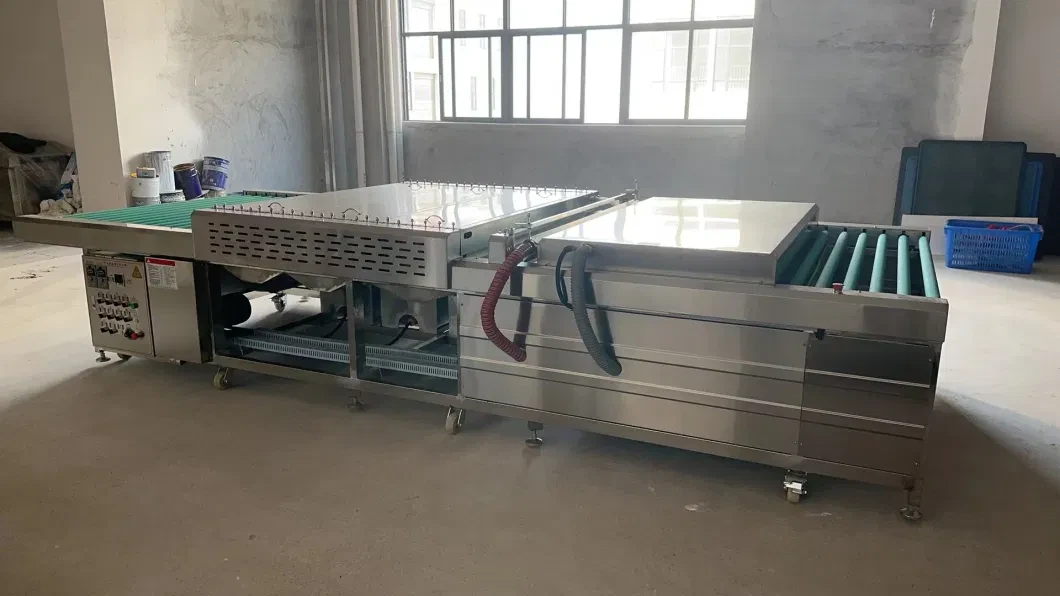

High pressure water jet cleaning & drying machine

It adopts special rolling type 6 pairs of upper and lower brushes for cleaning, strong absorbent cotton swabs for dehydration, high temperature drying device,one step for cleaning,rinsing and drying.

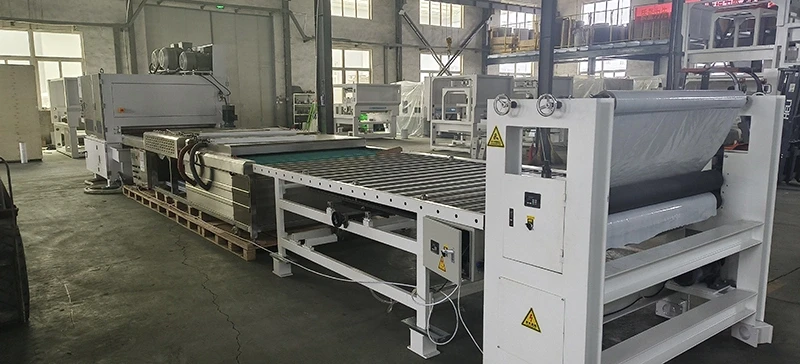

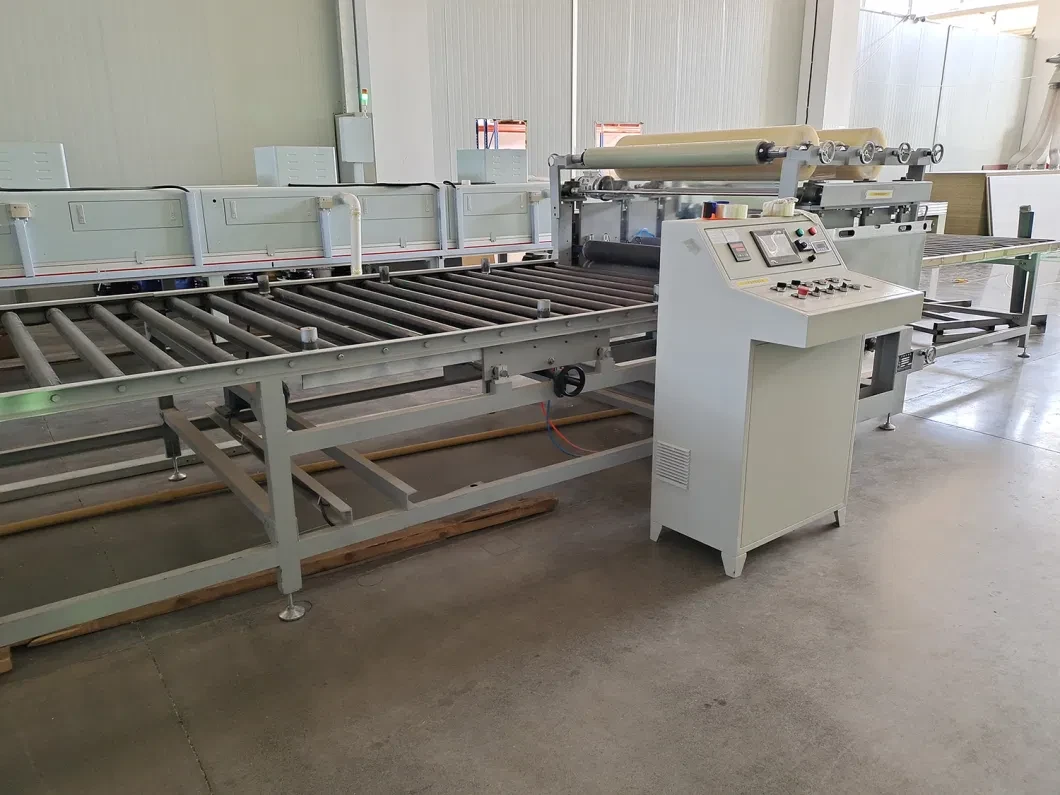

Film lamination machine

The laminating machines are designed to cover with a plastic film on a finished product surface in order to protect it from dust, scratches and damages that can occur during handling and forming operations.

ADV 508 Sheet Metal Polishing Finishing Machine with Cleaning Dryer Line are widely used in manufacture Billboard, Signs, Advertising, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.

What kind of support you can get from ADV GRINDING?

1.3 year warranty, provide a full range of technical support for life.

2.From monday to sunday 9am to 22pm.Experienced technician to guarantee lifetime online support(by whatsapp /skyper /wechat/email).So there is no need to worry about technical support due to time difference.
3.Support local after-sales service. up to 2021, we have offered onsite to these countries and areas: Canada, Mexico, the United States, Ukraine, Russia, Italy, Poland, Spain, Brazil, Indonesia, India, Turkey, Thailand, Vietnam, Australia,etc.

* About Anhui Advanced Grinding Tools Co., Ltd.

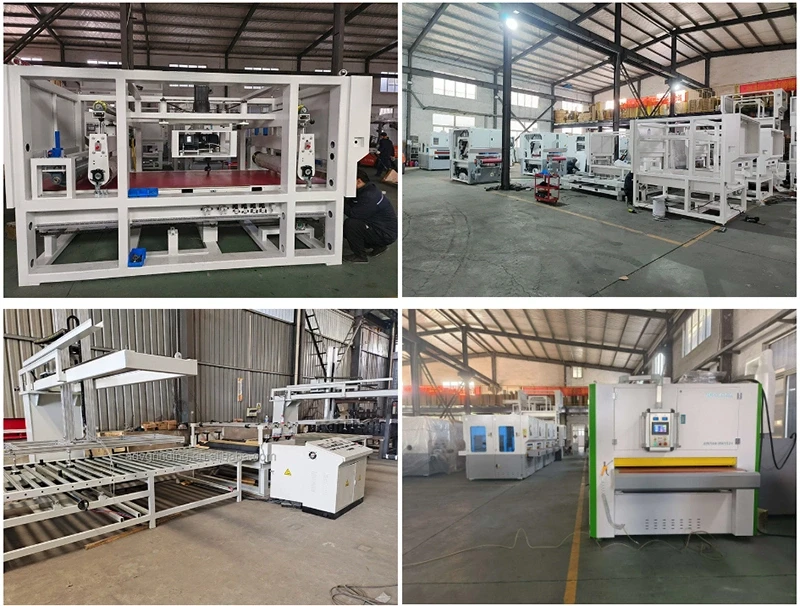

It is established in 2002, owns more than 400 square meters of researching and office space, more than 20000 square meters factory. All machines , passed the European Union CE authentication.

Anhui Advanced Grinding Tools Company has been adhering to the concept of excellent quality and reasonable price. We are committed to optimize the supply chain, strictly control the quality, supervise the production and debugging process of machines, and ensure the delivery of high-quality products to customers. In addition, we have experienced sales and service personnel to provide customers with high-quality pre-sale, after-sales and technical support services. The company actively explore foreign markets, advocate the business philosophy of integrity management, promote the development of customers is our driving force. Our products are exported to Europe, America and Southeast Asia.

Q: Do you have CE certification and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service. At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.

Q: If we are interested in your machine, how do we choose?
A: Please tell us your product information and polishing process, then we can recommend the suitable machine to you.

Q: How about warranty?
A: 2 years quality guaranty. Lifetime technical support and consumables at the lowest price.

Q: Do you have after sales support?
A: Yes, we have rich experience in handling after-sales issues via video or email. Meanwhile the engineers are available to service overseas. We have agents in different countries too if you want local service or sample testing.
