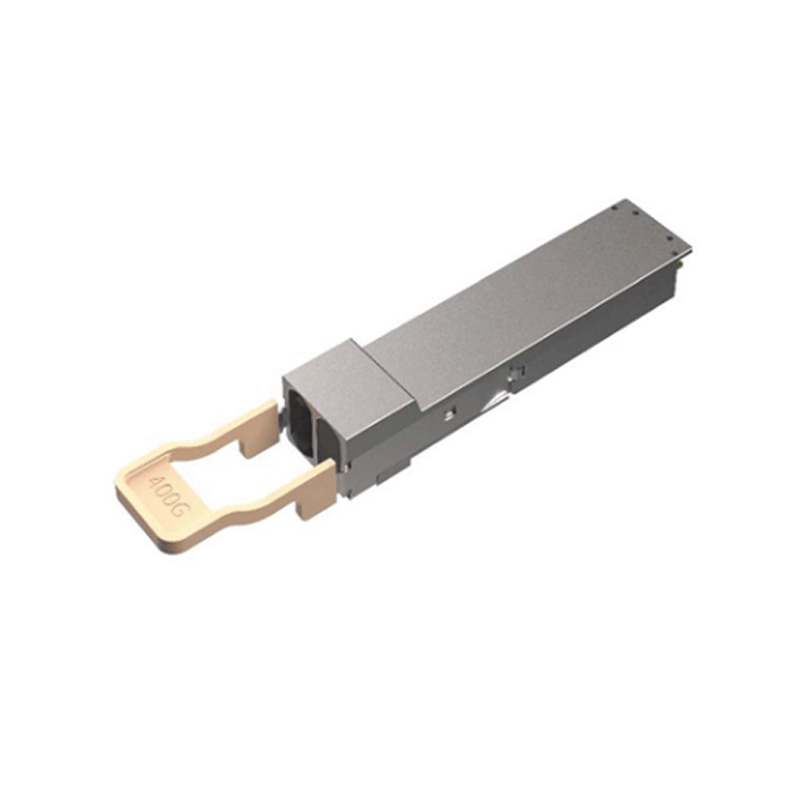

Wholesale 400G-SR4 OSFP 100G-PAM4 400Gb/s 850nm up to 60m MMF/MPO-12 APC OM3 FEC Single port Optical Transceiver Module

Name: Wholesale 400G-SR4 OSFP 100G-PAM4 400Gb/s 850nm up to 60m MMF/MPO-12 APC OM3 FEC Single port Optical Transceiver Module
Brand: Golden Time Trading Limited
SKU: Tradewheel_2768567
Price: 885 USD
Availability: InStock

FOB Price 885 - 885 USD / pieces

Contact Now

Quick Details (View All)

Model Number	400G-SR4 OSFP Transceiver	Type	Fiber Optic Transceivers
Place of Origin	Guangdong, China	Brand Name	OEM
Use	Data centers and Cloud Networks	Warranty Time	3 year
Network	Ethernet	FiberMall P/N	400G-SR4 OSFP
Form Factor	OSFP	Data Rate(Gbit/s)	400G
Wavelength	850nm	TX	850nm VCSEL
TX_Max (dBm)	4	TX_Min (dBm)	-4.6
RX_Max (dBm)	4	RX_Min (dBm)	-6.3
Power Consumption (W)	8.5W with 4 channels and 6.5W with 2 chann

Product Details

Product Description

Wholesale High quality 400G-SR4 OSFP 100G-PAM4 400Gb/s 850nm up to 60m MMF/MPO-12 APC OM3 FEC Single port Optical Transceiver Module

Product Name	400G-SR4 OSFP Optical Transceiver Module
FiberMall P/N	400G-SR4 OSFP Trans
Form Factor	OSFP
Data Rate(Gbit/s)	400G
Wavelength	850nm
Max Distance	60m on OM3/100m on OM4
Connector	MPO-12
Transmitter Type	850nm VCSEL
Receiver Type	PIN
TX Power	-4.6~+4.0dBm
RX Power	-6.3~+4.0dBm
Voltage Supply	3.3V
Maximum Power	6W
Reach	100m
Operation Temperature	0 to 70°C (32 to 158°F)
