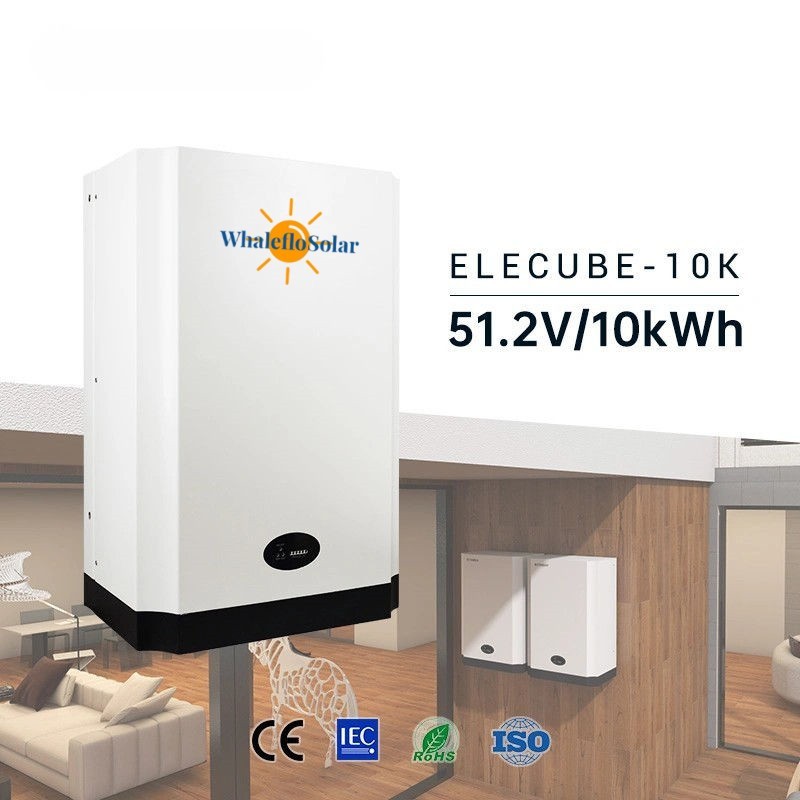

Whaleflo Solar Whaleflo Solar 200Ah 48V Lifepo4 Lithium Powerwall For Solar System
48V Powerwall Storage Batteries Description
1.Lithium
iron phosphate batteries are highly safe, have a service life
of up to ten years, and have high power
2.Multiple battery
modules can be connected in parallel to expand capacity and
power.
3.Compatible with
multi - brand inverter communication.Growatt, Deye, Must,
Bluesun, Megarevo, Sorotec and etc.

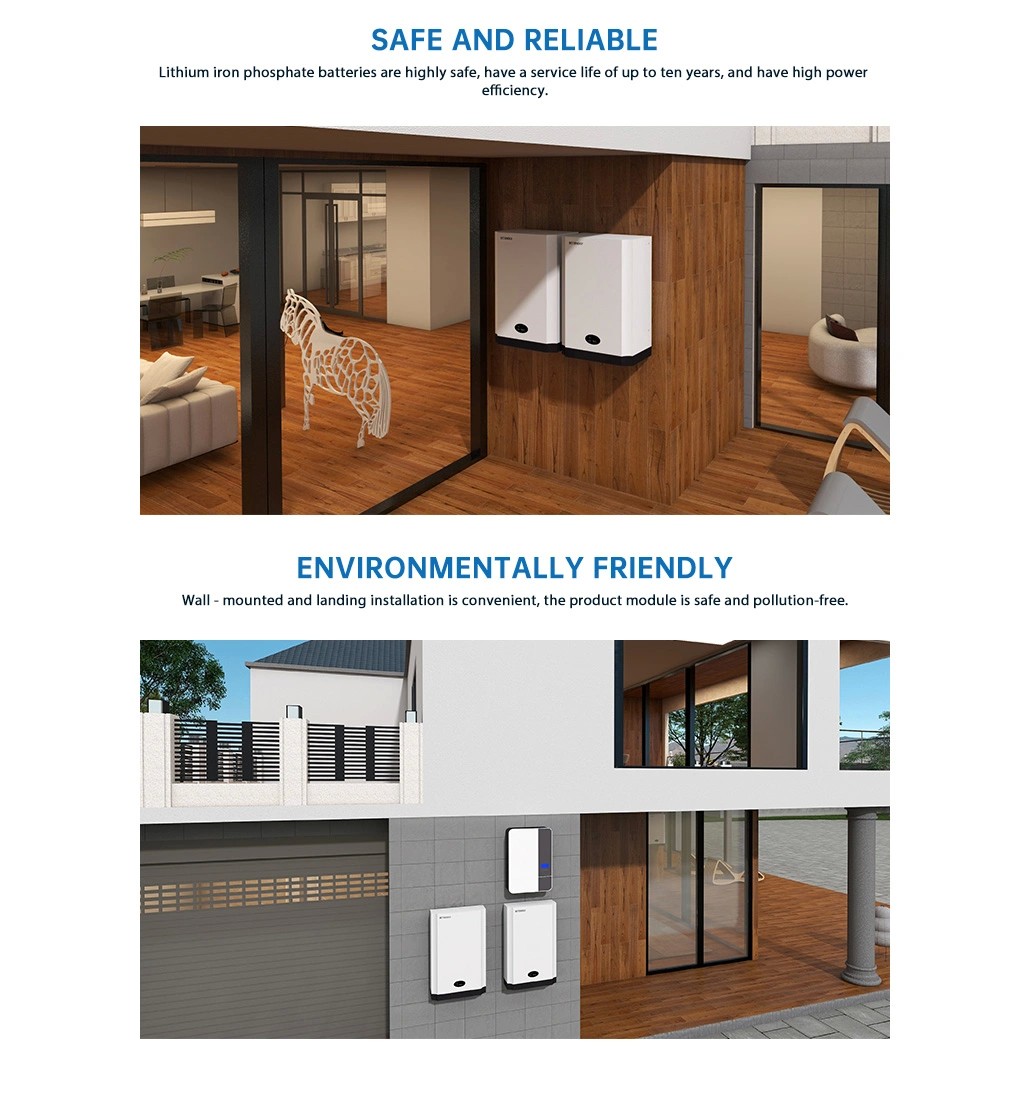

Wall-hanging and landing installation is convenient, the product module is safe and pollution-free
Nominal
Energy Capacity:10200 Wh
Nominal
Voltage:51.2 V
Dimensions
(H*W*D):871.1 * 509* 133mm
Cycle
Life (80% DoD @25℃):≥6000
Communication
Port:RS232 / RS485 / CAN
Warranty:5/10
Years
|
Datesheet
|

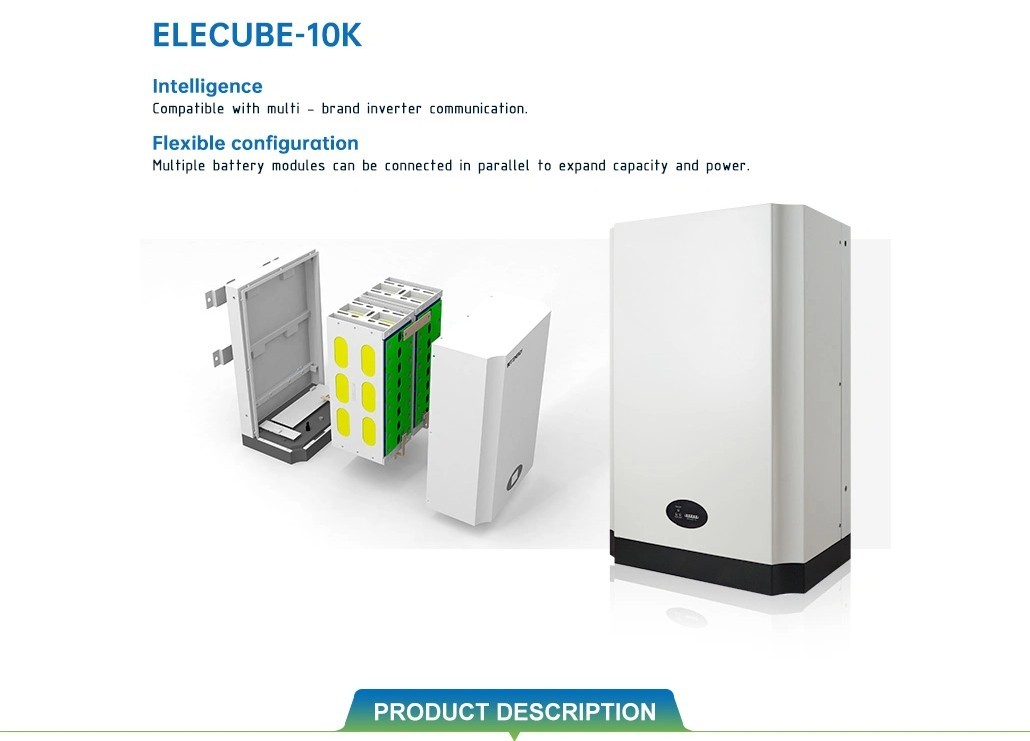

ELECUBE-10K
|
|
Dimensions(L*W*H)
|
871.1 * 509*
133mm
|
|
Weight(Kgs)
|
95
|
|
IP Protection
|
IP65
|
|
Operating Temperature
|
0 to 55ºC/0 to 131ºF
|
|
Storage Temperature
|
-40 to 60ºC/-104 to 140ºF
|
|
Cycle Life(80% DOD@25ºC)
|
>6000
|
|
Operating Life(Years)
|
10
|
|
Communication Port
|
RS232/RS485/CAN
|
|
Operating Altitude(m)
|
<3000
|
|
Humidity Conditions(%)
|
5% to 95%
|
|
Warranty(Years)
|
10 Years
|
|
Istallation
|
Ground Mounted/Wall-Hanging
|
|
Specification
|
|
|
Nominal Energy Capacity(Wh)
|
5120
|
|
Nominal Voltage(V)
|
51.2
|
|
Operating Voltage Range
|
48-57
|
|
Max Charge Current(A)
|
50
|
|
Max Discharge Current(A)
|
50
|
|
Continuous Charging Current(A)
|
50
|
|
Continuous Discharging Current(A)
|
50
|
|
Depth Of Discharge(%)
|
80
|
|
Battery Cell Material
|
Lithium(LifePO4)
|
|
Certification
|
UN38.3 / CE-EMC / CE-LVD / IEC62619 / MSDS / ROHS
|
