Veterinary Use Ultrasonic Soft Tissue Cutting System Ultrasonic Scalpel for Vesel Sealing

Name: Veterinary Use Ultrasonic Soft Tissue Cutting System Ultrasonic Scalpel for Vesel Sealing
Brand: VetMED Tech Co., Ltd.
SKU: Tradewheel_2670541
Price: 2800 USD
Availability: InStock

FOB Price 2800 - 4199 USD / sets

Contact Now

Quick Details (View All)

Place of Origin	Hebei, China	Brand Name	VetMED
Model Number	VM-ZSG9	Properties	Diagnosis & Injection
Application	Soft Tissue Cutting and Vesel Sealing

Product Details

Product Description

Working Theory of Ultrasonic Scalpel

Ultrasonic Scalpel consists of main components such as generator, handles, scalpel, which converts the high frequency electrical energy provided by the host generator into ultrasonic mechanical vibration energy, and transmits it to the cutter head while transmitting ultrasonic energy to perform hemostatic cutting or coagulation of the tissue. The vibration frequency of the cutter head about 55.6 Khz.

High power ultrasonic waves can vaporize moisture in tissue cells in contact with the blade in an instant, break protein hydrogen bonds, disintegrate cells, and cut the tissue. The frictional heat caused mechanical vibration can coagulate and stop bleeding while cutting the tissue.

The ultrasonic blade has two blades, one blade is the working blade that applies ultrasonic waves, the other blade has a white toothed pad. The purpose of this white plate is to better hold the tissue and enhance the coagulation effect.

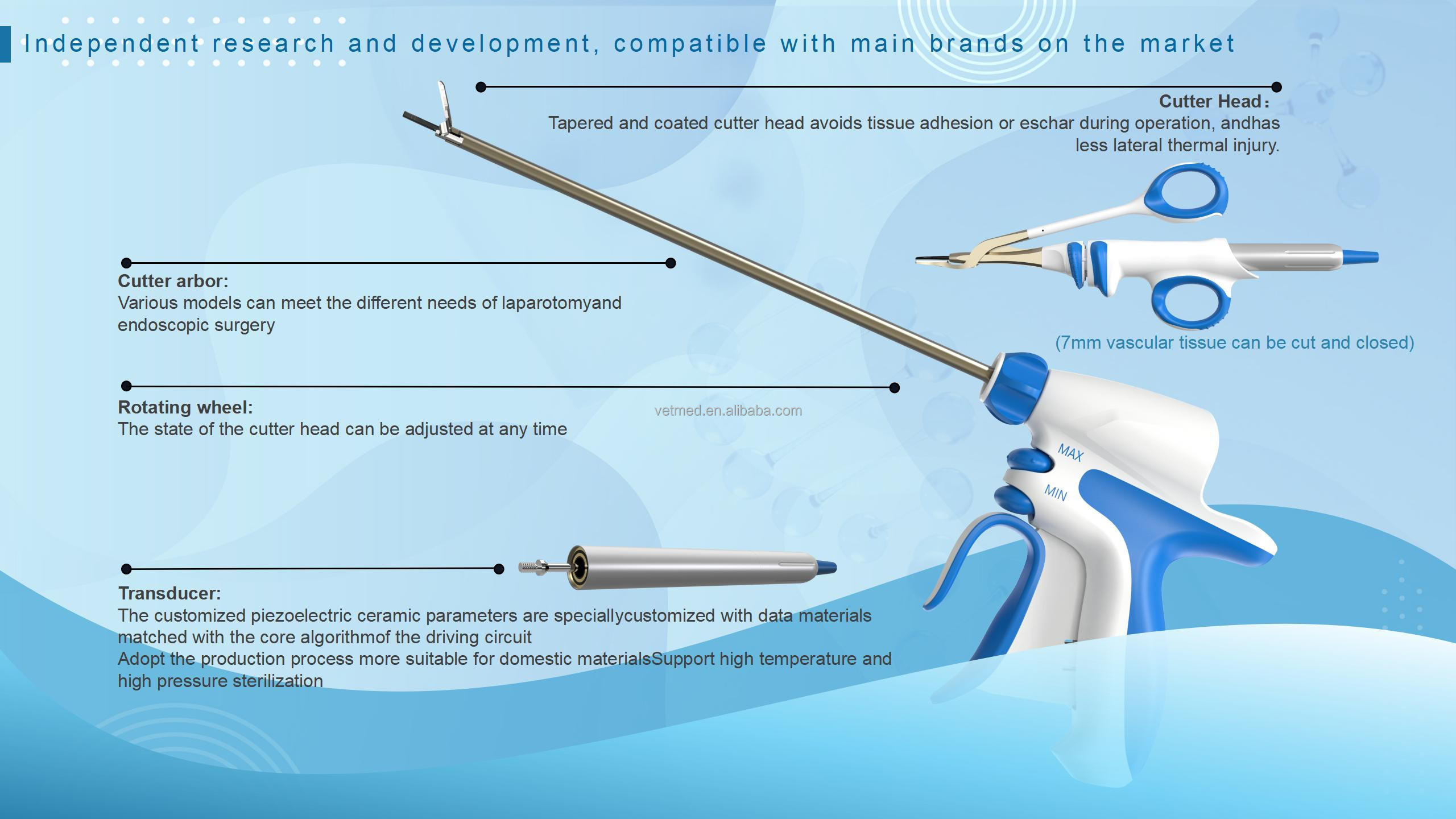

Features and Advantages

Feature of Scalpels

1. Independent research and development, compatible with main brands of generator on the market;

2. Tapered and coated cut head avoids tissue

adhension or eschar, minimum lateral thermal injury;

3. Different length of scalpels which provide to meet laparotomy and endoscopic surgery requirement;

4. Scissor type scalpel can cut and seal 7 mm vesel at maximum size

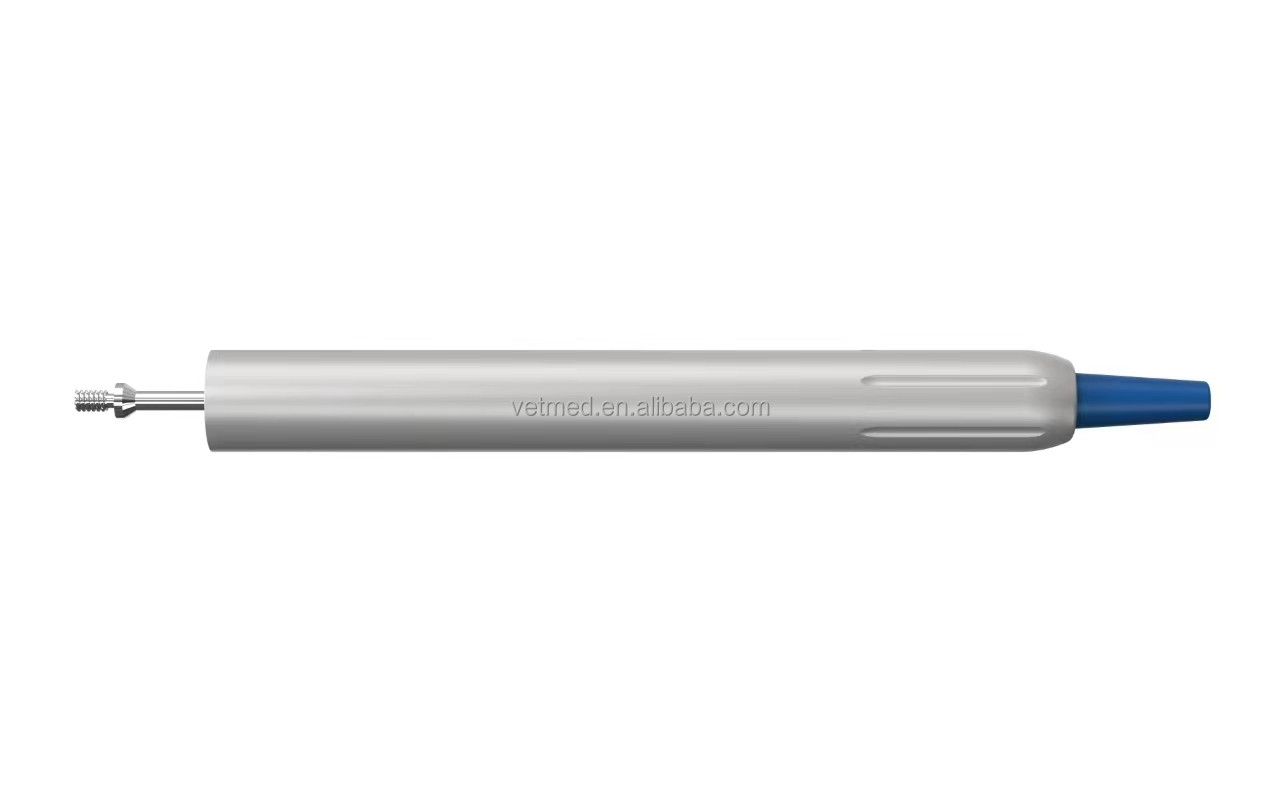

Feature of Driving Shank

The customized piezoelectric ceramic parameters are specially custmized with date materials matched with the core algorithm of driving circuit

Specifications

Model No.	Description
VM-ZSG9	Generator
SHP116	Driving Shank
ZSRE-136	36 cm scalpel
ZSRE-123	23 cm scalpel
ZSRE-114	14 cm scalpel
SHP-116	Driving Shank
SIB19	Straight Scalpel
SID19	Angled Scalpel
	Foot Pedal

Company Profile

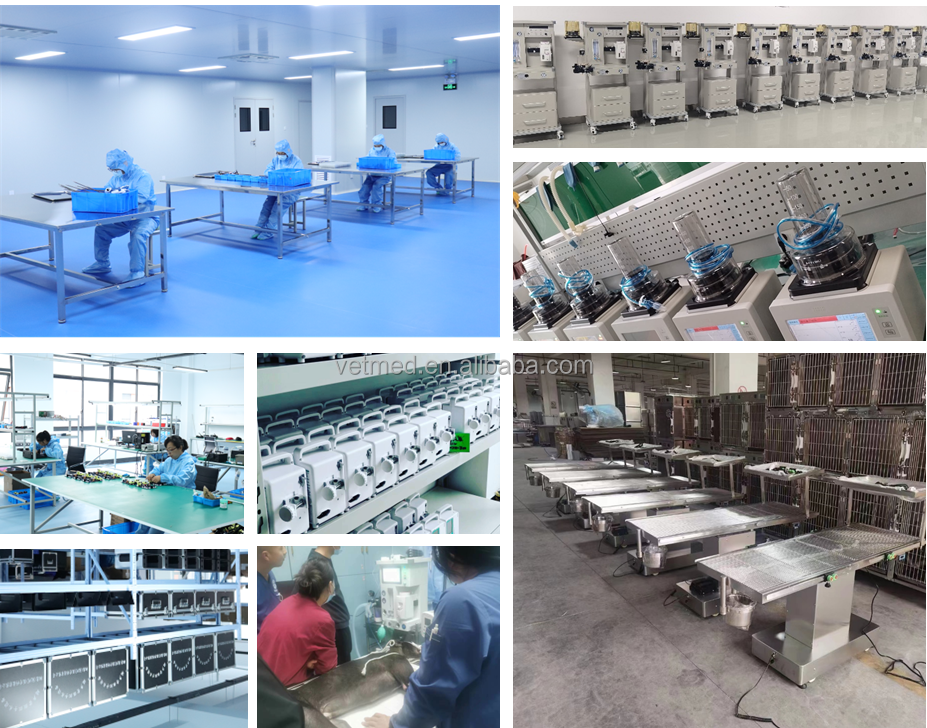

VetMED Tech Co., Ltd, registered at No. 1-4480 of Enterpise Center, Tongzhou District, Beijing, China, is a veterinary medical equipment manufacturer since 2012. We started our business from manufacturering and selling veterinary anesthesia machines on domestic market. After years experience accumulation, we product line was enlarge step by step.

Bases on one sales center and three production bases for different product lines, VetMED provides veterinary medical equpment, veterinary hospital integration solution, petcare and rehabiliation solution on home and international market. We are constantly upgrading our business modes to better serve our customers better.

Presently, our machines are used by doctors from countries and areas, such as Thailand, Turkey, Peru, Chile, Mexico, Russia, Malaysia, Indonesia, Japan and etc.

We will persist on developing and providing more and more reliable and affortable veterinary medical equipment to veterinnary surgeons all over the world.
