U10 Drone Based Remote laser methane leakage detector

FOB Price 40000 - 50000 USD / 4000

Quantity	1 - 20
Price	40000

Port	Qingdao
Packaging	carton box
Lead Time	5

Contact Now

Quick Details (View All)

Model	U10	Gas	CH4
Distance	Max 150m	Concentration	0-100,000 ppm•m
warranty	12 months

Product Details

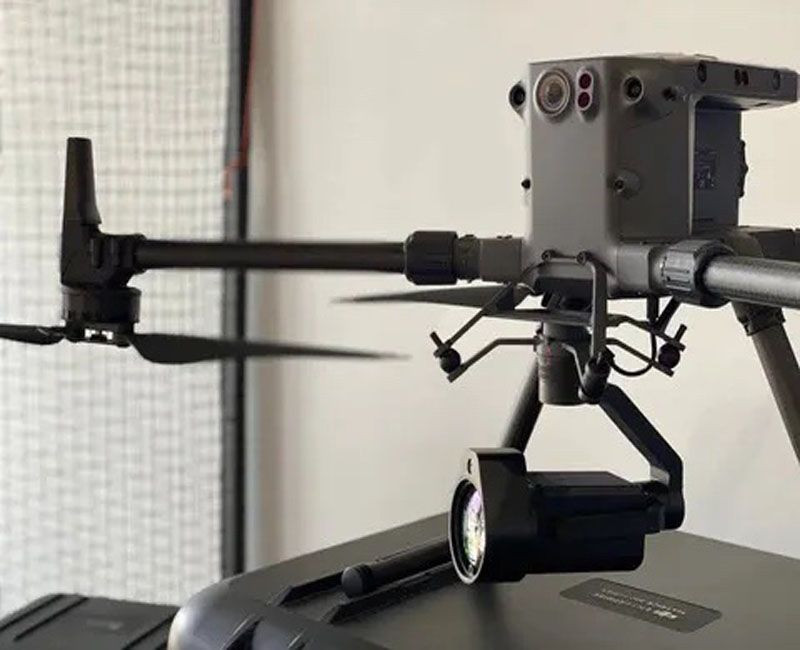

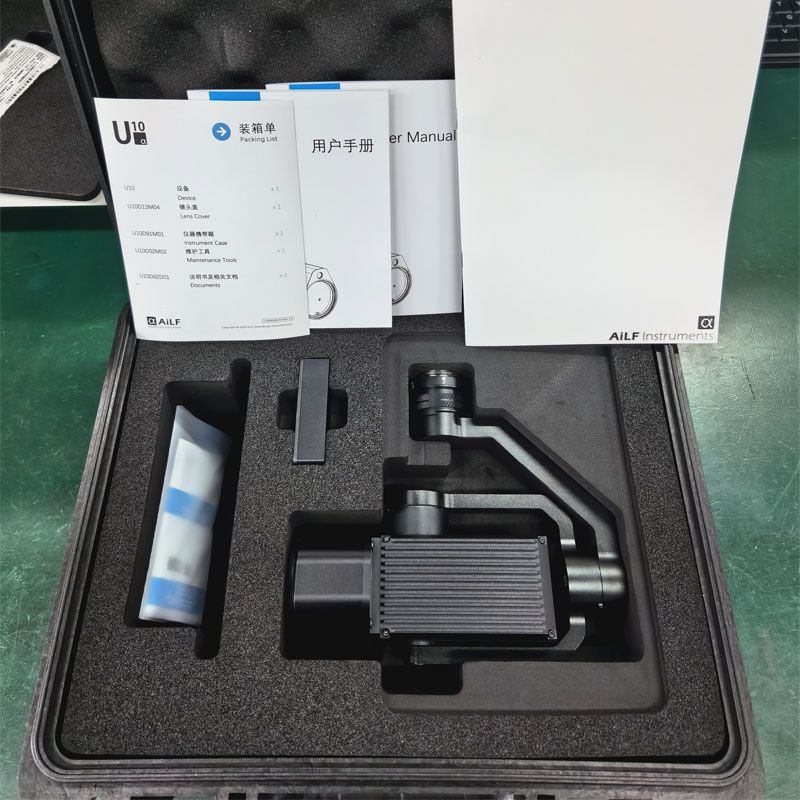

M300 Compatible AiLF U10 UAV Based Laser Methane Pipeline Leakage Detector

UAV based laser methane leakage detector(U10) is a gas detection device for remotely measuring methane gas using a drone as a carrier.The device emits a laser,an invisible infrared laser that measures the concentration per unit(ppm.m) of methane gas present at a long distance.

Light Weight

The extremely lightweight design, meets the requirements of the "Interim Regulations on the Flight Management of UAV" with the carrier drone, and can perform tasks in airspace below 120m without application of flight.

Highly- Automated

It supports two automatic inspection modes of area scanning and route inspection, and can import KML files to GIS routes to generate inspection tasks. On-site selection allows for leak scanning in villages or stations.

Highly - Open

It supports exporting inspection reports and event records through the app, and the SD card is used to store inspection videos and logs. System integration services are provided to transmit inspection data and on-site videos to customer's information platform.

Model	U10	Detection Subject	Methane (CH4)
Measuring Principle	Laser Absorption Spectrum	Detection Laser Class	Class I Eye Safe
Resolution	3 ppm · m	Indication Laser Class	Class IIIR No direct sight or instrument observation
Response Time	0.025s	Operating Temperature	-20 ~ 50 ºC
Maximum Detection Distance	150m	Operaing Humidity	<98%RH, no condensation
Concentration Range	0~50,000 ppm·m	Main Unit Dimension	174 × 89 × 163 mm
Compatible with UAV Model	DJI M350 Series	Main Unit Weight	0.7kg

Application
The drone-based laser methane detector is widely used in the following fields:

Urban Gas Distribution Pipelines:
Detects leaks in gas pipelines to ensure the safety of urban gas supply.
Petroleum and Petrochemical Industries:
Detects methane gas concentrations in refineries, chemical plants, etc., to prevent explosions and other accidents.
Metallurgical and Power Industries:
Detects gas leaks in locations where leaks may occur, ensuring production safety.
Environmental Monitoring:
Monitors methane concentrations in the atmosphere to assess environmental quality and pollution levels.
Other Complex Environments: Inspects pipelines in landfill sites, complex terrain areas, etc.
