Triple Eccentric DN600 Stainless Steel Butterfly Valve From CE Supplier

Overview

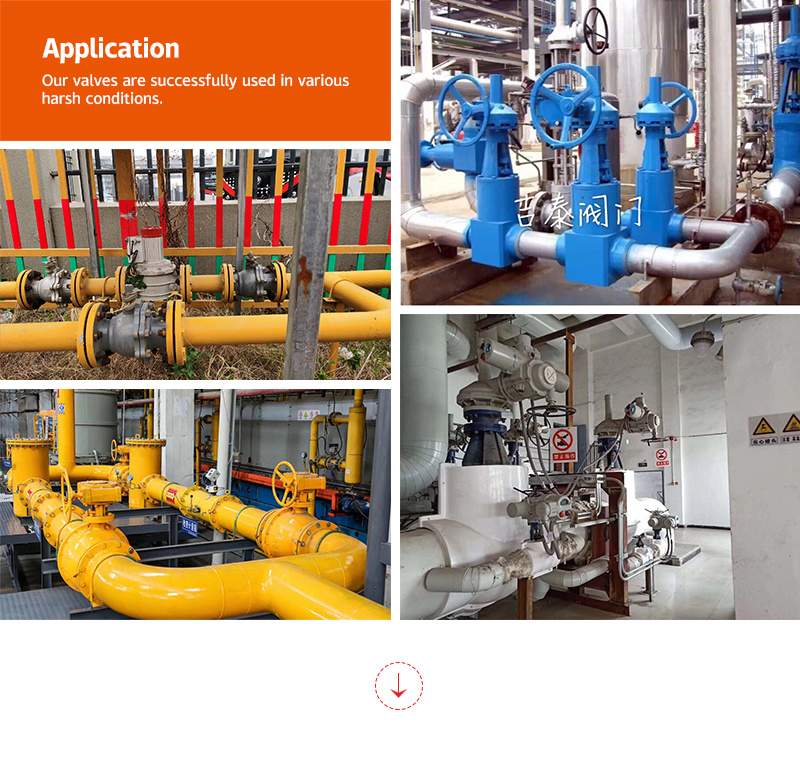

This valve uses triple eccentric configuration with laminated metal seat to apply in wide sectors, such as power plant, oil & gas, petrochemical, water drainage.


Features

• Laminated metal and graphite seat in disc boosts the superior performance in extreme conditions;

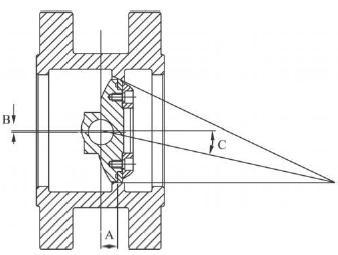

• Triple eccentric structure frees the valve from abrasion and friction between seat and disc when the valve closes;
• The seat of body can be overlaid with hard alloy to endure over 100000 times of cycling life;
• Bi-directional performance can be achieved after our optimization.


Scope



Nominal size	2"~48"(DN50~DN1200)
Nominal pressure	Class 150~Class 900(PN10~PN160)
Standard:	ASME B16.34, API609,EN593
Body material	Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel
End connection	BW, RTJ, RF,
Operation	Manual, Pneumatic, Electric, Hydraulic

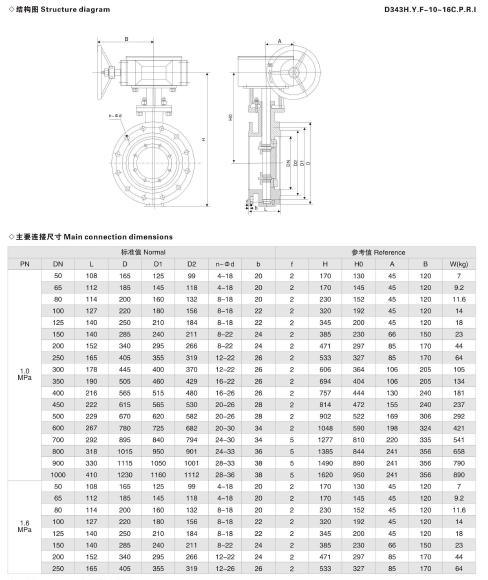

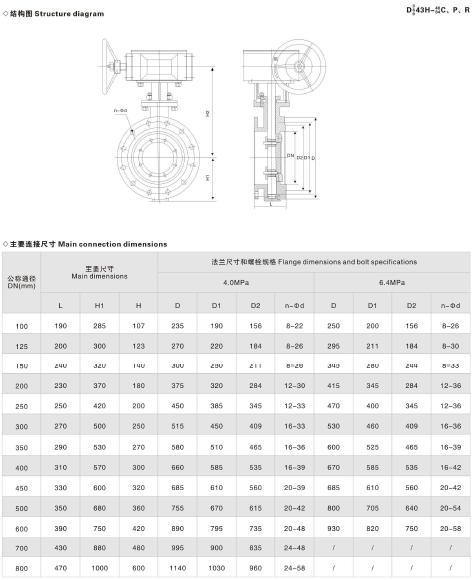

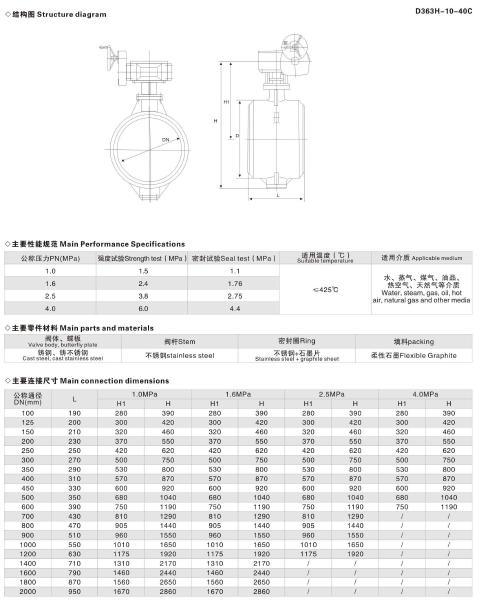

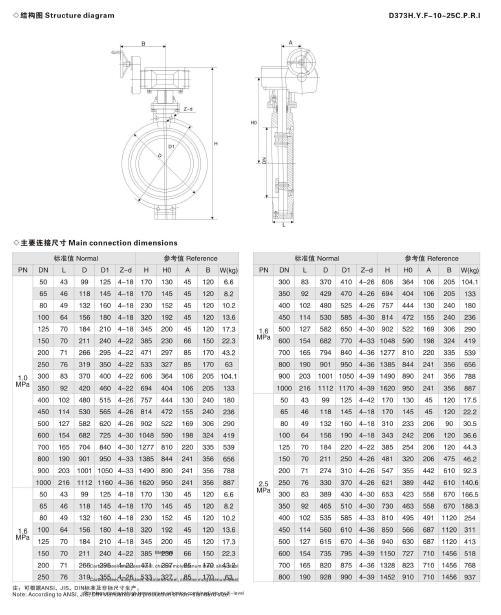

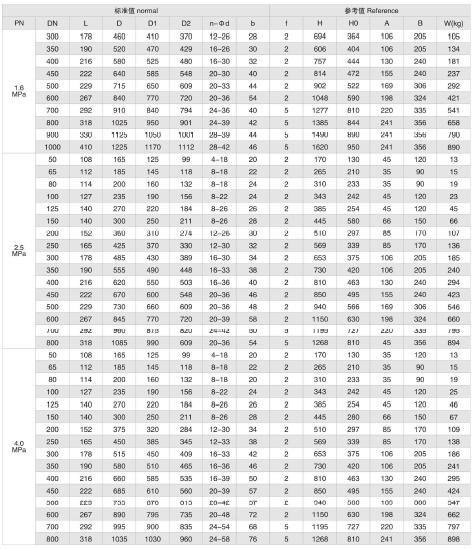

Product Parameters




Company Profile

Jitai Valve Group is a genuine valve manufacturer.
• 7000-sqm factory
• 100 employees
• 5+ senior engineers
• 30+ design patents
• 2 million sets of valves delivered
• 20 million USD annual revenue
Since 1988, we have been expert in manufacturing a wide scope of industrial valves including:
• Gate valves
• Globe valves
• Check valves
• Ball valves
• Butterfly valves
• API valves
• Steam valves
• High pressure valves
• High temperature valves
• Power Plant valves
Our Advantages
• Heavy-duty valve expert with proven expertise in harsh environment;
• Stringent quality control and traceable reports to provide zero-defect products;
• Rugged and durable configuration according to API, ASME, BS, JIS, EN standards;
• All kinds of UG, PRO/E, Solidworks software simulations ensure the efficiency and robustness for tailored components;

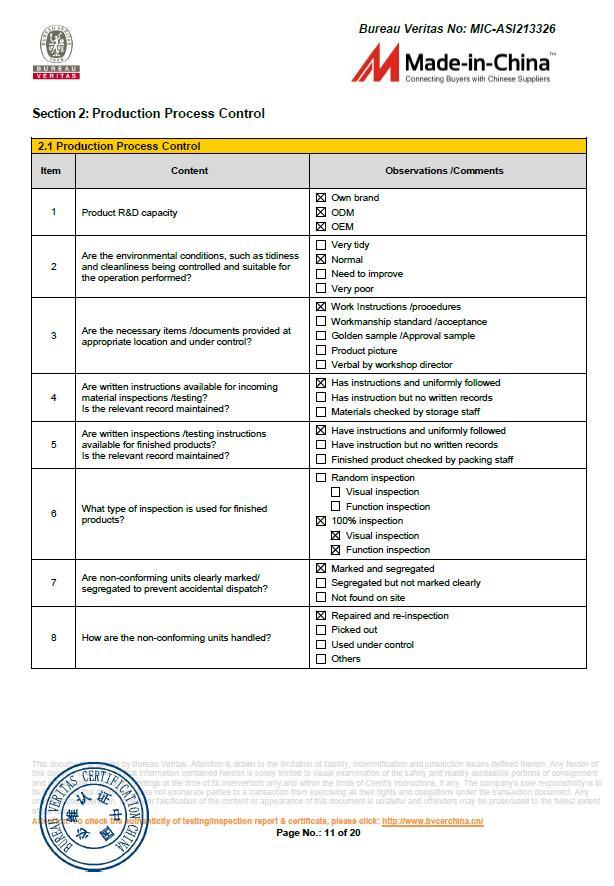

• Complete BV report can be downloaded on our page About us .

FAQ


1.Q:Are you are a trading company or manufacturer?
A:We are a manufacturer with 7000-sqm factory and 100 employees.

2.Q: Can you provide the assembly drawing for confirmation ?
A: Yes, we can give the relavant drawing within 24 hours.

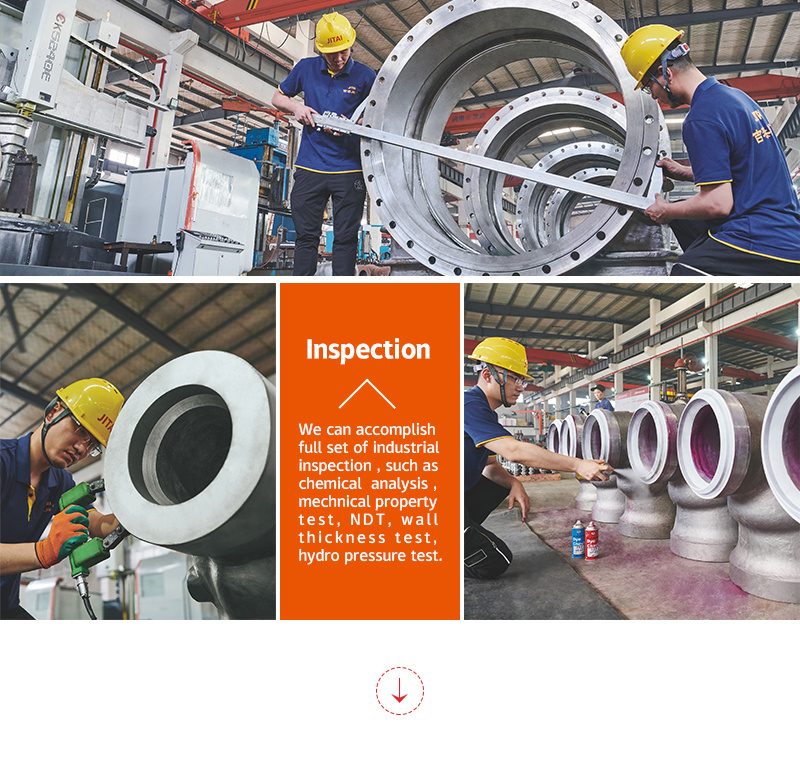

3.Q: Can you do non destructive test for valve components ?
A: Yes, we can perform radiographic testing, penetration testing, ultrasonic testing, magnetic particle testing, etc

4.Q: How can I vist you when I am in China?
A: We are near the Wenzhou Airport. If you take a plane, it takes 2 hours to reach our factory from Shanghai, 2 hours from Guangzhou, 3 hours from Beijing.

5.Q: Can we take sample for quality check?
A: Definitely. You can advise the model number and we will prepare the sample within 7 days.

6.Q: How can I become your distributor or agent?
A: You can send your company profile and reference list to our sales manager.

7.Q: Can you help with site maintenance and commissioning?
A: Yes, we are glad to offer our assistance whenever you need it. We can send our after sales team to address the issue within 14 days
