Product Details
Product Overview & Positioning
The
SMOK Arco Digi PRO is a low-profile, refillable pod
system designed for the open-system vaporization market. It
serves as a mid-tier variable wattage device positioned for
clients seeking a balance between a digital user interface and
compact hardware geometry.
The device features a standard pen-and-box hybrid shape,
utilizing an integrated aluminum-alloy/polycarbonate chassis that
houses a proprietary digital chipset.
It is engineered for compliance across global commercial markets,
offering dual activation capabilities for both standard nicotine
salts and low-viscosity freebase e-liquids.
Complete Hardware Specifications
|
Specification Category
|
Technical Parameters & Verified Metrics
|
|
Product Dimensions
|
118.2 mm × 24.4 mm × 14.0 mm
|
|
Net Device Weight
|
50.5 grams (± 1g)
|
|
Chassis Composition
|
High-Grade Polycarbonate (PC) + Acrylonitrile Butadiene
Styrene (ABS)
|
|
Power Output Range
|
5.0 Watts – 30.0 Watts (Adjustable in 1.0W
Increments)
|
|
Supported Resistance Range
|
0.4 Ω – 2.5 Ω
|
|
Input Operational Voltage
|
3.3 V – 4.2 V
|
|
Output Target Voltage
|
Maximum 4.25 V
|
|
Standby Current Consumption
|
< 50 uA
|
|

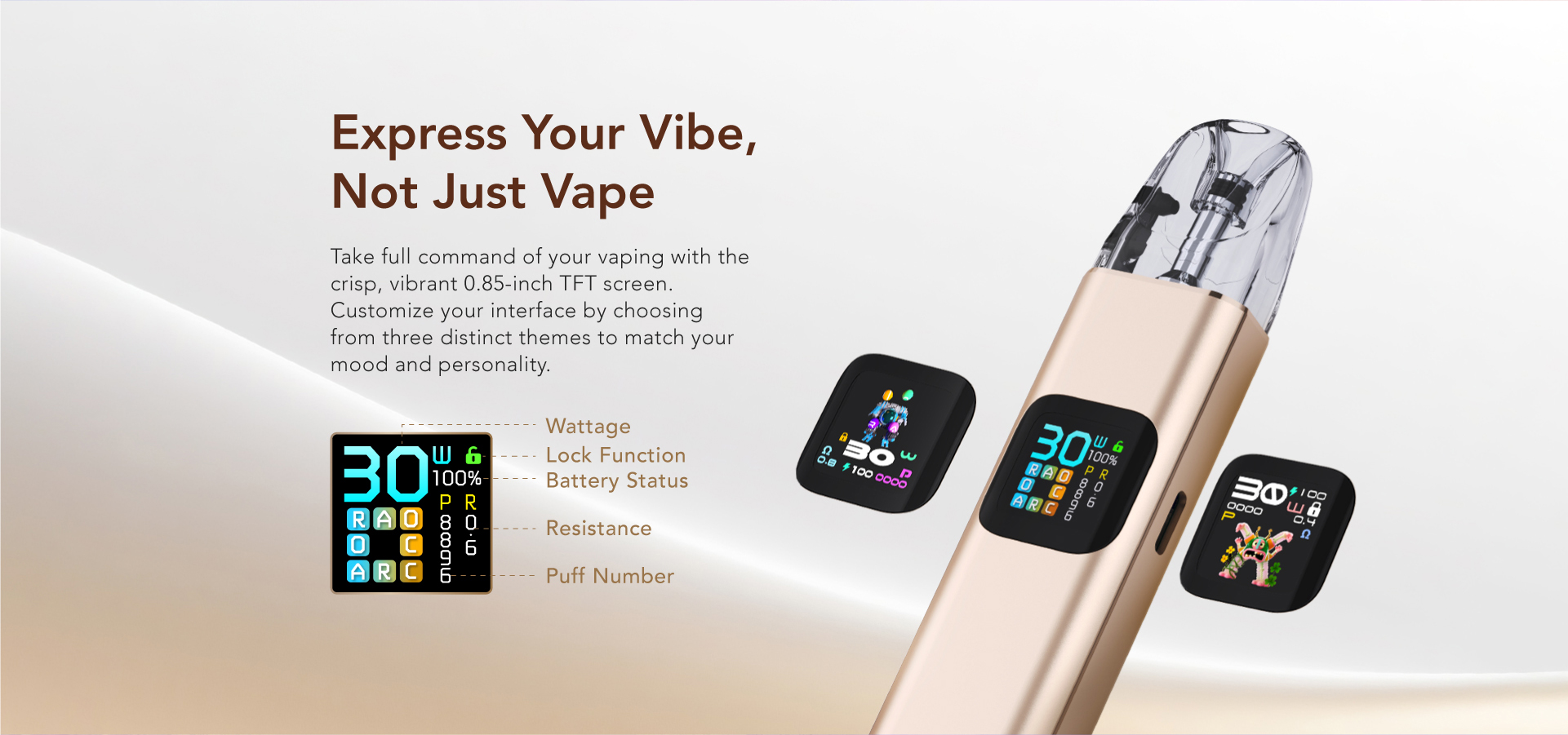

Display Panel
|
0.85-inch Thin-Film Transistor (TFT) Color LCD
Screen
|
|
Airflow Control System
|
Rear mechanical single-slider adjustable intake
|
|
Firing Mechanisms
|
Dual: Air-pressure vacuum sensor (Draw-activated) &
Physical micro-switch button
|
Atomizer & Coil Configurations
The device operates exclusively via the SMOK ARCO Replacement Pod
cartridge system.
-
Cartridge Capacity: 3.0 mL (Standard Global Markets) /
2.0 mL (TPD Compliant Variant)
-
Cartridge Material: Food-Grade
Polycyclohexylenedimethylene Terephthalate Glycol (PCTG)
-
Refill Architecture: Silicone-stoppered side-fill
port
-
Cartridge Connection: Dual-point NdFeB permanent
magnetic array
-
Internal Heating Elements: Integrated FeCrAl Mesh Coils
(Non-removable from the pod enclosure)
-
Factory Pod Options:
-
0.4 Ω Mesh Pod: Optimized for Restricted Direct-Lung
(RDL), freebase e-liquids.
-
0.6 Ω Mesh Pod: Optimized for Loose Mouth-to-Lung
(RDL/MTL), rated for 21W.
-
0.8 Ω Mesh Pod: Optimized for Mouth-to-Lung (MTL),
rated for 16W.
-
1.1 Ω Mesh Pod: Optimized for Tight Mouth-to-Lung
(MTL), high-concentration nicotine salts.

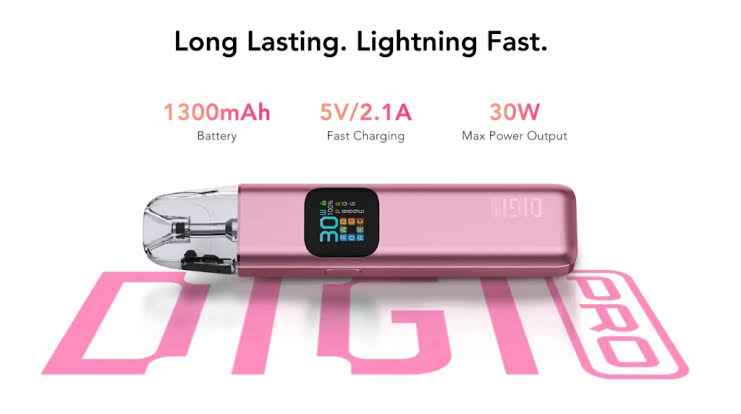

Battery, Charging & Power Management
-
Battery Cell Type: Rechargeable Lithium-Polymer
(Non-removable)
-
Nominal Capacity: 1300 mAh
-
Charging Interface: Integrated Type-C USB Port
-
Charging Voltage Specifications: 5.0 V ± 0.2 V
-
Maximum Charging Current: 1.4 A
-
Integrated Software Modes: Three preset firmware
performance curves:
-
ECO Mode: Minimizes continuous current draw to
extend cell operational cycles.
-
NOM Mode: Standard linear voltage output matched to
detected resistance.
-
MAX Mode: Accelerated pre-heat curve for immediate
thermal vaporization.
Regulatory & Safety Parameters
-
Hardware Protections:
-
Overcharge Cutoff Voltage: 4.425 V ± 0.05 V
-
Over-discharge Protection Cutoff: 2.8 V ± 0.1
V
-
Short-Circuit Isolation Protection: Integrated
circuit interrupt below 0.3 Ω
-
8-Second Inhalation Cutoff: Automatic power
termination to prevent thermal runaway.
-
Basic Target Compliance Standards: CE, RoHS, WEEE, and
TPD (2ml variant configuration).
Manufacturing & Engineering Advantages
-
Precision Extrusion Molding: The PC/ABS composite frame
prevents structural cracking during mechanical stress tests
while lowering overall logistical shipping weights.
-
Segmented Fluid Isolation: The internal pod cavity is
designed with lower condensation traps to separate air intake
channels from electrical contact points, reducing liquid
ingress failure rates.
-
Firmware Efficiency: The proprietary chipset utilizes
synchronous rectification to maintain power output consistency
even as battery voltage falls below 3.6V.
OEM/ODM Customization Services
We offer specialized production services for high-volume
distributors and private label brands:
-
Custom Brand Placement: Silkscreen, laser-etching, or
IMD (In-Mold Decoration) logo integration on the external
chassis.
-
Colorway Engineering: Custom Pantone matching for
plastic injection moldings (Subject to Minimum Order
Quantities).
-
Firmware Modification: Customized boot screens,
exclusive UI color themes, and restricted wattage
presets.
-
Packaging & SKU Adaptation: TPD-compliant packaging
layouts, multi-lingual instruction leaflets, and custom
wholesale master carton configurations.
B2B Frequently Asked Questions (FAQ)
Q1: What is the Minimum Order Quantity (MOQ) for OEM branding
requests?
A: Standard factory colors require a minimum order of 1,000 units
per colorway. Fully customized structural finishes or custom
firmware setups require an MOQ of 5,000 units per production run.
Q2: Are the replacement pod cartridges packaged with the starter
kits?
A: Yes. Factory configurations include two replacement cartridges
inside the box. Bulk replacement pod packs (3 pods per box) are
invoiced and shipped separately.
Q3: What certifications are available for customs
clearance?
A: Complete CE, RoHS, and MSDS (Material Safety Data Sheet)
documentation for the lithium battery cells can be provided to
your logistics forwarder upon deposit validation.
Q4: How does the smart resistance detection function handle power
distribution?
A: The internal chipset reads the resistance of the installed pod
immediately upon contact. It automatically sets a safe maximum
wattage threshold to prevent the end-user from burning the coil
element.
