MOQ | 1 pc |
Port | Shanghai, Yiwu, Ningbo |
Packaging | 1pc in carton |

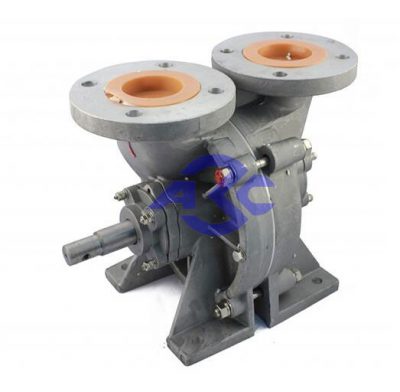

Self-priming pump CBH-80 and its units (hereinafter referred to as pumps or units) are designed to pump liquids without mechanical impurities. Pump CBH-80 is designed to pump the following liquids: water, gasoline, kerosene, diesel fuel and other liquids with a viscosity of not more than 2×10-6m2/s at a temperature from -40̊С to +50̊С and a density of not more than 1000 kg/m3.
Symbol of a pump or electric pump unit:
C – self-priming(самовсасывающий);
B – vortex (вихревой);
H-pump (насос);
80- DN inlet and outlet pipe, mm
The main technical characteristics of the pump are shown in Fig . 1 and in Table 1 at testing it on water at a temperature of 20 °C and a rotational speed of 1450 rpm.
The choice of the recommended operating interval for the performance of pumps is carried out according to Fig.1.
Table 1 – Specifications of Pump CBH-80
Model | CBH-80 |
Rated pump power, W | 7500 |
Voltage, V | 380 |
Rotation frequency, s-1 (rpm) | 1450 |
Direction of pump rotation | Right or Left |
Supply,m3/h | 30 |
Rated head, m | 26 |
Self-priming height, not less than, m | 6.5 |
Self-priming time, no more than, s | 120 |
Permissible duration of self-priming, no more than, s | 300 |
Leakage through the mechanical seal, not more than cm3/h | 30 |
Electric motor power, kW | 11 or 15 |
Pump weight | 19kg |
