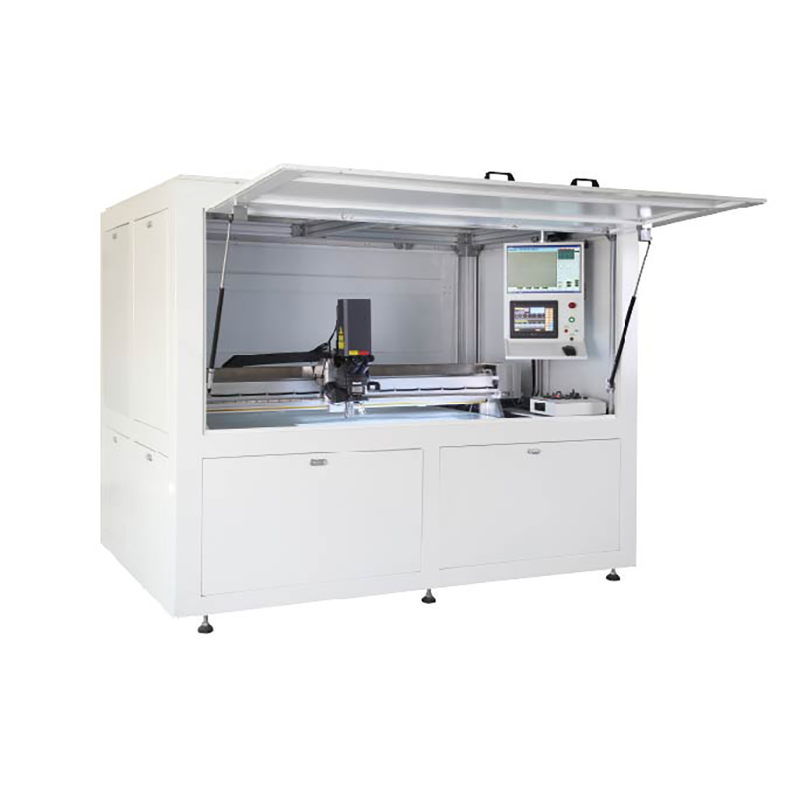

S-LCD Series LCD/OLED Panel Laser Repair System

Name: S-LCD Series LCD/OLED Panel Laser Repair System
Brand: Qingdao Terahertz Electronic Technology Co., Ltd.
SKU: Tradewheel_2750377
Price: 1000000000 USD
Availability: InStock

FOB Price 1000000000 - 1000000000 USD / sets

Contact Now

Quick Details (View All)

warranty	/	customized support	OEM
place of origin	Shandong, China	brand name	SALUKI
model number	S-LCD Series	power	/
Electricity Demand	220V,50~60Hz	Control Method	Full-Automatic

Product Details

Products Description

S-LCD series laser repair equipment is a kind of repair equipment to repair the defects and defects in the production process of display screen, so as to improve the yield of the process. With the leading machine vision system of saluki as the core, the equipment can provide high-precision and low-cost solutions for the defects of LCD finished products and semi-finished products, so as to improve the business efficiency to a greater extent.
Application direction:
OLED/LCD panel within 20 “55” and 70 “highlights and abnormal repair.

Key Features
Stable repair results
Super-fast repair speed
High-precision control platform
Feature-rich software
Minimal damage
Repair defects in panel production
Bright dot / Bright line / Dark line / Cross line etc fault defect repair
Selective remove specific materials without damaging the underlayer
Laser minimum machining accuracy 1*1μm
up to 120 inches panel

Specification

Model	S-LCD-70 S-LCD-55 S-LCD-20
Electricity Demand	220V, 50~60Hz
Dimension	S-LCD-70: L : 2000mmW : 1500mmH : 2000mm S-LCD-55: L : 1500mmW : 1300mmH : 1500mm S-LCD-20: L : 1200mmW : 800mmH : 1500mm
Weight (about)	S-LCD-70: 2500KG S-LCD-55: 1200KG S-LCD-20: 120KG
1. Gantry
X-Y move range	1600mm * 1000mm 650mm * 550mm fixed
Resolution	1um
Sample platform	The sample platform is Fixed in the Gantry design (S-LCD-70/55) X-Y travel range 8″ * 8″ (S-LCD-20)
Light source	Top light and bottom light
2. Microscope
Travel range	1600mm * 1000mm * 50mm 650mm * 550mm * 50mm z axis travel : 50mm
CCD pixel	50W (Analog) / 200W (Digital) / 500W (Digital)
Eyepiece	10X Eyepiece
Objective lens	Configuration objective: 5X, 10X, 20X, 50X,100X (optional)
Objective changer	Manual / Motorized turret nosepiese unit
Focus	Maunal or Motor-driven
3. Laser
Wavelength	Wavelength selectable: 1064 / 532 / 355 / 266nm
Energy	Output power : 2.2mJ / pulse
Machining capability	Machinable material：CR / Al / ITO / NI / TFT / RGB / Poly Silicon / MO / SIN / CF internal impurities, etc.
Machining accuracy	Minimum machinable accuracy 1*1μm (when configuring 100X lens)
Cooling-down method	Air-cooled laser or Water-cooled laser (Optional)

Ordering

Main Machine
Module No.	Item.	Description
S-LCD-70	LCD/OLED Panel Laser Repair System	Electricity Demand: 220VC, 50~60Hz; Weight (about): 2500 kg; Dimension: 2000mm1500mm2000mm (LWH).
S-LCD-55	LCD/OLED Panel Laser Repair System	Electricity Demand: 220VC, 50~60Hz; Weight (about): 1200 kg; Dimension: 1500mm1300mm1500mm (LWH).
S-LCD-20	LCD/OLED Panel Laser Repair System	Electricity Demand: 220VC, 50~60Hz; Weight (about): 120 kg; Dimension: 1200mm800mm1500mm (LWH).
Optional Accessories
Module No.	Item
S-LCD01	Control box with joystick
S-LCD02	Special LCD laser repair lens

Please inquire for actual price and details!

All prices do not include options, please consult for details！

Product packaging

Safe and Clean Packaging!

The company strictly according to the standard process for packaging products, ensure transportation safety.

Estimated packaging information (for reference only and is subject to the actual situation.)
Net Weight	Please consult for details!	For 1unit
Gross Weight	Please consult for details!	For 1unit
Dimension	Please consult for details!	For 1unit

Professional logistics

We cooperate with international professional logistics companies to deliver the goods to you quickly and safely.

FAQ

Q: What is the warranty time?

A: Components such as cables, calibration kits, adapters, etc. are generally warranted for 1 year, and test instruments are warranted for 2-3 years. Please consult us for details.

Q: Whats your company MOQ?

A: Most products have a minimum order of 1 piece. Please consult for details.

Q: Whats your delivery time?

A: Please ask us first if we have stock. Products in stock can be shipped immediately after receiving payment. For products out of stock, it usually takes 2-3 weeks for components and 4-8 weeks for test equipment. Please consult us before purchasing.

Q:How do you solve after sale service?

A:We will first let our engineers guide you to repair the machine online, and we can send you the spare parts if you need them. If the machine cannot be repaired online, you can send it back to us.

Q: Can your company accept customize?

A: Some machines can, some cant. Please ask for details.

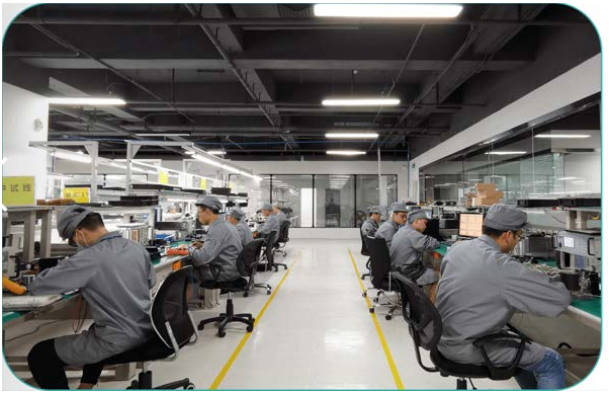

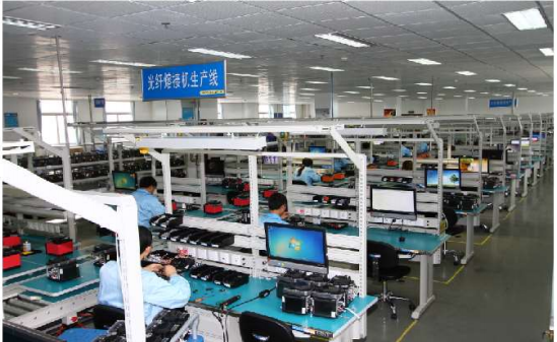

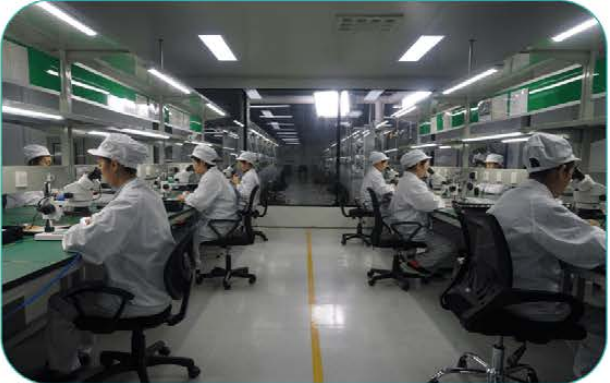

Company Profile

Qingdao Terahertz Electronic Technology Co., Ltd. is a high-tech company specializing in High-end RF&MW Test Equipment, General Test Equipment, Lab Equipment and Optical Communication Equipment. With over 20 years of experience, we can provide you with complete test and measurement solutions.

At the same time, we have rich experience in overseas sales. At present, the company has exclusive agents in South Korea, Turkey, and stable partners in markets of countries like Canada, Germany, the United States, the United Kingdom, Finland, Poland, Indonesia, Israel, Vietnam, and South America

Certifications

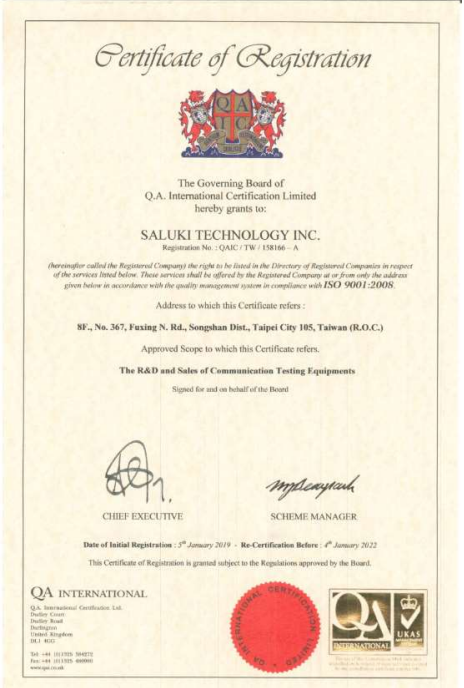

*Company Certificate

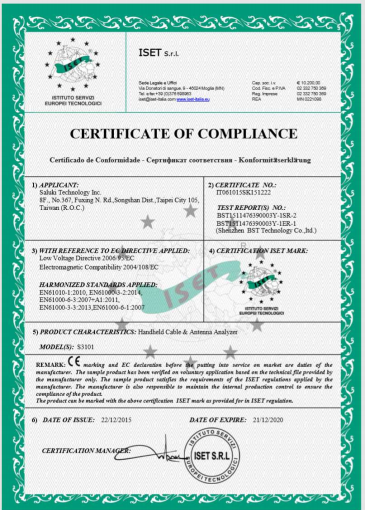

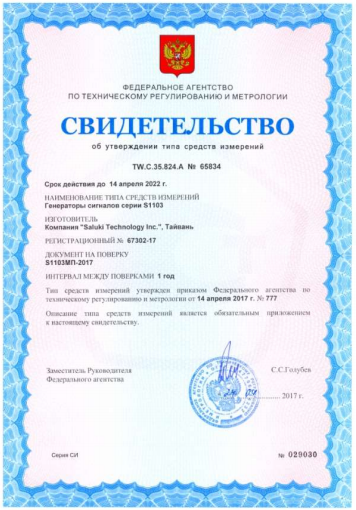

*Product Certificates

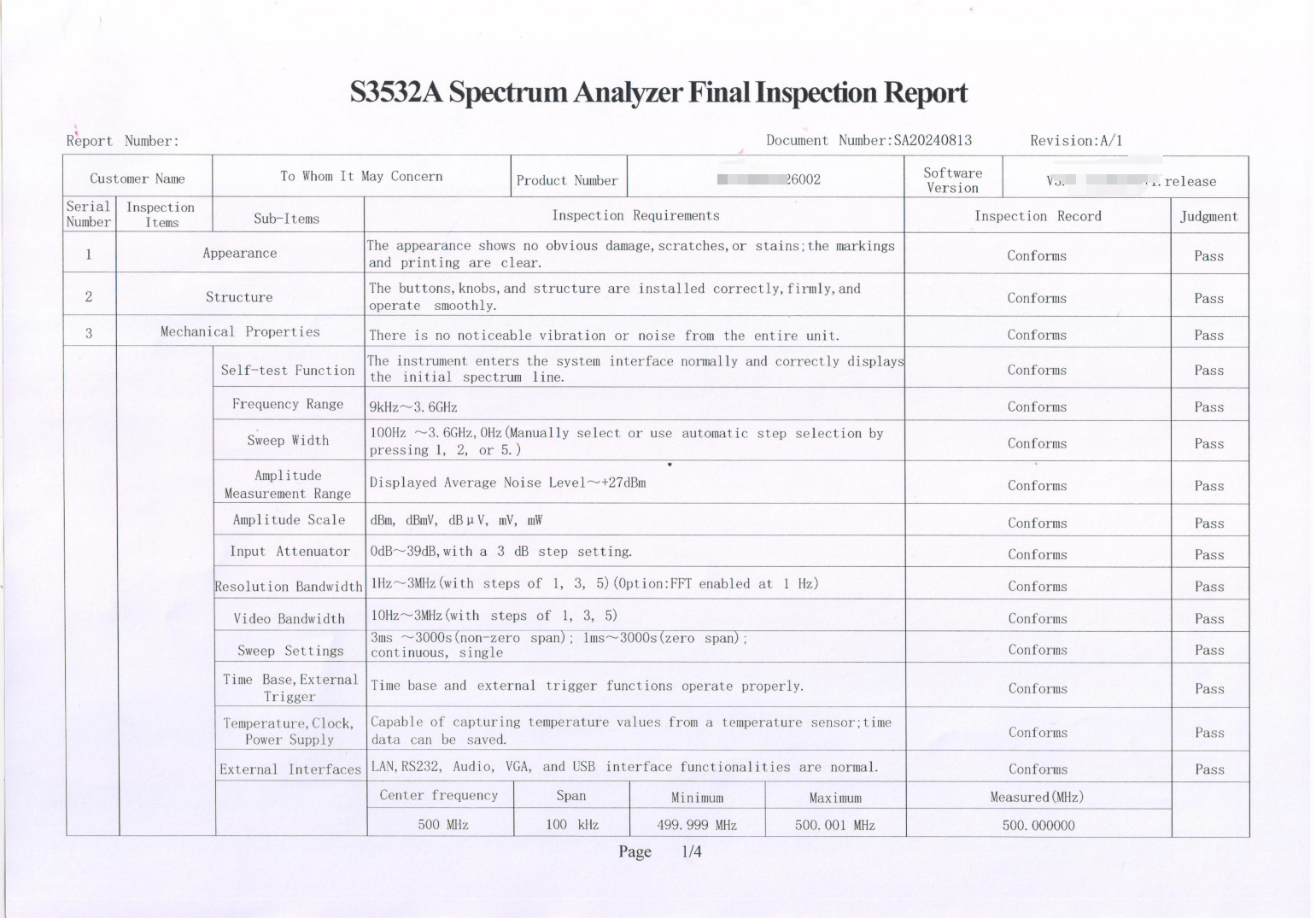

Test Report

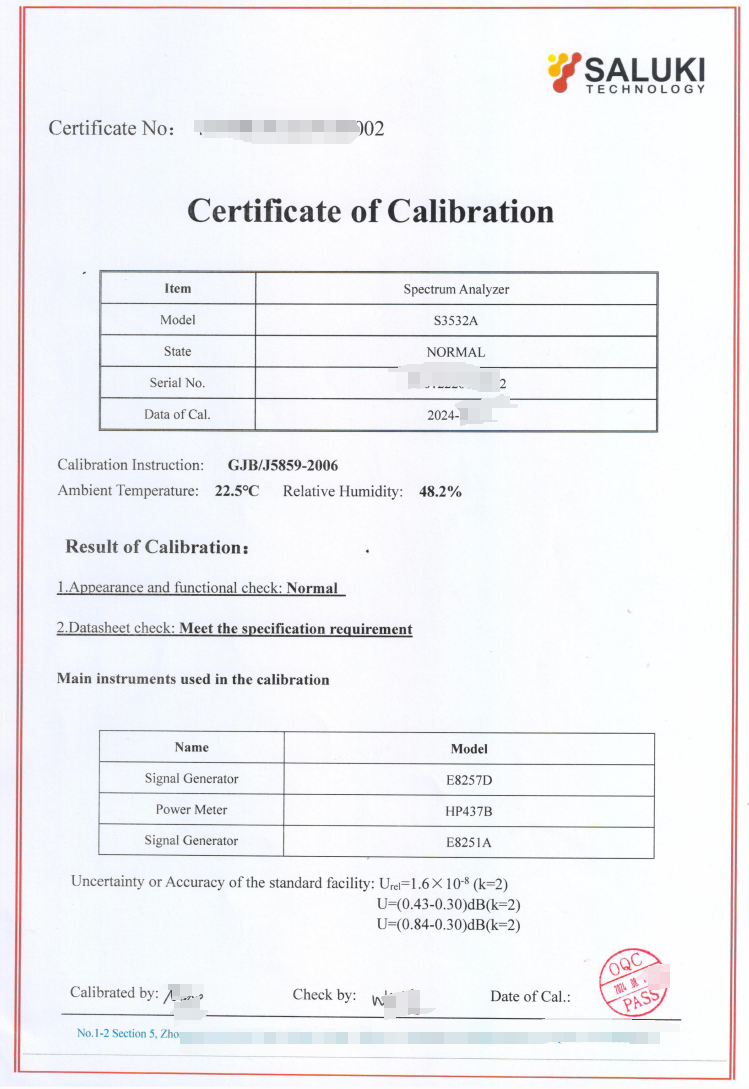

Calibration Certificate

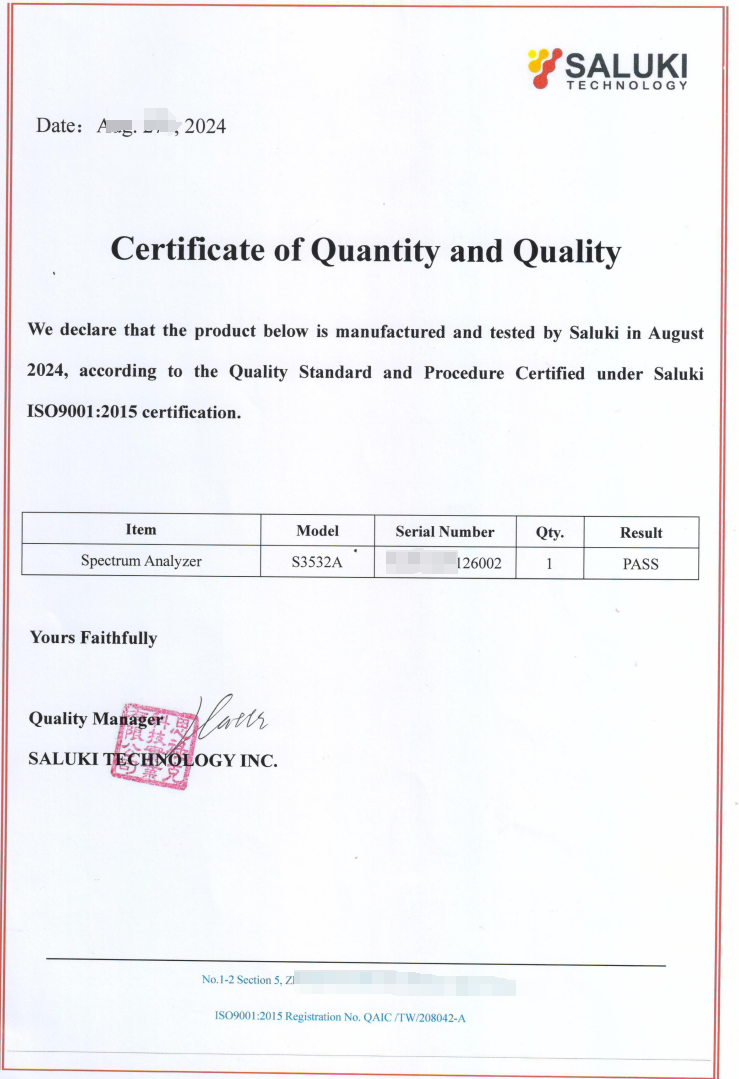

Quality Certificate

Exhibition

We participate in exhibitions and hold many seminars all over the world.

Typical user and customer reviews

Trusted by Universities and Research Institutes Around the World!

* The Hong Kong Polytechnic University
* Uppsala University
* Universidad de Buenos Aires
* Universität Regensburg
* University of Silesia
* Rice University
* Weizmann Institute of Science
* Northeastern University
* University of Wisconsin-Madison
* University of Massachusetts
* Stanford University
* Massachusetts Institute of Technology
* University of Texas at Austin
* City University of Hong Kong
* Sciencetech Inc
* Leibniz Institute for Tropospheric Research

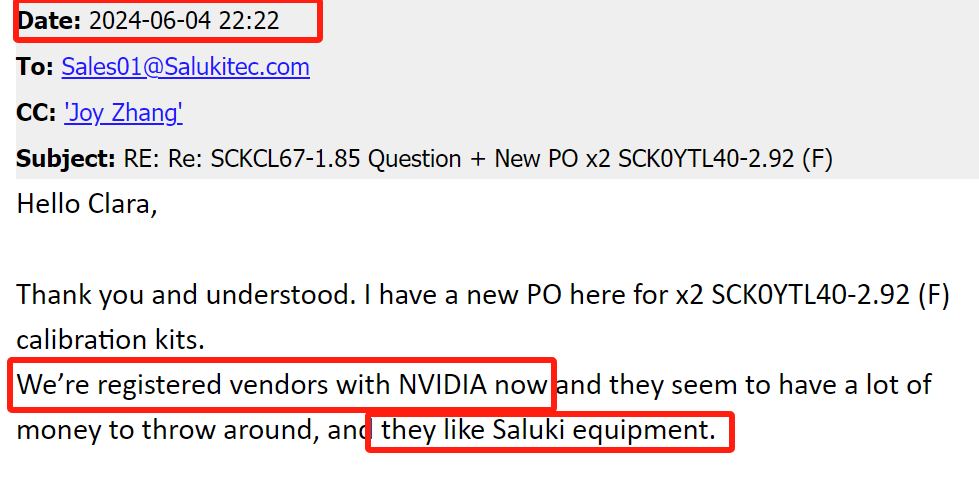

Received good reviews from NVIDIA!
