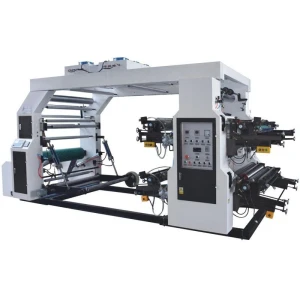

RYL-41000 Paper Flexographic Printing Machine

Product Details

RYL-41000 Paper Flexographic Printing Machine

Main Parameter

Unwind Unit:

A：Max. Length of Roller: 1050mm

B：Max. Length of Effective Roller: 1000mm

C：Dia. of Roller: 76mm

D：Max. Dia. Of Unwind: 1000mm

E：Type of Unwind: Magnetic powder with auto. tension, Air shaft, EPC deivce, Pneumatic type

Traction Unit:

A.：Constitution of Traction: Rubber Roller and Chrome plated Roller

B：Traction Zones: 3

Printing Unit：

A：Constitution of Printing: Chrome plated Roller, Rubber Roller, Anilox Roller with doctor blade, Plate-glued roller

B：Girth of Pressing Roller: 200-1000mm

C：Material of Plate: Resin and Rubber

D：Principle of Work: Helical Gears Drive

E：Plated-glued roller adjusting: Pneumatic type

F: Anilox roller: Ceramic Anilox roller: 1pc/per color

Heating and Drying Unit：

A：Type of Heating and drying: blowing first then heating

B：Heating Zones: Heating Tubes 7zones

C：Power of Heating: 14kw

D：Assistance of Drying Length: 1m

E：Small Fan：17pcs

F：Power of Fan：35w/pc

Electrical Parts：

A: Main motor: 3kw

B：Ink-Transfer Motor: 15w*4pcs

C：An speed adjustable Inverter Equips With the Main Motor

Double Rewind Unit：

A：Max. Length of Roller: 1050mm

B：Max. Length of Effective Roller: 1000mm

C：Dia. of Roller: 76mm

D：Max. Dia. of Wind: 1000mm

E：Type of Rewind: Surface rolling
