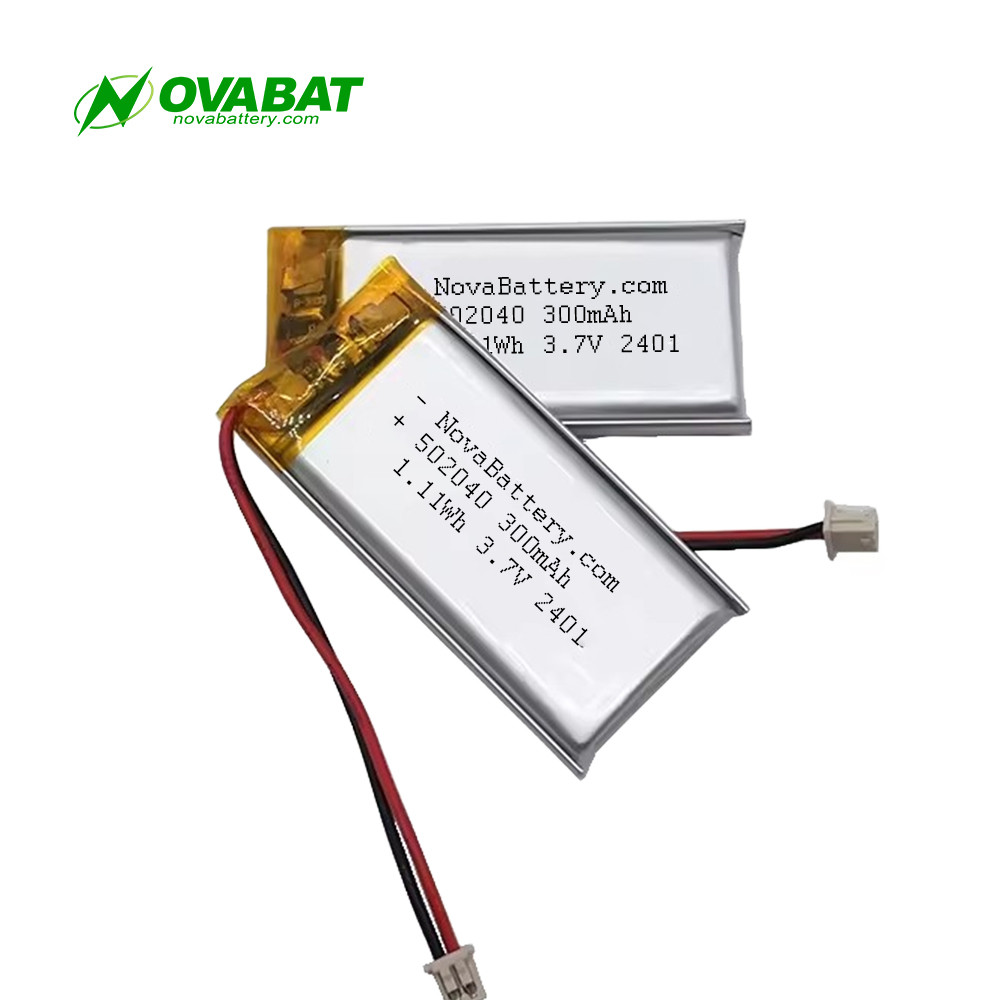

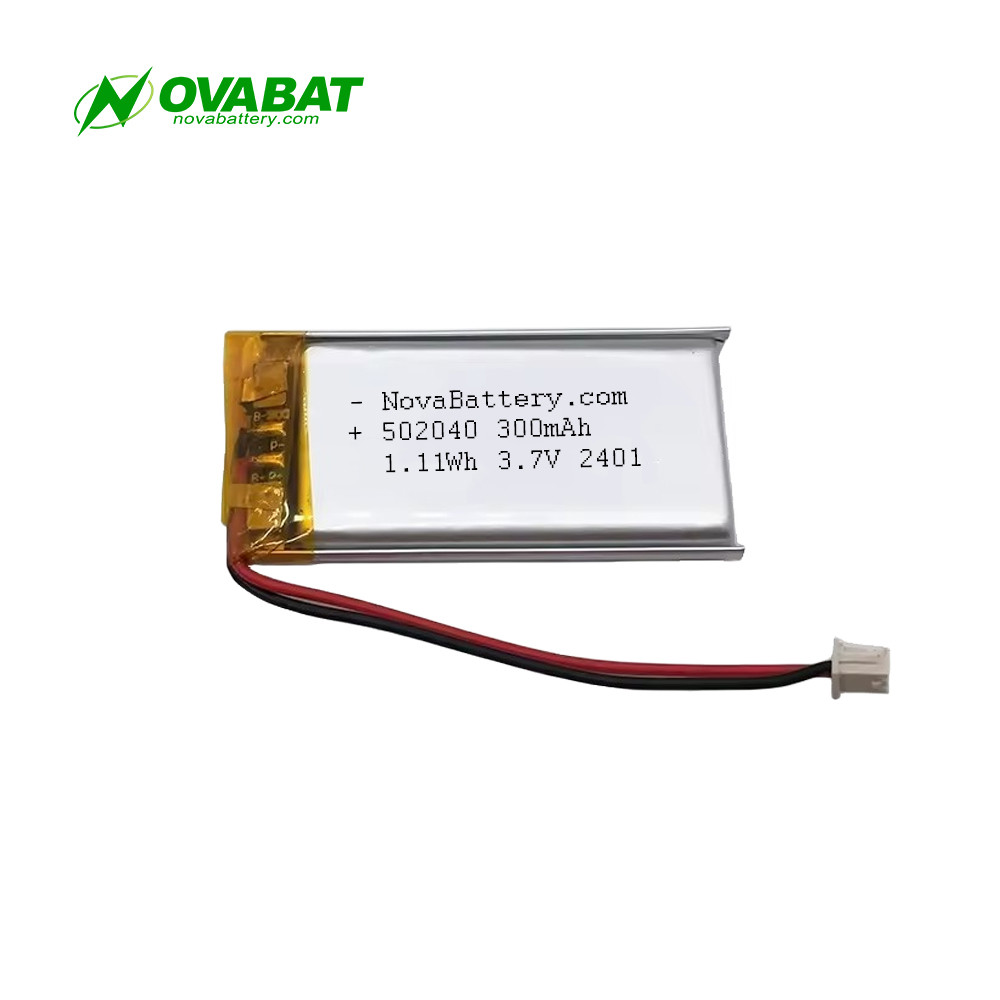

Rechargeable LiPo Battery 502040 3.7V Lithium Polymer Li-polymer Battery 502040 300mah mp3 player Toy Led Lithium Ion Battery

Contact Now

Brand Name	NOVAPLUS	Model Number	NV-502040P
Battery Size	502040 300mAh 3.7v	Place of Origin	Guangdong, China
Weight	6g	The charging ratio	0.5C
The discharge rate	1C	Storage Type	0-45 u00b0c
Anode Material	NCM	Application	Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Stora
Electric Energy	1.11 Wh	Capacity	300mAh
Voltage	3.7volt	Cycle life	above 500 cycles
OEM/ODM	Accepatable	Battery cell	Novaplus, with PCB Circuit
Charge Current	0.2C Standard/1C	Discharge rate	0.5-1C
Product name	702030 400mAh 3.7v	Chargeable	Yes
Certification	BIS, KC, CE ,ROHS, MSDS, UN38.3,ICE62133

Rechargeable LiPo Battery 502040 3.7V Lithium Polymer Li-polymer Battery 502040 300mah mp3 player Toy Led Lithium Ion Battery

Item	Details
Energy	Nominal Voltage	3.7V
	Rated Capacity	300mAh
	Energy	1.11Wh
	Cycle life	>550 cycles @0.2C 100%DOD
	Battery type	Li-polymer
	Internal Resistance	≤90mΩ
Electrical Parameters	Standard charge current	0.5C
Charge	Maximum charge current	1C
	Charge voltage	4.2±0.2V
	Charge cutoff Voltage	4.2V
Discharge	Standard discharge current	Constant current 0.2C
	Maximum continuous discharge current	1C
	Pulse discharge current	2C
	Discharge cutoff voltage	3.0±0.2V
Temperature condition	Working temperature	-25~60℃
	Charge temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
	Discharge temperature	-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
	Storage temperature	Less than 3 months:-20°C~ 45°C; Less than 1 year:-20°C~ 25°C
Mechanical	Combination	1S1P

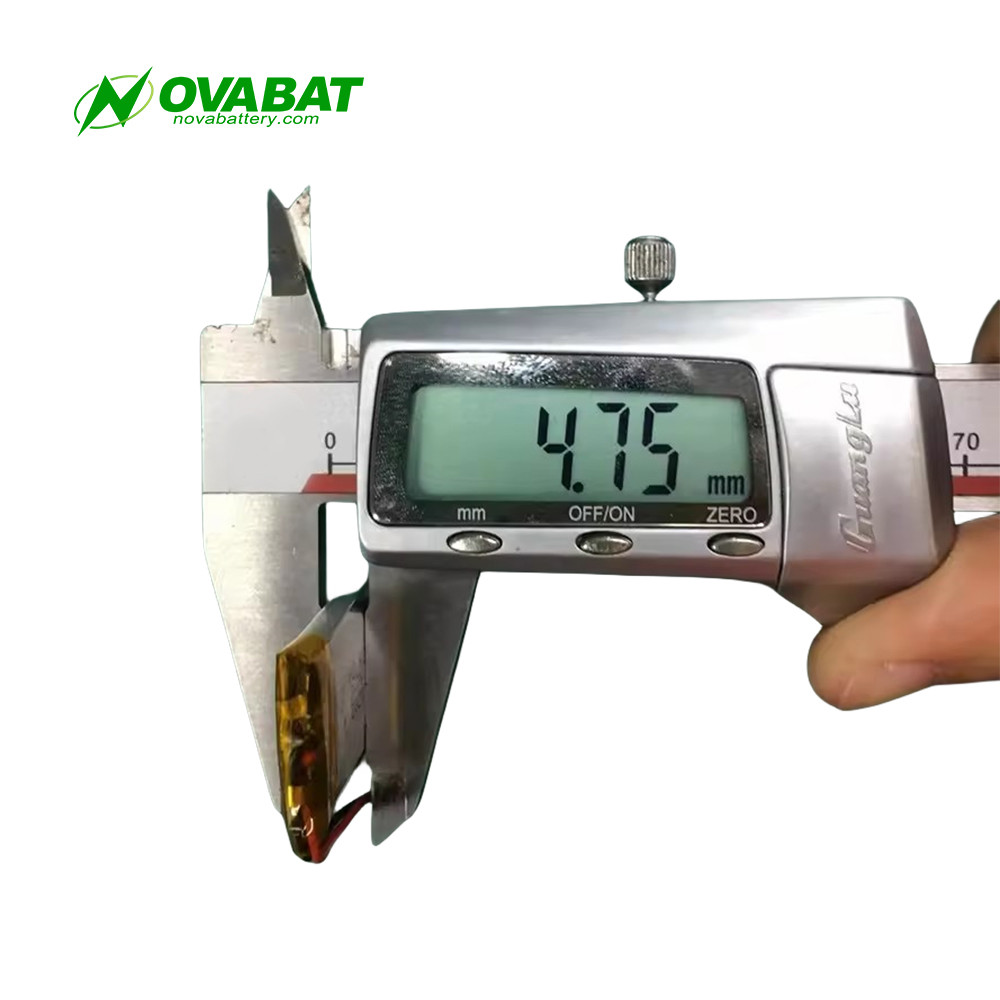

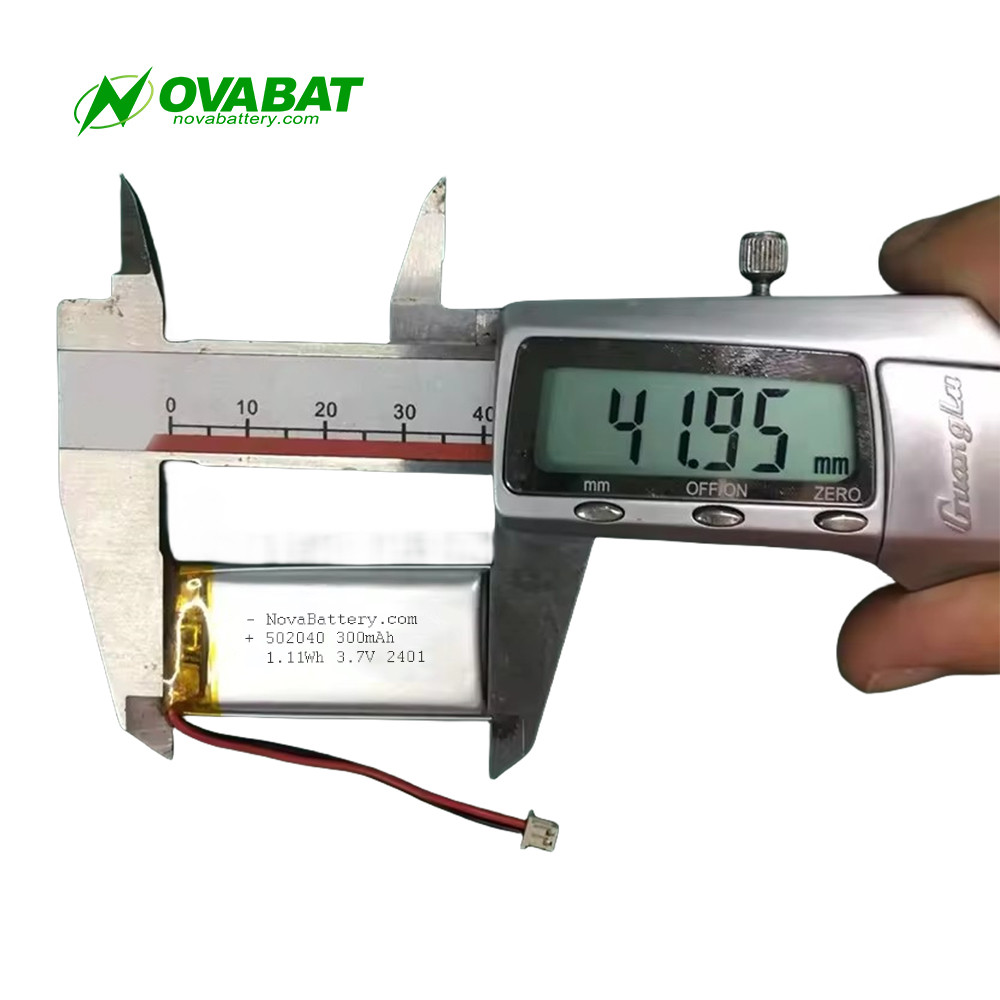

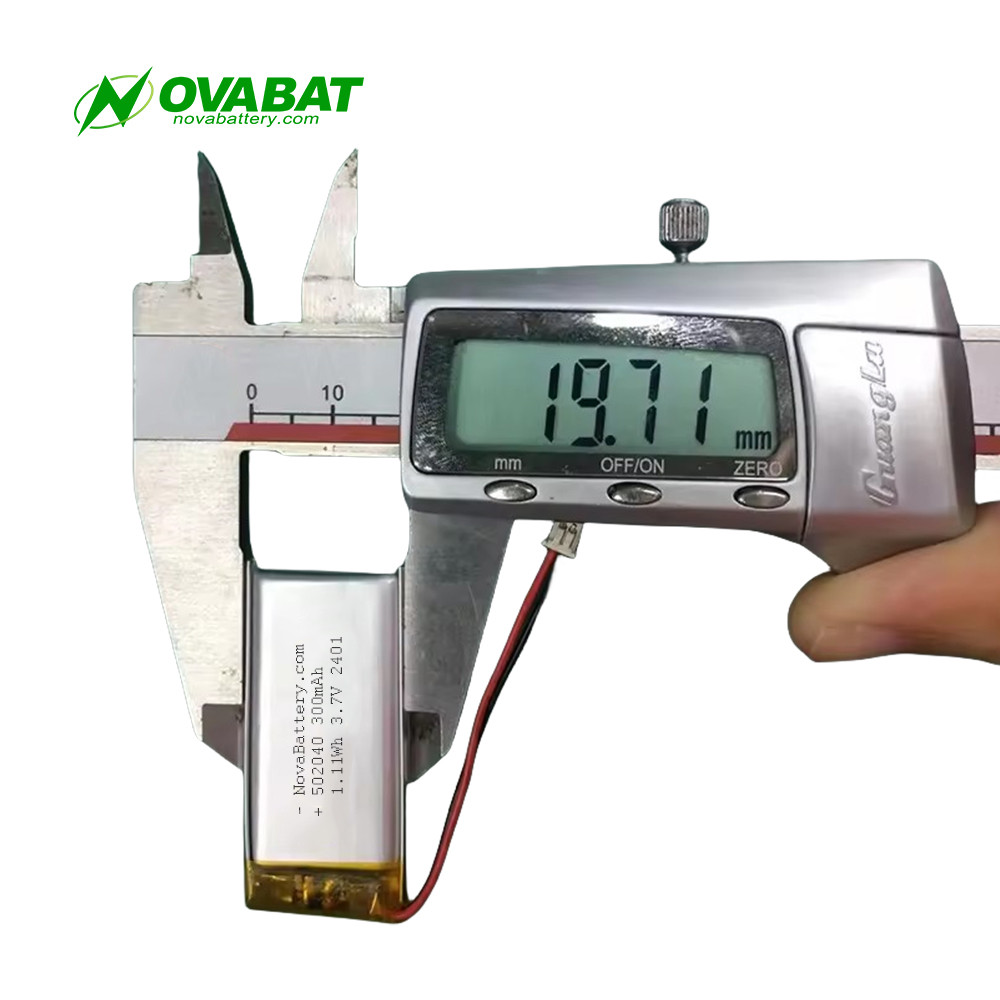

	Max. Dimension	T5W20L42mm/PCM inclu.
	Housing	PVC/Aluminum foil
	N.W.	6g
	PCM	Included
	Cable,Connector	Included
