MOQ | 10 Piece/Pieces |
Place of Origin | Guangdong, China | Brand Name | danfos |
Model Number | TX2 | Application | General, General |
Material | BRASS | Temperature of Media | low temperature |
Pressure | Medium Pressure | Media | GAS |
Port Size | Standard | Structure | control |
Capillary | 1.5m | Tem range | -40u2103-15u2103 |
Size | 3/8*1/2 Flare/Solder | Standard or Nonstandard | Standard |
·Model

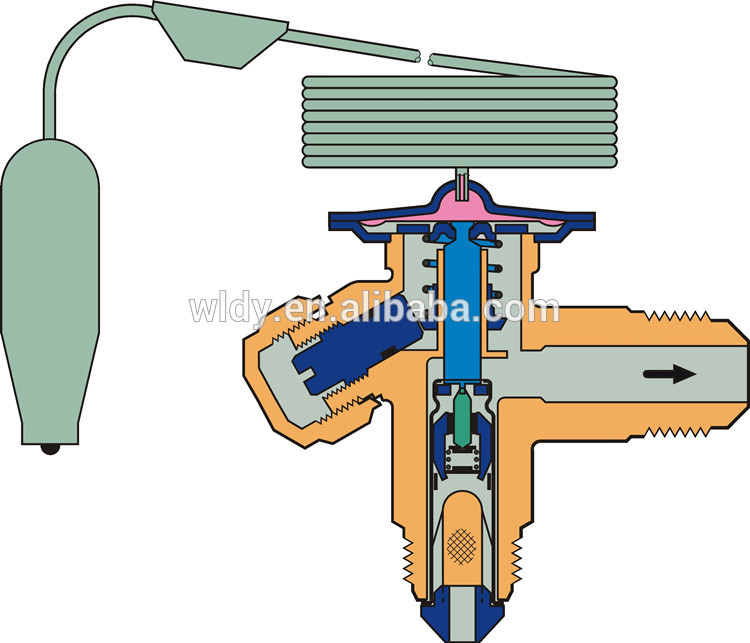

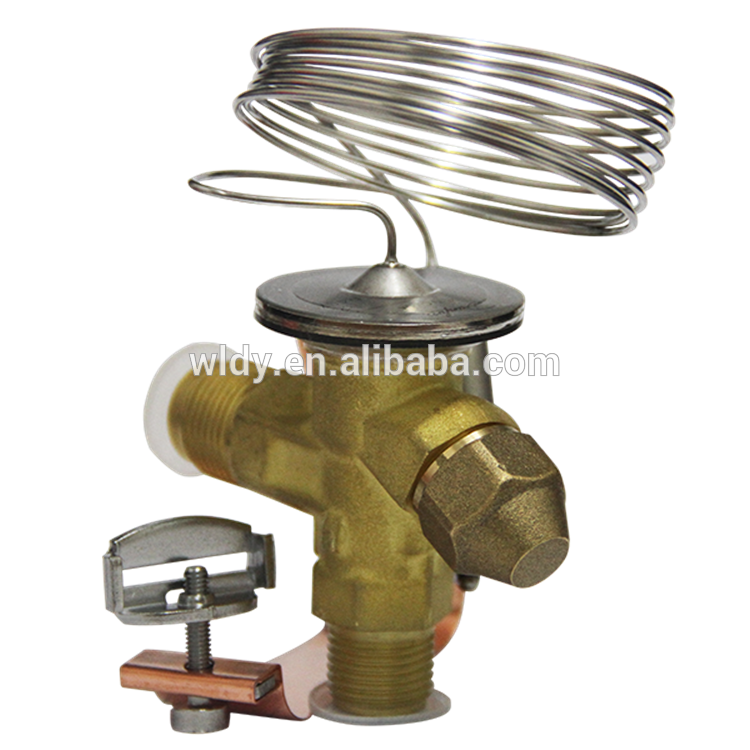

RF expansion valve is a conventional thermodynamic
expansion valve.
·Model RF expansion valve is used to regulate the liquid
refrigerant supply in the evaporator.
·Model RF expansion valve is particularly applicable to the
supply of the liquid refrigerant in the dry
evaporator.
·Model RF expansion valve functions automatic control by
the overheat degree of the refrigerant.
·Wide range of evaporation
temperature. ·
Valve with MOP function is available
·Fixed valve inside and stable
performance ·
Full stainless steel power head
·One-direction refrigeration
valve · Self-contained
100-mesh filter
·Conventional liquid charging without influence from
outside ambient temperature.
Applicable Refrigerant
|
R-22,R502,HFC-134a,R404a
|
Outside Balanced End Leakage
|
≤300ml/min
|
Applicable Evaporation Temperature
|
-25°C~+15°C
|
Valve Port Leakage
|
≤0.1MPa/10s
|
Max.Allowable Temperature
|
+80°C
|
Max.Operting Pressure
|
Low Pressure Side:1.8MPa
|
High Pressure Side;3.0MPa
|
|||
Regulation Scope of Overheat Degree
|
2°C~8°C
|
Max.Test Pressure
|
10.8MPa
|
Ex Works Static Heat 118alue Setting
|
3.5°C
|
|
|
